Mini 2 Port POE Extender IEEE 802.3af/at POE Repeater Up to 1000ft Power Over Ethernet Over Cat5/6 Cable, POE Splitter to 2 POE Devices Like IP Cameras, IP Phone, Wireless AP

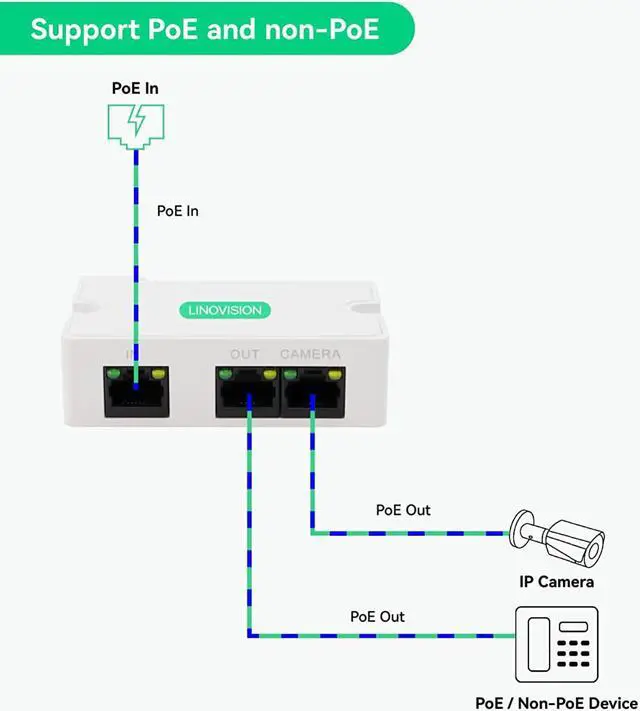

2-PORT POE SPLITTERThis 2-port POE extender is designed to supply POE power to two POE devices through one Cat5E/6 cable, and no power adapter is required. It is powered by 48V or 53V PoE Switch/POE NVR/PoE Injector/Mid-span. With this POE splitter, users can easily add extra POE device or non-POE device to existing cable without running a new network cable.

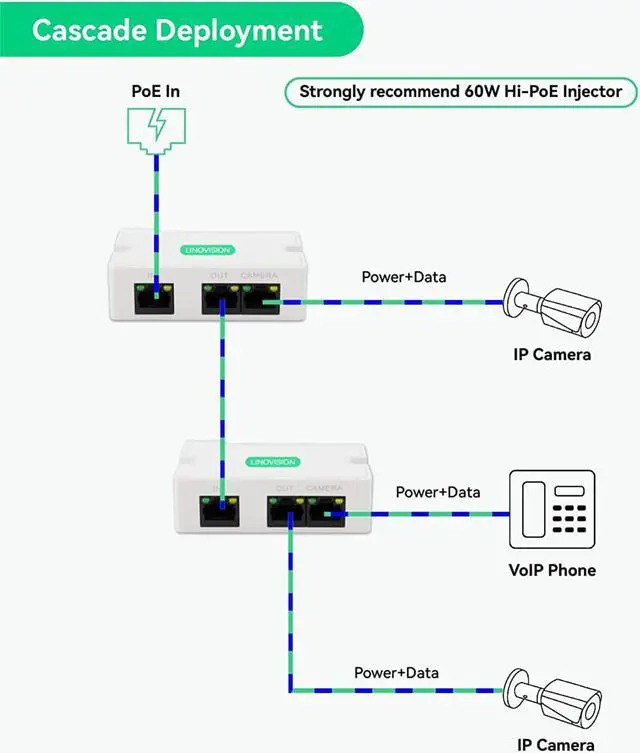

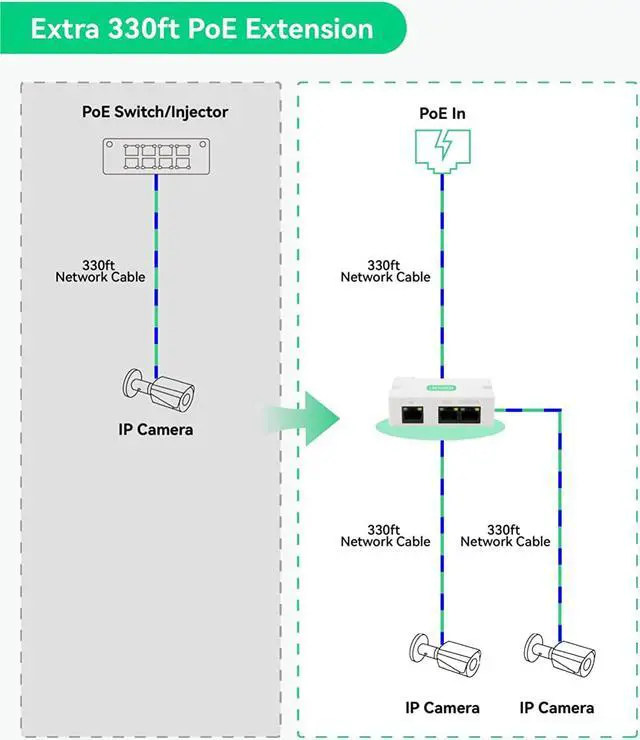

UP TO 1, 000FT POE + DATA EXTENTIONExtra 330ft POE+Data transmission will be extended with one POE Extender. And it supports two levels cascade deployment, therefore total 1, 000ft POE + Data transmission is provided. (The 2nd POE Extenders POE Input should be connected to the 1st POE Extenders Out port, not Camera port)
COMPLIANT TO IEEE 802.3AF /AT STANDARDThis POE Extender works with all standard IEEE 802.3 af/at POE Switches/POE injectors/POE NVRs. And the POE Outputs supply power to standard POE devices (don't support 24V POE Devices), like POE IP camera/IP phone/IP speaker.
Noted: The CAMERA Port supports max 8W power consumption and the OUT Port supports max 15W. The max bandwidth is 100Mbps. As the distance increases, the power and the bandwidth will decrease.

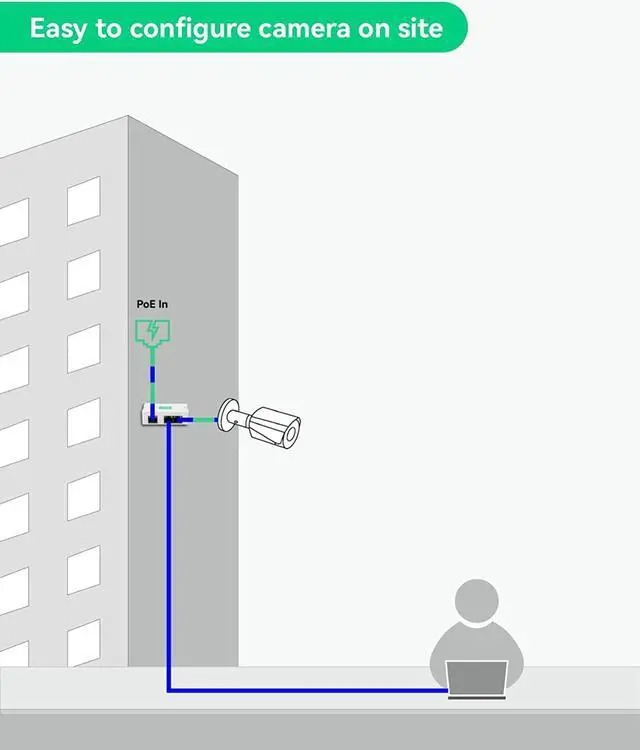

EASY TO CONFIGURE IP CAMERA ON SITEBy interting this PoE-Extender02 to an existing PoE cable, installers can use laptop or CCTV Tester to easily adjust camera angle and configure IP

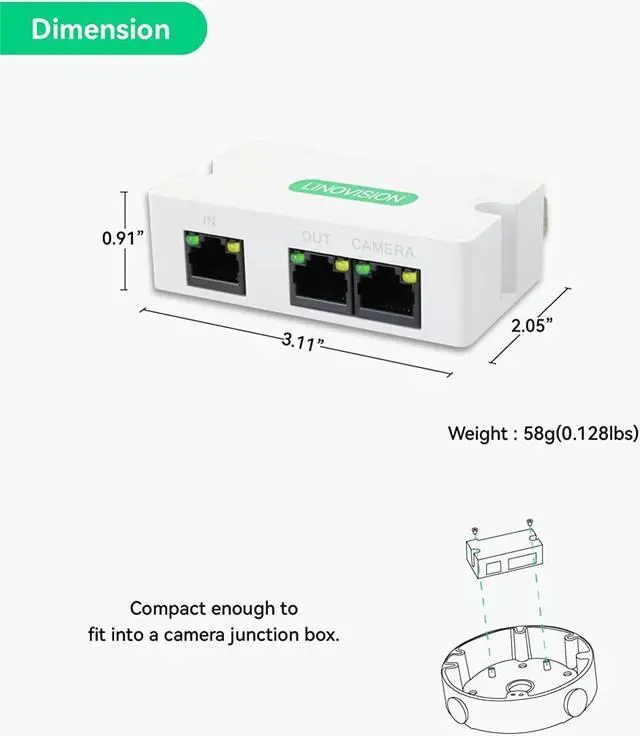

PLUG-N-PLAY INSTALLATIONPlug-n-Play, no configuration or setup is required. With compact dimension ( 3.1 * 2 * 1), enough to fit many junction boxes or outdoor waterproof enclosures.
