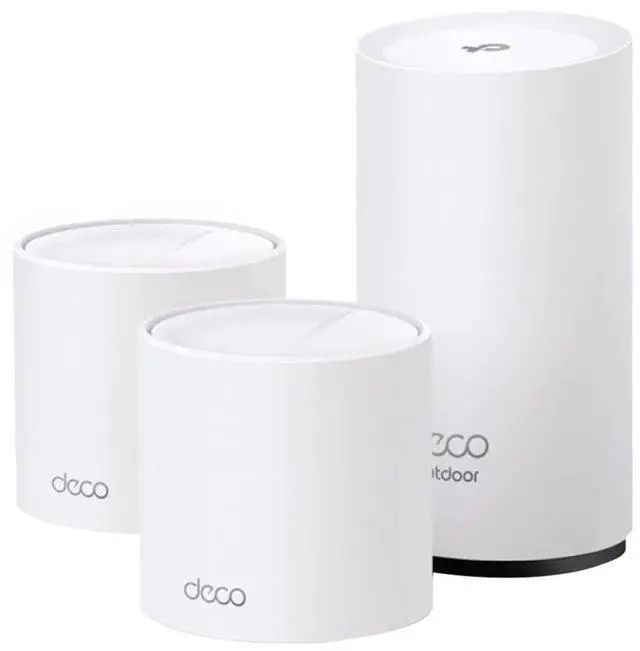

Deco AX3000 Indoor/Outdoor 3-pack

Standards

Wi-Fi 6 and below

Processors

Qualcomm 1.0GH z Dual-core CPU

Flash

128MB

Memory

512MB

Wi-Fi Frequency & Signal Rate

2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Antennas & Transmit Power

(Volume and dBm and Formfactor)

2 x internal 2.4 g&5g antennas

USB Port

No

Ethernet Ports (WAN and LAN)

Yes | 3 x Gigabit WAN/LAN for AX3000

2 x Gigabit WAN/LAN for AX3000-Outdoor

Buttons

1 reset button

LED Panel

1 status LED

Power Supply

12VDC / 1.5A, External DC power adapter for WM9000

Product Dimensions (in)

(Length x Width x Height)

4.33 × 4.33 × 4.49 in for AX3000

4.3 × 4.8 × 8.5 in for AX3000-Outdoor

Product Dimensions (mm)

(Length x Width x Height)

110 × 110 × 114 mm for AX3000

110 × 121.3 × 215.5 mm for AX3000-Outdoor1


Smart Connect (Band Steering)

Yes

Beamforming

Yes

MU-MIMO

Yes

OFDMA (WIFI 6)

Yes

TWT- Target Wake Time (WIFI 6)

Yes

BSS color (WIFI 6)

Yes

How many streams in each band

2x2 in 5GHz, 2x2 in 2.4GH z

Easy Mesh

No

Ai Mesh Enabled?

Yes

4K-QAM (4096-QAM)

No

MLO (Multi-Link Operation)

No

Multi-network

No

2FA (Dual factor authentication)

No

AP Mode

Yes

VPN Server

Yes

VPN Client

Yes

VLAN (WAN, WLAN, LAN)

WAN

Parental Control

Yes

QoS

Yes

Access Control

Yes

IPTV

Yes

IPv6

Yes

Guest Network

Yes

LED Control

Yes

Port Forwarding

Yes

USB Sharing

No

POE

Yes

Dynamic DNS

Yes

VPN Pass-Through

Yes

Cloud Management

Yes

App Name

Deco

Maximum Connected Device 2.4

128

Maximum Connected Device 5G

128

Suggested Amount of Connected Devices

Up to 150 devices

Suggested Wi-Fi Coverage

4, 500 sq. ft. for indoor

2, 500 sq. ft. for outdoor

Link Aggregation (LAN, WAN)

No

DFS

Yes

HT160

Yes

WPA3

Yes

HomeShield

Yes

Wi-Fi Smart Hub

Yes

Alexa-Custom Skill

Yes

Alexa-Native Skill

Yes

Google Assistant

Yes

IFTTT

Yes

OS (Linux or VxWorks)

Linux

Build In Ookla Speed Test

No


DoS

Yes

SPI Firewall

Yes

IP Address Filter/MAC Address Filter/Domain Filter

Yes

IP and MAC Address Binding

Yes


Operating Environment

Operating Temperature: 0~40 (32 ~104)

Storage Temperature: -40~60 (-40 ~140)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Regulatory Certifications

FCC

Package Contents

2 x Deco AX3000

1 x Deco AX3000-Outdoor

2 x power adapter

1 x AC Power Cord

1 x Quick Installation Guide

1 x RJ45 Cable

Wall/Pole Mounting Kit

Legal Disclaimers

1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

2. Clients need to support 802.11 k/v/r and may require additional set up. Performance may vary depending on the clients device.

3. Uses of WiFi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.

4. HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link. com/homeshield for more information.

5. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

6. This Deco may not support all the mandatory features as ratified in IEEE 802.11 ax specification.

7. Further software upgrades for feature availability may be required.

8. Google and Google Home are trademarks of Google LLC.
