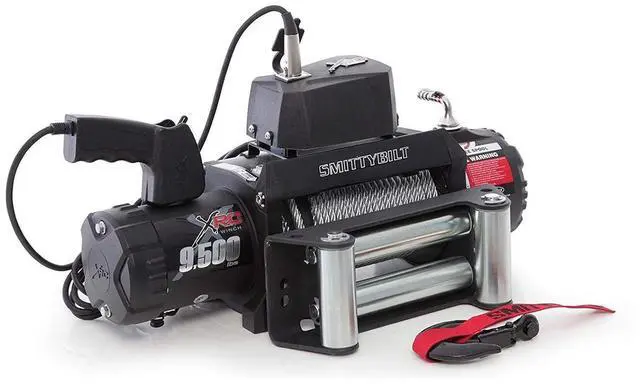

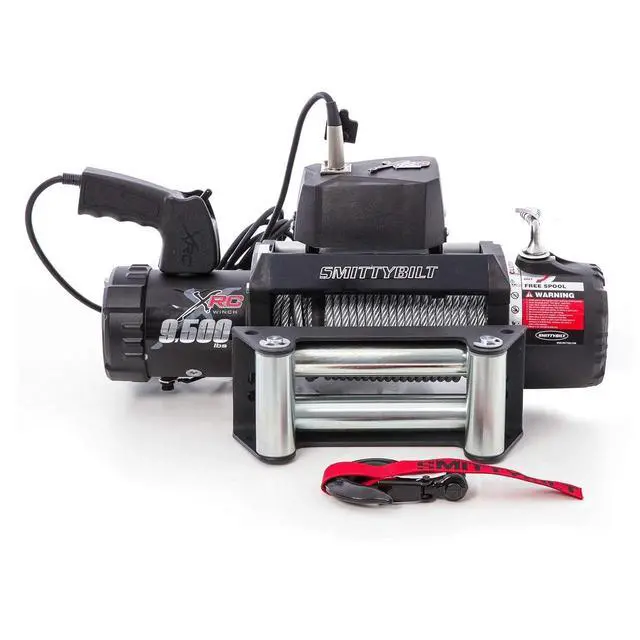

Smittybilt XRC Gen 2 9500lb Winch with Steel Cable - SB97495
- Your purchase includes One Smittybilt GEN2 XRC Winch, 97495 model with 9,500 lbs. load capacity; Winch dimensions: 22.3 L x 5.4 W x 9.4 H; Product Weight: 78 lbs.; Weight capacity: 9,500 lbs.; Cable type 93.5 diameter, Wire rope; Motor 6.6hp; Control 12 lead; Gear-train 3-stage planetary; Fairlead 4-way roller; Completely Waterproof, state-of-the-art 500AMP Solenoid; Kit comes complete with all wiring required for installation. Smittybilt recommends using supplied wiring; Smittybilt offers a limited lifetime for replacement to the original purchaser on stainless steel products. Dual-stage, powder coated products carry a 5-year or 100,000 mile warrany, whichever comes first
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
From the manufacturer Smittybilt 97495 XRC Winch - 9500 pound Load Capacity The new Gen2 series of Smittybilt XRC winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranging from 9, 50017, 500 pound, the XRC winch is a complete recovery system with the muscle and reliability to bail you out of any situation. All Gen2 XRC Winches come backed by a Lifetime Mechanical Warranty and a 5-Year Electrical Warranty.
Waterproof: IP67 Rating.
Rated line Pull (single): 9, 500Lbs (4, 309kgs).
Motor: 6.6 hp Series Wound.
Control switch: Remote Switch, 12' ( 3.7 m) lead.
Gear Train: 3-Stage Planetary.
Gear Ratio:
161.28: 1.
Clutch: Sliding Ring Gear.
Brake: Automatic In-Drum.
Drum size: Diameter 2.5" ( 63.5 mm).
Length: 10.0" (254mm).
Recommended Battery: 650CCA Minimum for Winching.
Battery leads: 22mm2, 72"( 1.83 m).
Finish: Textured Black.
Weight: 78.0 lbs ( 35.0 k).
Mounting Bolt Pattern: 10.0 " x 4.5 ".
Overall Dimensions: 20.88" (L) x 6.3" (W) x 7.4" (H).
Cable size: 94' Length 5/16" Diameter.
Mechanical Warranty: Lifetime Warranty.
Electrical Warranty: 3-Year Warranty. Buying Options Buying Options Buying Options Customer Reviews Price no data no data no data Part Numbers 10, 000 lb 12, 000 lb 15, 500 lb / 17, 500 lb XRC series #97495 #97412 #97415 / #97417 XRC COMP series #98495 #98412 n/a Three Solenoid Mounting Points About Smittybilt
Brand Overview: Few brands in the off-road industry can match the legacy of Smittybilt. For over 50 y
Waterproof: IP67 Rating.
Rated line Pull (single): 9, 500Lbs (4, 309kgs).
Motor: 6.6 hp Series Wound.
Control switch: Remote Switch, 12' ( 3.7 m) lead.
Gear Train: 3-Stage Planetary.
Gear Ratio:
161.28: 1.
Clutch: Sliding Ring Gear.
Brake: Automatic In-Drum.
Drum size: Diameter 2.5" ( 63.5 mm).
Length: 10.0" (254mm).
Recommended Battery: 650CCA Minimum for Winching.
Battery leads: 22mm2, 72"( 1.83 m).
Finish: Textured Black.
Weight: 78.0 lbs ( 35.0 k).
Mounting Bolt Pattern: 10.0 " x 4.5 ".
Overall Dimensions: 20.88" (L) x 6.3" (W) x 7.4" (H).
Cable size: 94' Length 5/16" Diameter.
Mechanical Warranty: Lifetime Warranty.
Electrical Warranty: 3-Year Warranty. Buying Options Buying Options Buying Options Customer Reviews Price no data no data no data Part Numbers 10, 000 lb 12, 000 lb 15, 500 lb / 17, 500 lb XRC series #97495 #97412 #97415 / #97417 XRC COMP series #98495 #98412 n/a Three Solenoid Mounting Points About Smittybilt
Brand Overview: Few brands in the off-road industry can match the legacy of Smittybilt. For over 50 y
