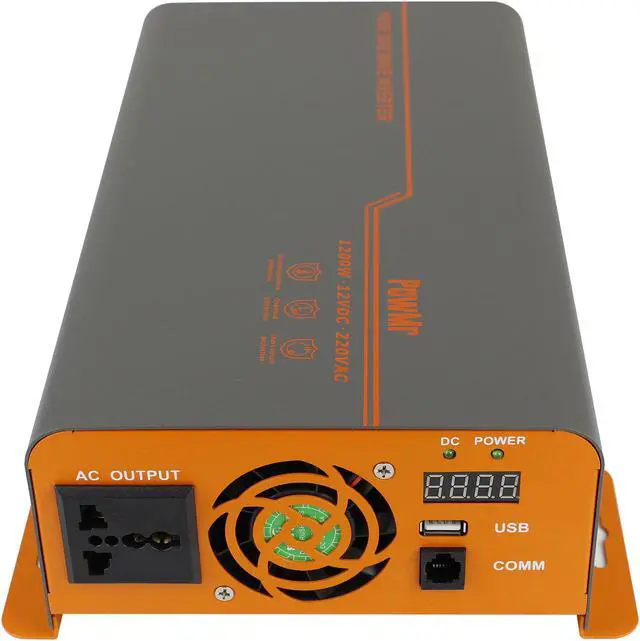

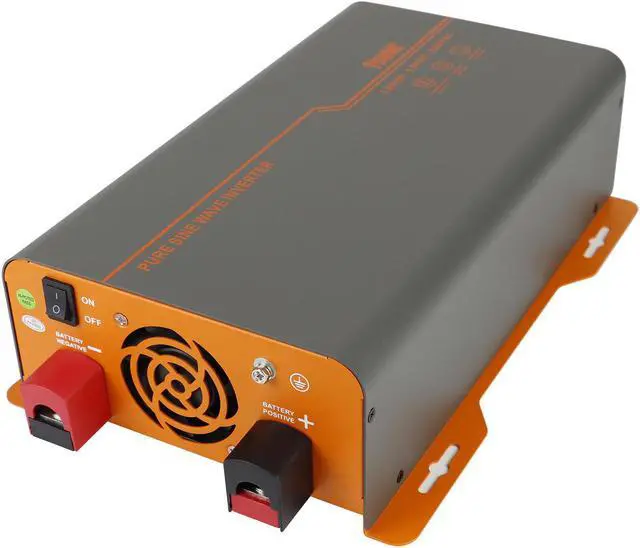

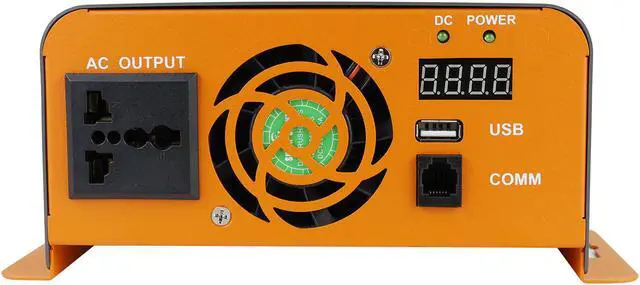

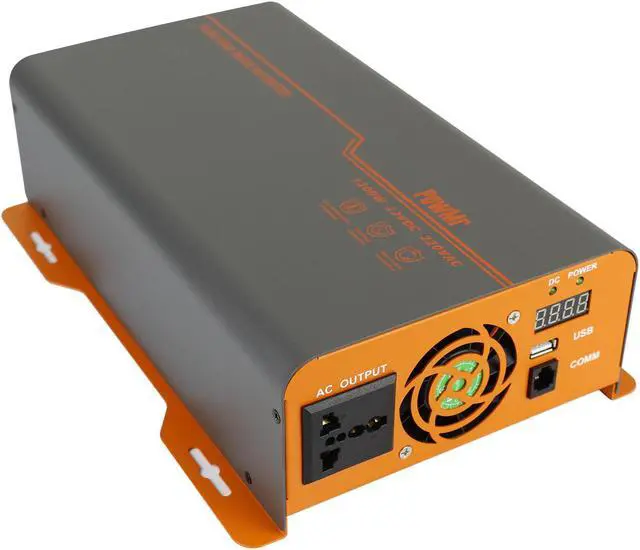

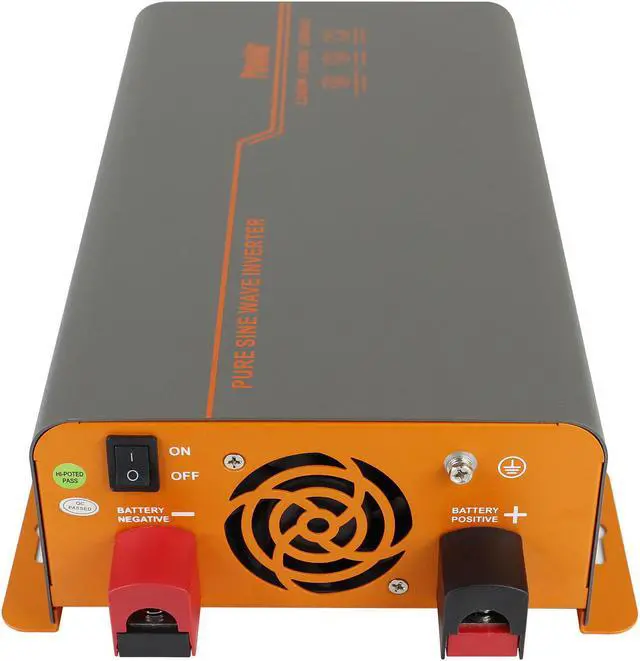

12V to 110V/220V 1200W Off-Grid Inverter Charger 1.2KW Pure Sine Wave Solar Inverter for Lead Acid/Lithium Battery Inversor

>>>Manual: Click here to open<<<

Overview

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery

charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers

user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features

1Pure sine wave

2Maximum efficiency 90%.

3Intelligent fan speed regulation: start to work when the load is greater than 600w, and the fan speed will be controlled according to the load and the internal temperature.

41Protection function: low voltage protection, charged over protection, overload protection, short circuit protection, over temperature protection.

5 Application: home, office, vehicle, yacht and other occasions.

Specification

Model

POW-LV1.2K-12V

POW-HV1.2K-12V

Input

Rated Input Voltage

12V

Rated Current

112A

Maximum Efficiency

90%

Battery Type

Lead acid/Lithium battery

AC Output

Rated Power

1200W

AC Voltage

110V

220V

Frequency

50Hz/60Hz

Waveform

PURE SINE WAVE

Input Protection

Battery Low Voltage Alarm

10.5V

Battery Low Voltage Recovery

11.0V

Battery Low Voltage Shutdown

10.0V

Output Protection

Output Short Circuit protection

After the fault is eliminated, it can be rebooted

Overload Protection

110% Load125%, 1 minuite shutdown;

125% Load150%, 30s shutdown;

150% Load, shutdown immediately;

Overload Temperature Protection

Heat dissipation temperature > 90, over temperature protection

Operating Environment
