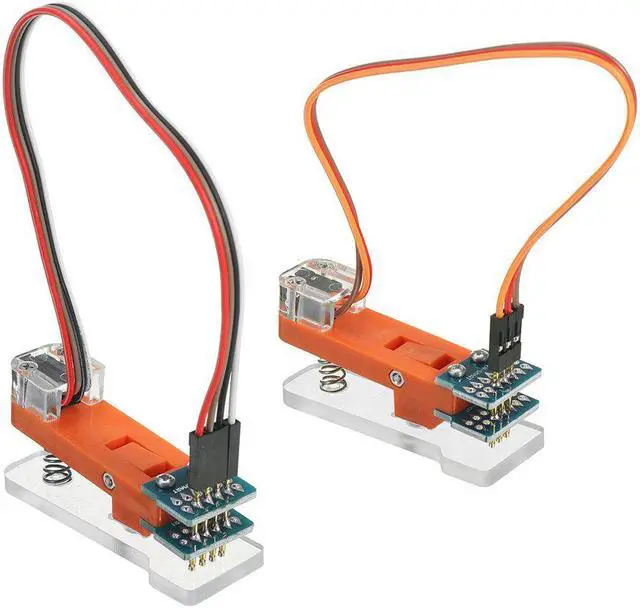

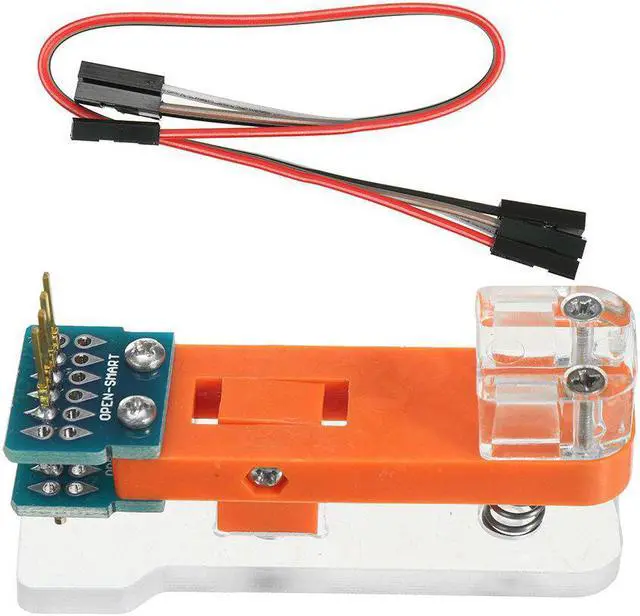

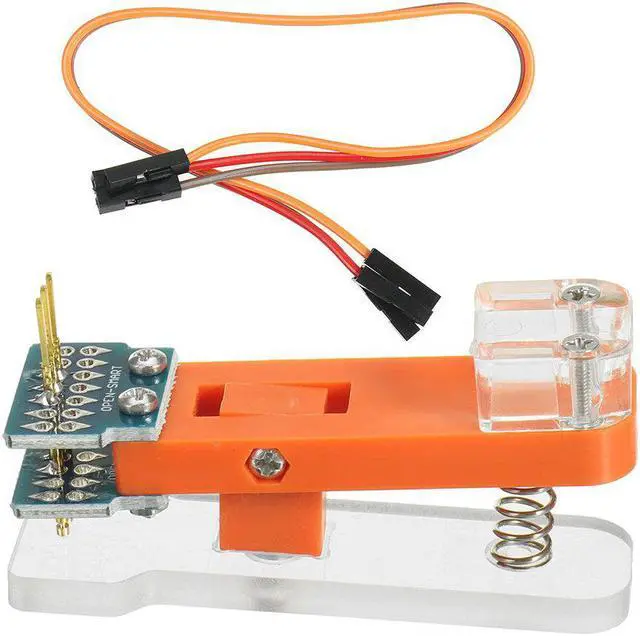

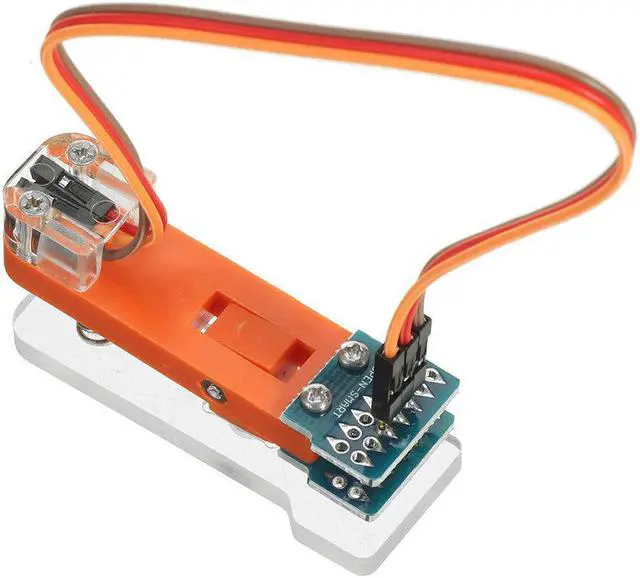

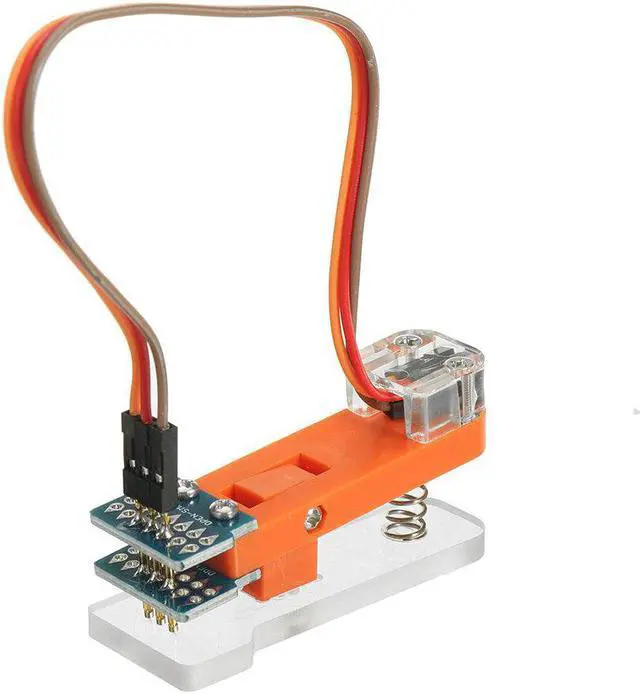

OPEN-SMART UART I2C OLED Module Test Tool PCB Test Fixture 1X3P/4P 2.54MM Pitch Gold-plated Probe
- Type:3P
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
This is a test fixture dedicated to module testing. It is suitable for modules and boards without soldering pin headers.
Feature:
-Great to test OPEN-SMART I2C OLED, I2C ADXL345 Accelerometer and other 4pin modules. (1X4P only)
-Number of Pins: 1X4P/1X3P(Optional)
-Pin pitch: 2.54mm
-Probe head type: P75-E3 (cone), gold-plated, durable
-Probe head applicable pad: through pad, surface pad
-Probe receptacle type: R75-3W
-Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable
-Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line)
-Operating current: Each pin 1A (max)
-Operating voltage: 30V (max)
Package included:
1 x Test Fixture (1X4P/1X3P optional)
1 x
20cm
3P/4P cable
