2.8" inch ESP32 Display ESP32 Development Board ESP32-2432S028R WiFi Bluetooth Resistive Touch Screen 240X320 Smart Display TFT LCD Module ILI9341 Driver
- ESP32 Display Module Support: 1. UART/SPI/I2C/PWM/ADC/DAC and other interfaces. 2. OV2640 and OV7670 cameras, built-in flash. 3.picture WiFI upload. 4. TF card. 5. multiple sleep modes. 6. Embedded Lwip and FreeRTOS. 7. STA/AP/STA+AP working mode. 8. Smart Config. 9.AirKiss one-click network configuration. 10. secondary development.
- ESP32-2432S028R Multi-function: ESP32 development board is based on the ESP32-DOWDQ6 controller, features a low-power, dual-core CPU with clock frequency up to 240MHZ. It integrates a wealth of resource peripherals, including high-speed SDIO, SPI, UART, and other functionalities.
- ESP32 Screen: 2.8" ESP32 Display resistive touchscreen. The display screen is controllable and can be used for APP remote control, remote environmental data collection, remote parameter setting and other batch development applications, IoT filed applications.
- ESP32 Display Board Application: Home smart device image transmission, Wireless monitoring, Smart agriculture QR wireless recognition, Wireless positioning system signal, And other IoT applications.
- Comes with 1pcs 2.8" inch esp32 display, 1pcs USB 2.0 to micro USB data cable, 1pcs dupont female to 1.25mm wire, 1pcs touch screen pen.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2.8" ESP32-2432S028R ESP32 Display
Specifications:
Display Color: RGB 65K color
Model: ESP32-2432S028R
Size: 2.8 inch
Type: TFT
Driver Chip: ILI9341
Touch: Resistive
Resolution: 320x240(Pixel)
RAM internal 520KB
Effective Display Area: 43.2 x 57.6 (mm)

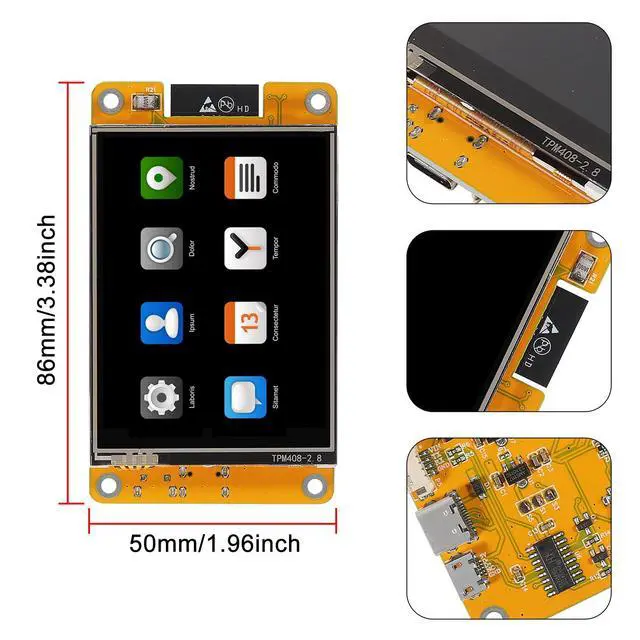

Module Size: 50.0 x 86.0 (mm)
View: >60°
Operating Voltage: 5V
Power Consumption: About 115mA

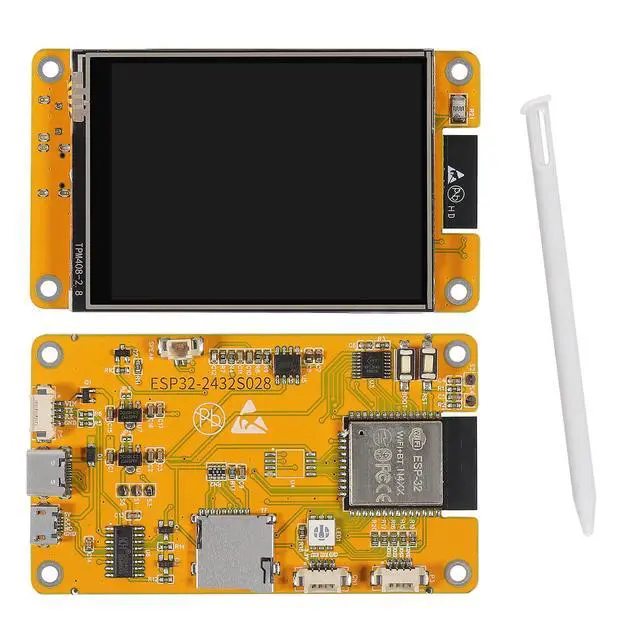

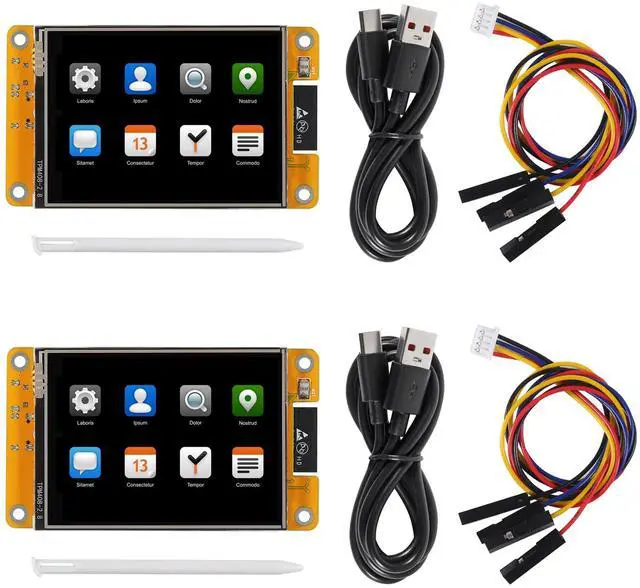

Package includes:
1 x 2.8'' ESP32 Dispaly Module
1 x USB Cable
1 x Touch Pen
1 x 4Pin Connector Cable
1 x Packaging box for display
