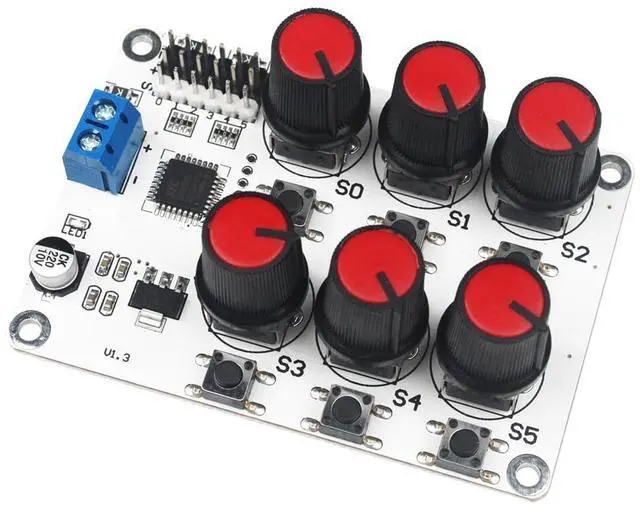

RC Digital Servo Tester 6 Channels Motor Servo Controller Centering Tool with Over-Current Protection & 2 Control Modes for RC Car Airplane Robots Tester Tool
Limited time offer, ends 07/21 By Zhiyi Technology
- Specifications: 76mm*53mm(2.99in*2.09in)
- Weight: 37g (1.31oz)

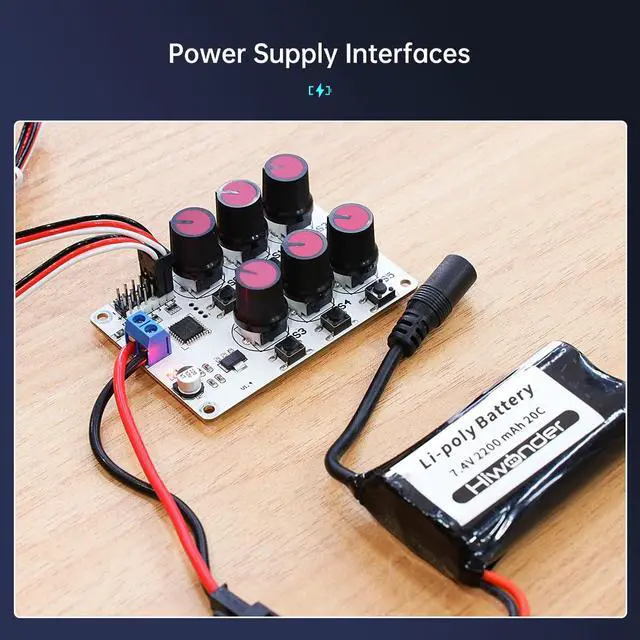

- Power Supply: This controller can be powered by either a Lipo battery or a power adapter, operating within a voltage range of 5-8.4V.

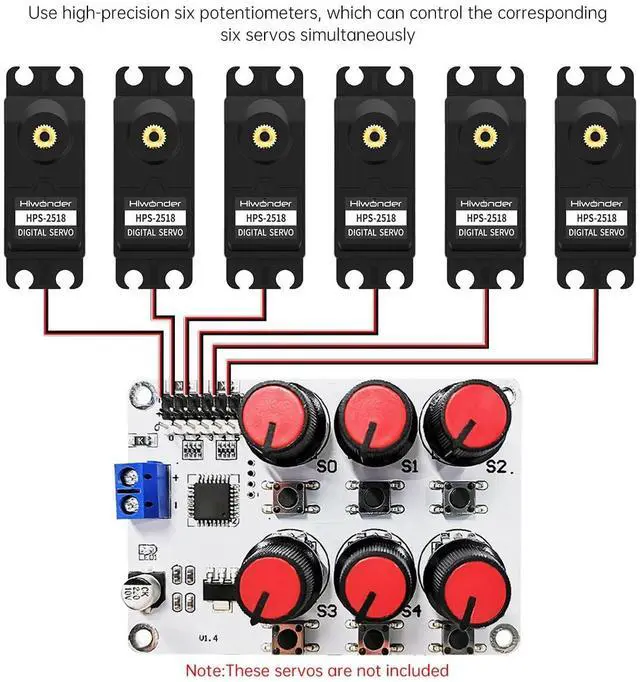

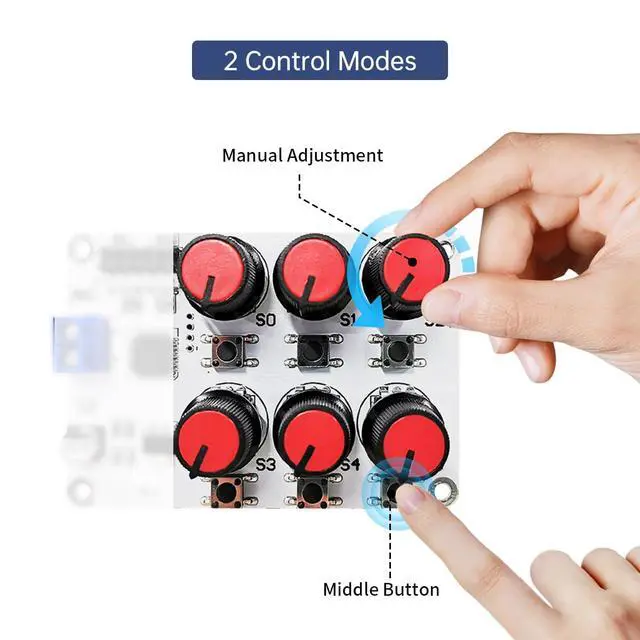

- Manual Adjustment: The controller has 6-channel PWM digital servo port, adopts high-accuracy potentiometer for precise servo control and provides servo reset function.

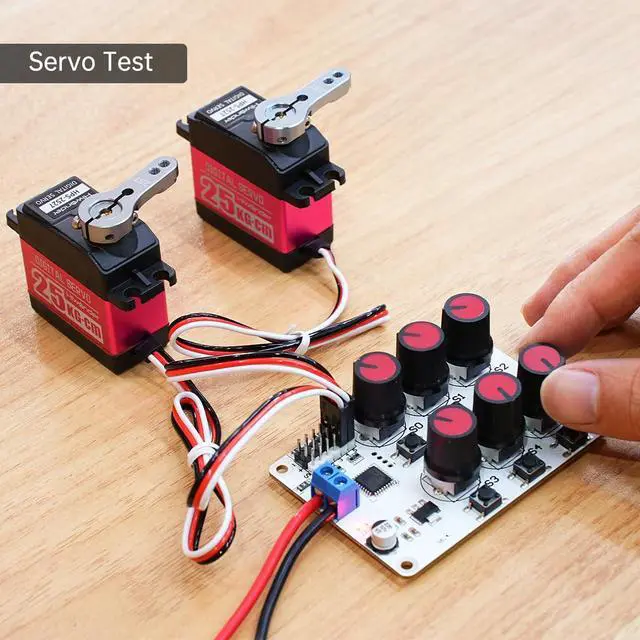

- Support PWM Servo: It supports a wide variety of PWM servos, allowing manual angle adjustments without the need for coding.
- Controller Accuracy: Its control accuracy can reach up to 0.09° (with a 1us PWM limit for minimal changes)

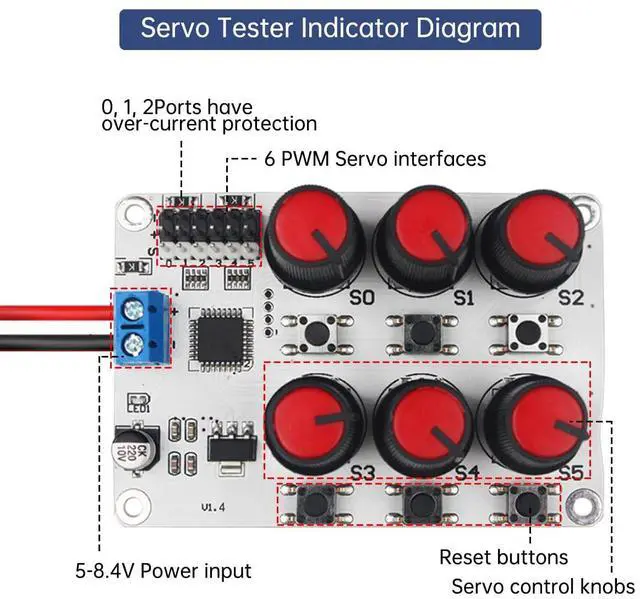

- Overcurrent protection: The controller offers 3-channel overcurrent protection to prevent damage to the servo.

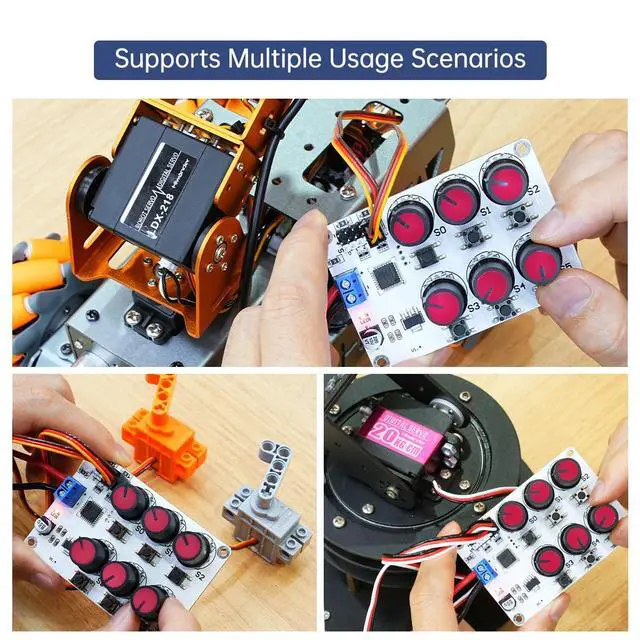

- Versatile Applications: It can be applied in gripper, AI robot, robot arm and more.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
: 76mm*53mm( 2.99 in* 2.09 in).Weight: 37g ( 1.31 oz).
Power Supply: This controller can be powered by either a Lipo battery or a power adapter, operating within a voltage range of 5- 8.4V..
Manual Adjustment: The controller has 6-channel PWM digital servo port, adopts high-accuracy potentiometer for precise servo control and provides servo reset function..
Support PWM Servo: It supports a wide variety of PWM servos, allowing manual angle adjustments without the need for coding..
Controller Accuracy: Its control accuracy can reach up to 0.09 ° (with a 1us PWM limit for minimal changes).
Overcurrent protection: The controller offers 3-channel overcurrent protection to prevent damage to the servo..
Versatile Applications: It can be applied in gripper, AI robot, robot arm and more.
