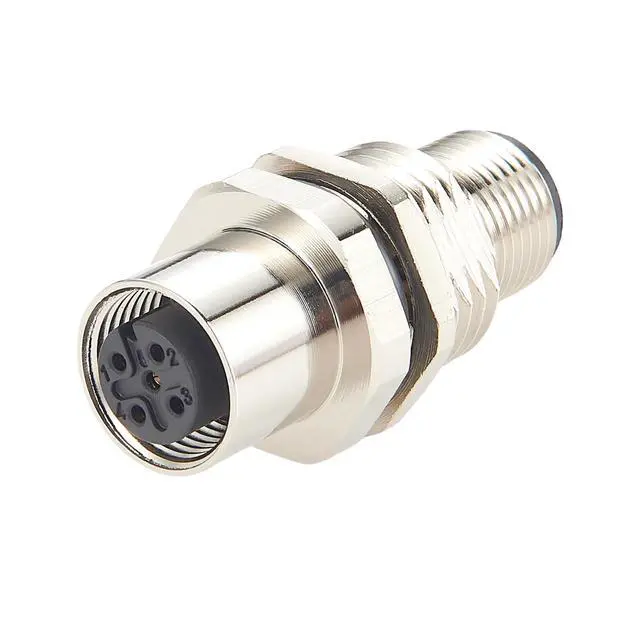

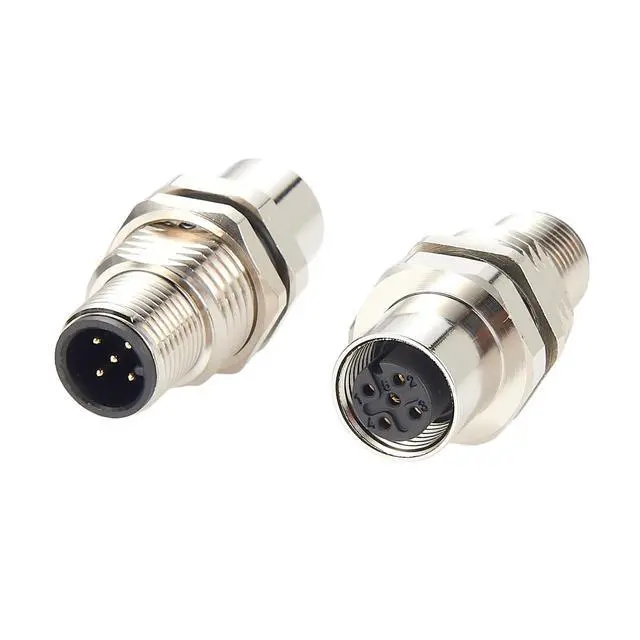

M12 A Code 5Pin Male to Female Converter IP67 Shielded Bulkhead Feedthrough Panel Mount Industrial Circular Connector Receptacle 60V 4A for NMEA2000 Can Bus CANOpen DeviceNet (1PCS)
- Product Parameter Connector A: M12 A-Coded 5Pin Male; Connector B: M12 A-Coded 5Pin Female; Plug-in cycle: 100; Rated voltage: 60V AC/DC; Rated current: 4A; Hexagonal nut: M16 X 1.5; Sealing: O-ring.; Threaded Connection M12 Male to Female Converter Adapt thread locking mechanism, anti vibration locking design, 12mm thread joint can be easily connected to sensor devices and ctuator devices and field bus components.; Front Panel Mount M12 Wall Pass-through Panel Adapter Simply cut a 16.5mm hole in the board and secure with the nut,Eesy to install.making it suitable for control panels, automation systems, and industrial enclosures.; Application M12 Shielded Industrial Circular Connector for NMEA2000, CAN BUS, CANOpen, Profibus, DeviceNet,also for PLCS, Marine, sensors, actuators, machine equipment,industrial automation, industrial network transmission, ships, security and other fields.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Connector
A: M12 A-Coded 5Pin Male
Connector B: M12 A-Coded 5Pin Female
Panel Mount: Bulkhead PassThrough Panel
Mount Protection Class: IP67 Panel
Cutout Size: 16.5 mm
Sealing: O-ring
Contact: Cooper, Gold-plated
Temperature range: -40~+80
Plug-in cycle: 100
Rated voltage: 60V
AC/DC Rated current: 4A
Hexagonal nut: M16 X 1.5
A: M12 A-Coded 5Pin Male
Connector B: M12 A-Coded 5Pin Female
Panel Mount: Bulkhead PassThrough Panel
Mount Protection Class: IP67 Panel
Cutout Size: 16.5 mm
Sealing: O-ring
Contact: Cooper, Gold-plated
Temperature range: -40~+80
Plug-in cycle: 100
Rated voltage: 60V
AC/DC Rated current: 4A
Hexagonal nut: M16 X 1.5
