VL53l0X Laser Ranging Sensor Distance Module for Raspberry Pi Adui STM32 ToF Time Flight Distance Measurement Detector Module I2C Interface Accurate Ranging Up to 2m Distance Measurement
- The VL53l0X lidar sensor module adopts I2C signal interface, less pin occupation, PH2.0 interface and reserved pads for GPIO1 and SHUT pins; We provide open-source demo codes for Raspberry Pi(C and Python), Ardui and STM32 development boards. The demo codes can achieve three ranging working modes: single ranging, continuous ranging, and timed ranging, as well as four ranging configuration modes: default mode, high speed, high accuracy, and long range; The VL53L0X Laser Ranging Sensor Distance Module is a Time-of-Flight (ToF) ranging module based on the VL53L0X from ST, with accurate ranging up to 2m, field of view: 25 degree, laser wavelength: 940nm; This VL53L0X laser sensor module is compatible with 3.3V/5V working level; The control chip of this laser module is VL53L0X. The VL53L0X is a ToF sensor that embeds the ST's second generation FlightSense technology.Unlike conventional ranging sensors, the VL53L0X is able to provide accurate distance measurement, no matter the target color or reflectance, gets better anti-interference capability
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

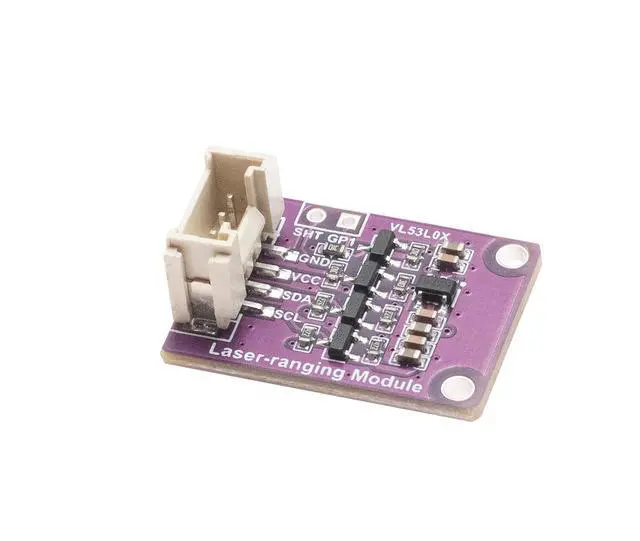

Overview: This VL53l0X laser ranging sensor distance module(SG-S53-L0X) uses I2C interface to achieve distance measurement, with a measurement distance of up to 2 meters; supports for Raspberry Pi models, as well as Ardui and STM32; We provide open-source demo codes for Raspberry Pi (C and Python), Ardui and STM32 development boards. The demo codes can achieve three ranging working modes: single ranging, continuous ranging, and timed ranging, as well as four ranging configuration modes: default mode, high speed, high accuracy, and long range.

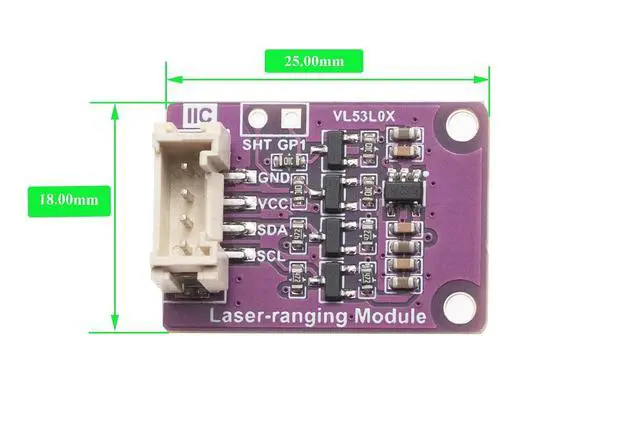

Size: 25mm*18mm
Supply voltage: 3.3V /5V
Ranging distance: 30~2000mm
Ranging accuracy: ±5% (high speed mode) ±3% (high accuracy mode)
Ranging time (min): 20ms (short distance mode) 200ms(medium/long distance mode)
Field of view: 25°
Laser wavelength: 940nm
Control chip: VL53L0X
Signal interface: I2C

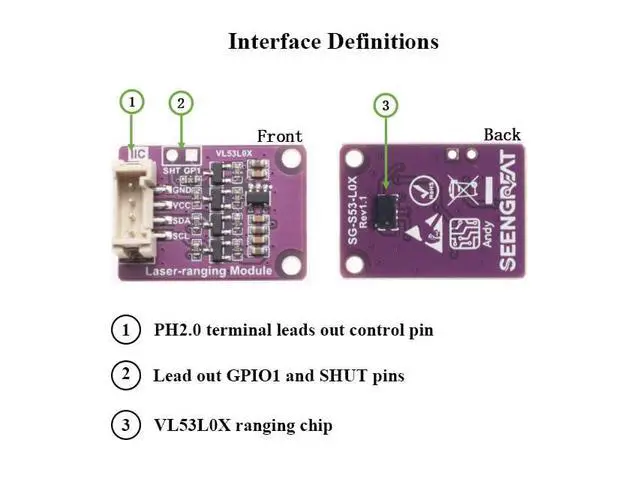

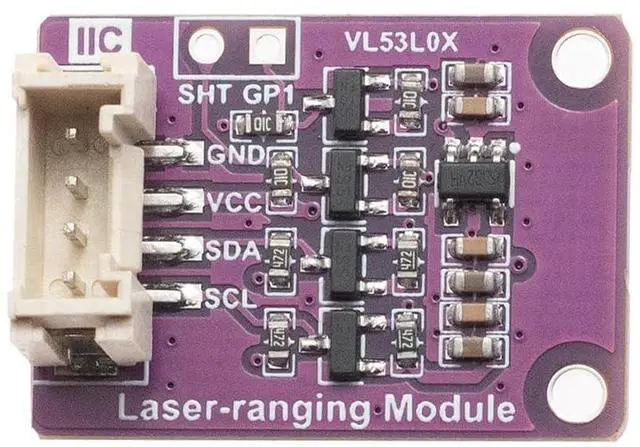

Interface Definition:
VCC: Power supply positive( 3.3V /5V)
GND: Power supply ground
SDA: I2C data line
SCL: I2C clock line
SHT: shutdown control, can connects to IO pin
GP1: Interrupt output, can connects to IO pin
Package Contents: 1. SG-S53-L0X *1 2. PH 2.0 4PIN connecting cable *1
Specifications
:Size: 25mm*18mm
Supply voltage: 3.3V /5V
Ranging distance: 30~2000mm
Ranging accuracy: ±5% (high speed mode) ±3% (high accuracy mode)
Ranging time (min): 20ms (short distance mode) 200ms(medium/long distance mode)
Field of view: 25°
Laser wavelength: 940nm
Control chip: VL53L0X
Signal interface: I2C
Interface Definition:
VCC: Power supply positive( 3.3V /5V)
GND: Power supply ground
SDA: I2C data line
SCL: I2C clock line
SHT: shutdown control, can connects to IO pin
GP1: Interrupt output, can connects to IO pin
Package Contents: 1. SG-S53-L0X *1 2. PH 2.0 4PIN connecting cable *1
