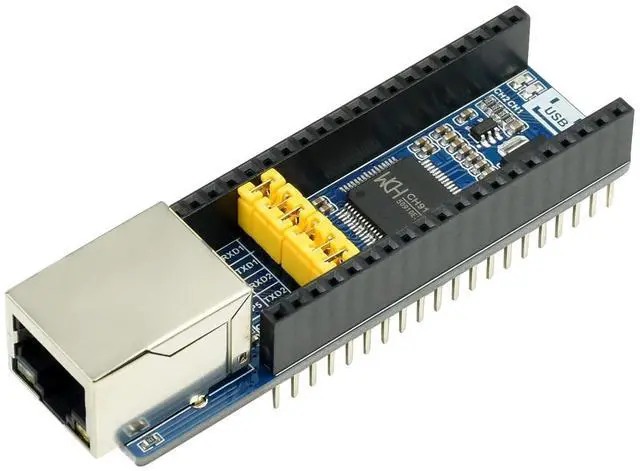

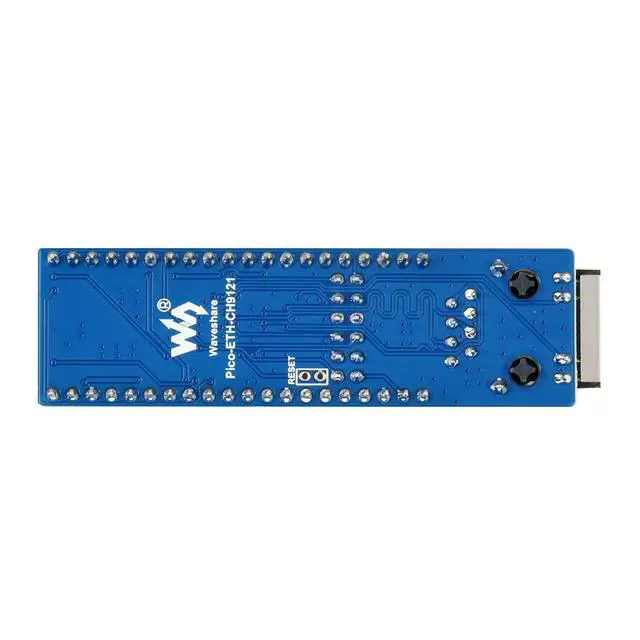

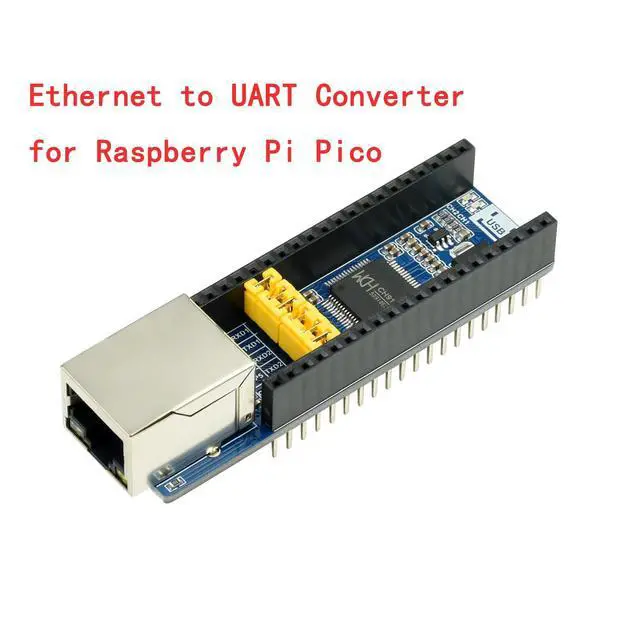

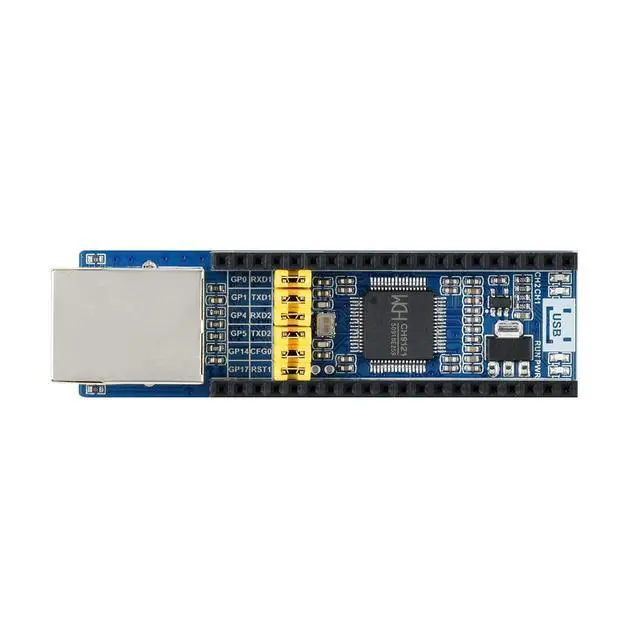

Ethernet to UART Converter Module HAT for RasPi RPI Raspberry Pi Pico 2 W 2W RP2350 PICO2 Pico2w Projects Breakout Shield Expansion Board Accessories
- Note: Raspberry Pi PICO board is not included
- This module is designed for Raspberry Pi Pico boards. It features an onboard Ethernet to UART transparent transceiver, 2-CH UART with independent transparent transmission for each channel, 10/100M Ethernet interface with full/half-duplex auto-negotiation, and is compliant with 802.3
- Supports DHCP for automatic IP acquisition and DNS domain access. Network parameters such as chip operating mode, port, and IP can be configured via host computer software or UART commands
- Test codes are available in the WIKI English manual. Please refer to the WIKI English manual.Wiki English Manual: waveshare.com/wiki/Pico-ETH-CH9121
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features Standard Raspberry Pi Pico header, compatible only with Raspberry Pi Pico. Onboard Ethernet to UART transparent transceiver, 2-channel UART, independent transparent transmission for each channel. Onboard jumpers for pin configuration. Built-in Ethernet MAC and PHY layers. Bidirectional transparent data transmission between UART and Ethernet. 10/100M Ethernet interface with full/half-duplex auto-negotiation, compliant with 802.3. Auto-MDI/MDIX, automatically detects and switches cable types. Supports DHCP for automatic IP acquisition and DNS domain access. Configure network parameters such as operating mode, ports, and IP via host software or UART commands.
4 operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER. Full-duplex or half-duplex UART communication supports RS485 RX/TX auto-switching (external RS485 controller required). Supports keep-alive mechanism.
Operating Modes: TCP /
UDP UART TTL: 3.3V / 5V compatible
Operating Temperature: -40°C ~ 85°C
Operating Current: 140mA
Baud Rate: 300bps ~ 921.6K bps
Dimensions: 74.54 x 21.00 (mm)
Storage Conditions: -55°C ~ 125°C
4 operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER. Full-duplex or half-duplex UART communication supports RS485 RX/TX auto-switching (external RS485 controller required). Supports keep-alive mechanism.
Specifications
Operating Voltage: 3.3V / 5VOperating Modes: TCP /
UDP UART TTL: 3.3V / 5V compatible
Operating Temperature: -40°C ~ 85°C
Operating Current: 140mA
Baud Rate: 300bps ~ 921.6K bps
Dimensions: 74.54 x 21.00 (mm)
Storage Conditions: -55°C ~ 125°C
