Reeseephelte Mesh Node T096 Development Board with TFT Display | nRF52480+SX1262 LoRa Chip, Dual-Band GNSS GPS Module,Compatible with Meshtastic and LoRaWAN for Tracking Communication

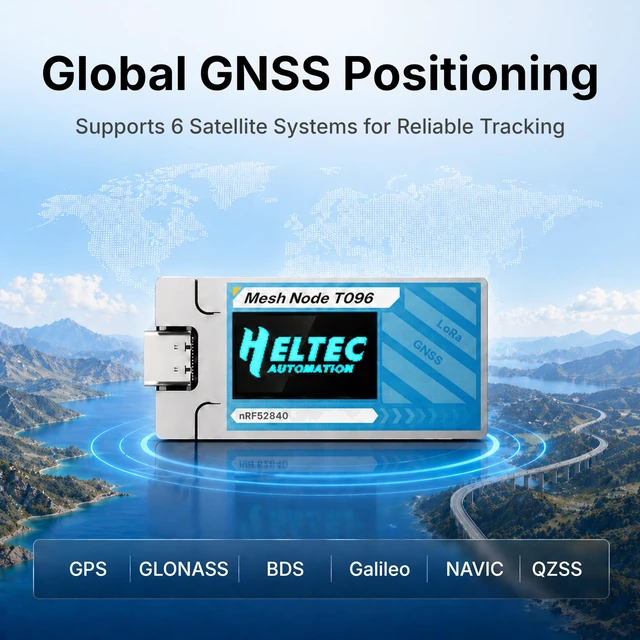

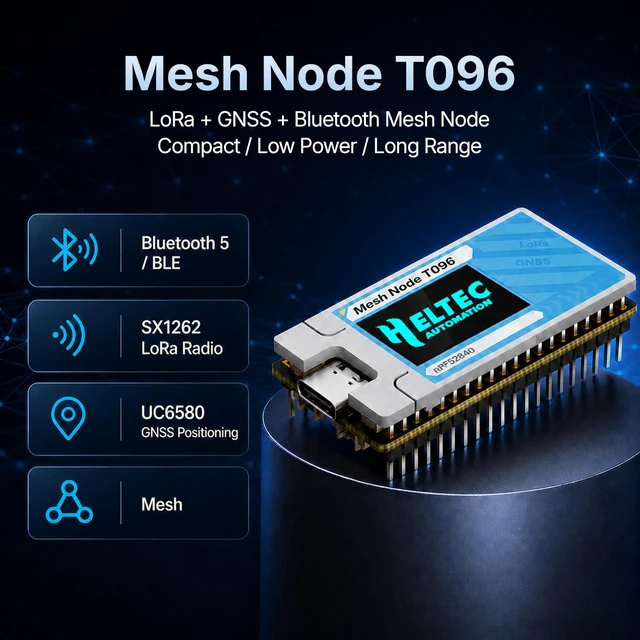

Tri-Mode Wireless Connectivity: Powered by the nRF52840 MCU, SX1262 LoRa transceiver, and GNSS chip, the T096 supports simultaneous Bluetooth 5, long-range LoRa communication, and global satellite positioning. Ideal for decentralized mesh networks, asset tracking, and remote sensing applications.

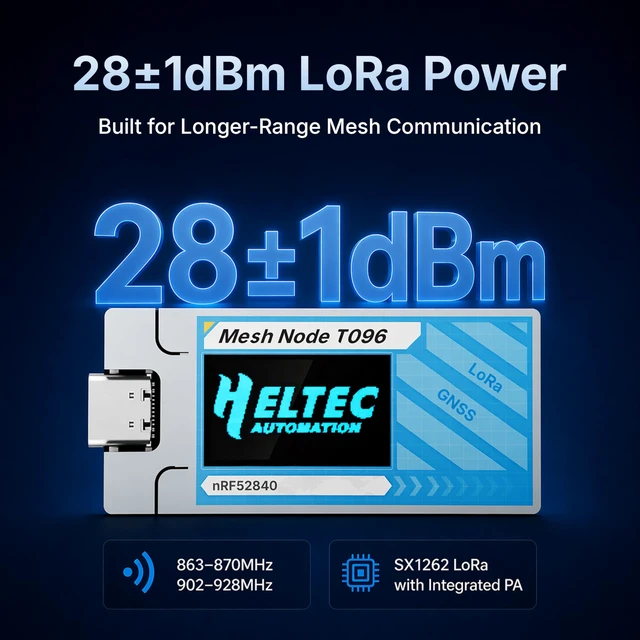

High-Efficiency LDS Antenna & Robust RF Performance: Laser Direct Structuring (LDS) technology is applied to both GNSS and Bluetooth antennas, delivering a compact, durable, and highly efficient solution. The LoRa transmitter achieves a maximum output power of 28±1 dBm with a bypassable LNA, ensuring exceptional range and link reliability in challenging environments.

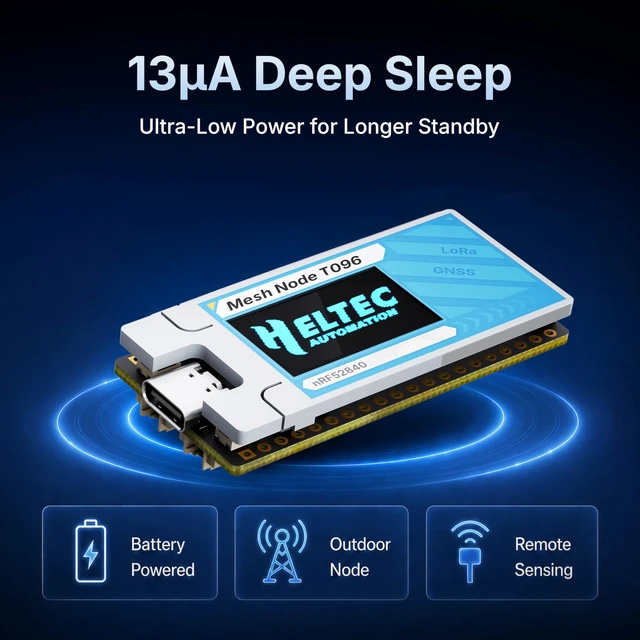

Ultra-Low Power Consumption for Battery-Powered Deployments: Built around the nRF52840, the board consumes only 210 mA during Bluetooth operation and just 12 µA in sleep modefar more efficient than ESP32-based alternatives. This makes the T096 perfectly suited for long-term, battery-powered field deployments.

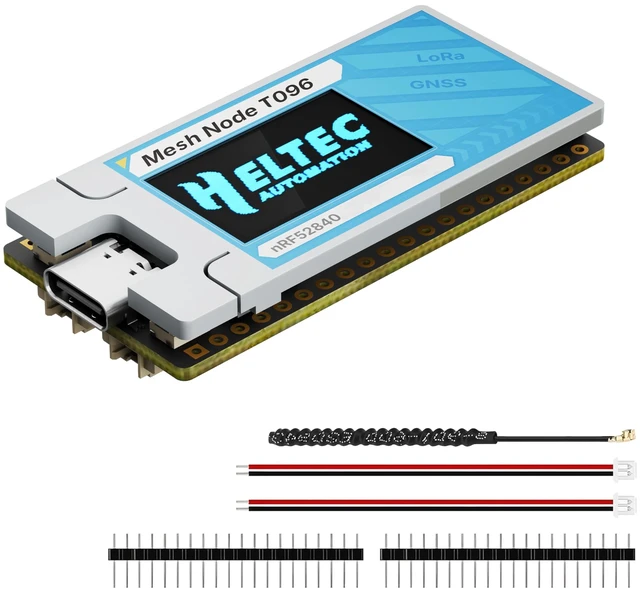

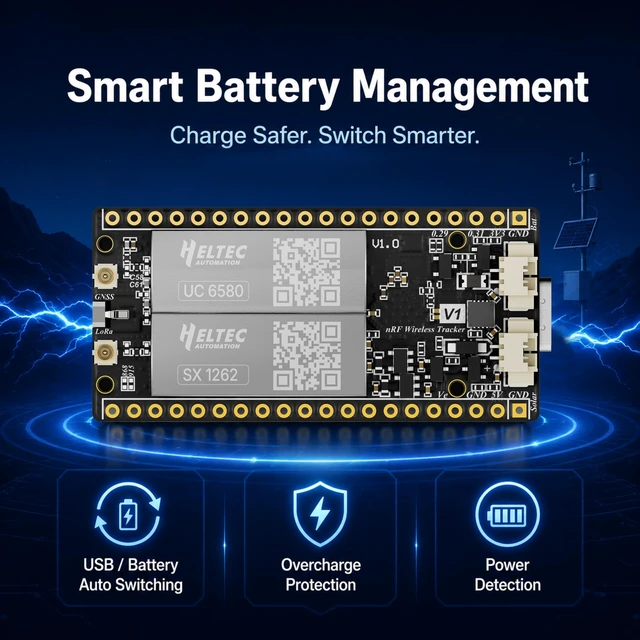

Comprehensive Power Management & Rugged Interfaces: Integrates a full lithium battery management system (charge/discharge, overcharge protection, battery level detection, and auto-switching between USB and battery power). The USB-C port features voltage regulation, ESD protection, short-circuit protection, and RF shielding. Also includes solar panel connector, IPEX1.0 antenna ports, and 2×13 2.54 mm header pins.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

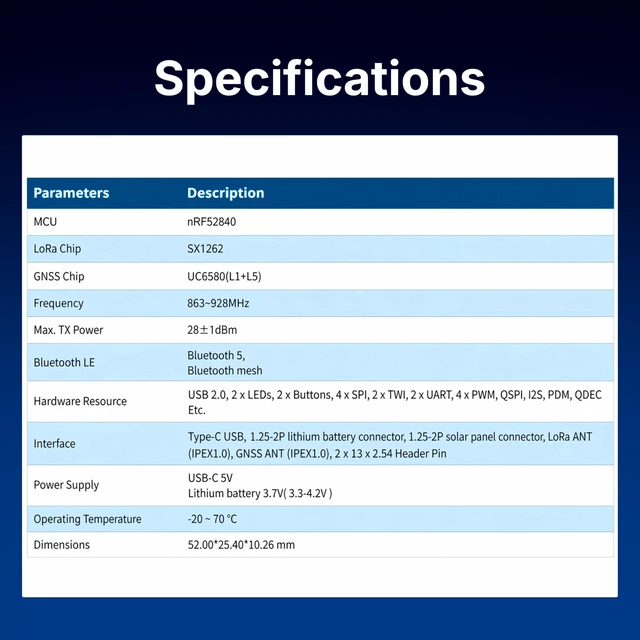

Brand	Reeseephelte
Model Name	Mesh Node T096
Connectivity Technology	Bluetooth
Included Components	User Manual
Operating System	Linux
Processor Brand	Nordic
Compatible Devices	Arduino IDE, PlatformIO, MicroPython, Meshtastic, MeshCore
Processor Count	1
Total Usb Ports	1
Item Dimensions L x W x H	1.6"L x 0.78"W x 0.3"H
Built-In Media	User Manual
Number of Items	1
Unit Count	1 Count
Item Highlight	nRF52480+SX1262 LoRa Chip, Dual-Band GNSS GPS Module,Compatible with Meshtastic and LoRaWAN for Tracking Communication
Manufacturer	Reeseephelte
Warranty Description	2 Years

Developer-Friendly Ecosystem & Open-Source Support: Fully compatible with Arduino IDE, PlatformIO, and MicroPython, with provided SDK examples for LoRa/LoRaWAN and GNSS. Natively supports open-source mesh projects such as Meshtastic and MeshCore, enabling rapid prototyping of resilient, scalable mesh networks for both enthusiasts and professional developers.

Additional Information
First Listed on Newegg	October 14, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
