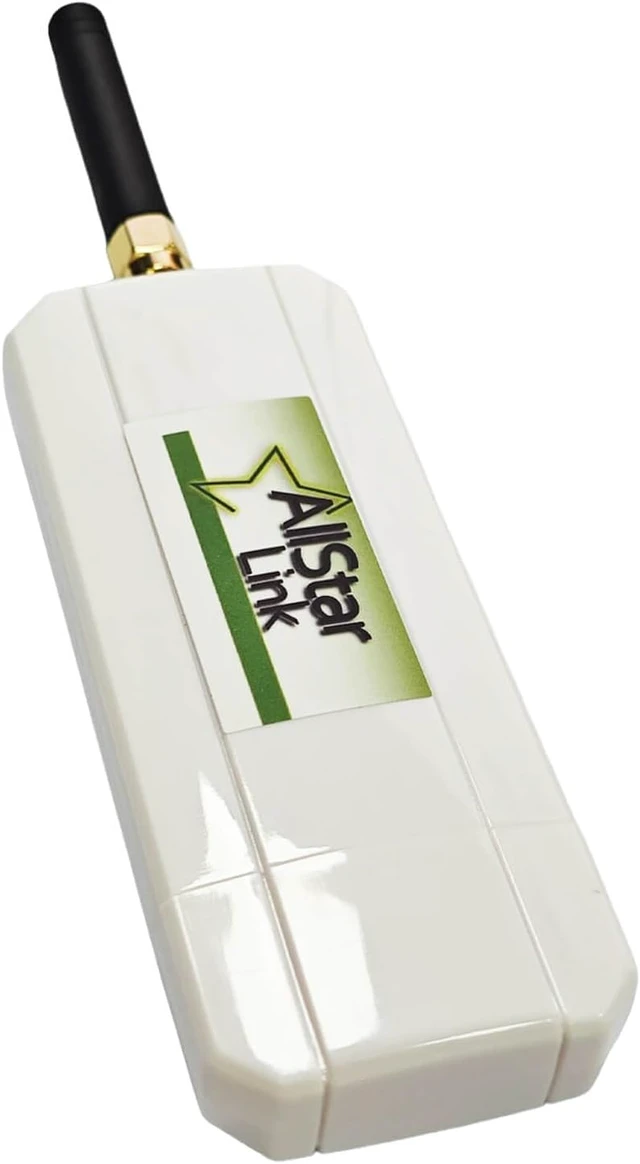

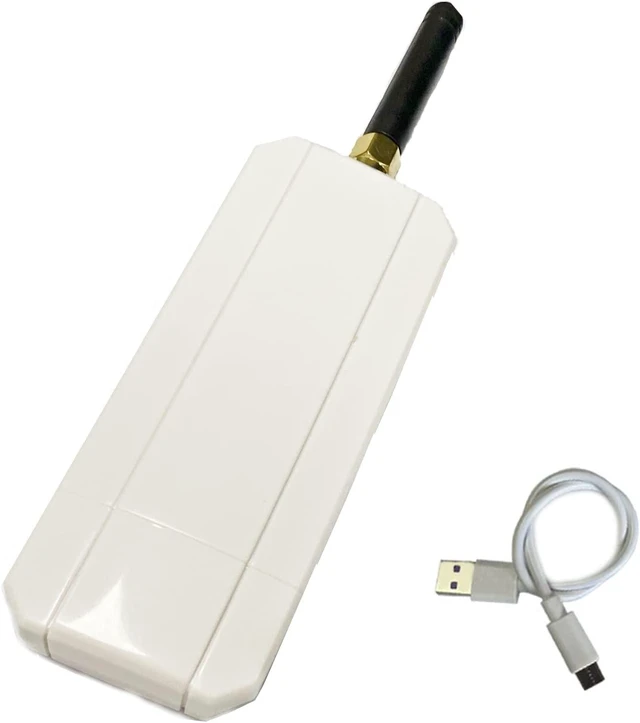

GOOZEEZOO Allstar RF Node UHF SR-FRS Radio Programming Module Pi-hat | AllstarLink, Echolink, APRS Digital Support, UHF: 400-470MHz, LED Status Prompt, Compatible for Raspberry Pi 2/3/4
- Plug-and-Play Allstar Node: The GOOZEEZOO Allstar Node SR-FRS Radio Programming Module serves as a pin-to-pin replacement for the SA-818 Module. This multi-functional Raspberry Pi HAT supports AllstarLink, Echolink, APRS and various digital communication modes
- Working Mode Description: The two ends of the Type-C connector feature separate functions: PWR+COS(Flash): Communicates with Raspberry Pi over USB (main channel). PWR(GREEN): Utilizes /dev/ttyUSB0 to adjust the UHF RF node frequency; this function only works when modifying UHF frequencies within 400470MHz

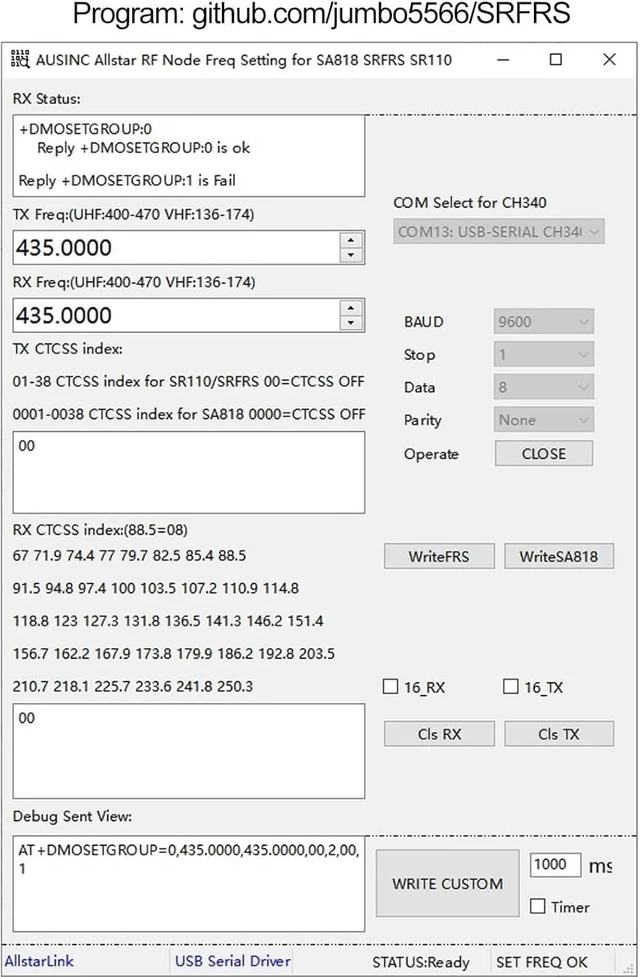

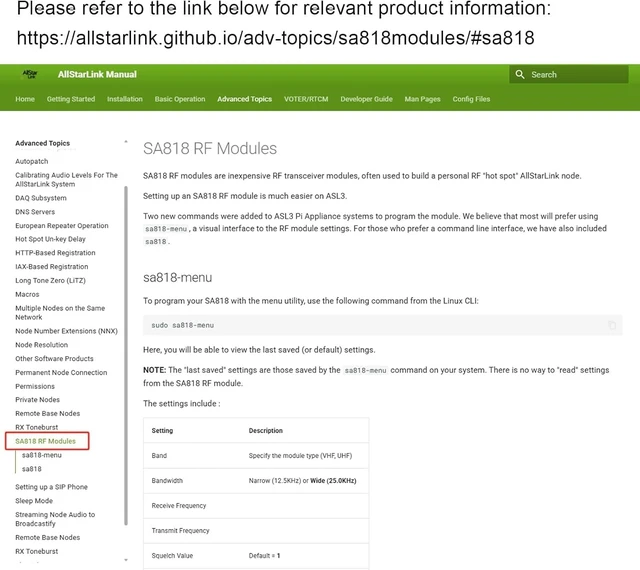

- Technical Resources: You can program the SR-FRS radio module for this Pi-HAT with software available in this GitHub repository: github.com/jumbo5566/SRFRS. DCS codes are not supported for now. Visit the link below for configuration guidance: allstarlink.github.io/adv-topics/sa818modules/#sa818

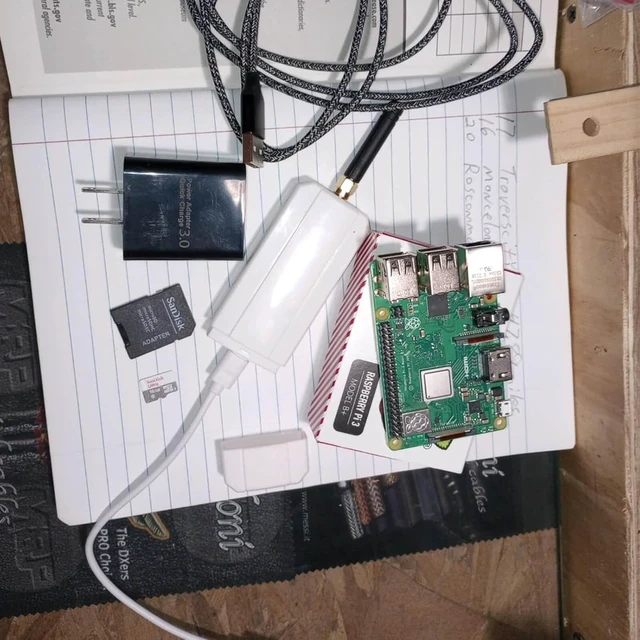

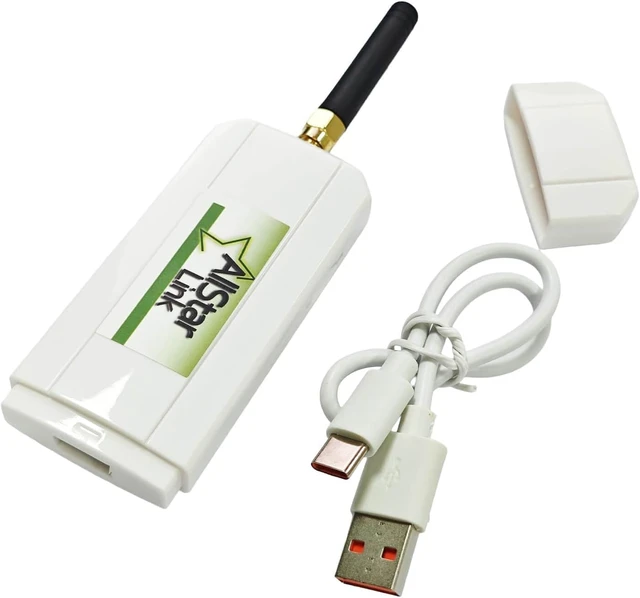

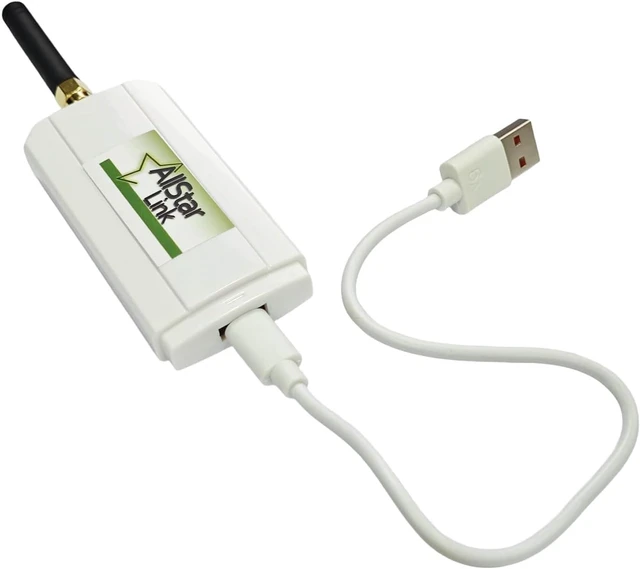

- Compatibility Reminder: Compatible with Raspberry Pi 2, Zero, Zero 2W, 3, 3B, 4 and 4B. It communicates directly with Raspberry Pi via the supplied Type-C to USB cable. Ensure the USB connector is fully and correctly inserted
- Four Program Functional Sections: Radio: Program radio parameters (frequency, tone, squelch) Volume: Adjust audio volume level; Filters: Configure filter settings; Version: Display SA818 firmware version
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Example[root@allstar ~]# python srfrs.py version
SRFRS: INFO: Firmware version: 110U-V223
[root@alarmpi SRFRS]# python srfrs.py radio --frequency 438.500
SRFRS: INFO: +DMOSETGROUP:0, RX frequency: 438.5000, TX frequency: 438.5000, squelch: 4, OK
[root@alarmpi SRFRS]# python srfrs.py radio --frequency 438.500 --offset -5
SRFRS: INFO: +DMOSETGROUP:0, RX frequency: 438.5000, TX frequency: 433.5000, squelch: 4, OK
[root@allstar ~]# python srfrs.py radio --frequency 145.230 --offset -.6 --ctcss 100
SRFRS: INFO: +DMOSETGROUP:0, RX frequency: 145.2300, TX frequency: 144.6300, ctcss: 100.0, squelch: 4, OK
[root@allstar ~]# python srfrs.py volume --level 5
SRFRS: INFO: +DMOSETVOLUME:0 Volume level: 5
Radio
usage: srfrs radio [-h] --frequency FREQUENCY [--offset OFFSET] [--squelch SQUELCH] [--ctcss CTCSS | --dcs DCS]
optional arguments:
-h, --help show this help message and exit
--frequency FREQUENCY
Transmit frequency
--offset OFFSET 0.0 for no offset [default: 0.0]
--squelch SQUELCH Squelch value (1 to 9) [default: 4]
--ctcss CTCSS CTCSS (PL Tone) 0 for no CTCSS [default: None]
--dcs DCS DCS code must me the number followed by [N normal]
or [I inverse] [default: None]
Volume
usage: srfrs volume [-h] [--level LEVEL]
optional arguments:
-h, --help show this help message and exit
--level LEVEL Volume value (1 to 8) [default: 4]
CTCSS codes (PL Tones 38 Sets)
67.0, 71.9, 74.4, 77.0, 79.7, 82.5, 85.4, 88.5, 91.5, 94.8, 97.4,
100.0, 103.5, 107.2, 110.9, 114.8, 118.8, 123.0, 127.3, 131.8, 136.5,
141.3, 146.2, 151.4, 156.7, 162.2, 167.9, 173.8, 179.9, 186.2, 192.8,
203.5, 210.7, 218.1, 225.7, 233.6, 241.8, 250.3
