ESP32-P4-WIFI6 5inch Touch Display Development Board, 720 × 1280 Resolution, Capacitive 5-Point Touch, Onboard Audio Input/Output Module, Supports Wi-Fi 6 and BLE 5

Overview

The ESP32-P4-WIFI6-Touch-LCD-5 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 5inch 720 × 1280 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability.

Features

High-performance MCU with RISC-V 32-bit dual-core and single-core processors

Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4

128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM

Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

Onboard Type-C ports, more convenient, better device compatibility

Onboard 5inch capacitive touch IPS display for clear color picture display, 720 × 1280 resolution

Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header

Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration

Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility

Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras

Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Package Content

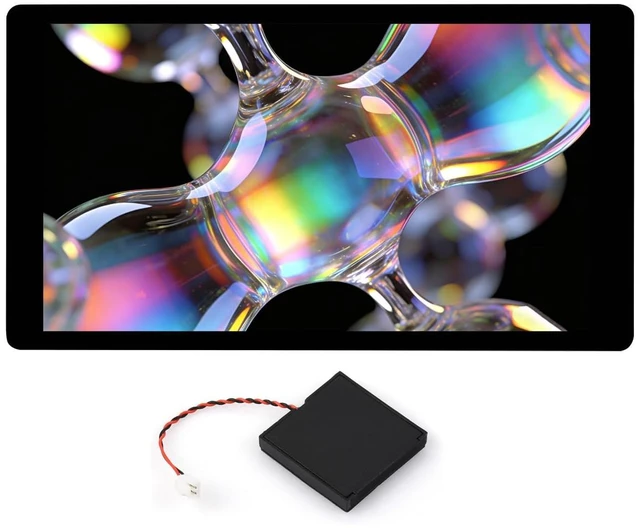

ESP32-P4-WIFI6-Touch-LCD-5 host x1

GH1.25 2PIN 8 2W speaker 50mm x1
