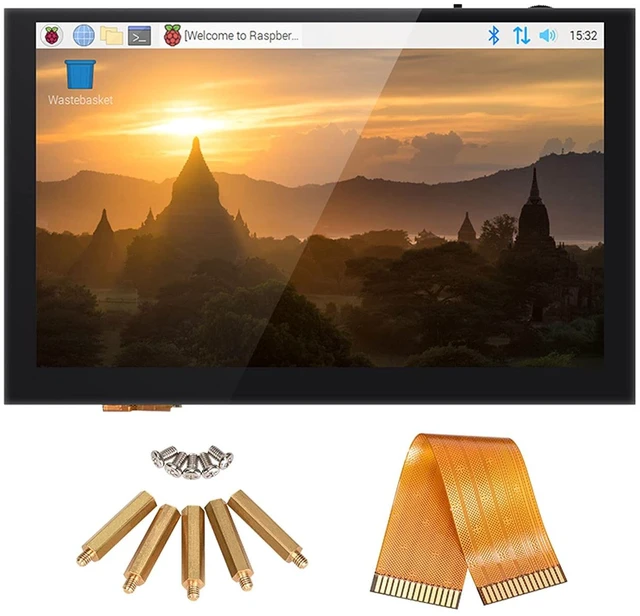

BIGTREETECH Upgrade PI TFT50 V2.1 TFT LCD Display DSI 800x480 for Raspberry Pi 4 3 2 Model B RPi 1 B B+ A A+ 3D Printer Controller (5in Capacitive Touch Screen)
- Wide Range of Applications: 5 inch capacitive Touch Screen designed for for pi 4 model B /pi 3 model A+ B+ B/pi 2 model B/pi 1 model B+ A+
- High Resolution: This 5 inch LCD touch screen with a resolution of 800*480 and a display area of 108x64.8mm
- 5-point Touch: It Supports Raspberry Pi DSI display interface, comes with a capacitive touch panel, and supports 5-point touch.Capacitive Touch Control ,better touch response,faster response time

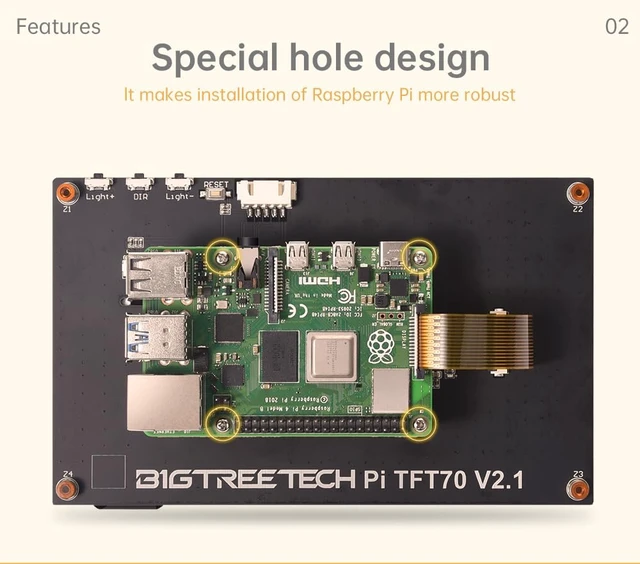

- Easy to install: The unique hole design on the back allows you to install the Raspberry Pi directly.The display adopts Raspberry Pi power supply design, without external power supply

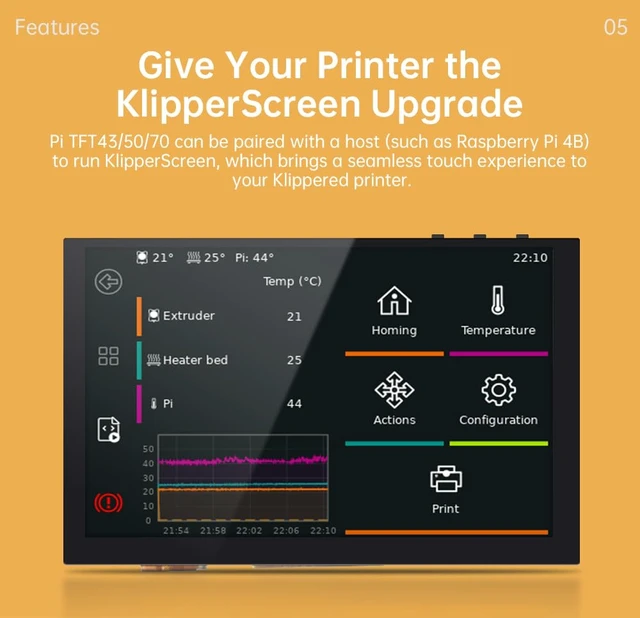

- KlipperScreen Upgrade: Pi TFT50 can be paired with a host (such as Raspberry Pi 4B to run klipperscreen,which brings a seamless touch experience to your klippered printer.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
NOTES:

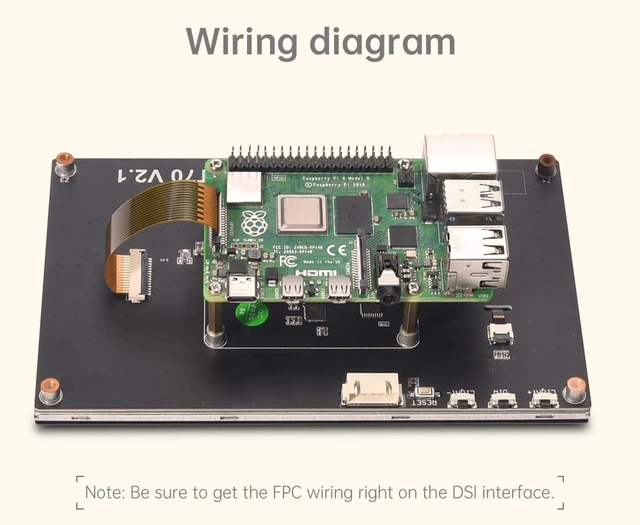

When using this PI TFT 50 touch screen on PI4, it is necessary to increase the distance between the motherboard and the screen, otherwise it will affect the normal use of PI4 WiFi;
users who do not use WiFi can ignore this reminder.
Features:

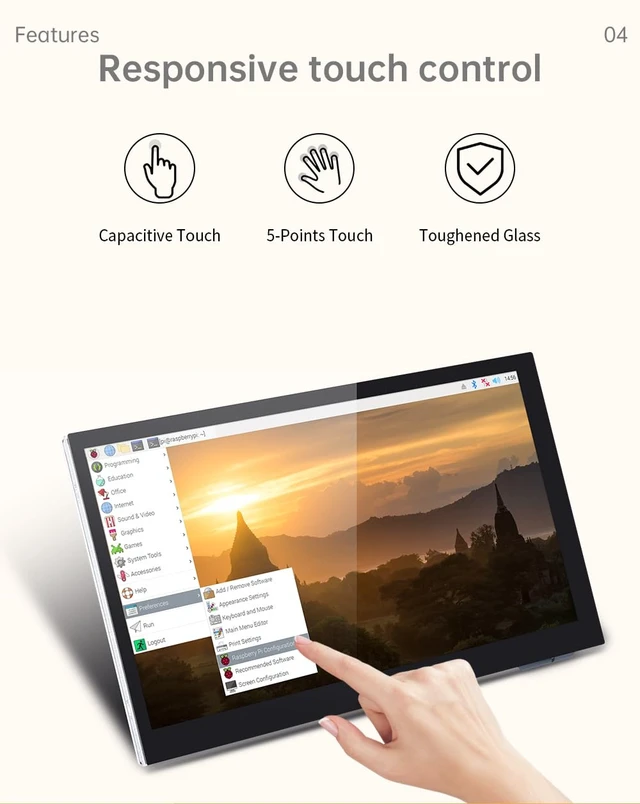

Capacitive touch screen, support 5-point touch
Raspberry Pi DSI Direct Drive
Parameter:
Working voltage: 3.3V (provided by Raspberry Pi display interface)
Maximum working current: 320mA
Screen current: 100mA
Screen resolution: 800*480
Video interface: Raspberry Pi DSI
Touch points: 5 points
Viewing angle: 60°/70°/70°/70°
RGB888-16 trillion true color
Refresh rate: 60Hz
Luminous rate: 280 cd/m2
Working temperature: -20-70

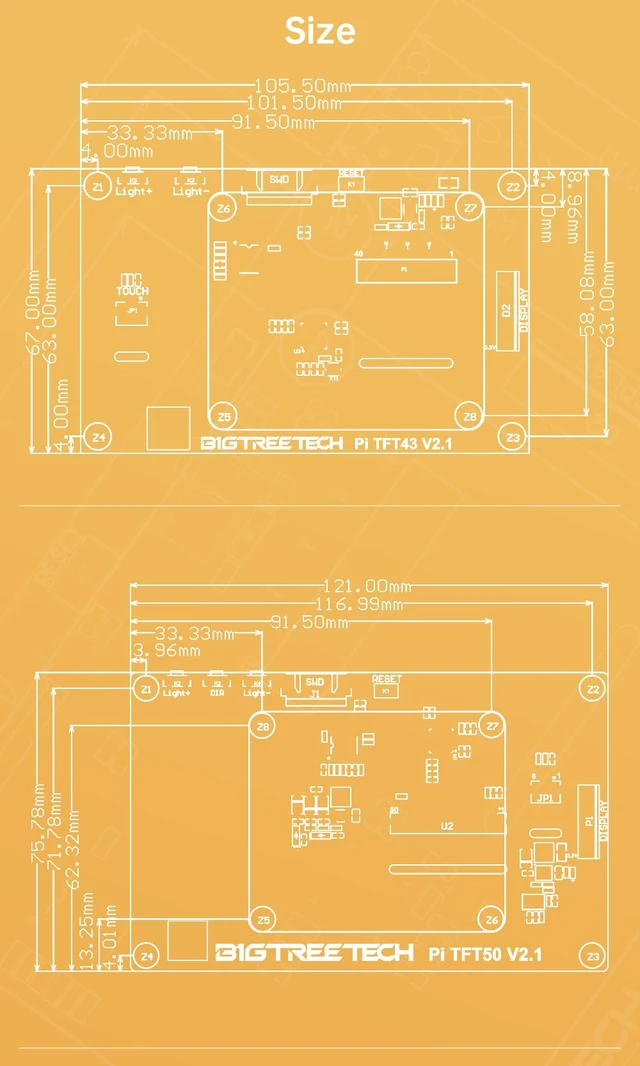

Dimensions: 121mm x 76mm
Mounting hole size: M2.5
Outer mounting hole position: 113mm x 68mm
Inner mounting hole position: 58mm x 49mm
