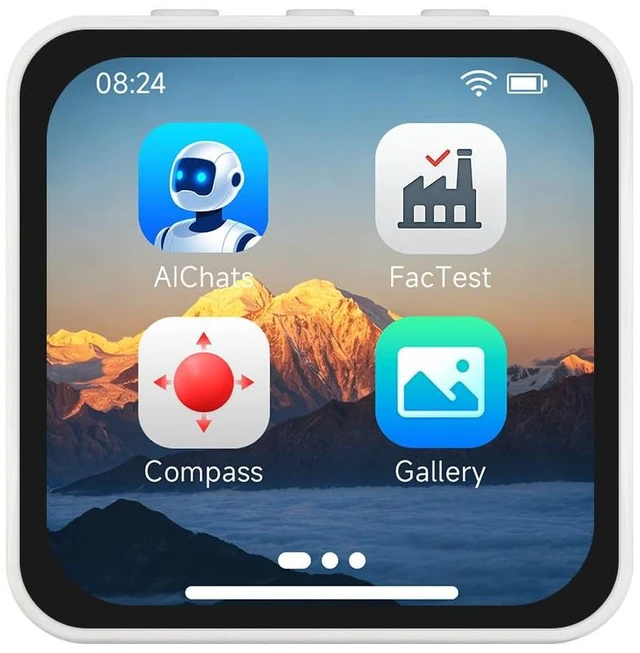

ESP32-C6 2.16inch AMOLED Touch Screen Dev Board, Onboard 480×480 Pixels 16.7M Color Display, 6-Axis IMU, Dual Microphones, etc. Supports Wi-Fi 6, BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
- ESP32-C6-Touch-AMOLED-2.16 development board equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency, supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna
- ESP32-C6 development board with onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 × 480 resolution, 16.7M color. Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
- Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory. Type-C port, improving device compatibility, easier to use
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by Lithium Batt through AXP2101 chip for uninterrupted power supply. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
- Onboard KEY and BOOT programmable buttons for easy custom function development. Adapting 1 × I2C, 1 × UART and 1 × USB pads for external devices connection and debugging. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Overview
ESP32-C6-Touch-AMOLED-2.16 is a low-cost, high-performance microcontroller development board, based on ESP32-C6 microcontroller and integrates 2.16inch capacitive touch AMOLED display, 6-axis IMU, RTC chip, low power audio codec chip, power management chip, and so on, specifically designed for the prototype development and function verification of AI voice-interaction agent applications.
Features
Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna
Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory
Type-C port, improving device compatibility, easier to use
Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 × 480 resolution, 16.7M color
Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip, powered by Lithium Batt through AXP2101 chip for uninterrupted power supply
Onboard KEY and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting 1 × I2C, 1 × UART and 1 × USB pads for external devices connection and debugging
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
Package Content
ESP32-C6-Touch-AMOLED-2.16 host x1
PC insulating sheet x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
