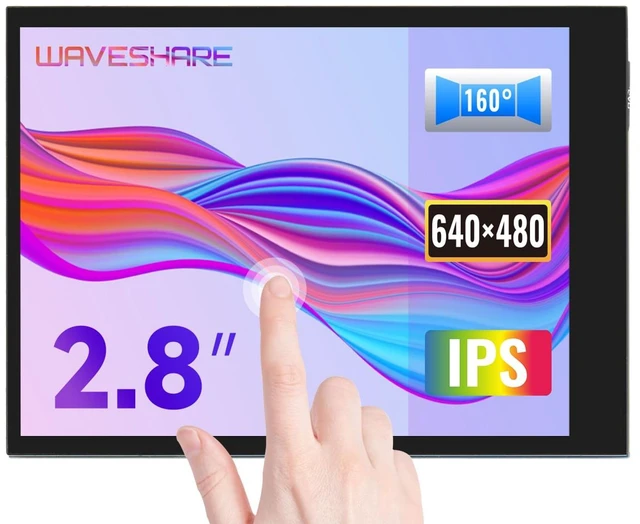

Waveshare 2.8inch Screen LCD Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W 480×640 Resolution DPI IPS 5-Points Capacitive Touch Control Optical Bonding Toughened Glass Cover
- Provide online user manual, please check the manual carefully before using! Supports Raspberry Pi OS and Kali systems.
- The display orientation is portrait by default, 480×640 resolution (H×V). Change the software config for landscape display.

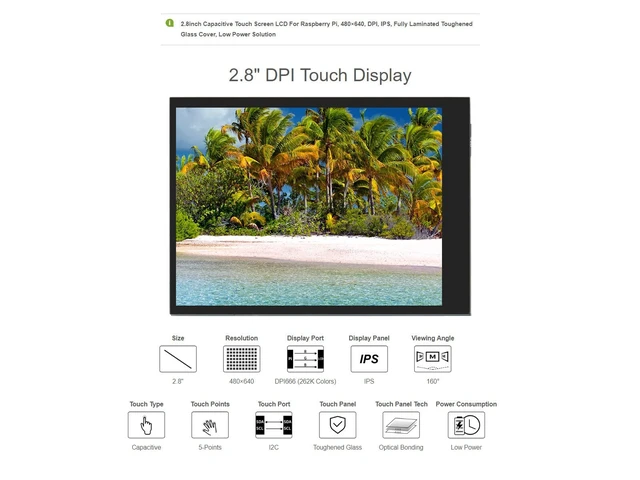

- 480x640, 2.8inch IPS Display for Raspberry Pi, DPI interface, 5-points capacitive touch control.

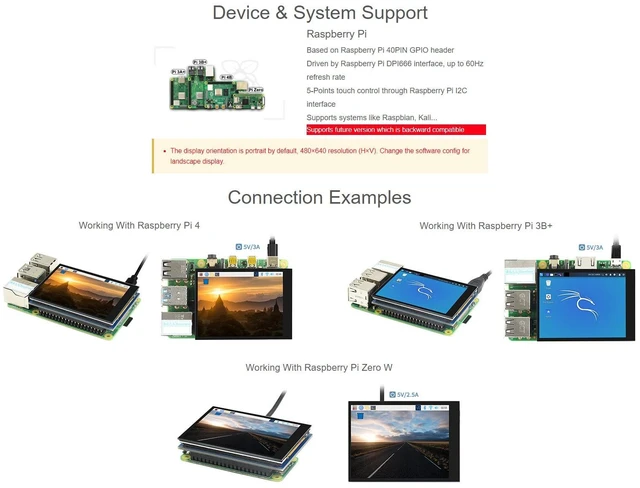

- 2.8 inch IPS Display 480x640 hardware resolution. Designed for Raspberry Pi, based on Raspberry Pi 40pin GPIO interface.
- Using DPI666 interface of Raspberry Pi to drive LCD, refresh rate up to 60Hz. Drive capacitive touch through I2C interface of Raspberry Pi, 5-points touch, toughened glass panel, hardness up to 6H.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product information
| Brand | waveshare |
| Screen Size | 2.8 inches |
| Resolution | 480 x 640 |
| Aspect Ratio | Unknown |
| Screen Surface Description | Glossy |
| Screen Finish | Glossy |
| Contrast Ratio | 2000:1 |
| Refresh Rate | 60 hertz |
| Display Type | LCD |
| Display Technology | LCD |
| Viewing Angle | 170 degrees |
| Item Weight | 0.03 kg |
| Display Resolution Maximum | 480 x 640 |
| Native Resolution | 480 x 640 |
| Processor Count | 1 |
| Additional Features | Touchscreen |
| Specific Uses For Product | Programming |
| Color | 2.8inch DPI LCD |
| Mounting Type | Panel Mount |
| Compatible Devices | Raspberry Pi 4B, Raspberry Pi 3B+, Raspberry Pi 3B, Raspberry Pi 2B, Raspberry Pi B+, Raspberry Pi A+, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi Zero WH, Raspberry Pi Zero 2W |
| Model Number | 2.8inch DPI LCD |
| Model Name | 2.8inch Screen LCD |
| Manufacturer | Waveshare |
| Unit Count | 1 Count |
| Connectivity Technology | USB |
| Hardware Connectivity | USB |
