SIM7670G LTE Cat-1/GNSS HAT Board for Raspberry Pi 5/ 4B/ 3B+/3B/ Zero W/Zero 2W, Support Global Multi-Band LTE 4G Cat-1/ GNSS Positioning/Dial-up on Windows/Linux/, with 3X USB 2.0 Extended Ports

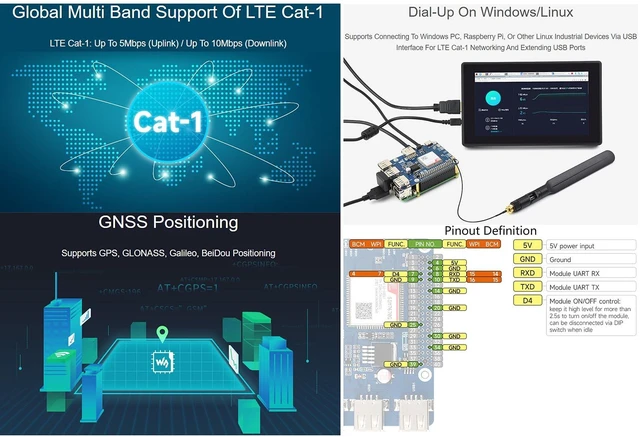

- SIM7670G LTE Cat-1/GNSS HAT, with Standard Pi 40PIN GPIO extension header, compatibe with Raspberry Pi series boards. Support Global Multi Band of LTE Cat-1---LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)
- Supports Dial-up on Windows/Linux---Supports connecting to Windows PC, Raspberry Pi, or other Linux industrial devices via USB interface for LTE Cat-1 networking and extending USB ports
- Supports GNSS positioning---Supports GPS, GLONASS, Galileo, BeiDou positioning

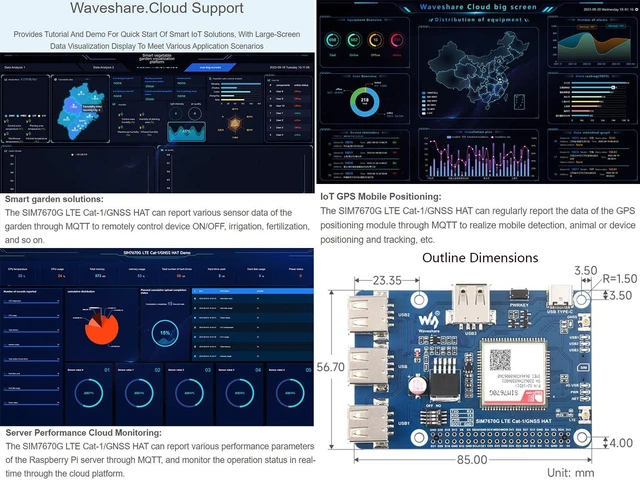

- Support Waveshare.cloud ---provides tutorial and demo for quick start of smart IoT solutions, with large-screen Data Visualization display to meet various application scenarios

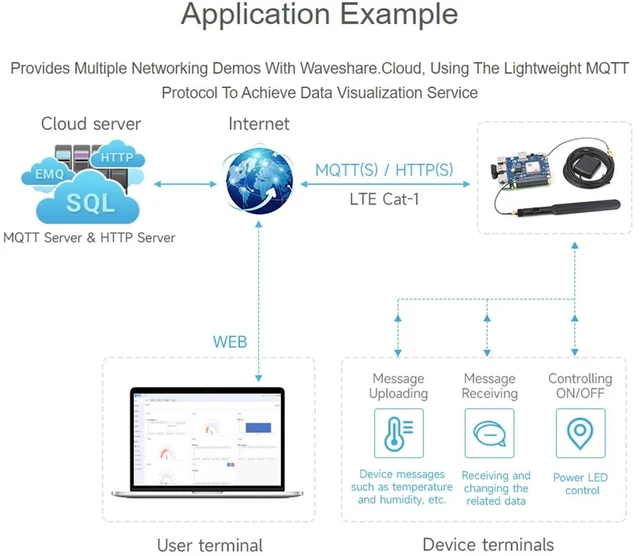

- Application Example---provides multiple networking demos with Waveshare.cloud, using the lightweight MQTT protocol to achieve data visualization service
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Introduction

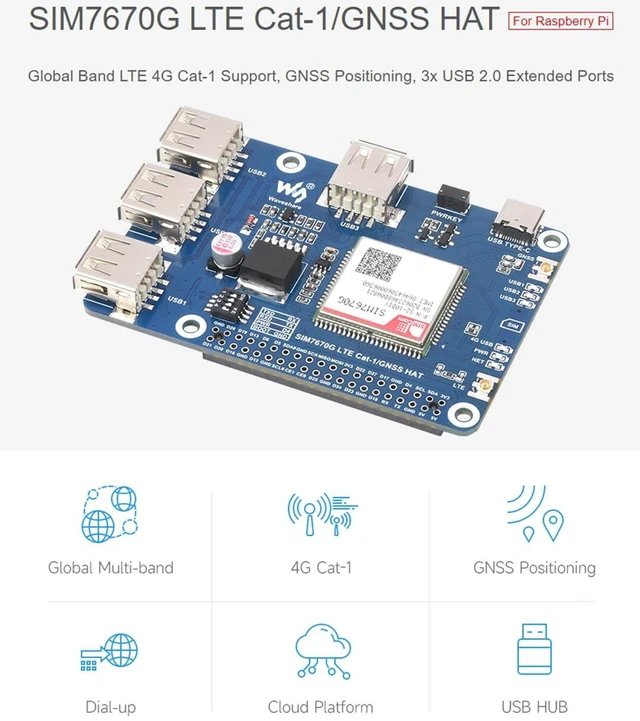

Waveshare SIM7670G LTE Cat-1/GNSS HAT is an LTE Cat-1 module, supports wireless communication modes including LTE-TDD, LTE-FDD. Supports Windows/Linux operating systems and multiple network protocols. It is suitable for IoT applications like remote information processing, monitoring devices, industrial routers, remote diagnosis, satellite positioning, and so on.
Features

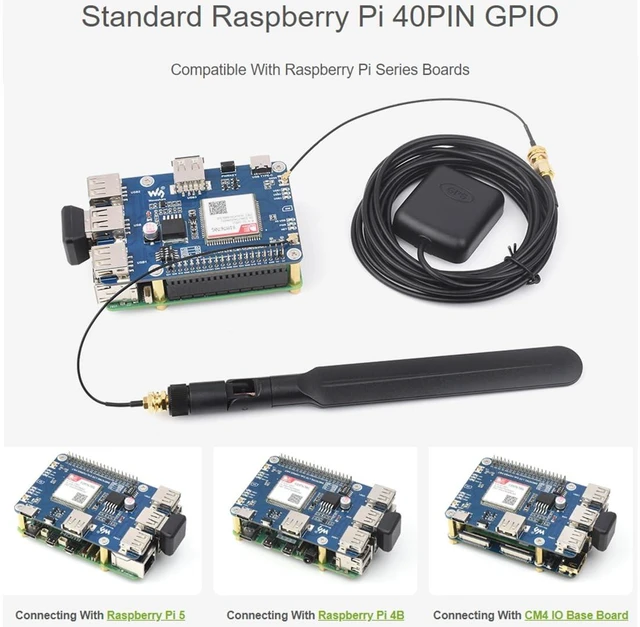

with Standard Pi 40PIN GPIO extension header, compatibe with Raspberry Pi series boards
Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
Supports RNDIS, NDIS and ECM dial-up
Supports GPS, GLONASS, Galileo, BeiDou positioning

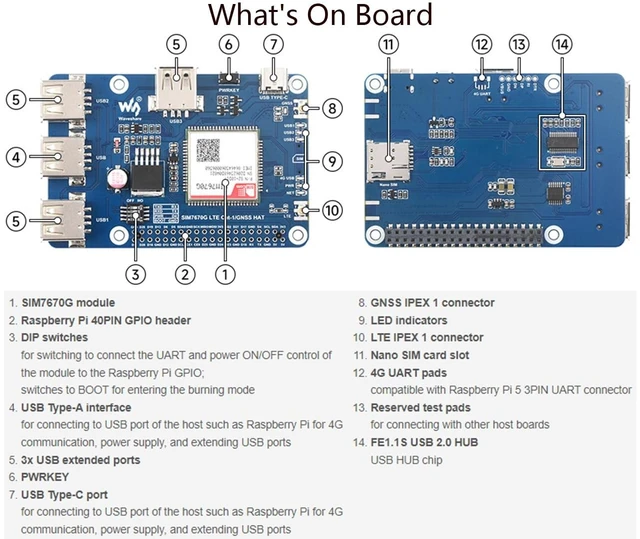

Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on
Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC
Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards
SIM card slot, supports 1.8V/3V SIM card
6x LED indicators, easy to monitor the module operating status and USB connecting status
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32), Please check: n9.cl/8x4189
Specifications
Communication parameters
Frequency band:
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDDB34, B38, B39, B40, B41
Data transmission
5Mbps(UL)
10Mbps(DL)
GNSS: GPS, GLONASS, Galileo, BeiDou
Operating Parameters
Power supply--5V
Logic level--3.3V
Dimensions--85 × 56.7mm

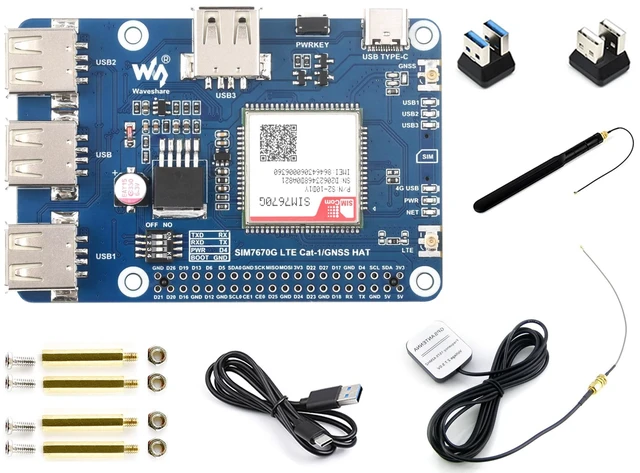

Package Content
SIM7670G Cat-1/GNSS HAT x1
USB-A to USB-C cable x1
GPS Antenna x1
LTE Antenna x1
2×20PIN female pinheader x1
USB 3.0 Adapter x1
USB 2.0 Adapter x1
Screws pack x1
