DIYmalls 5.0 inch ESP32-S3 IPS Display Capacitive Touch Screen LCD 800x480 | DIYmalls 5 inch ESP32-S3 IPS Display ESP32-8048S050C_I TFT LCD Module 800x480 Capacitive Touch Screen Development Board
- Combination of ESP32-S3 ESP32 development board + 5.0 inch capacitive touch display (not resistive touchscreen).
- ESP32-8048S050C-I is 800x480 IPS display, higher resolution than most 480x270 TN displays.
- Upload code to the 5.0 inch esp32-s3 touchscreen via IDE or esp32 flash tool.
- Comes with 1pcs esp32 ips display 5.0 inch, 1pcs USB 2.0 to Type-C cable 1 meter, 1pcs dupont female to 1.25mm wire.
- User manual available if contact seller as follow: click "DIYmalls"(you can find "Sold by DIYmalls" under Buy Now button), in the new page, click "Ask a question".
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Description:
This LCD module uses ESP32-S3 module, integrated W-F and BLE functions. The main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, 16MB Flash.

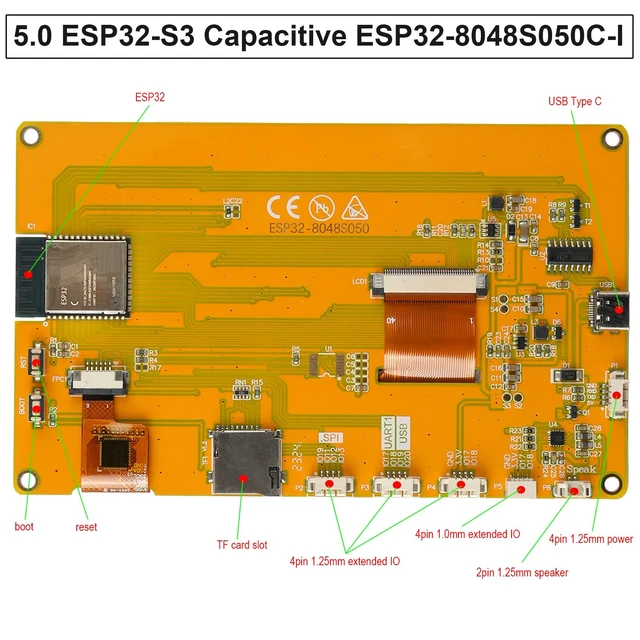

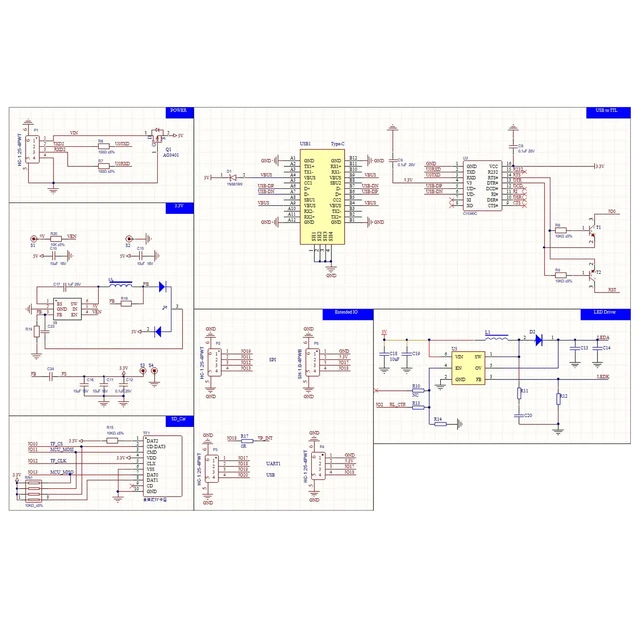

The display resolution is 800x480, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,IO port interface.
Specification:
Display color: RGB 65K color
Size: 5.0 inch
Type: TFT
Driver chip: St7262
Effective display area: 108.00x 64.80(mm)

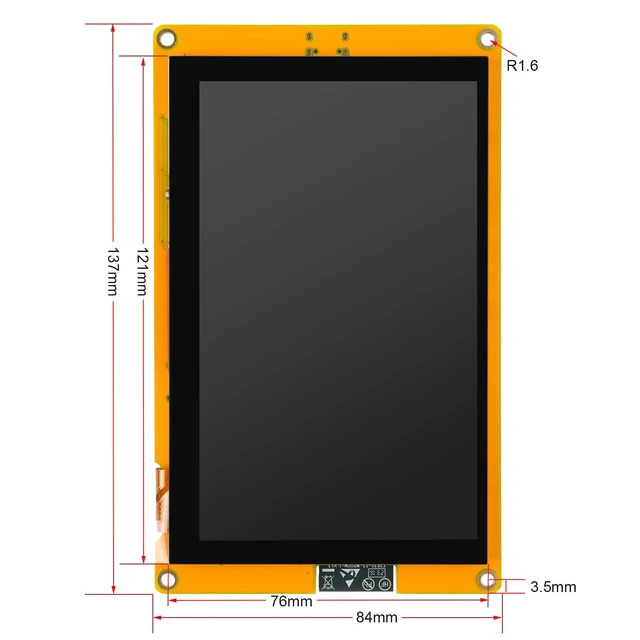

Module size: 137.0x84.0(mm)
View: IPS
Operating Voltage: 5V
Power consumption: About 320mA

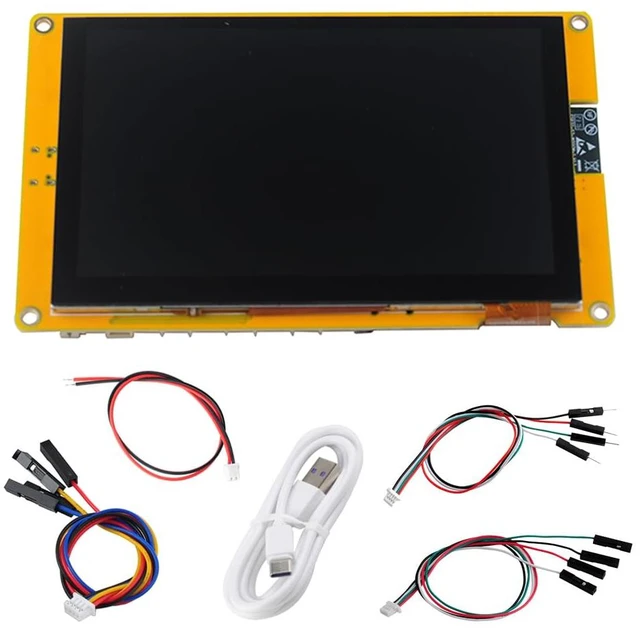

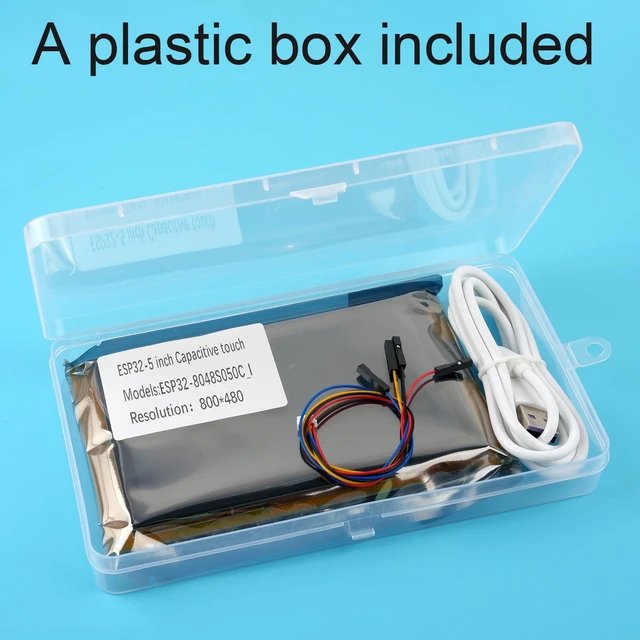

Package Included:
1 x 5.0 inch esp32 ips capacitive touchscreen
1 x USB 2.0 to Type-C cable 1M white
1 x 4pin dupont female to 1.25mm cable 20cm
1 x 4pin 1.0mm cable 20cm
