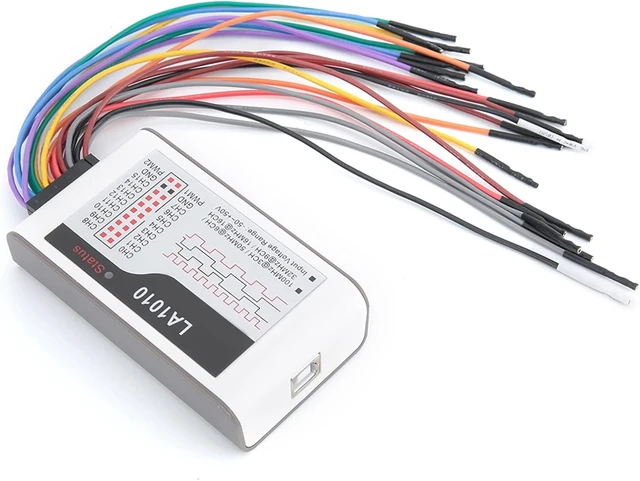

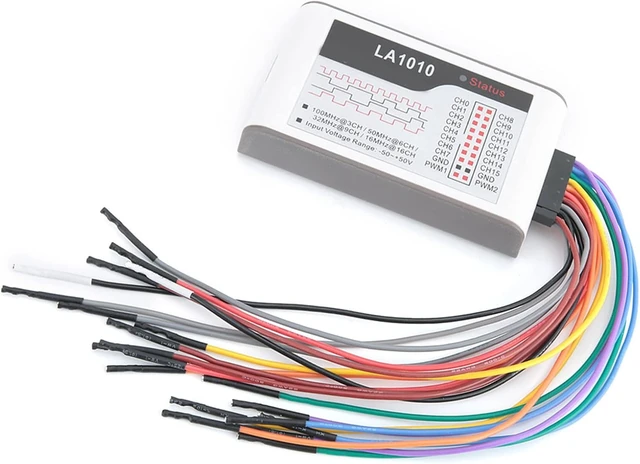

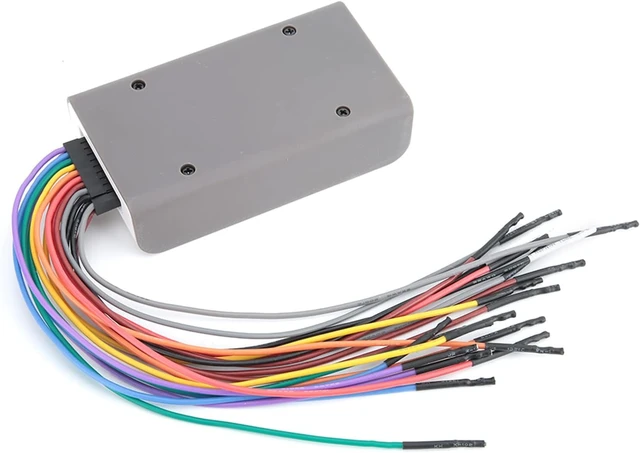

LA1010 USB Logic Analyzer, 16 Channels 100MHz Digital Logic Analyzer, Adjustable Threshold PWM Output, for WINDOWS /7/8/10 (32bit/64bit), for OS, Linux
- BRIEF INTRODUCTION: 100M high sampling rate, 16 channels, 10G
- POWERFUL SOFTWARE: The supporting software and resources can s
- BASIC PARAMETERSInput channels number: 16; Sampling rate: 100
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification: Item
Type: Logic
Analyzer Language: Chinese and English can be switched
Input Channel: 16 Maximum
Sampling Rate: 100m
Measuring Bandwidth: 20 Meters Minimum Pulse
Width Captured: 20 ns Maximum

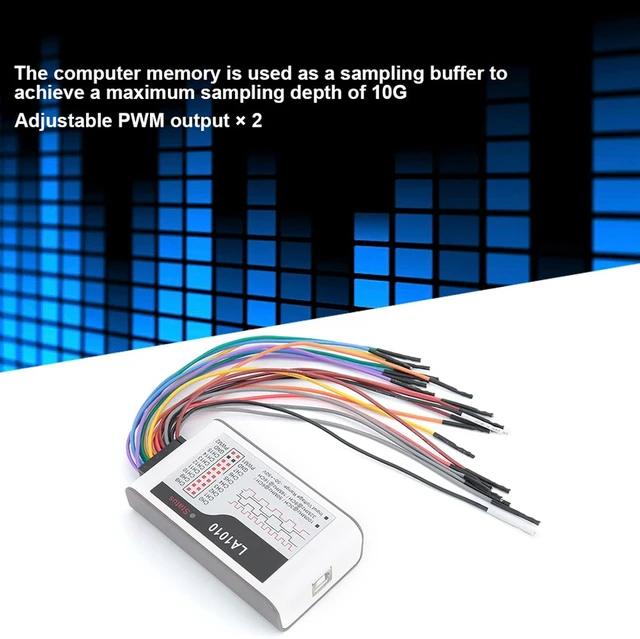

Sampling Depth: 10g / channel

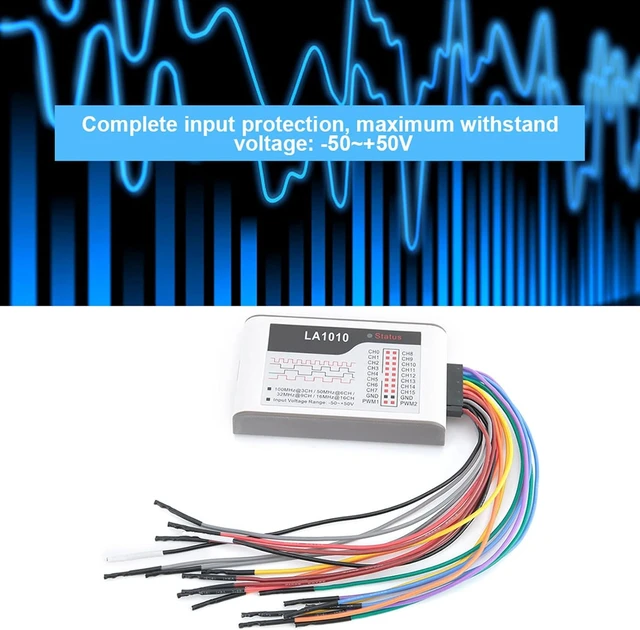

Input Voltage Range: -50~+50V
Input Impedance: 220 K, 12 pF
Adjustable Threshold Voltage: -4~+4V, step: 0.01V Pulse
Width Modulation Channel: 2 Pulse
Width Modulation Frequency Range: 0.1 ~10mhz Pulse Width Modulation
Frequency Adjustment Step: 10 ns Pulse
Width Stepping: 10ns Pulse
Width Modulation Output Voltage: + 3.3V Pulse
Width Modulation Output Impedance: 50
Standby Current: 100mAh
Maximum Operating Current: 150mA
Size: Approx. 95 x 55 x 23mm / 3.7 x 2.2 x 0.9 in
Supported Operating Systems: for WINDOWS, for Vista, for WINDOWS 7/8/10 (32/64 bit) Supported
Standard Protocols: uart/rs-232/485, i2c, can, dmx512, hdmi-cec, i2s/pcm, jtag

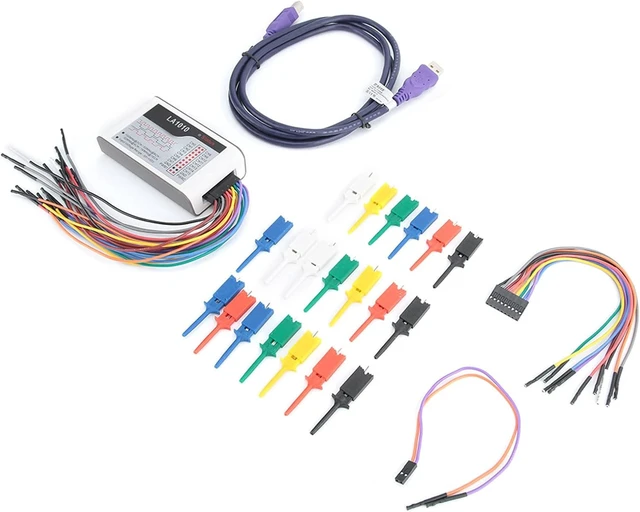

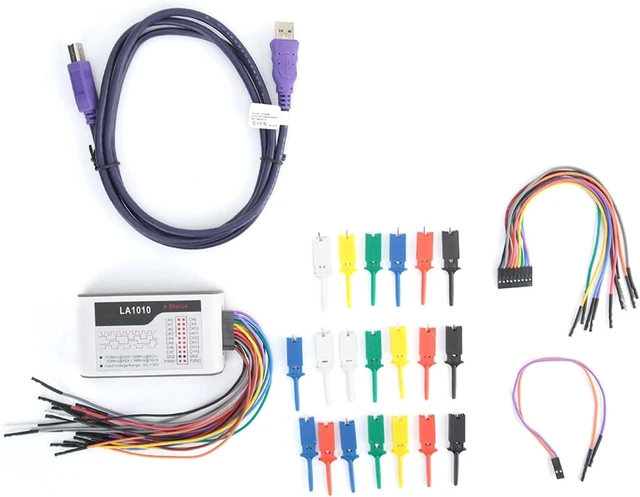

Package List: 1 x Logic Analyzer2 x 9P Cable 1 x 2P Cable 20 x Test Hook1 x USB Cable1 x CD1 x Instruction Manual
Type: Logic
Analyzer Language: Chinese and English can be switched
Input Channel: 16 Maximum
Sampling Rate: 100m
Measuring Bandwidth: 20 Meters Minimum Pulse
Width Captured: 20 ns Maximum
Sampling Depth: 10g / channel
Input Voltage Range: -50~+50V
Input Impedance: 220 K, 12 pF
Adjustable Threshold Voltage: -4~+4V, step: 0.01V Pulse
Width Modulation Channel: 2 Pulse
Width Modulation Frequency Range: 0.1 ~10mhz Pulse Width Modulation
Frequency Adjustment Step: 10 ns Pulse
Width Stepping: 10ns Pulse
Width Modulation Output Voltage: + 3.3V Pulse
Width Modulation Output Impedance: 50
Standby Current: 100mAh
Maximum Operating Current: 150mA
Size: Approx. 95 x 55 x 23mm / 3.7 x 2.2 x 0.9 in
Supported Operating Systems: for WINDOWS, for Vista, for WINDOWS 7/8/10 (32/64 bit) Supported
Standard Protocols: uart/rs-232/485, i2c, can, dmx512, hdmi-cec, i2s/pcm, jtag
Package List: 1 x Logic Analyzer2 x 9P Cable 1 x 2P Cable 20 x Test Hook1 x USB Cable1 x CD1 x Instruction Manual
