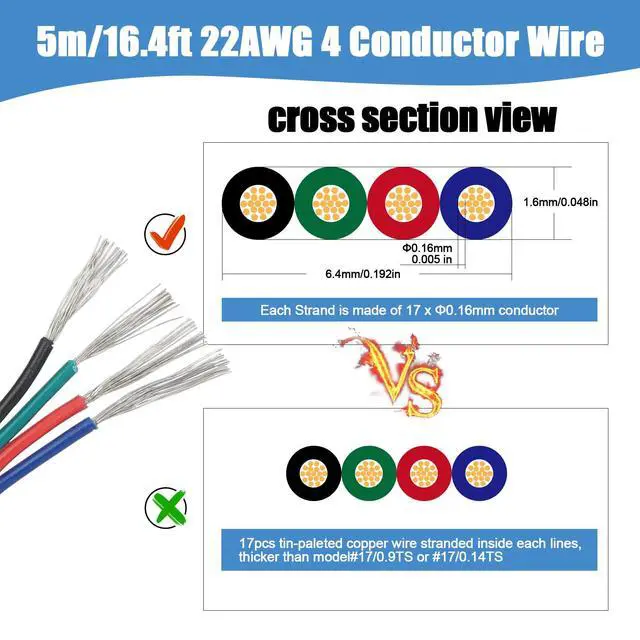

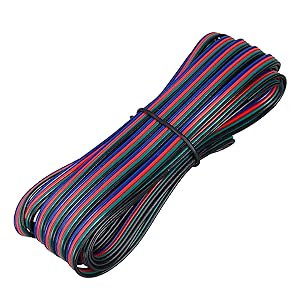

RGB Extension Wire Specification
- RGB Extension Wire Specification
- Conductor Material: High-purity oxygen-free tinned copper wires
- External Material: Insulated PVC
- Length: 16.4 ft / 5 meters
- Wire Gauge: 22 AWG
- Max Voltage: 300V
- Power: 100W / 1A
- Working temperature: -30?-80?
- Color: Black (align the "+" in the light strip), Green, Red, Blue
- Features: anti-oxidation, corrosion resistance, easy to conduct electricity, easy to weld

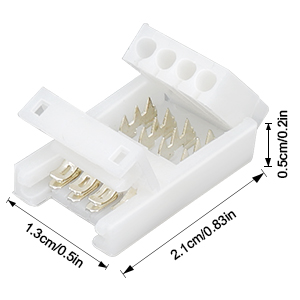

LED Strip Light Connectors Specification
- Material: Flame retardant housing + Copper
- Working Temperature: -22? ~ +185?

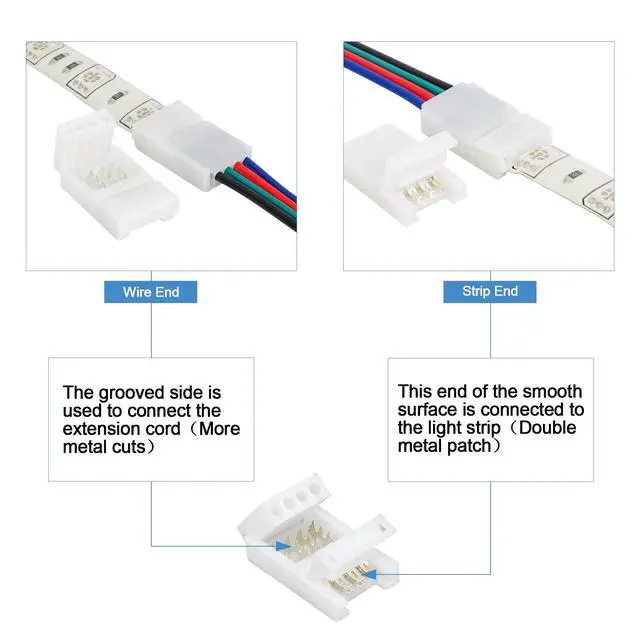

- Wire End: Fits 22 AWG stranded and solid wires
- Strip End: Fits 4 pin 10mm light strip, for 3528 5050 RGB LED light strips. If there is silicone on the circuit of the strip, please peel it off before install.
- Features: Flame-retardant, Solderless, No Wire Stripping, Reusable
- Reusable: Can be opened if needed after use. Use a pocket knife or something to pop them open.

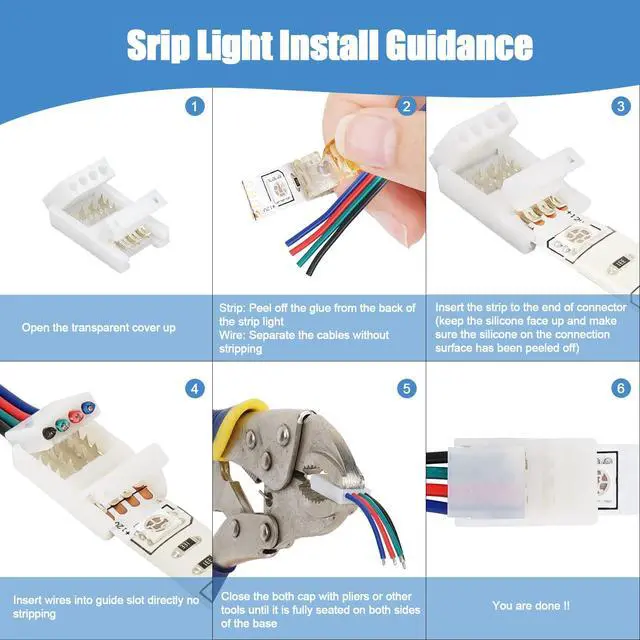

Preparation Before Connection

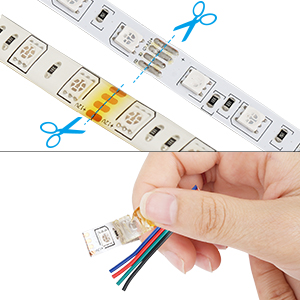

- Measure the required length of the light strip, and cut the light strip at the corresponding position. Suitable for normal or with glue light strip.
- If there is silicone on the circuit of the strip, please peel it off before install.

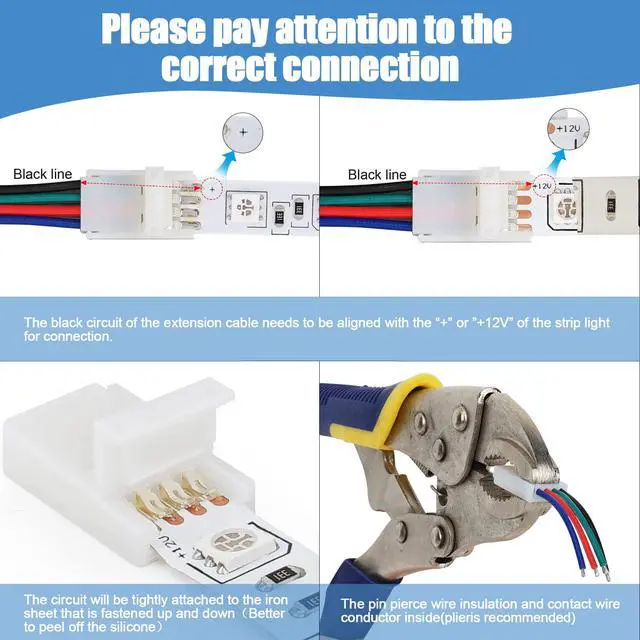

- Separate the 4 color cables. When you are connecting, make sure the Black wire align the "+" in the light strip
No Troublesome Operations, No Chance of Failure

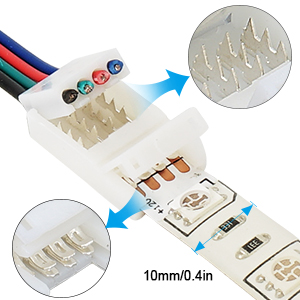

- Without stripping insulation. The copper blades below will bite into the wire and stabilize the connection.
- Put the strip into the middle of the 2-layer copper sheet. Double pressure ensures a more stable and long-lasting connection of the light strip.
- For 10 mm LED strip lights. It is not suitable for 8 mm LED strips and 20 AWG wire.

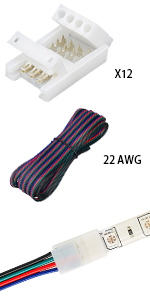

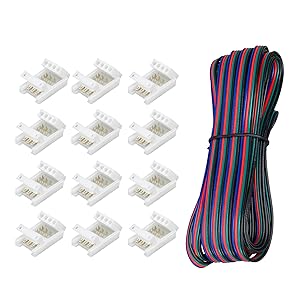

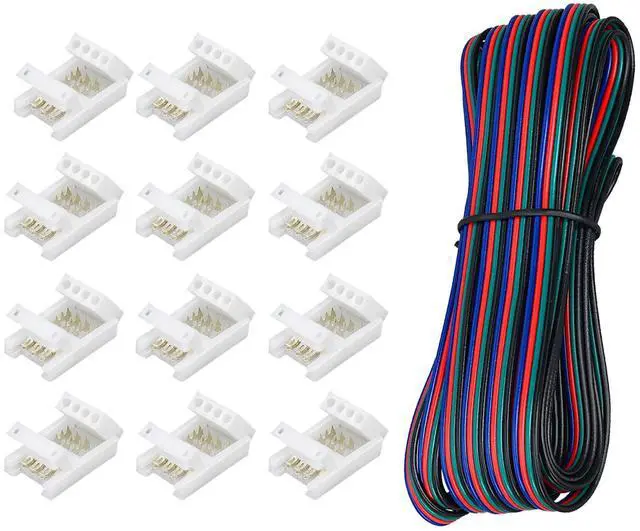

Package
- 12 X 4 pin LED light strip connectors.
- 1 X 16.4 ft LED light RGB strip extension cable.
 Rifachua 22 Gauge LED Extension Cable and 12 Pcs RGB LED Strip Light Connectors |  Rifachua 22 Gauge LED Extension Cable and 12 Pcs T Tap Wire Connectors | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Function | Extend freely and splice faster | Extend freely and splice faster |
| Application | LED light strip | LED, electronic, electrical appliance and equipment, transformer, lamps, CB Radios and motor led wire connection and other low voltage products connection, etc |

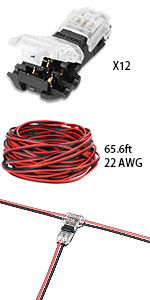

| Package | 12 pcs 4 pin LED light strip connectors and 16.4 ft LED light RGB strip extension cable | 65.6ft 22 Gauge LED Extension Wire and 12 Pcs 3 Way Wire Connectors |
RGB Extension Wire Specification
- RGB Extension Wire Specification
- Conductor Material: High-purity oxygen-free tinned copper wires
- External Material: Insulated PVC
- Length: 16.4 ft / 5 meters
- Wire Gauge: 22 AWG
- Max Voltage: 300V
- Power: 100W / 1A
- Working temperature: -30?-80?
- Color: Black (align the "+" in the light strip), Green, Red, Blue
- Features: anti-oxidation, corrosion resistance, easy to conduct electricity, easy to weld
LED Strip Light Connectors Specification
- Material: Flame retardant housing + Copper
- Working Temperature: -22? ~ +185?
- Wire End: Fits 22 AWG stranded and solid wires
- Strip End: Fits 4 pin 10mm light strip, for 3528 5050 RGB LED light strips. If there is silicone on the circuit of the strip, please peel it off before install.
- Features: Flame-retardant, Solderless, No Wire Stripping, Reusable
- Reusable: Can be opened if needed after use. Use a pocket knife or something to pop them open.
Preparation Before Connection
- Measure the required length of the light strip, and cut the light strip at the corresponding position. Suitable for normal or with glue light strip.
- If there is silicone on the circuit of the strip, please peel it off before install.
- Separate the 4 color cables. When you are connecting, make sure the Black wire align the "+" in the light strip
No Troublesome Operations, No Chance of Failure
- Without stripping insulation. The copper blades below will bite into the wire and stabilize the connection.
- Put the strip into the middle of the 2-layer copper sheet. Double pressure ensures a more stable and long-lasting connection of the light strip.
- For 10 mm LED strip lights. It is not suitable for 8 mm LED strips and 20 AWG wire.
Package
- 12 X 4 pin LED light strip connectors.
- 1 X 16.4 ft LED light RGB strip extension cable.
Rifachua 22 Gauge LED Extension Cable and 12 Pcs RGB LED Strip Light Connectors | Rifachua 22 Gauge LED Extension Cable and 12 Pcs T Tap Wire Connectors | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Function | Extend freely and splice faster | Extend freely and splice faster |
| Application | LED light strip | LED, electronic, electrical appliance and equipment, transformer, lamps, CB Radios and motor led wire connection and other low voltage products connection, etc |
| Package | 12 pcs 4 pin LED light strip connectors and 16.4 ft LED light RGB strip extension cable | 65.6ft 22 Gauge LED Extension Wire and 12 Pcs 3 Way Wire Connectors |
Rifachua pays attention to quality and demands perfection. What we lack is once of your chance. Let Rifachua solve your problem.

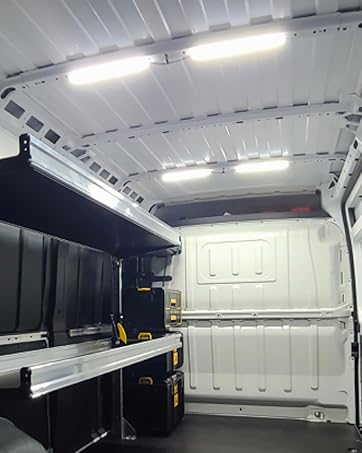

Car 12V Interior LED Light Bar
