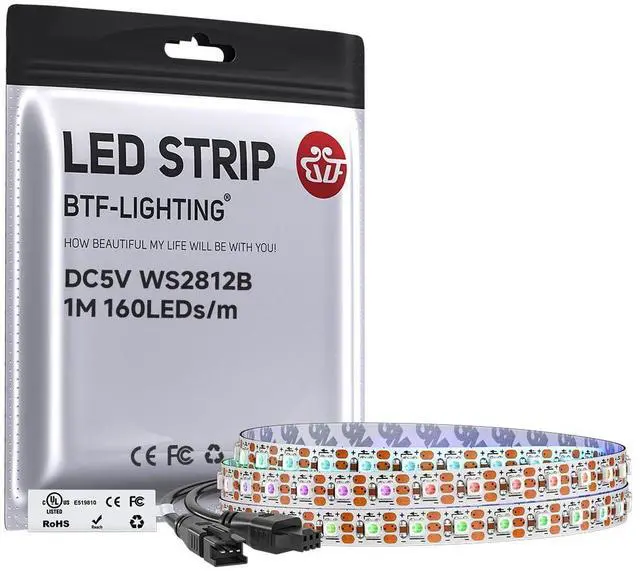

    WS2812B IC RGB 5mm Ultra Narrow LED Strip 2020SMD DC5V Individually Addressable 3.2FT 160Pixels/m 160LED Dream Color Tape Light for Home DIY Decoration IP30 (No Adapter or Controller)

    Be the first to review this product...

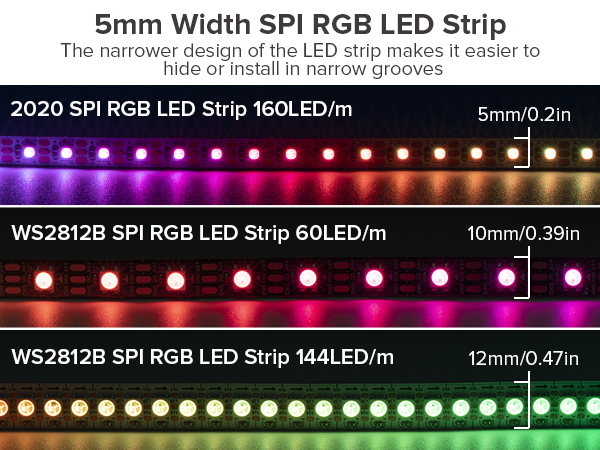

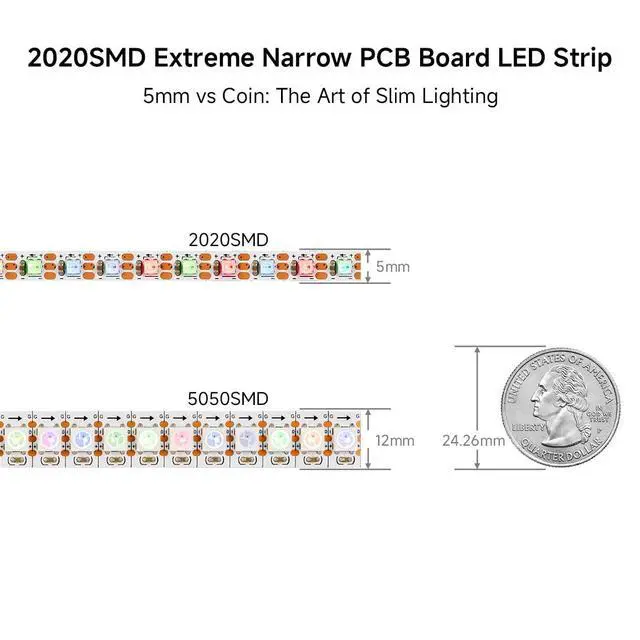

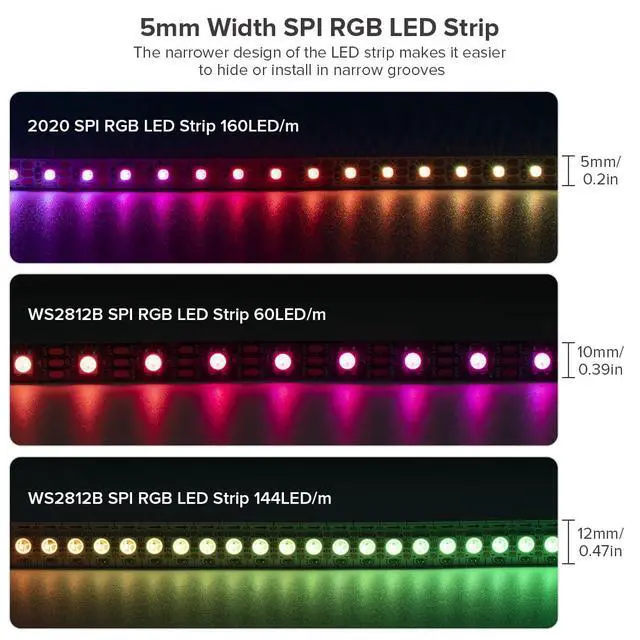

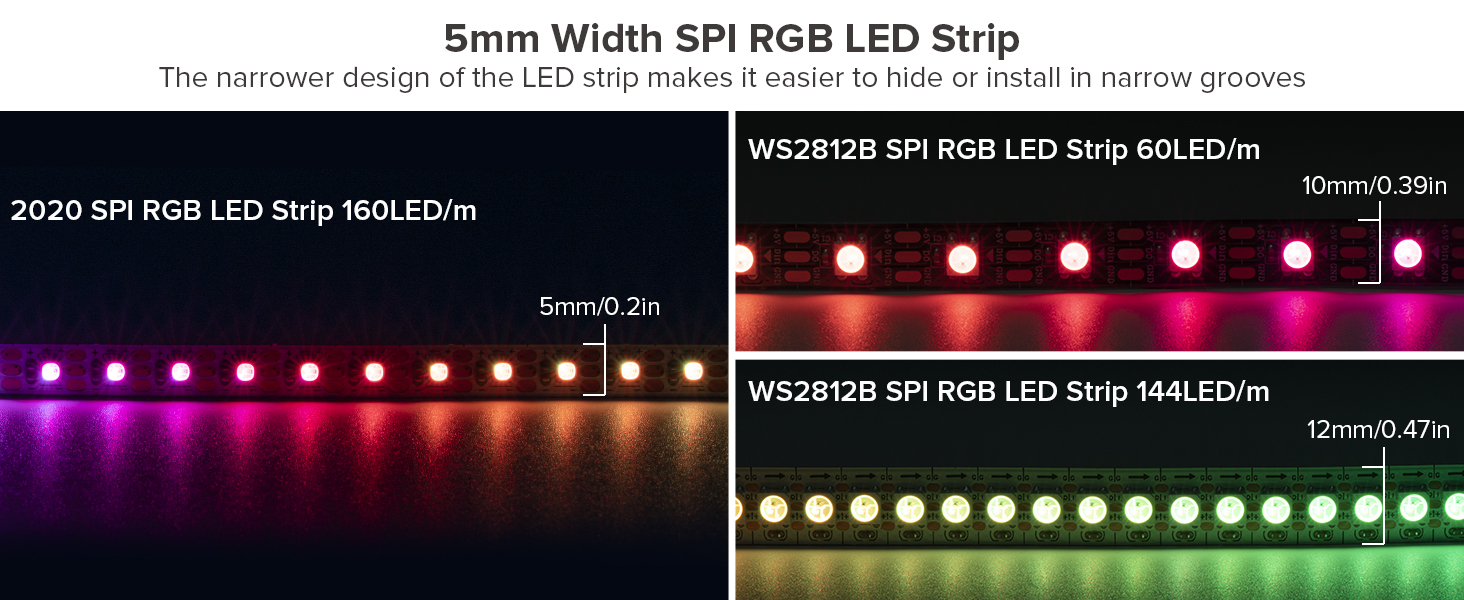

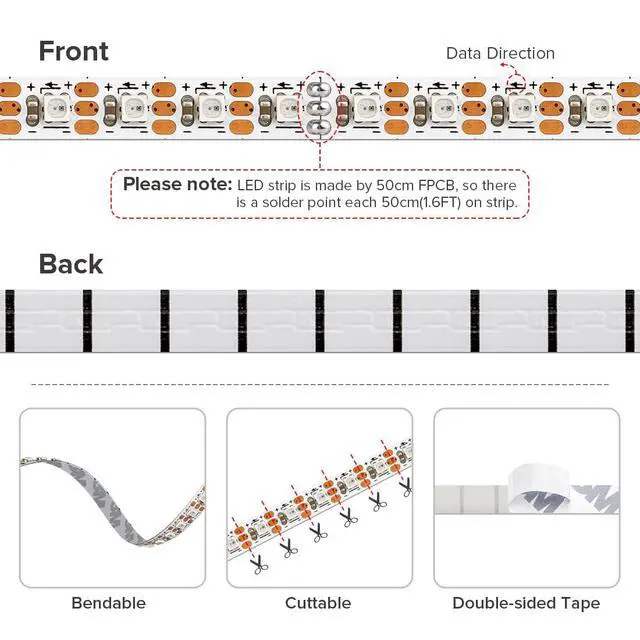

    • Ultra-Slim 5mmDesigned for Tight SpacesAt just 5mm wide, this ultra-narrow LED strip is engineered for tight spacesinside cabinets, along shelves, or hidden in narrow gaps. It bends and cuts with ease for seamless, custom-fit installation. Enjoy uniform, flicker-free brightness in a minimalist profile that disappears into any design.
    • Individually Addressable RGB Full Control, LED by LED Each WS2812B LED features a built-in IC for independent programming, offering 256 brightness levels and 24-bit color depth. Create dynamic effects like rainbow fades, meteor streaks, and music-reactive patterns. Cuttable at every LED freely customize the length to fit your project.Note: Cannot be connected in series.

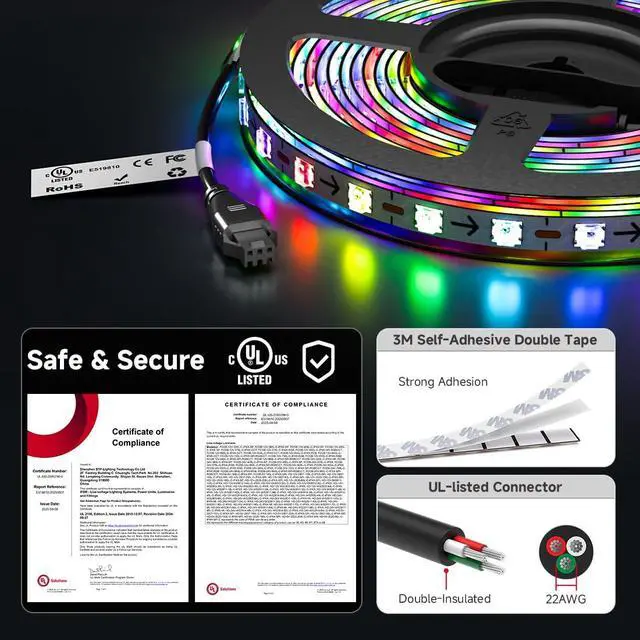

    • UL ListedUL Recognized LED strip for guaranteed safety, featuring 3M double-sided adhesive, UL Recognized wires and PCB

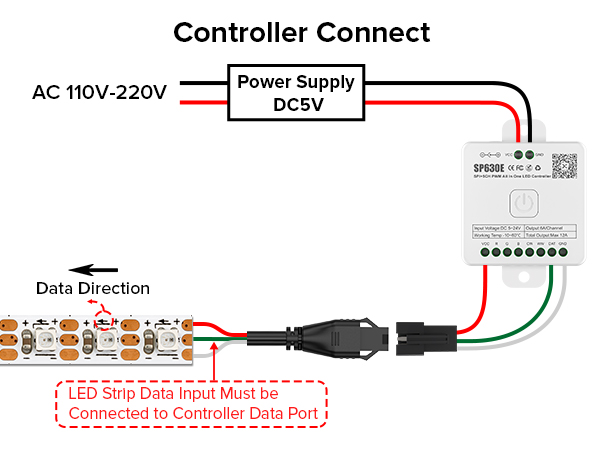

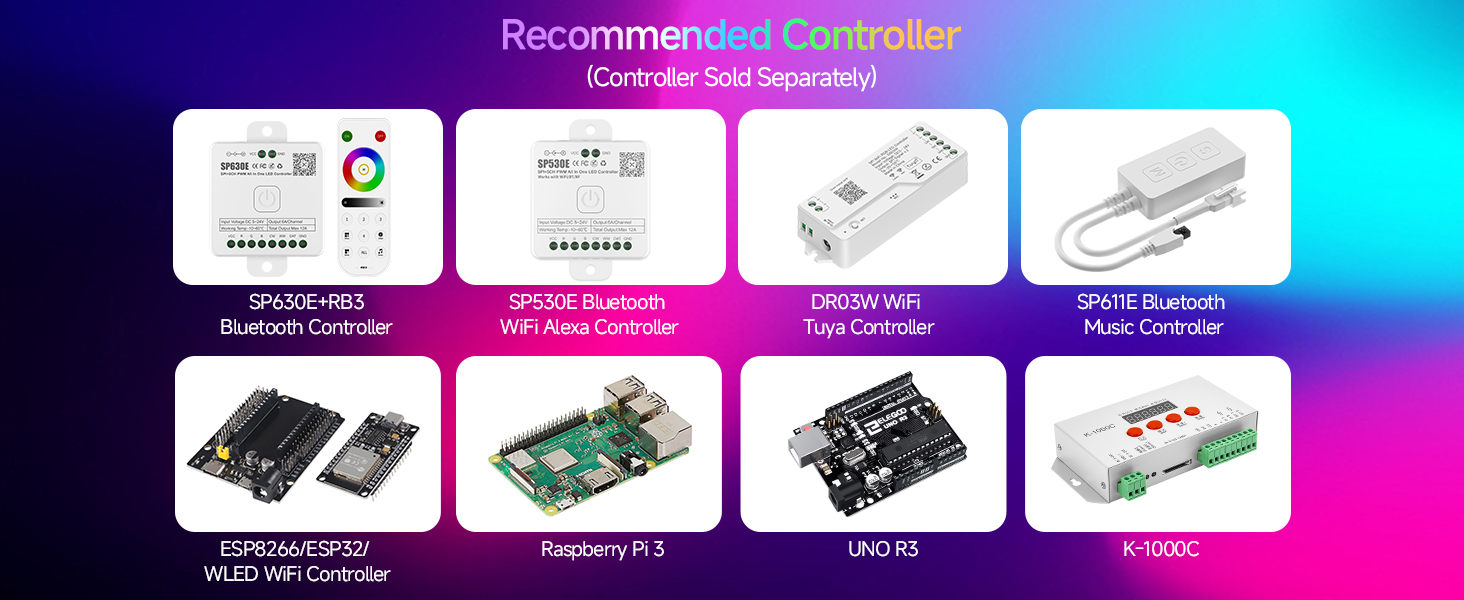

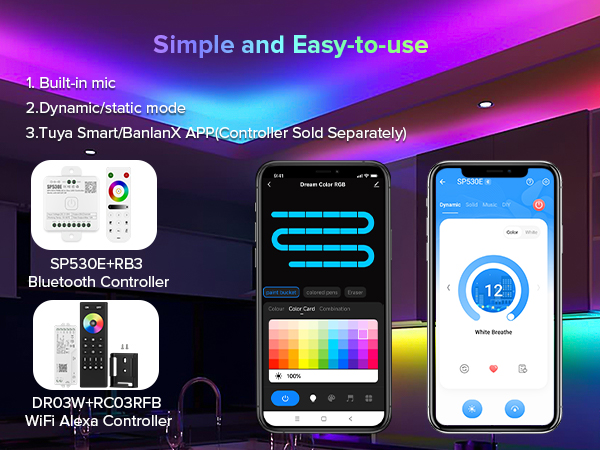

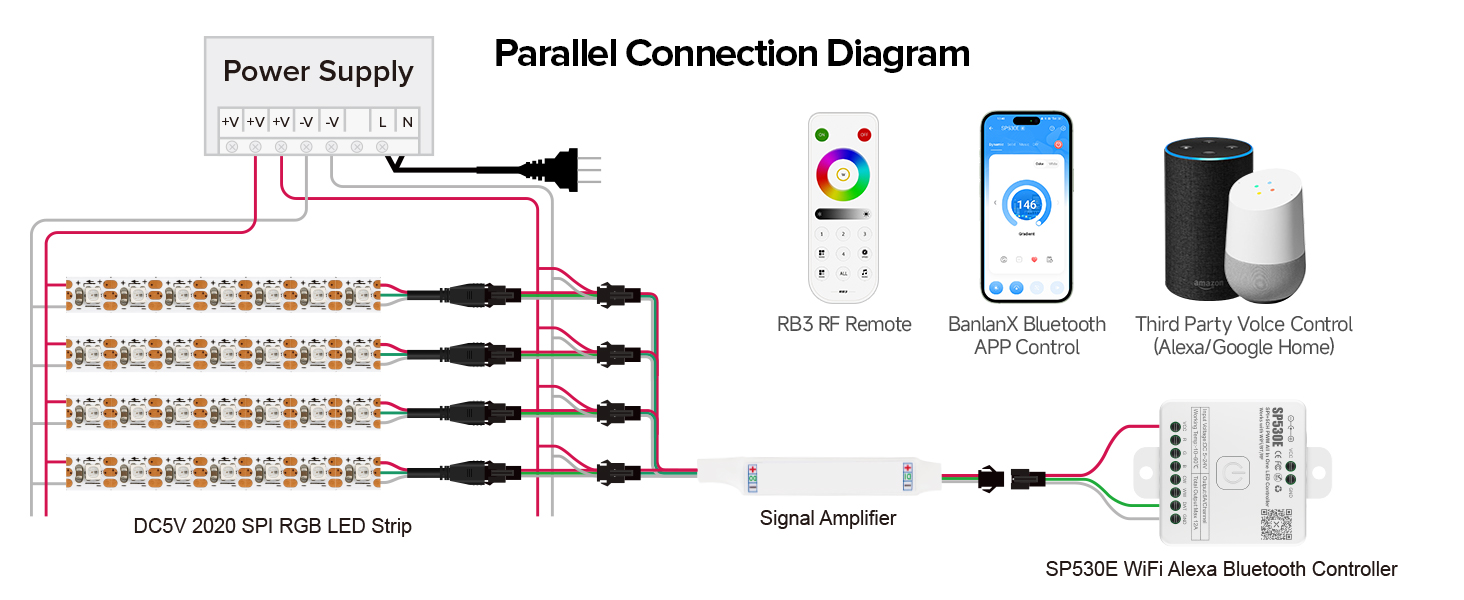

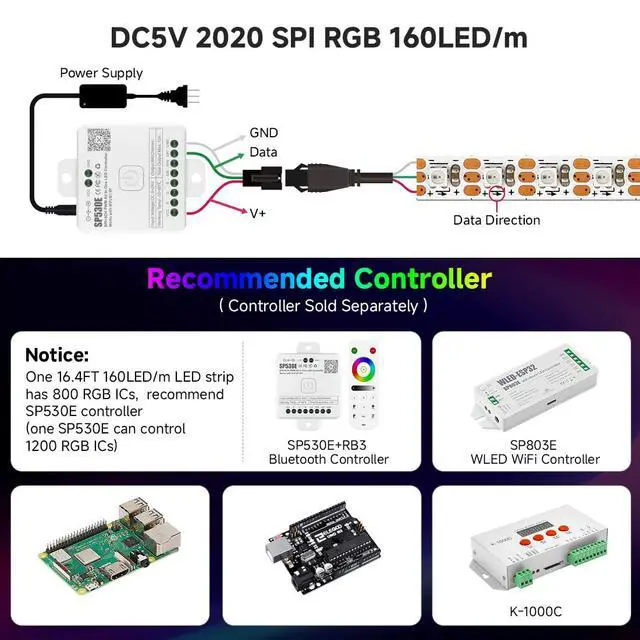

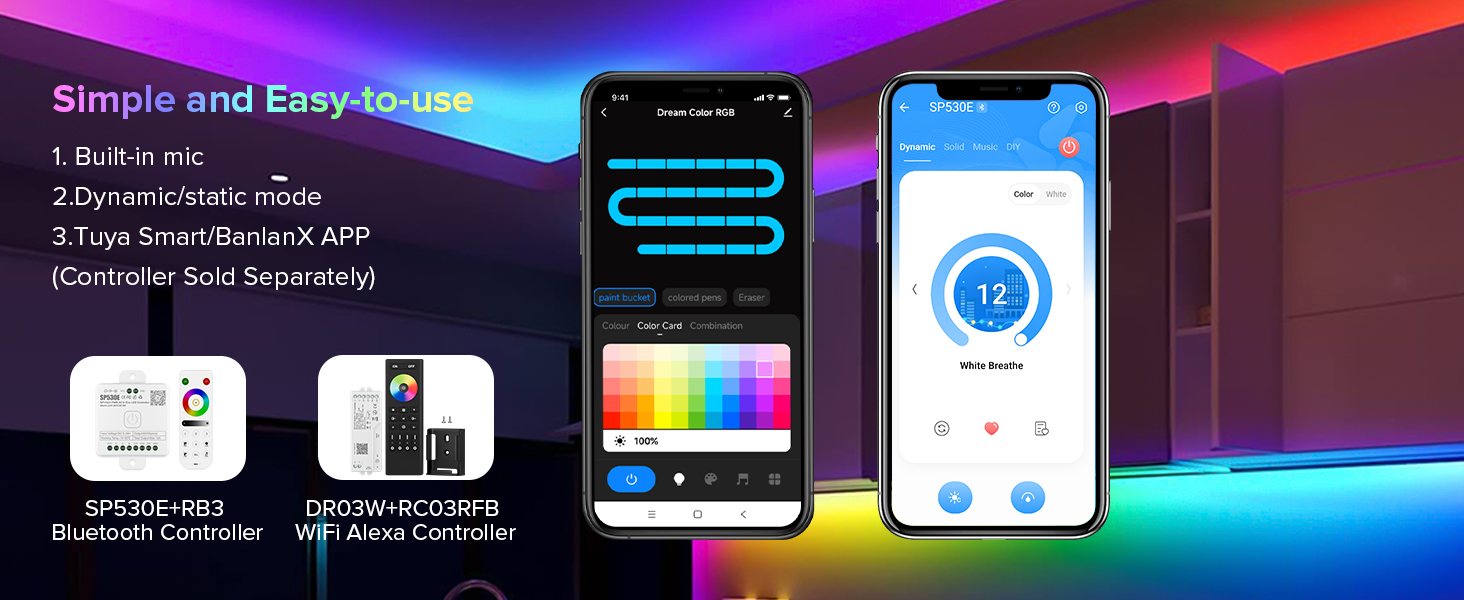

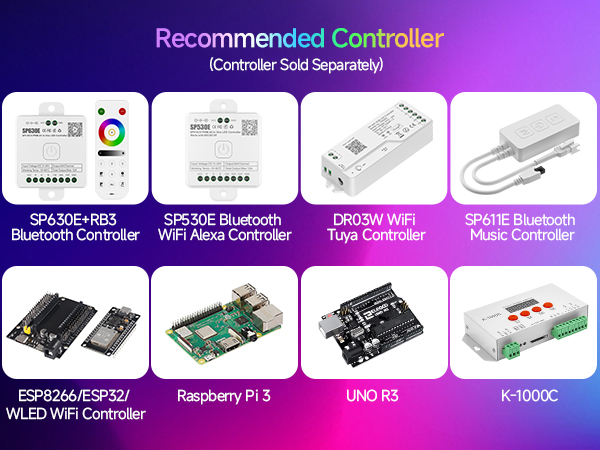

    • Wide CompatibilityThe addressable RGB IC Chip is built-in the 2020SMD. Each pixel can have its own color and brightness as your wish. Compatible with multiple controllers: DIY Projects (SP803E,SP805E,ESP32, ESP8266,WLED, Rasp Pi, UNO R3 etc.), Tuya APP (DR03W), BanlanX APP (SP630E/SP530E/SP611E/SP602E/SP608E/SP107E/SP105E etc.),industrial-grade (K1000C, K8000C, etc.). Choose the right controller per your project.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    BTF-LIGHTING WS2812B IC 160LED 2020SMD 5MM SPI RGB LED Strip

    used

    Parameter Table

    LED Type 2020SMD SPI RGB IC LED Strip
    Input Voltage DC5V
    LED Quantity 160LED/m, 160IC/m, Individually Addressable

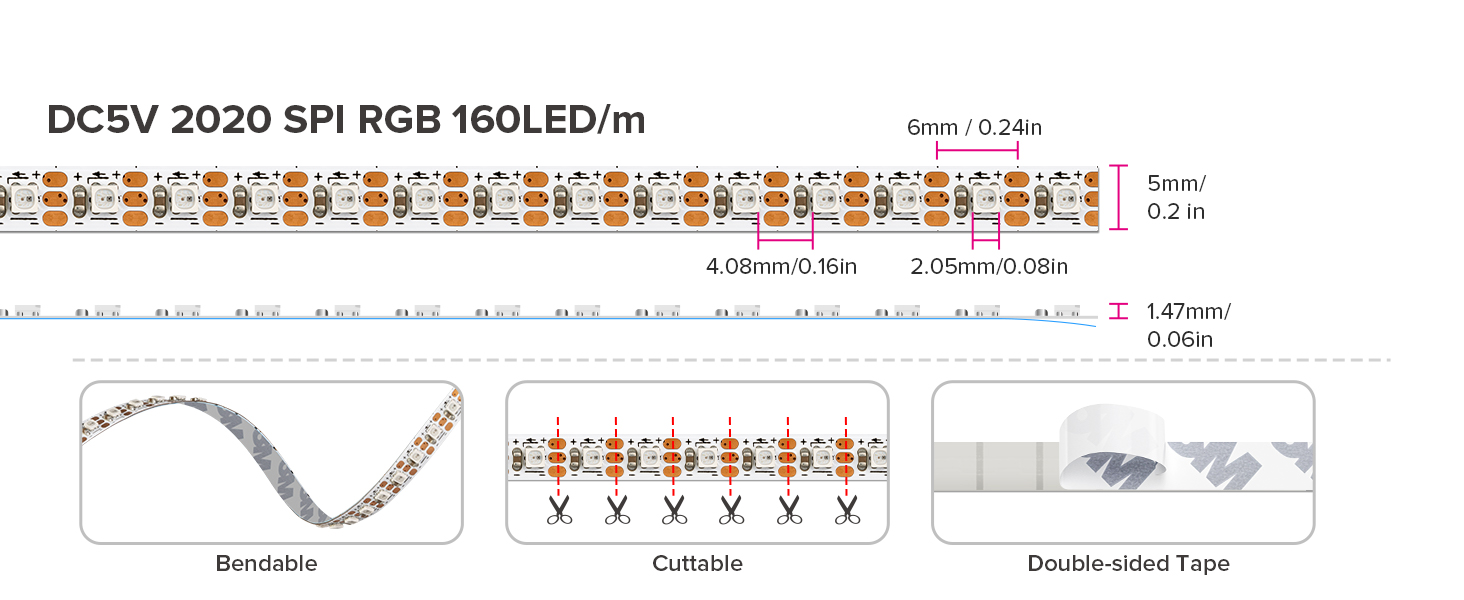

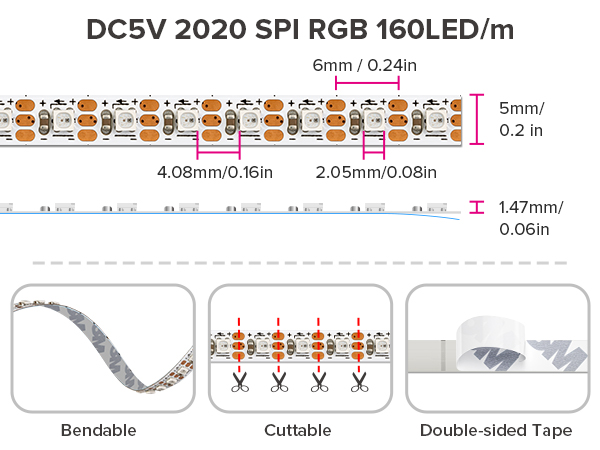

    LED Strip Width 5mm
    Waterproof Level IP30 Non-waterproof
    IC Type WS2812B
    Operation Temperature -4?~113?(-20?~+45? )
    Storage Temperature -4?~104?(-20?~+40? )
    Ways of Working Work with a controller- RF remote, Bluetooth, WiFi, Alexa, Google Home, Tuya, WLED, etc.
    Wave Length(nm) Red:620nm ; Green:525nm ; Blue:460nm
    Total Length 3.2FT (1m) / 6.5FT (2m) / 9.8FT (3m) / 13.1FT(4m) / 16.4FT(5m)
    NOTES Individually Addressable. 1 pixel=1 IC chip=1 LED
    FPCB Board Color White
    Light Color G R B (NOT RGB)
    3.2FT Power Range Pure Color(Green/Red/Blue): 7W; Mixed White: 15W; Color Effect:<15W. Recommend DC5V3A 15W Power Supply.
    6.56FT Power Range Pure Color(Green/Red/Blue): 10W; Mixed White: 25W; Color Effect:<25W. Recommend DC5V6A 30W Power Supply.

    Widely Application

    Choose the right FCOB product for you-Single Color,CCT,RGB,RGBW

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/454cb6d8-2e54-433e-a2ae-3c77426b27c1.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    2020SMD SPI RGB 160L LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/f88cee75-0026-4a29-81b7-56fb7254f5e1.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    0807SMD SPI RGB 160L LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/310c0bb7-1ef7-4da0-9aff-153d45aebe61.__CR61,0,978,1100_PT0_SX200_V1___.png

    WS2812B FCOB SPI 160L LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/1cae9c17-af64-4f0a-a19a-8ae184bd9692.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    WS2812B SMD SPI LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/0fba3518-5d02-4d21-8ec4-4d61adbbdc7e.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    2835SMD SPI RGB 108L LED

    Customer Reviews
    		—————
    Price
    		—————
    Colour
    		RGB RGB RGB RGB RGB
    IC Type
    		WS2812B IC WS2812B IC XGB1338 IC WS2812B IC WS2811 IC
    LED Density
    		160 LED/m 160 LED/m 160 LED/m 30/60/144 LED/m 108 LED/m
    LED Width
    		0.20in(5mm) 0.10in(2.7mm) 0.20in(5mm) 0.39in(10mm) 0.31in(8mm)
    Work With Controller
    		Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa
    Series Connection
    		? ? ? ? ?
    Working Voltage
    		DC5V DC5V/DC12V DC5V DC5V DC24V
    Chasing Color
    		? ? ? ? ?
    Pin
    		3pin 3pin 3pin 3pin 3pin

    BTF-LIGHTING WS2812B IC 160LED 2020SMD 5MM SPI RGB LED Strip

    used

    Parameter Table

    LED Type 2020SMD SPI RGB IC LED Strip
    Input Voltage DC5V
    LED Quantity 160LED/m, 160IC/m, Individually Addressable
    LED Strip Width 5mm
    Waterproof Level IP30 Non-waterproof
    IC Type WS2812B
    Operation Temperature -4?~113?(-20?~+45? )
    Storage Temperature -4?~104?(-20?~+40? )
    Ways of Working Work with a controller- RF remote, Bluetooth, WiFi, Alexa, Google Home, Tuya, WLED, etc.
    Wave Length(nm) Red:620nm ; Green:525nm ; Blue:460nm
    Total Length 3.2FT (1m) / 6.5FT (2m) / 9.8FT (3m) / 13.1FT(4m) / 16.4FT(5m)
    NOTES Individually Addressable. 1 pixel=1 IC chip=1 LED
    FPCB Board Color White
    Light Color G R B (NOT RGB)
    3.2FT Power Range Pure Color(Green/Red/Blue): 7W; Mixed White: 15W; Color Effect:<15W. Recommend DC5V3A 15W Power Supply.
    6.56FT Power Range Pure Color(Green/Red/Blue): 10W; Mixed White: 25W; Color Effect:<25W. Recommend DC5V6A 30W Power Supply.

    Widely Application

    Choose the right FCOB product for you-Single Color,CCT,RGB,RGBW

    https://m.media-amazon.com/images/S/aplus-media-library-service-media/454cb6d8-2e54-433e-a2ae-3c77426b27c1.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    2020SMD SPI RGB 160L LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/f88cee75-0026-4a29-81b7-56fb7254f5e1.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    0807SMD SPI RGB 160L LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/310c0bb7-1ef7-4da0-9aff-153d45aebe61.__CR61,0,978,1100_PT0_SX200_V1___.png

    WS2812B FCOB SPI 160L LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/1cae9c17-af64-4f0a-a19a-8ae184bd9692.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    WS2812B SMD SPI LED

    		https://m.media-amazon.com/images/S/aplus-media-library-service-media/0fba3518-5d02-4d21-8ec4-4d61adbbdc7e.__CR61,0,978,1100_PT0_SX200_V1___.jpg

    2835SMD SPI RGB 108L LED

    Customer Reviews
    —————
    Price
    —————
    Colour
    RGB RGB RGB RGB RGB
    IC Type
    WS2812B IC WS2812B IC XGB1338 IC WS2812B IC WS2811 IC
    LED Density
    160 LED/m 160 LED/m 160 LED/m 30/60/144 LED/m 108 LED/m
    LED Width
    0.20in(5mm) 0.10in(2.7mm) 0.20in(5mm) 0.39in(10mm) 0.31in(8mm)
    Work With Controller
    Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa Bluetooth/WiFi/Alexa
    Series Connection
    ? ? ? ? ?
    Working Voltage
    DC5V DC5V/DC12V DC5V DC5V DC24V
    Chasing Color
    ? ? ? ? ?
    Pin
    3pin 3pin 3pin 3pin 3pin

    Product information

    Color Multicolor
    Brand BTF-LIGHTING
    Indoor/Outdoor Usage Indoor
    Special Feature DC5V, Dream color, Individually Addressable, RGB+IC, Ultra Narrow PCB
    Light Source Type LED
    Power Source DC
    Light Color Multicolor
    Theme Christmas
    Occasion Indoor
    Material 5mm Width DC5V
    Indoor Outdoor Usage Indoor
    Additional Features DC5V, Dream color, Individually Addressable, RGB+IC, Ultra Narrow PCB
    Voltage 5 Volts (DC)
    Wattage 15 watts
    Ingress Protection Code Rating IP30
    Smart Home Compatibility Not Smart Home Compatible
    Water Resistance Level Not Water Resistant
    Connectivity Protocol Wi-Fi, Bluetooth, etc.
    Material Type 5mm Width DC5V
    hanging_pattern_layout Linear
    Form Factor Strip Lights
    Number of Light Sources 160
    Number of Items 1
    Brand Name BTF-LIGHTING
    Model Number HD-5V-2020-160L-W-IP30-SPI
    Included Components LED Strip
    Item Length 3.2 Feet
    Manufacturer SHENZHEN BTF-LIGHTINGTECHNOLOGY CO.,LTD
    Unit Count 1.0 Count

    Additional Features

    • [Wide Application]At just 5mm wide, this ultra-slim LED strip is made for gaps. From under-cabinet lighting, bookshelf accents, TV backlighting, display cases, closets, vanity mirrors, staircases, to the bottom of TV stands 8 tight spaces where ordinary strips can't fit. Cuttable, bendable, and paper-thin, it delivers uniform brightness without being seen. No light visible by day, only clean illumination at night. Bring professional-grade lighting into every narrow corner of your home.
    • [Power & Safety]Strict 5V DC input only (12V/24V will cause damage). Use one 5V/3A adapter per 3.2FT (160 LEDs). Power draw varies by color mode and PSU efficiency. Avoid extended max brightness ensure good ventilation and don't run full load in enclosed/hot spaces to prevent overheating and extend lifespan.
    • [NOTE]Amazon's Frequently Bought Together recommendations may not match, please confirm before purchase.Dedicated customer support provided for DIY design, installation help, troubleshooting and after-sales warranty service.
