More Products
 DC24V 72W Power Supply |  SP645E RGB+CCT Controller |  Wi-Fi 12-in-1 Controller |  5-IN-1 LED Controller |  12mm 6-Pin Connector |  RGB+CCT COB Kit |  Extension Cables | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Color | Black | White | White | White | / | RGB+CCT | White |
Length | 4.92ft/1.5m | / | / | / | / | 20ft/6.1m | 2 × 6.56ft |
Width | / | / | / | / | 12mm | 12mm | / |
Voltage | DC24V | DC5-24V | DC5-24V | DC12-24V | / | DC24V | DC12-24V |
Brand | PAUTIX | PAUTIX | PAUTIX | PAUTIX | PAUTIX | PAUTIX | PAUTIX |

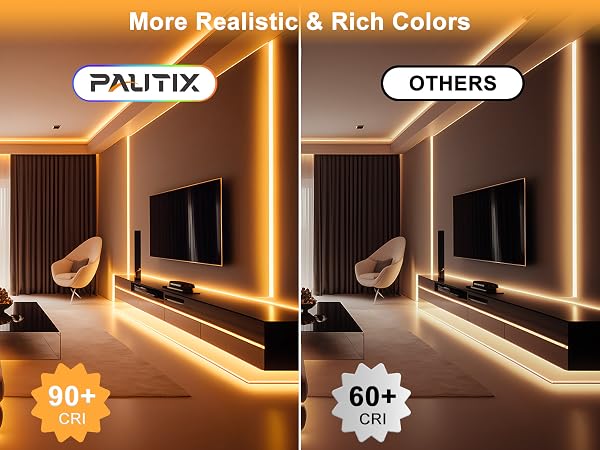

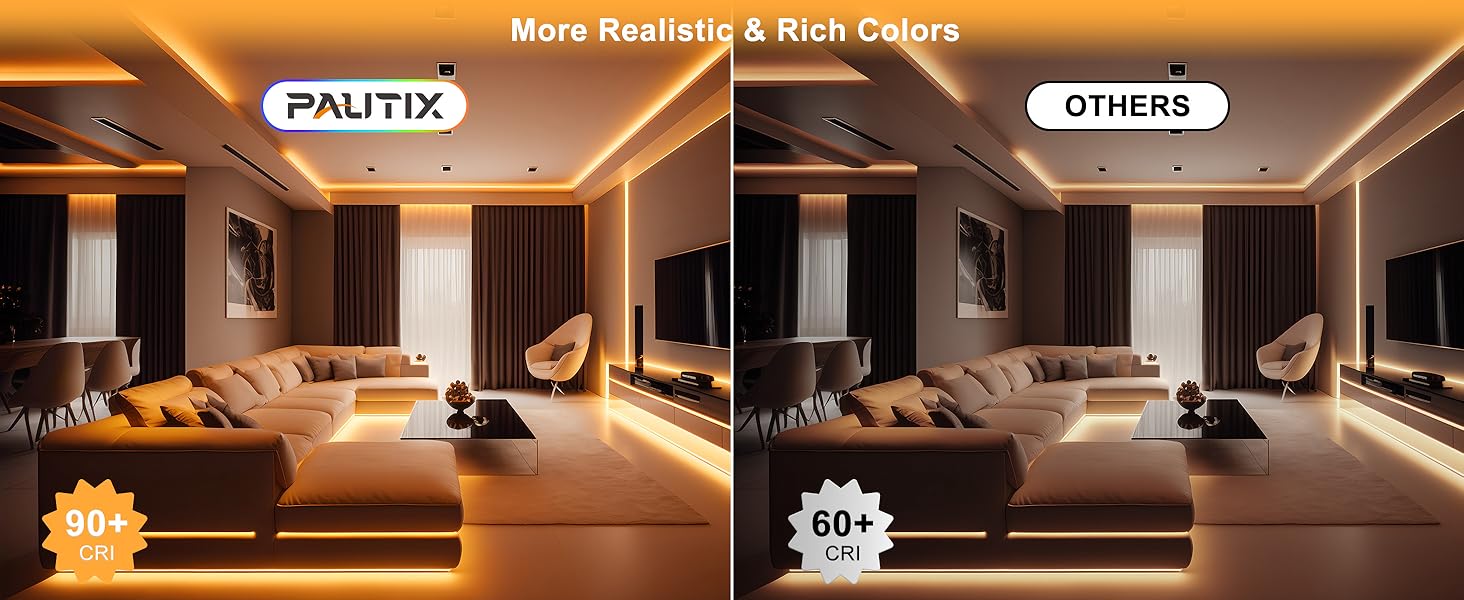

More Realistic Colors

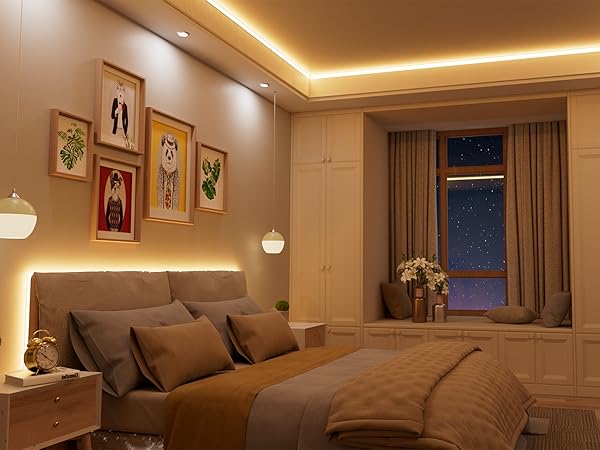

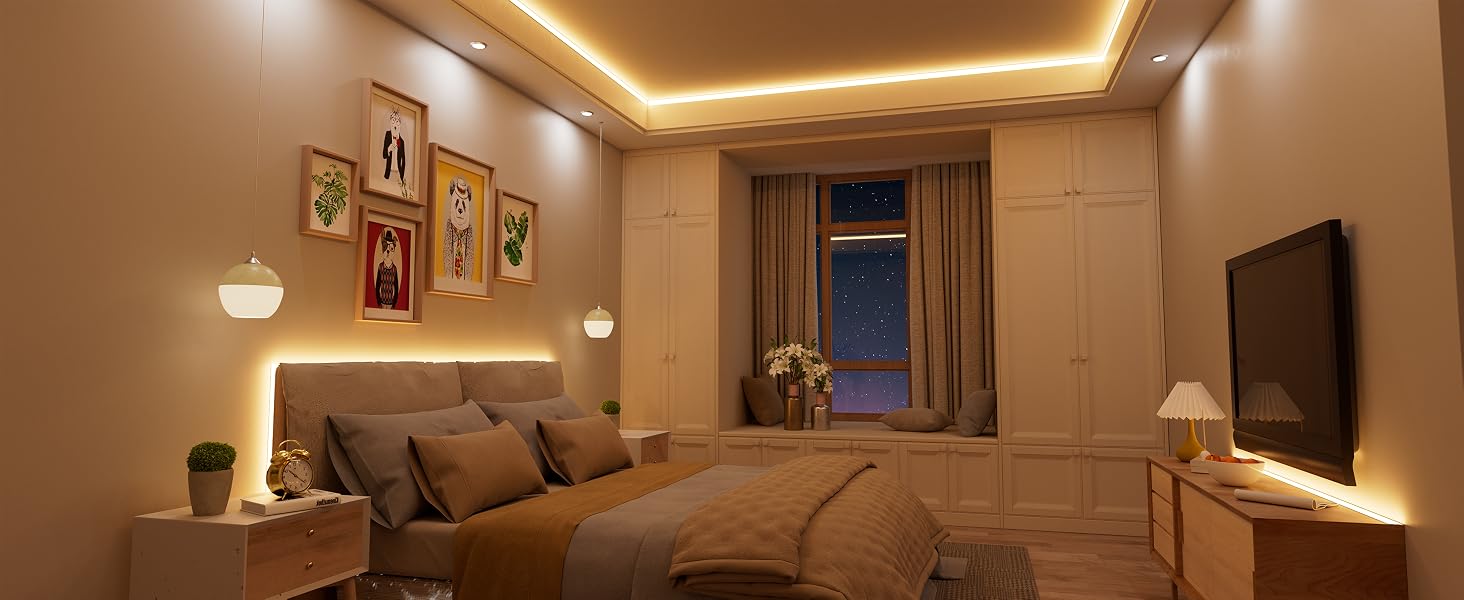

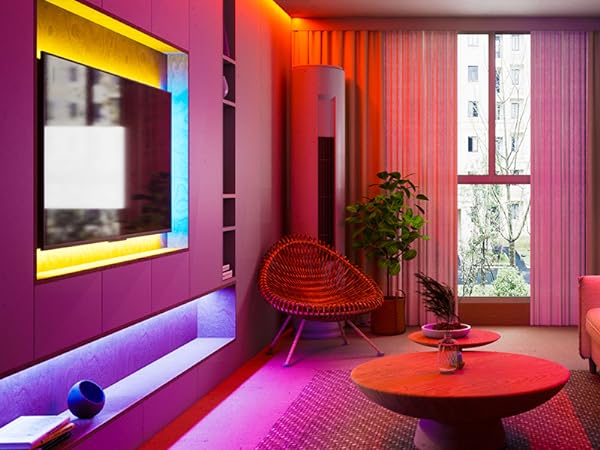

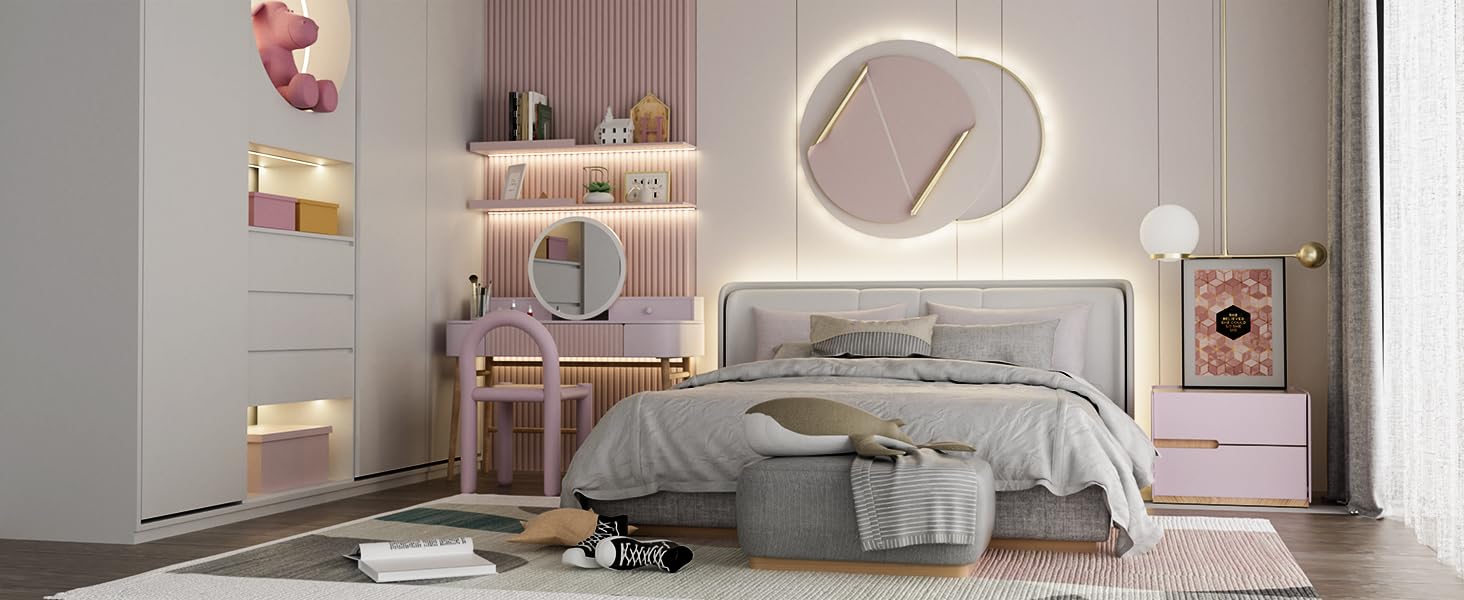

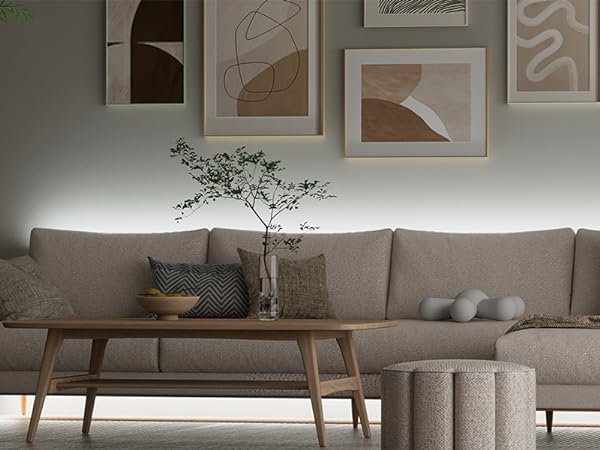

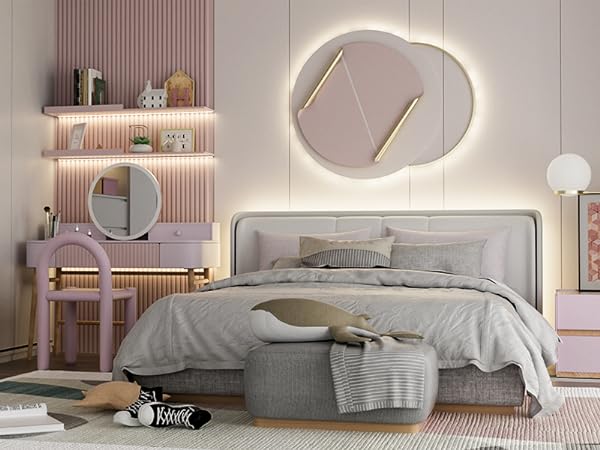

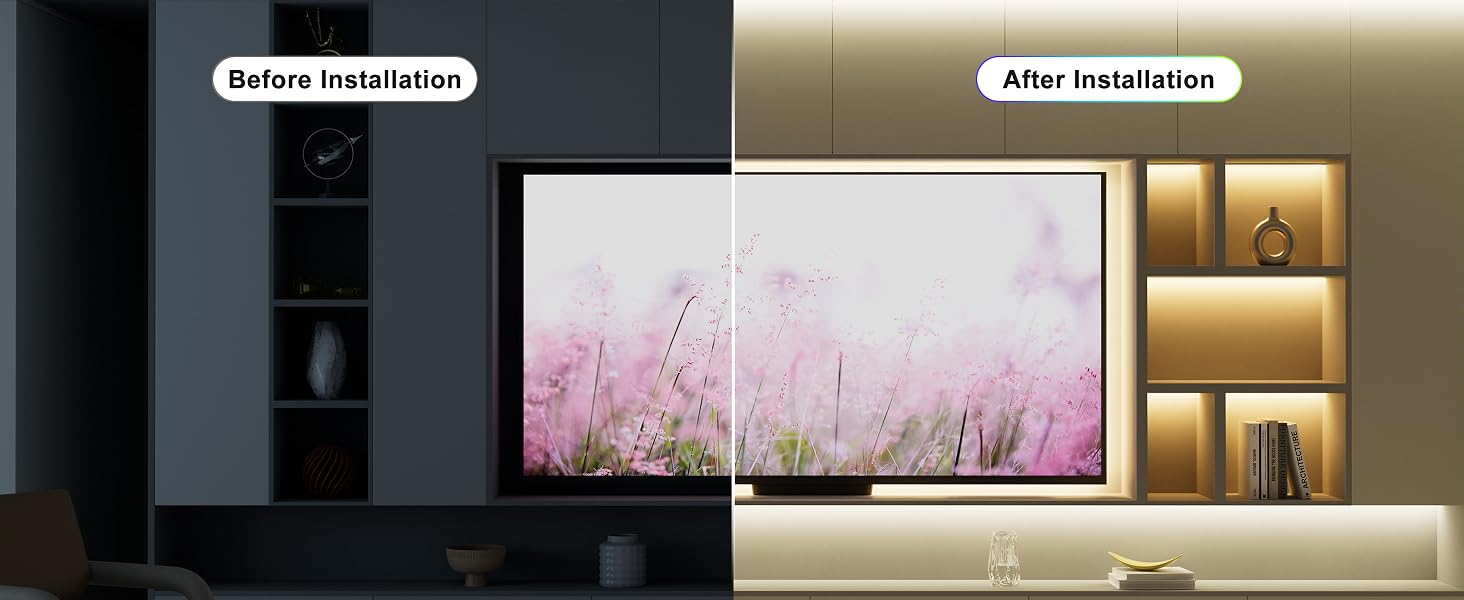

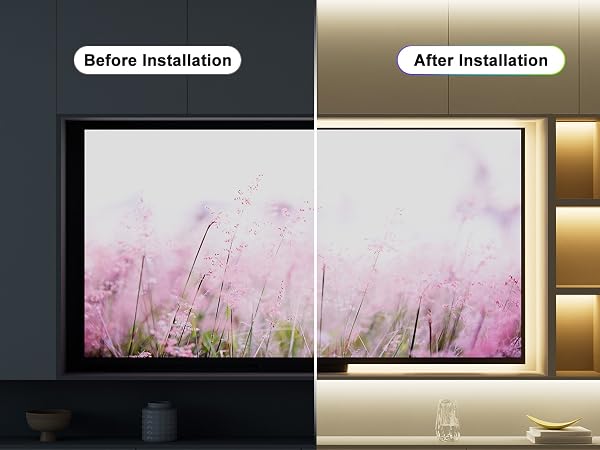

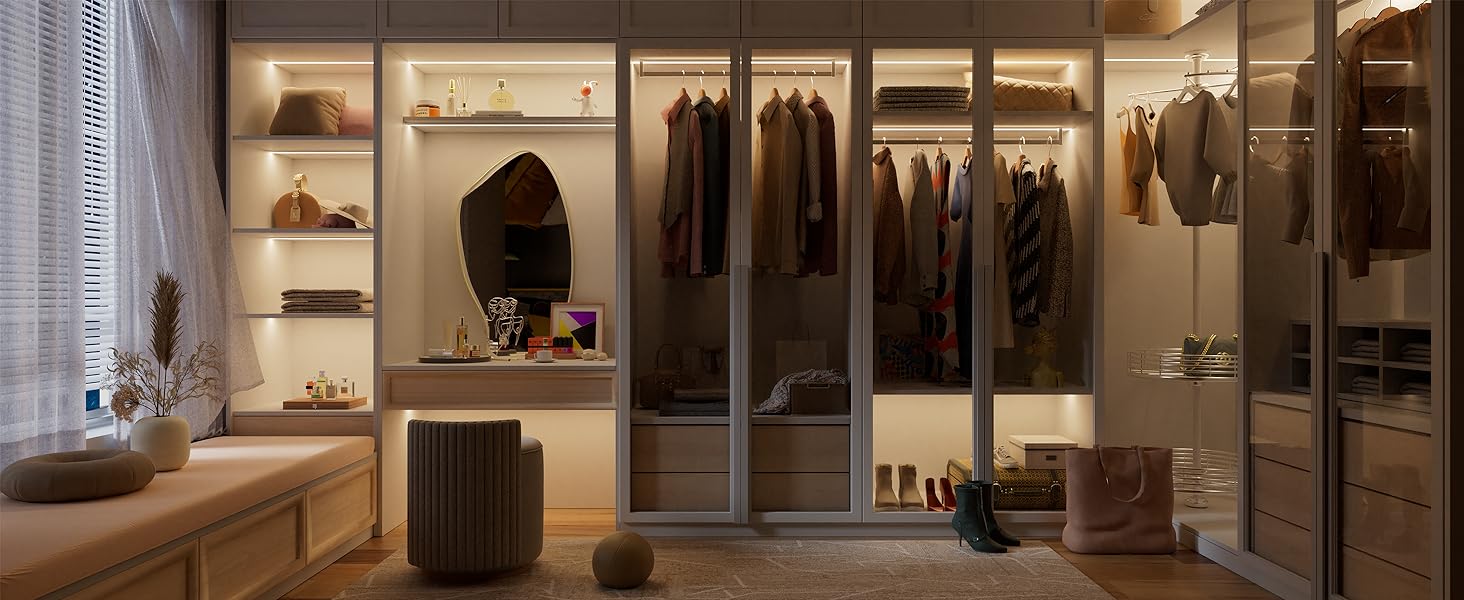

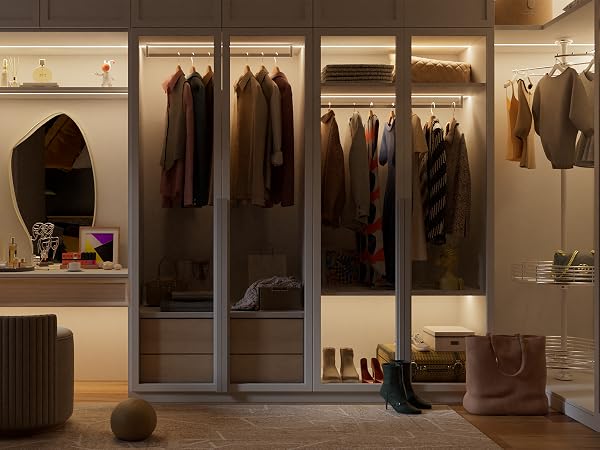

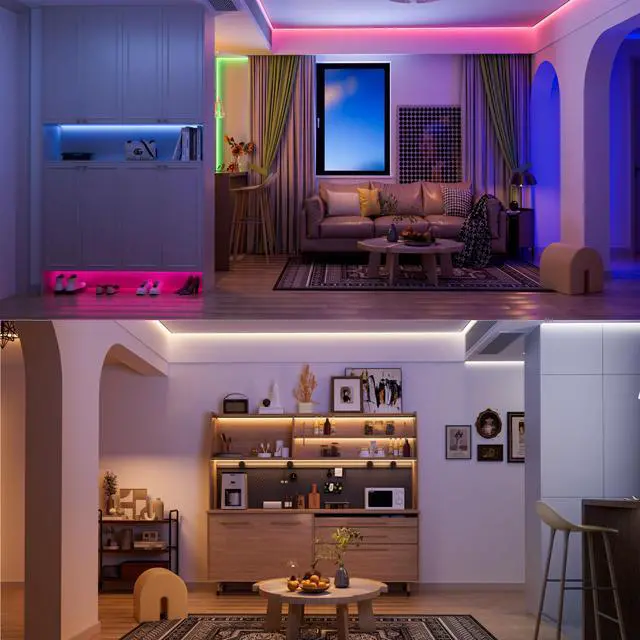

Installation Effect
PAUTIX COB LED strip lights not only provide excellent auxiliary lighting for your space, but also provide colorful and multi-mode entertainment lighting!
Product Parameters
More Products
 DC24V 72W Power Supply | SP645E RGB+CCT Controller | Wi-Fi 12-in-1 Controller |  5-IN-1 LED Controller | 12mm 6-Pin Connector |  RGB+CCT COB Kit |  Extension Cables |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Color | ||||||
| Black | White | White | White | / | RGB+CCT | White |
| Length | ||||||
| 4.92ft/1.5m | / | / | / | / | 20ft/6.1m | 2 × 6.56ft |
| Width | ||||||
| / | / | / | / | 12mm | 12mm | / |
| Voltage | ||||||
| DC24V | DC5-24V | DC5-24V | DC12-24V | / | DC24V | DC12-24V |
| Brand | ||||||
| PAUTIX | PAUTIX | PAUTIX | PAUTIX | PAUTIX | PAUTIX | PAUTIX |
More Realistic Colors

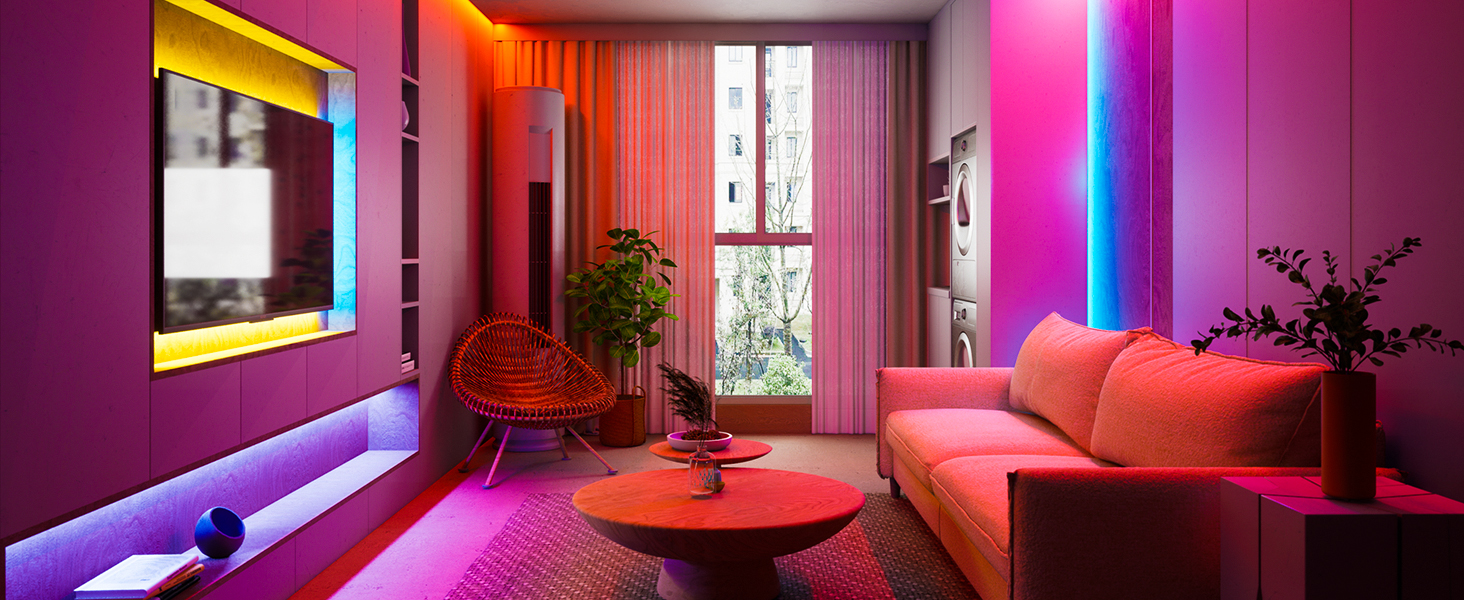

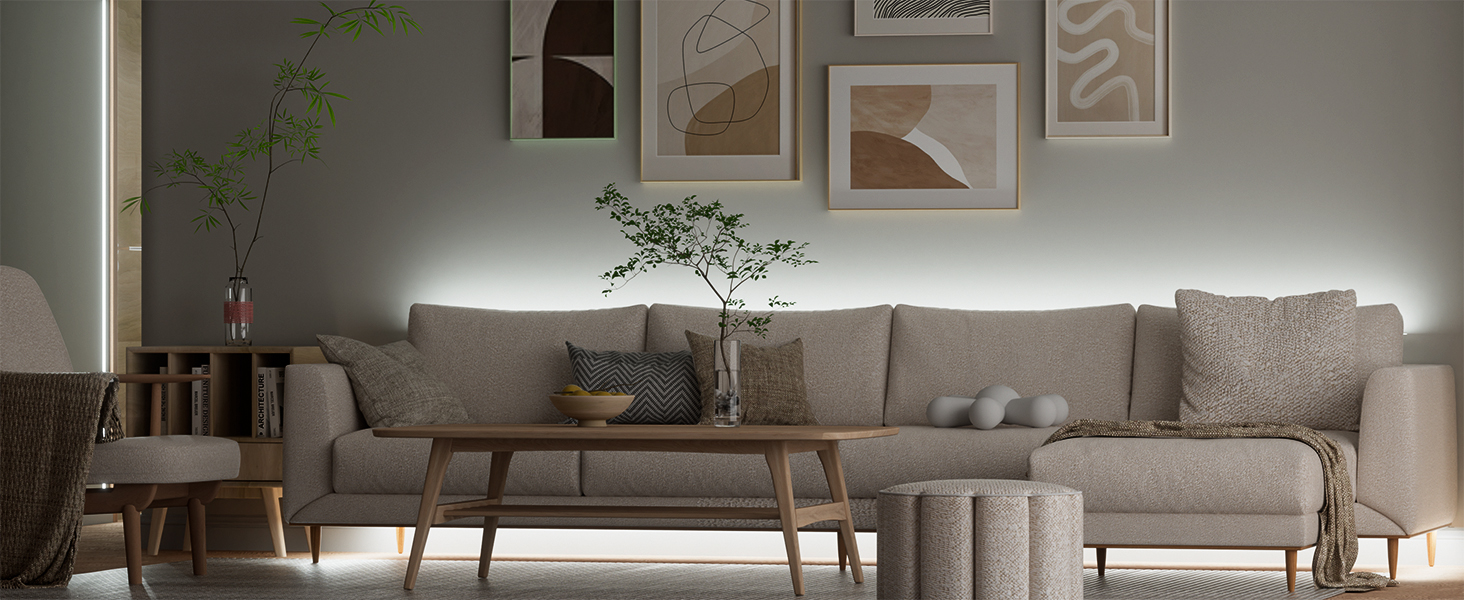

Installation Effect
PAUTIX COB LED strip lights not only provide excellent auxiliary lighting for your space, but also provide colorful and multi-mode entertainment lighting!
Product Parameters

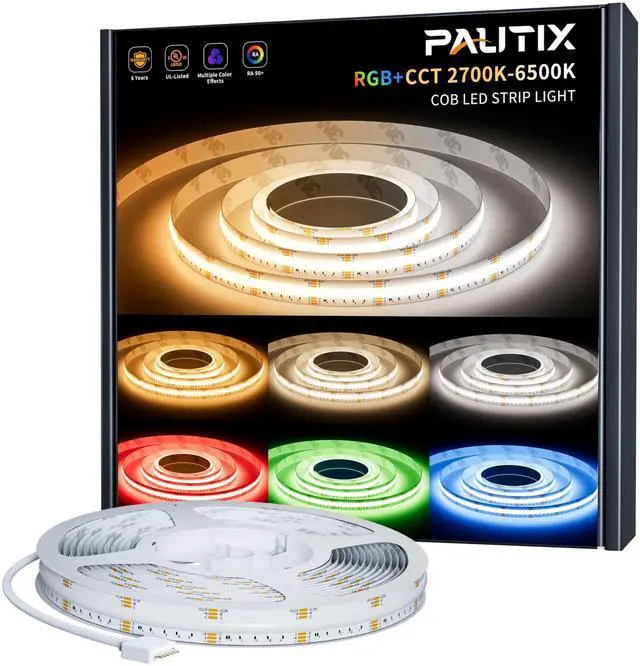

| Type of LED | COB LED strip light, RGB+CCT(2700K-6500K) COB LED strip light |
|---|---|
| Operating Voltage | DC24V(Other voltages are not suitable, so you should choose a power supply with the correct voltage) |

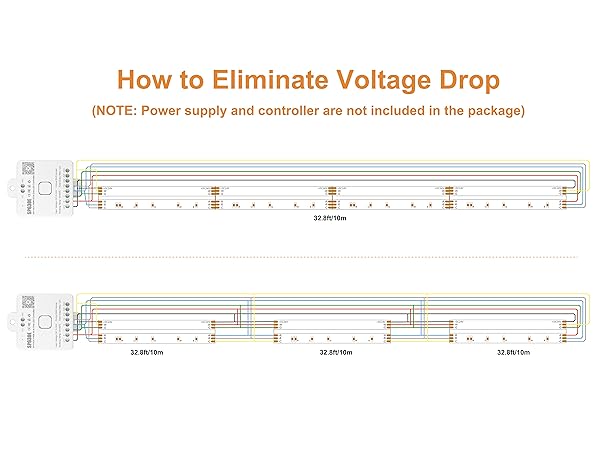

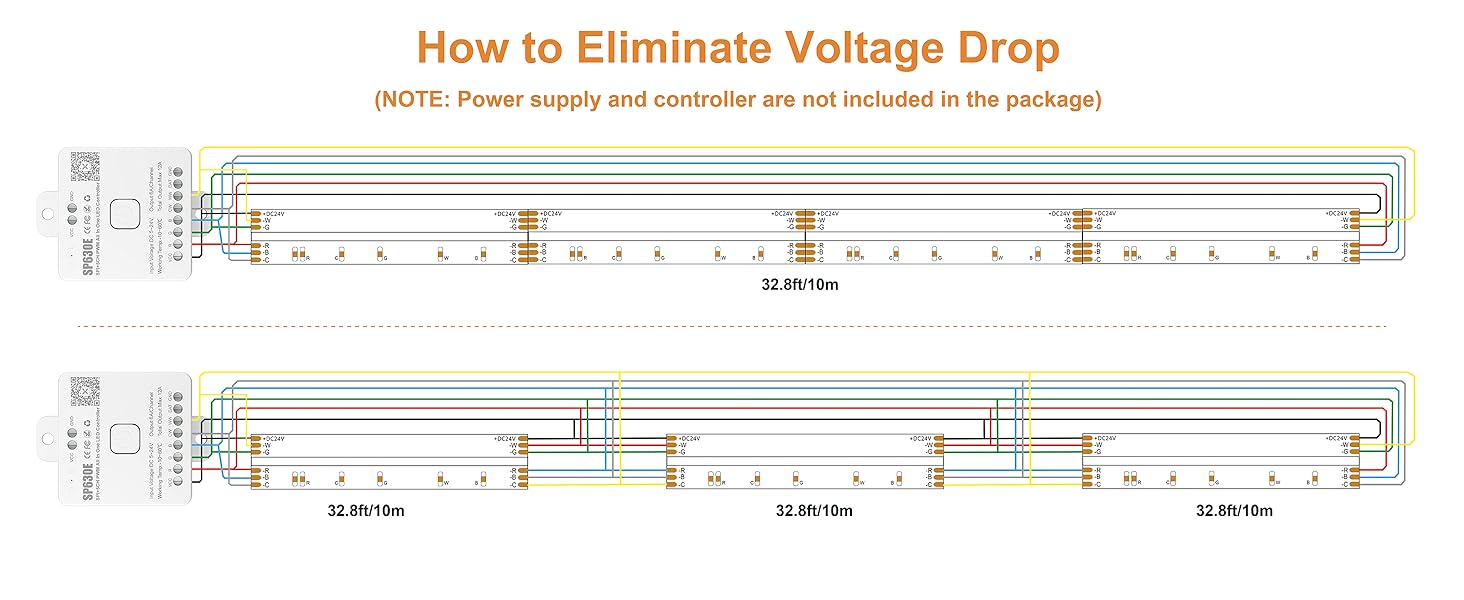

| Rated Power | Theoretical power: 16W per meter(4.88W/ft) ; Measured power: 72W for 24ft(The actual measured power is measured when RGB mixed light and CCT white light are lit at the same time with maximum brightness. It is normal for the measured data to be lower than the theoretical power due to the influence of voltage drop.) |

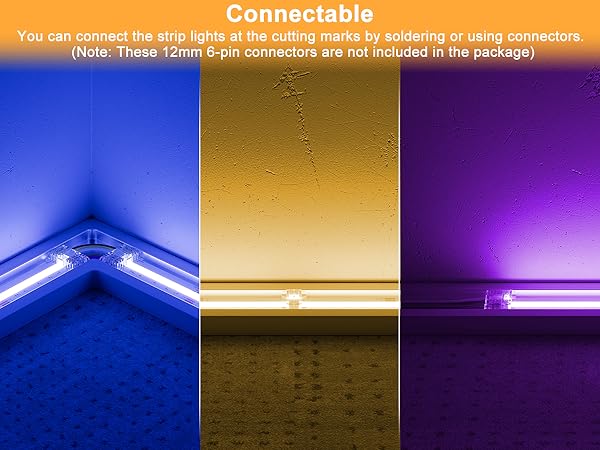

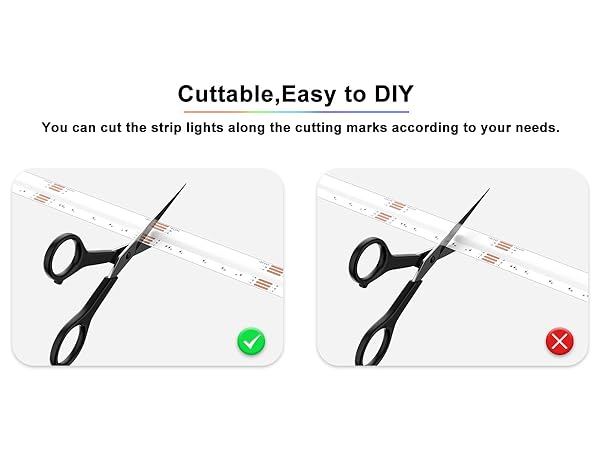

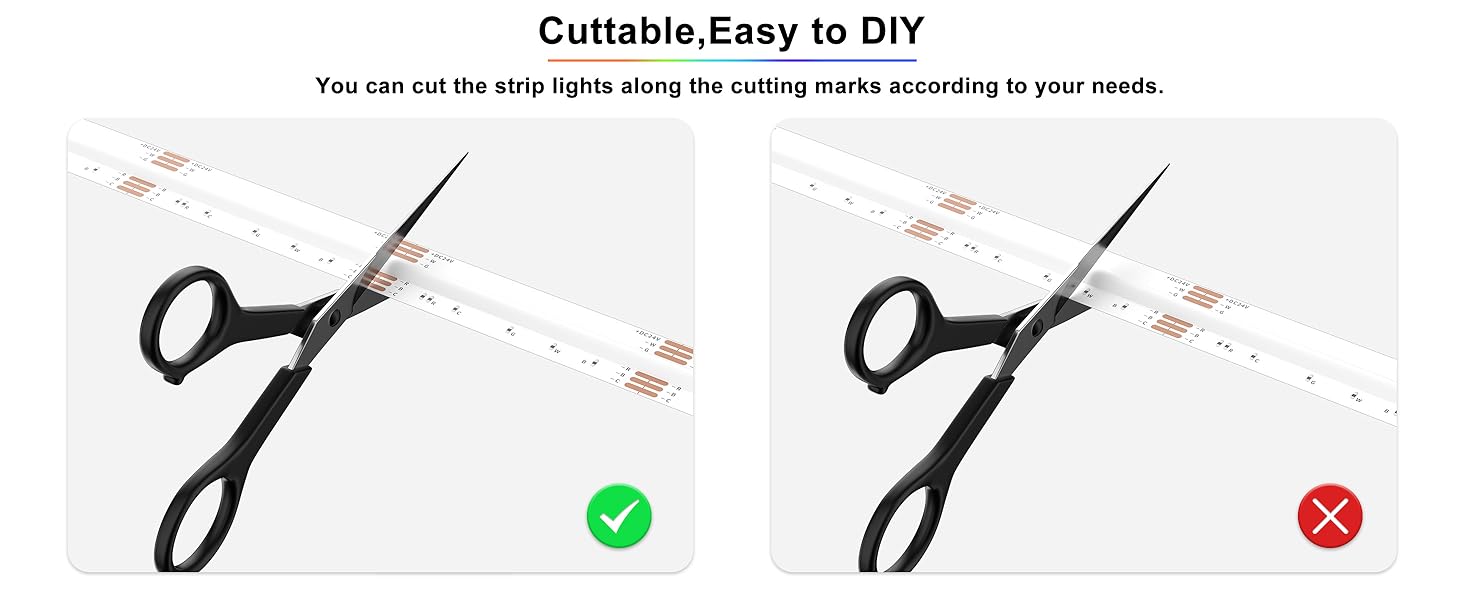

| Size | Length: 24ft/7.5m; Width: 12mm/0.47in; Thickness: 1.63±0.3mm/0.064±0.012in; Cutting unit: 42mm/1.65in |

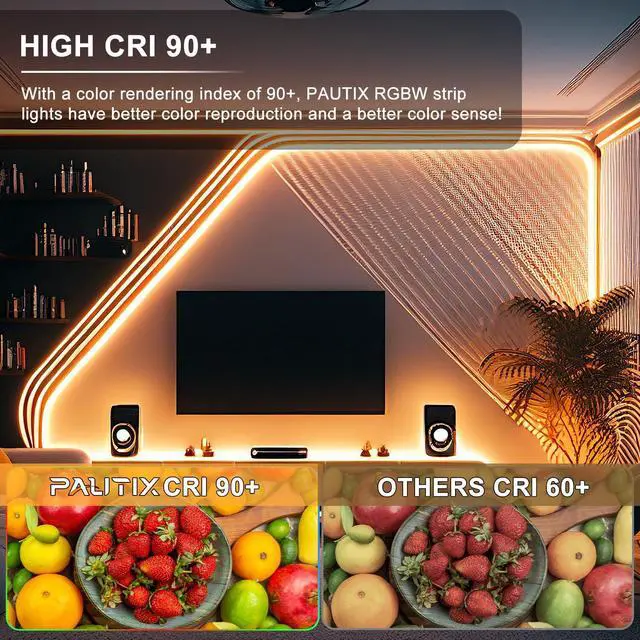

| CRI | 90+ |
| Number of LED | 6300LEDs(840LEDs/m) |
| Color Temperature | RGB full color + CCT 2700K-6000K tunable white |
| Luminous Flux | 70-120lm/w |
| SDCM | =3 |
| UL-Listed | Yes |

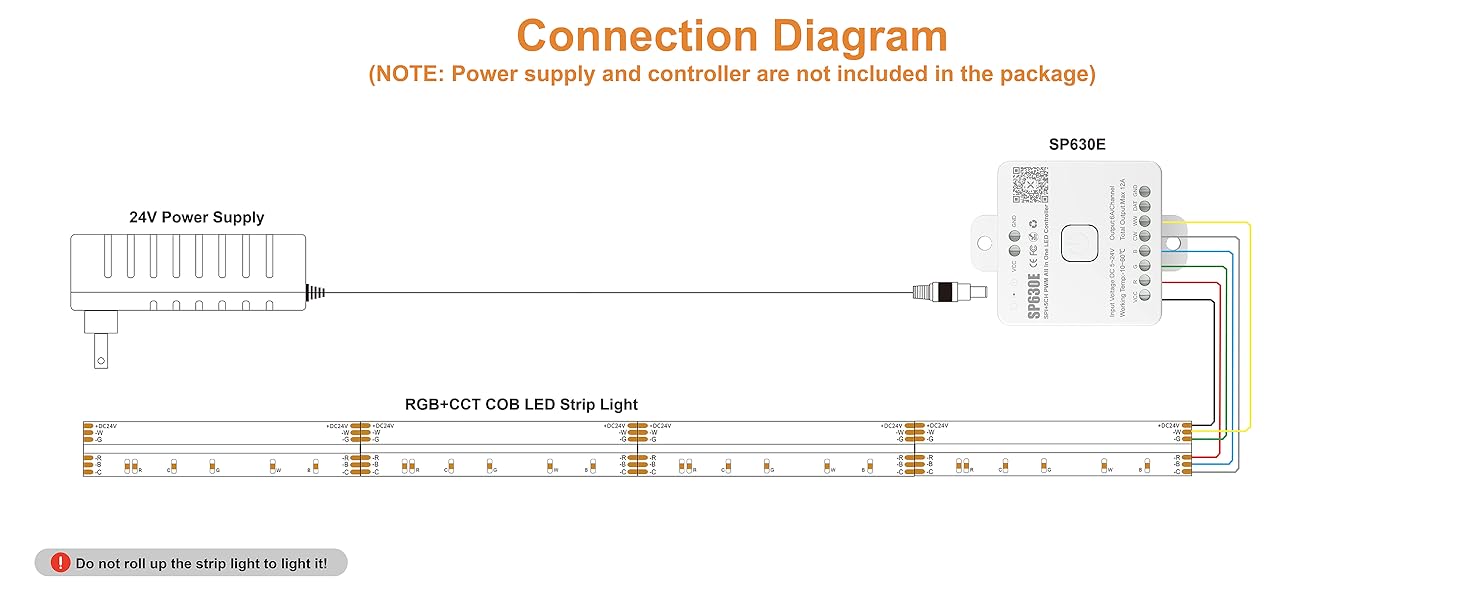

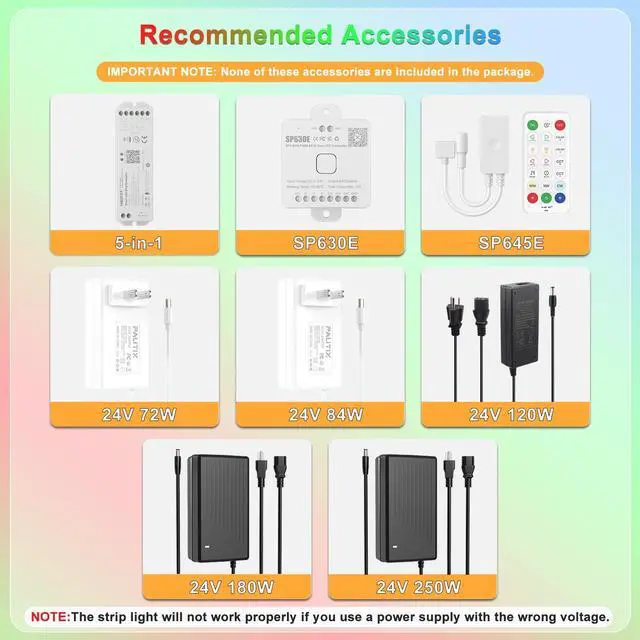

| Recommended Controller | PAUTIX SP645E; PAUTIX SP630E; PAUTIX 5-in-1 controller |
| Recommended Power Supply | DC24=80W |
| Dimmable | Yes(Dimmer/Controller required) |
| Waterproof Level | IP20/30 non-waterproof |
| Packing List | 24ft RGB+CCT 2700K-6000K COB LED strip light(Strip ONLY); NOTE: Power supply and controller not included in package |
| Brand | PAUTIX |
