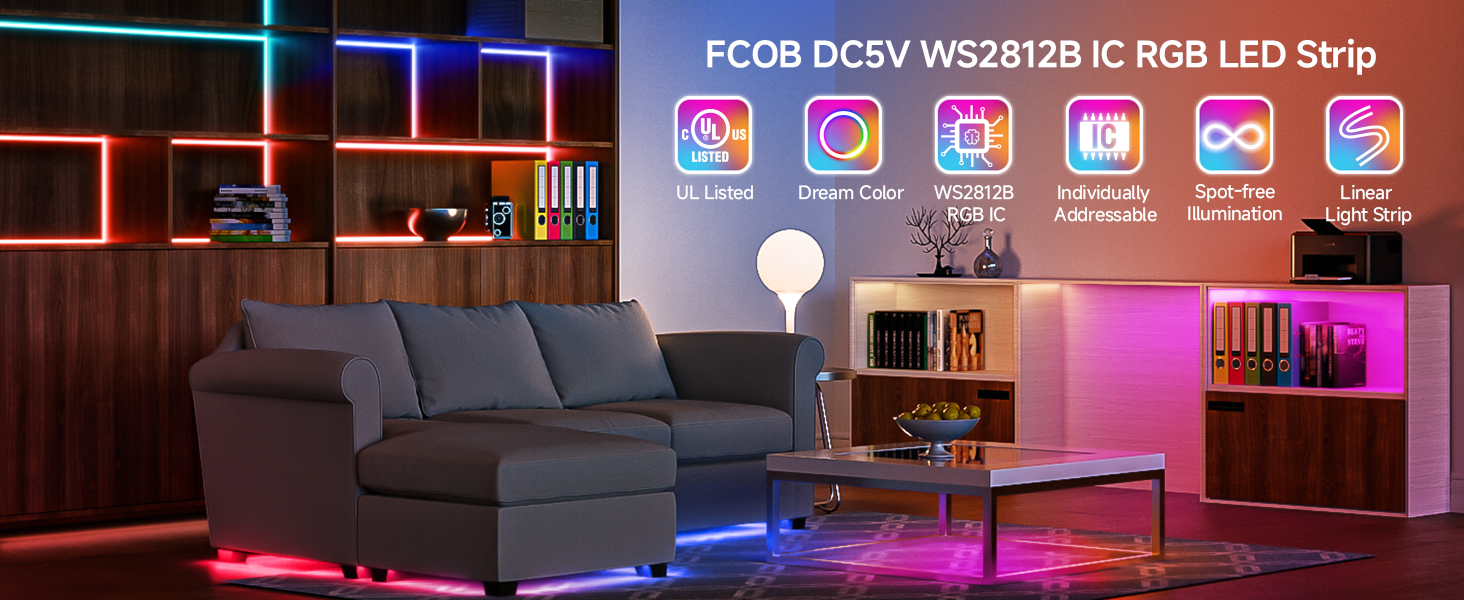

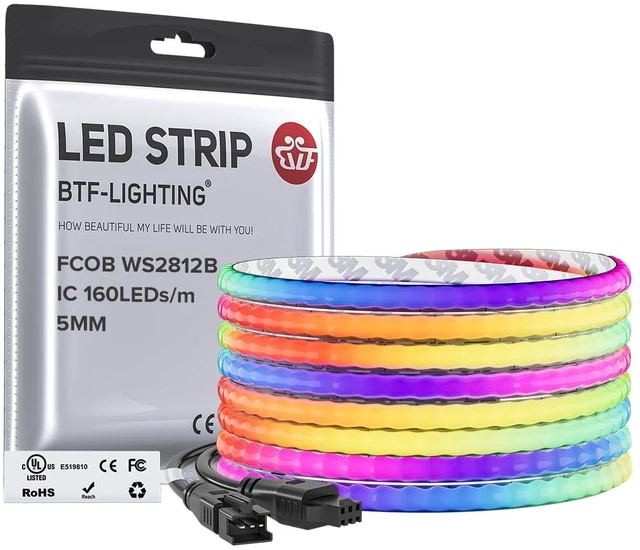

    FCOB COB WS2812B IC RGB LED Strip DC5V 16.4FT 800LED 5mm IP30 | Individual Addressable UL Listed Dream Color High Density Tape Light For Decor(No Adapter or Controller)

    Be the first to review this product...

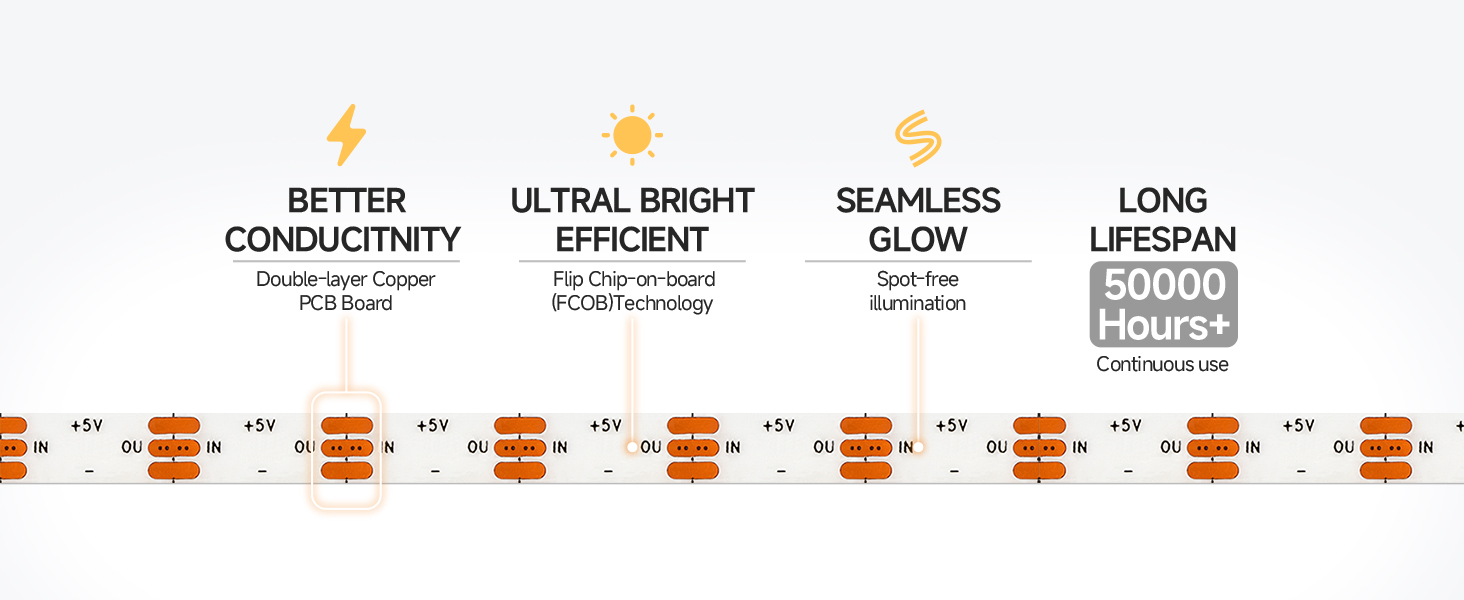

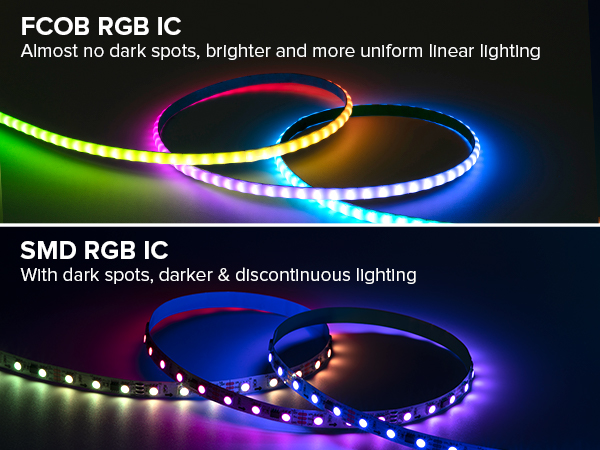

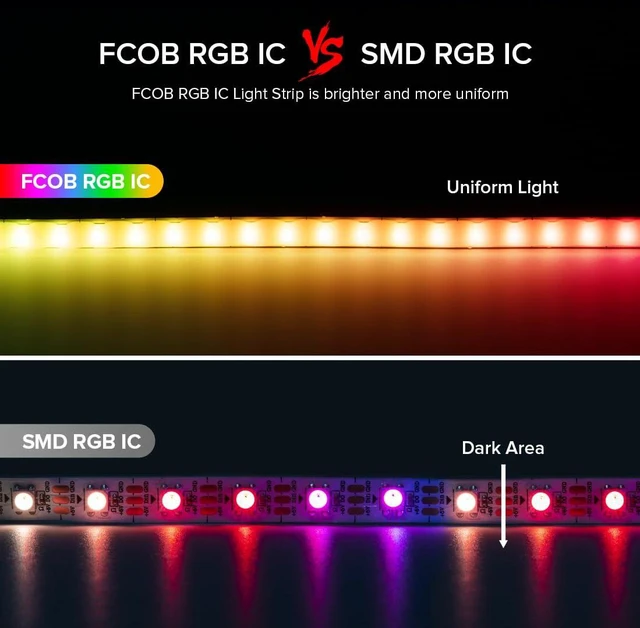

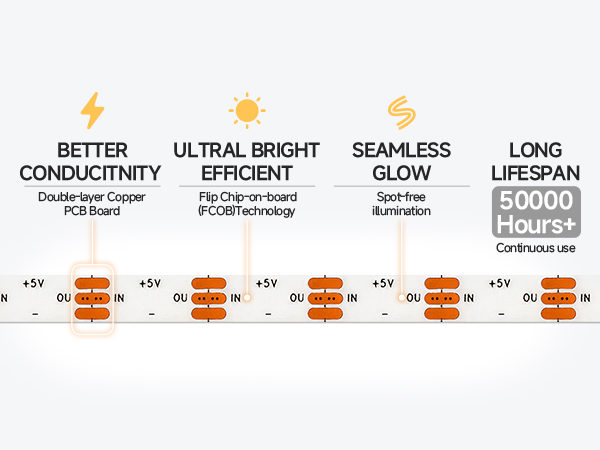

    • Individually Addressable. DC5V, 16.4FT (5m), 160 LEDs/m (160 ICs/m), Each LED is controlled by a WS2811 IC (total 800 ICs). Ultra Bright FCOB. WS2811 FCOB (Chip-on-Board) strip. Brighter, smoother, and no dark spots vs. traditional WS2812B/5050 RGB strips. 5mm ultra-thin width for seamless installation.

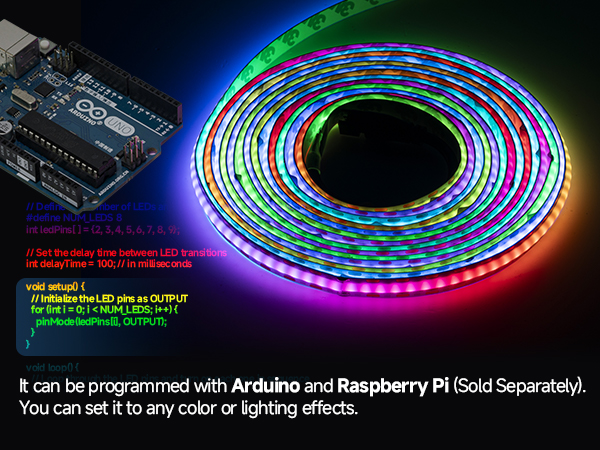

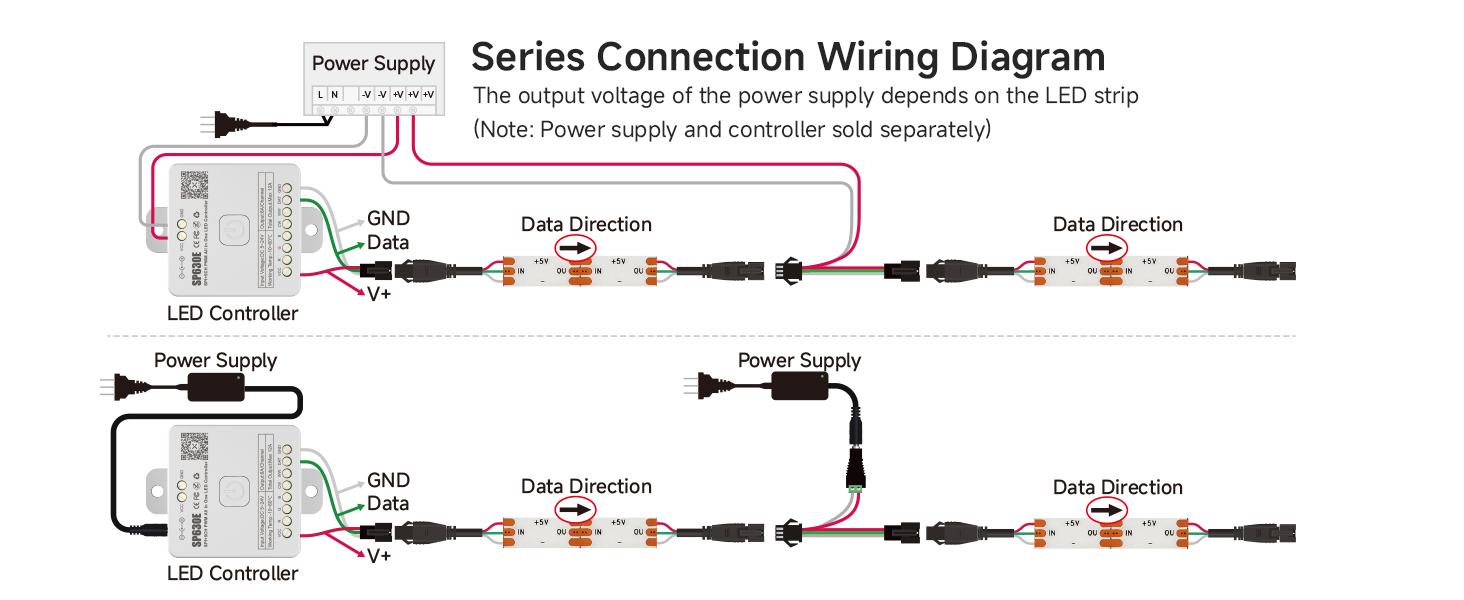

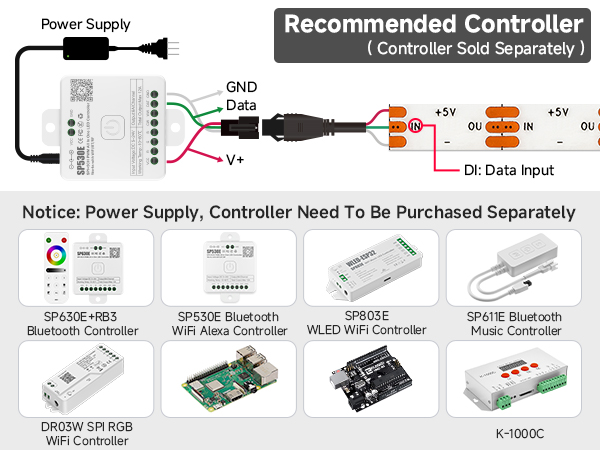

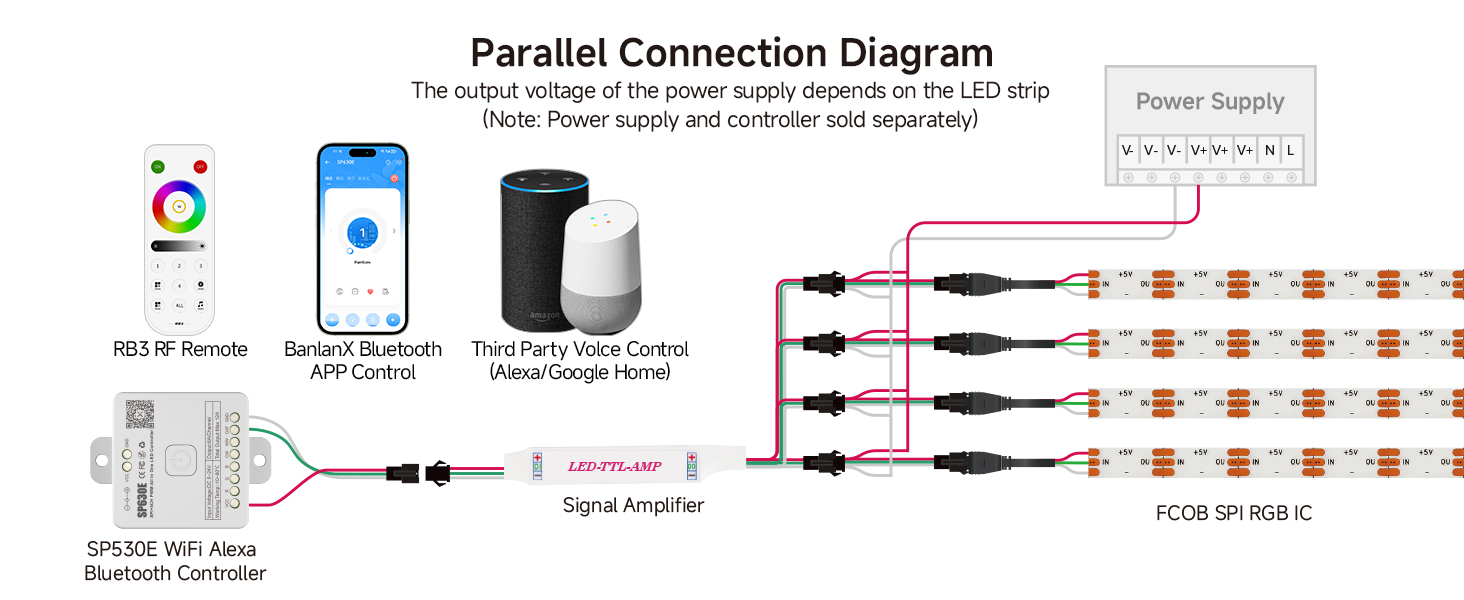

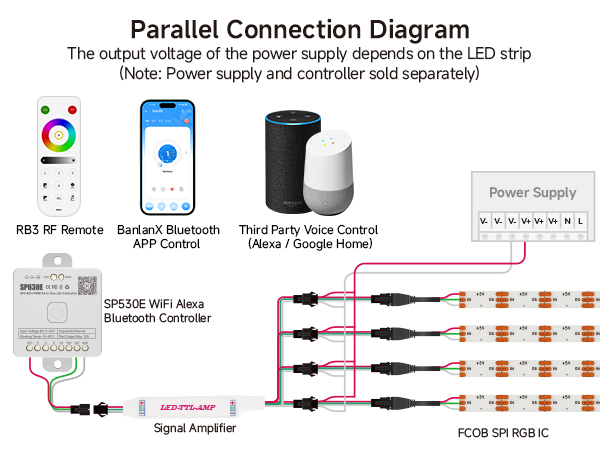

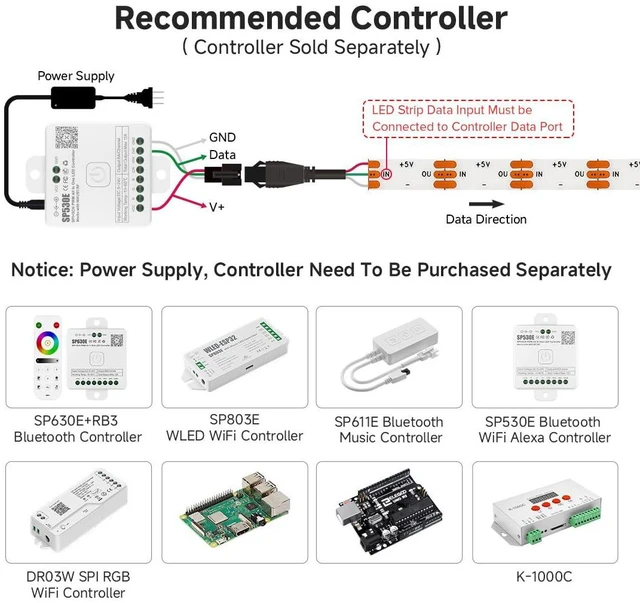

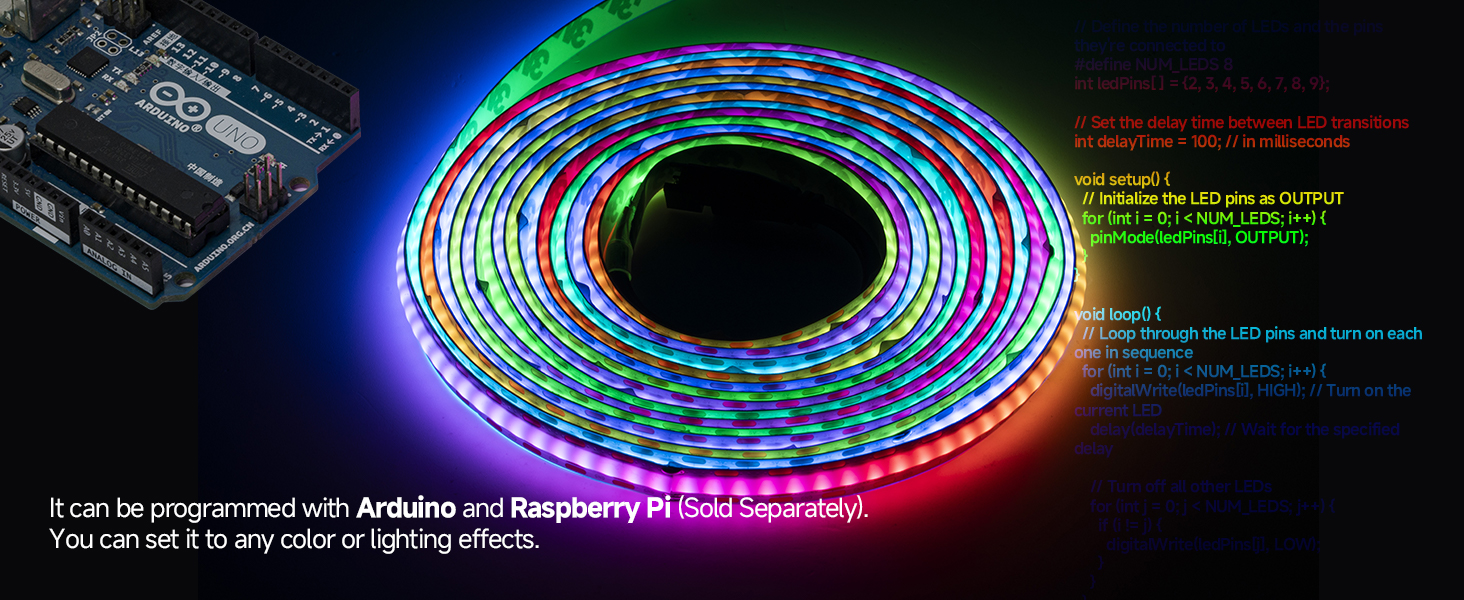

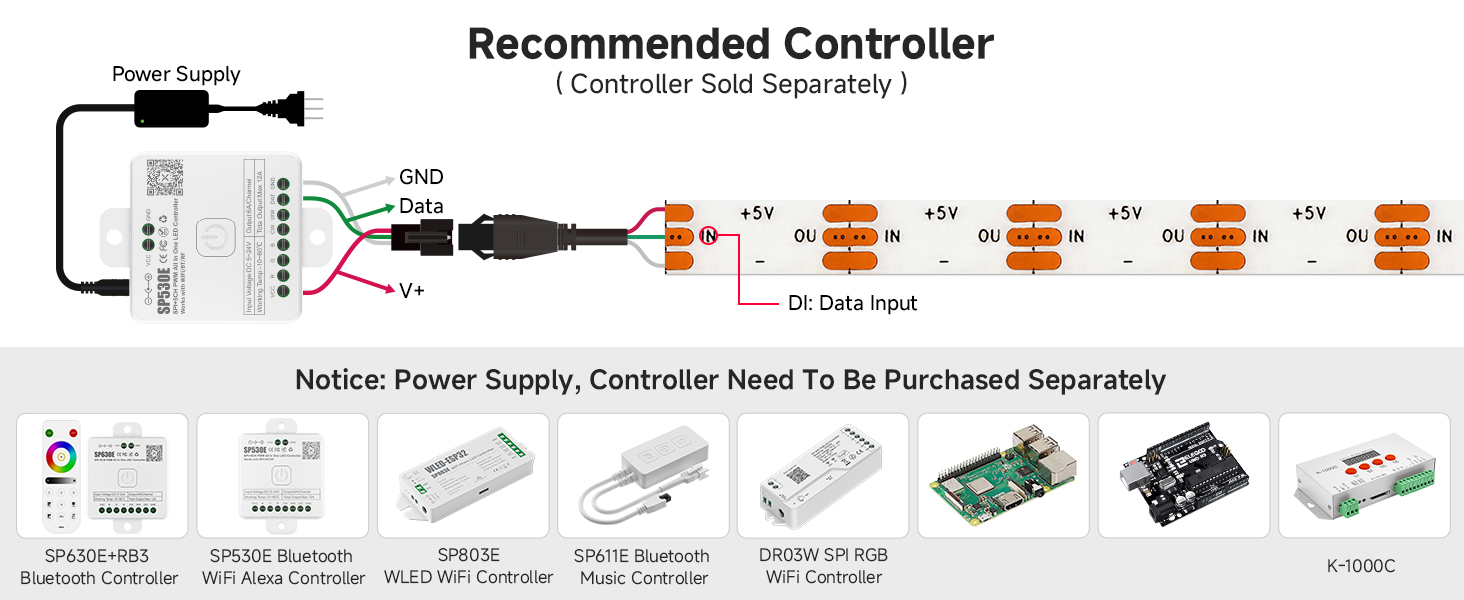

    • Wide Controller Compatibility: Works with SP630E/SP611E (APP), SP530E/DR03W (Tuya Wi-Fi/Voice), CSY08/SP107E (music sync), and DIY boards (ESP-32/ESP-8266/WLED/Raspberry Pi). No power/controller in package.

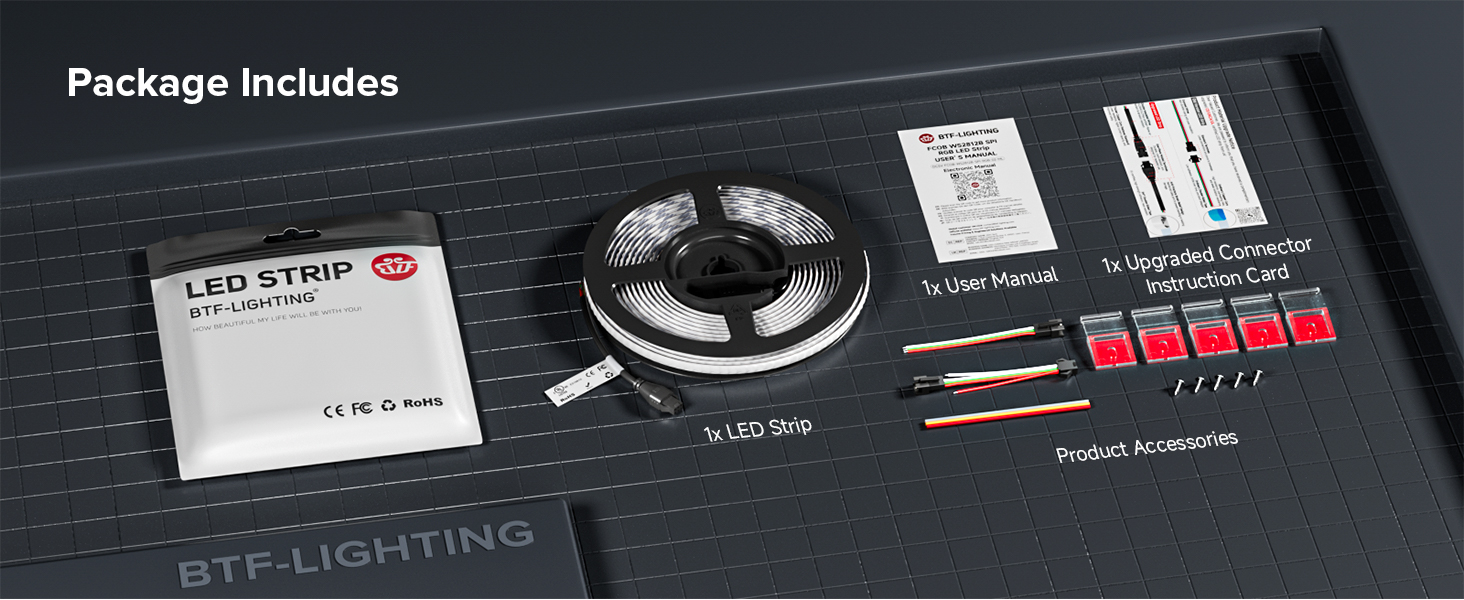

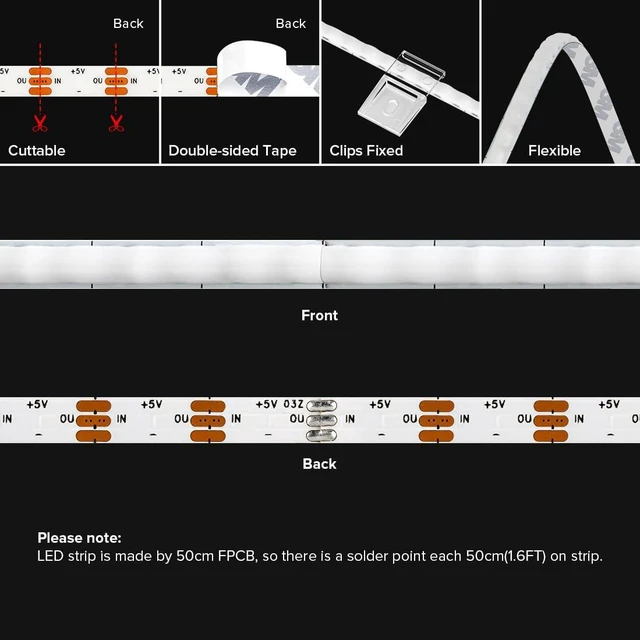

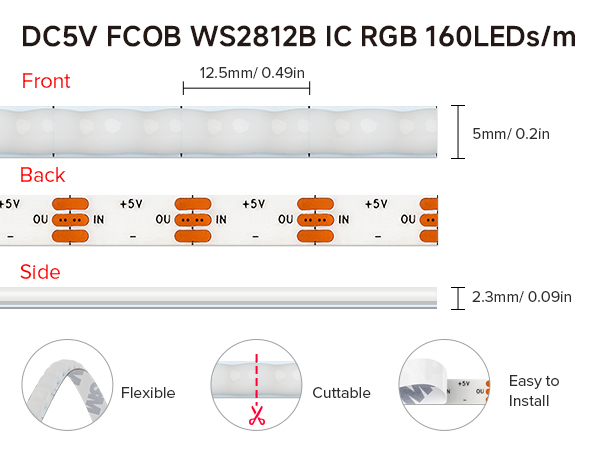

    • Cuttable & Linkable. Cut every 12.5mm (marked). Flexible for custom lengths. 3PIN connectors (male/female) included for end-to-end linking or extensions. 5mm width, IP30 (non-waterproof) Indoor use only.

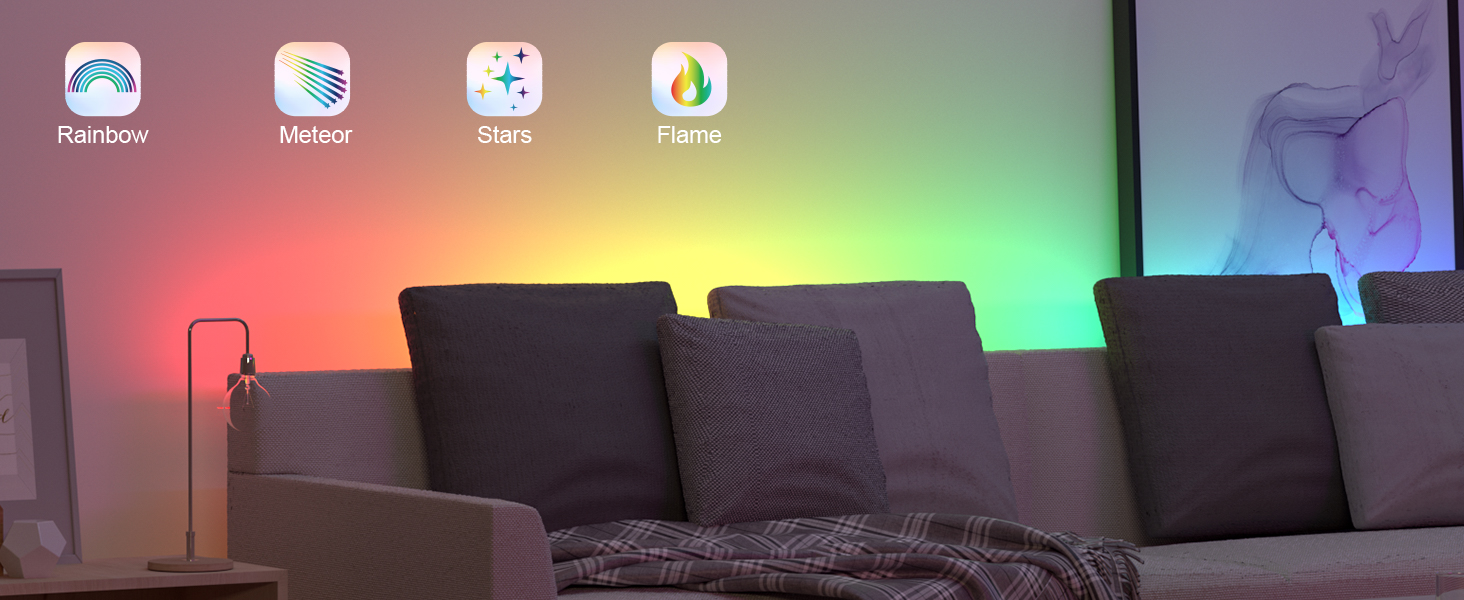

    • 16 Million Colors. RGB mixing for 16M colors. Dimmable with 50,000+ hours lifespan. Supports effects like gradient, flowing water, and flashing via controllers.

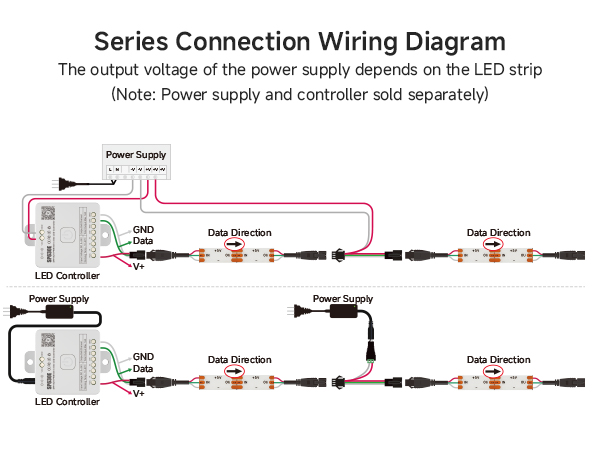

    • This light strip requires a strict 5V power input (12V/24V will cause damage). A 5V/3A adapter per 3.2FT (160 LEDs) is recommended. Actual power consumption varies based on usage mode (single color, dual color, RGB, etc.) and power supply efficiency. Avoid prolonged maximum brightness to prevent overheating.High brightness operation may generate heatensure proper ventilation. Avoid prolonged max load in enclosed/high-temperature environments to maximize lifespan.

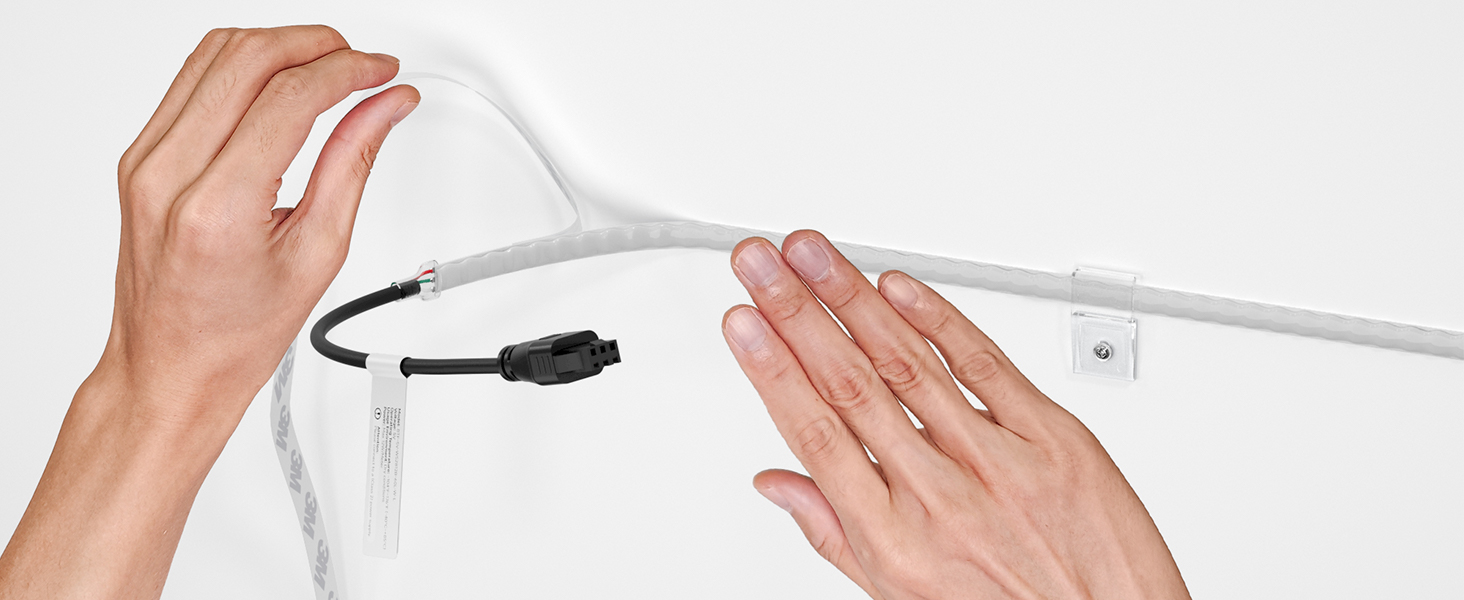

    • Easy Installation. Peel-and-stick tape + clips included. Ideal for cabinets, stairs, mirrors, DIY lighting (indoor only).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    BTF-LIGHTING XGB1338(WS2812B) IC 160LED Flip Chip On Board SPI RGB LED Strip

    1

    Parameter Table

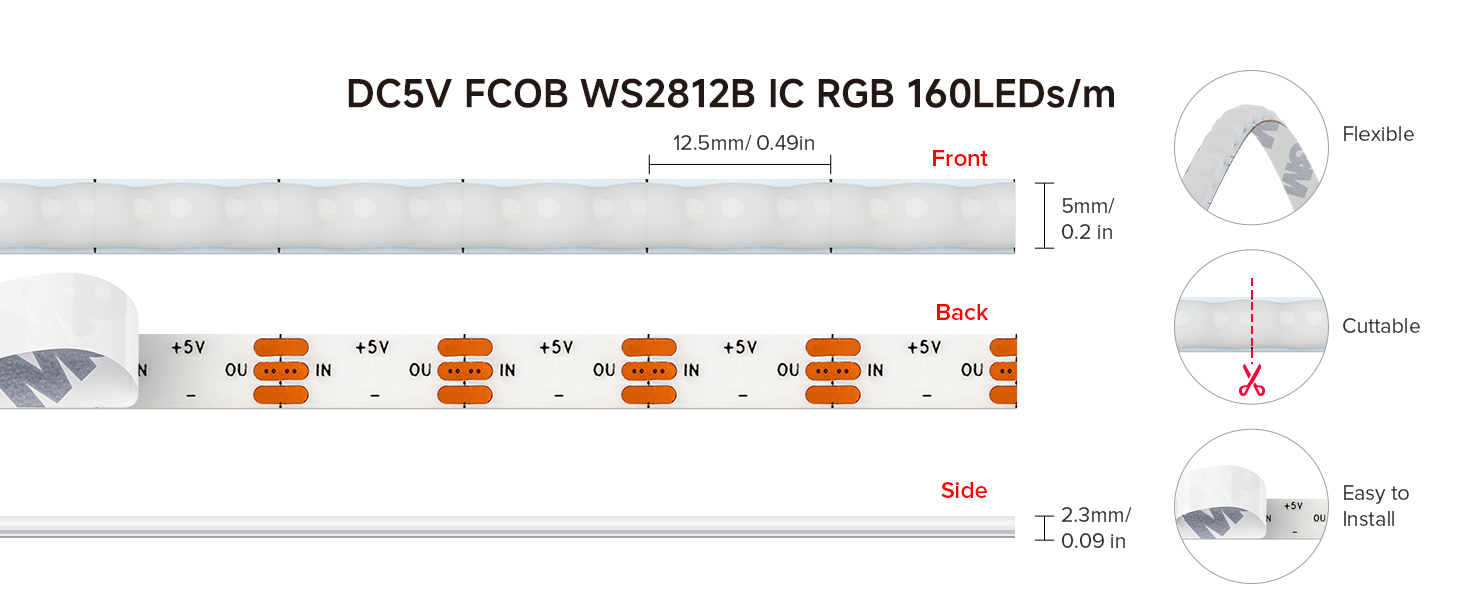

    LED Type FCOB SPI RGB IC Flip Chip On Board LED Strip
    Input Voltage DC5V
    LED Quantity 160LED/m, 160IC/m, Individually Addressable
    LED Strip Width 5mm
    Waterproof Level IP30 Non-waterproof
    IC Type XGB1338 IC(WS2812B)
    Operation Temperature -4?~113?(-20?~+45? )
    Storage Temperature -4?~104?(-20?~+40? )
    Ways of Working Work with a controller- RF remote, Bluetooth, WiFi, Alexa, Google Home, Tuya, WLED, etc.
    Wave Length(nm) Red:620nm ; Green:525nm ; Blue:460nm
    Total Length 3.2FT (1m) / 6.5FT (2m) / 9.8FT (3m) / 13.1FT(4m) / 16.4FT(5m)

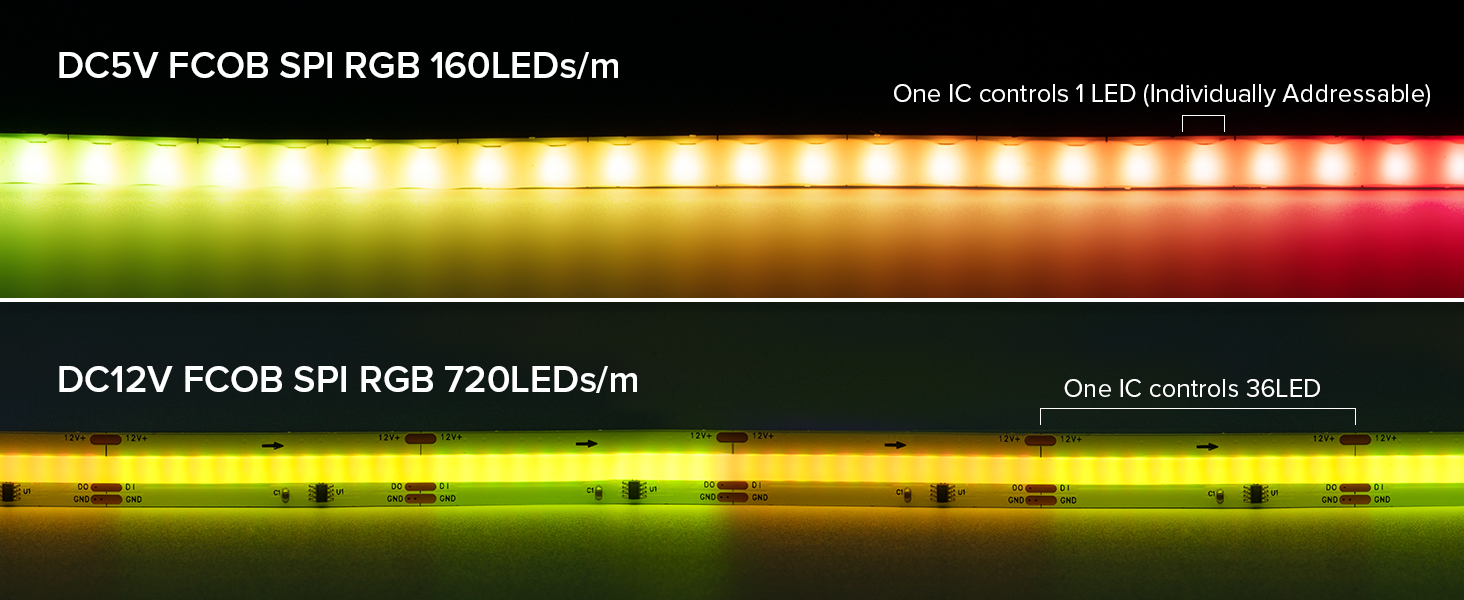

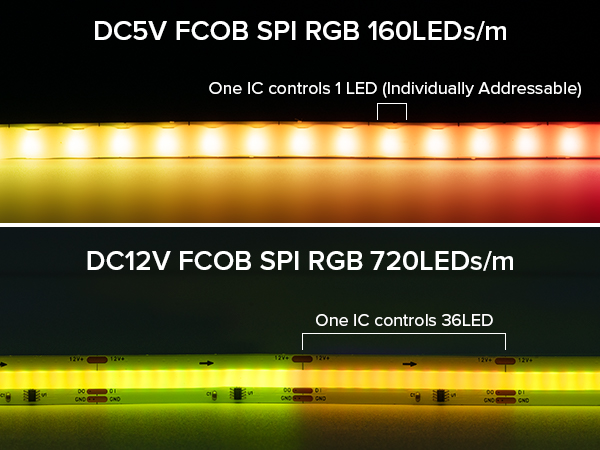

    NOTES Individually Addressable. 1 pixel=1 IC chip=1 LED
    FPCB Board Color White
    Light Color G R B (NOT RGB)
    3.2FT Power Range Pure Color(Green/Red/Blue): 7W; Mixed White: 15W; Color Effect:<15W. Recommend DC5V3A 15W Power Supply.
    6.56FT Power Range Pure Color(Green/Red/Blue): 10W; Mixed White: 25W; Color Effect:<25W. Recommend DC5V6A 30W Power Supply.

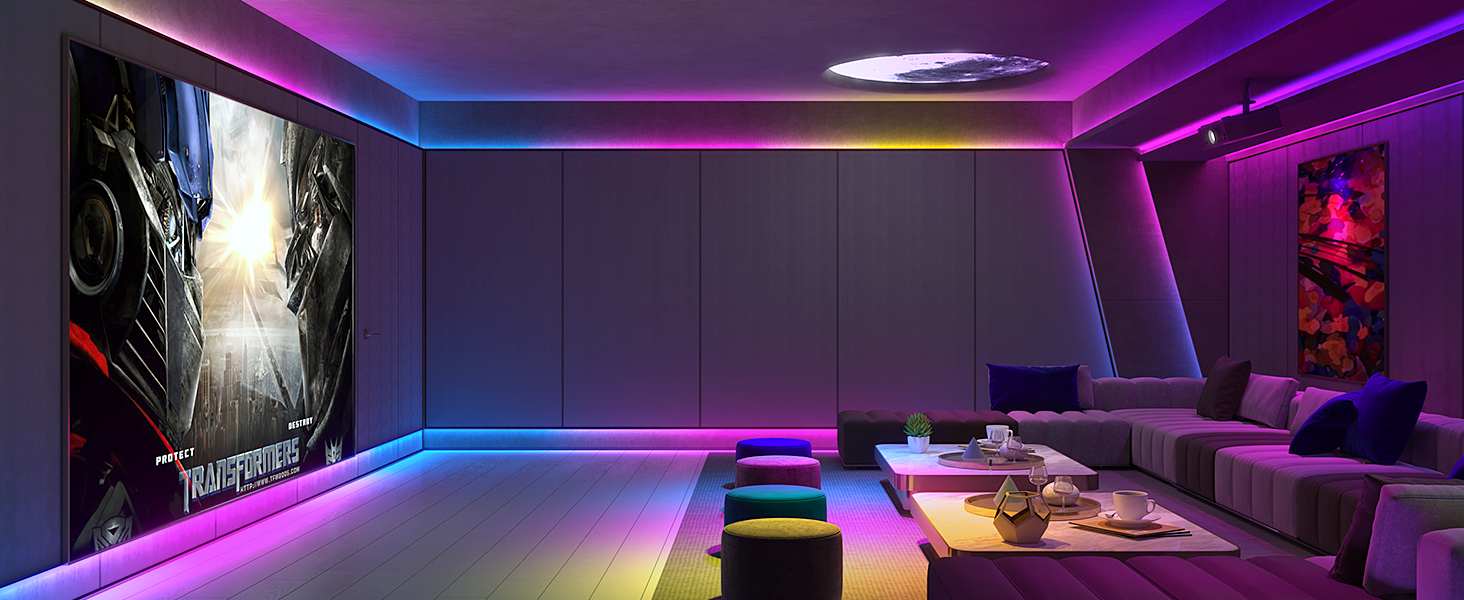

    Smart RGB, DIY Mood Lighting

    More Details

    BTF-LIGHTING XGB1338(WS2812B) IC 160LED Flip Chip On Board SPI RGB LED Strip

    used

    Parameter Table

    LED Type FCOB SPI RGB IC Flip Chip On Board LED Strip
    Input Voltage DC5V
    LED Quantity 160LED/m, 160IC/m, Individually Addressable
    LED Strip Width 5mm
    Waterproof Level IP30 Non-waterproof
    IC Type XGB1338 IC(WS2812B)
    Operation Temperature -4?~113?(-20?~+45? )
    Storage Temperature -4?~104?(-20?~+40? )
    Ways of Working Work with a controller- RF remote, Bluetooth, WiFi, Alexa, Google Home, Tuya, WLED, etc.
    Wave Length(nm) Red:620nm ; Green:525nm ; Blue:460nm
    Total Length 3.2FT (1m) / 6.5FT (2m) / 9.8FT (3m) / 13.1FT(4m) / 16.4FT(5m)
    NOTES Individually Addressable. 1 pixel=1 IC chip=1 LED
    FPCB Board Color White
    Light Color G R B (NOT RGB)
    3.2FT Power Range Pure Color(Green/Red/Blue): 7W; Mixed White: 15W; Color Effect:<15W. Recommend DC5V3A 15W Power Supply.
    6.56FT Power Range Pure Color(Green/Red/Blue): 10W; Mixed White: 25W; Color Effect:<25W. Recommend DC5V6A 30W Power Supply.

    Smart RGB, DIY Mood Lighting

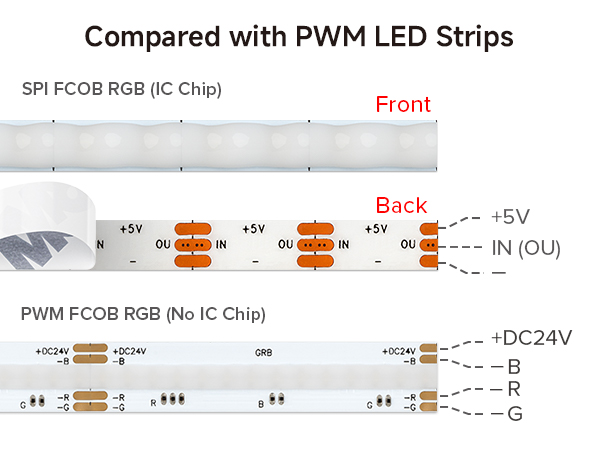

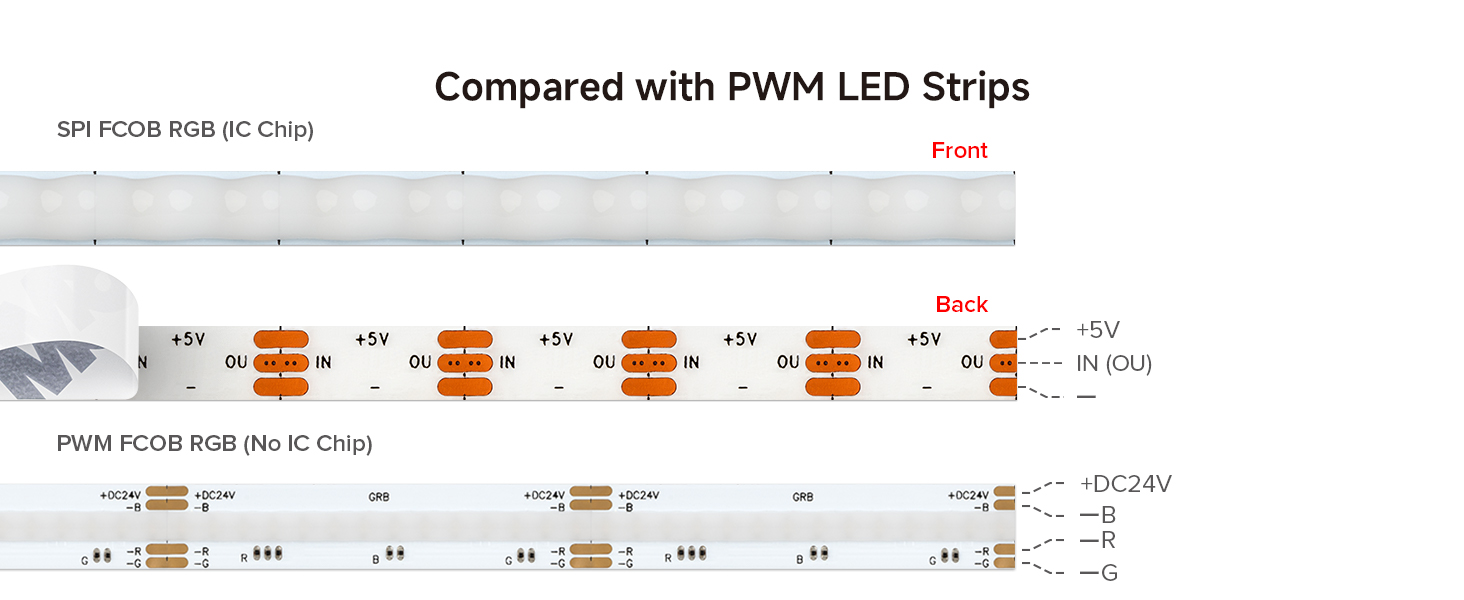

    SPI RGB

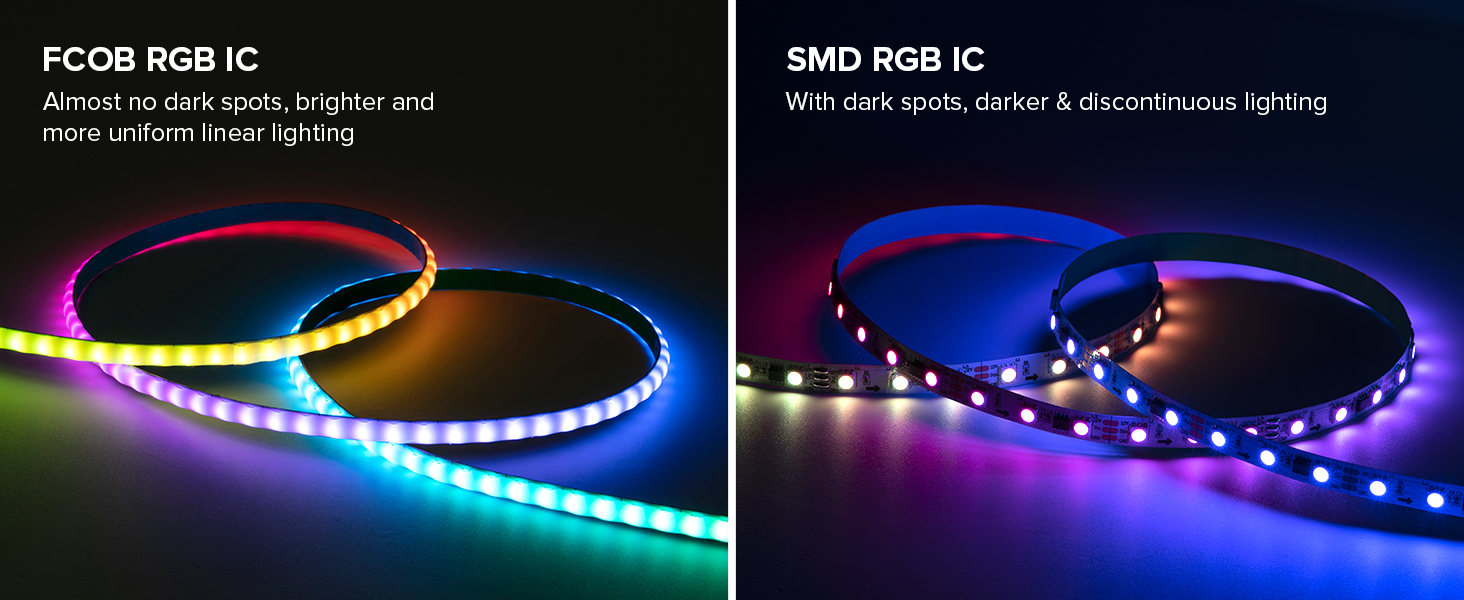

    Provide smooth, uniform light without spotting.

    Satisfy your multiple needs and bring a different experience

    More Details

    FCOB COB WS2812B IC RGB LED Strip DC5V 16.4FT 800LED 5mm IP30 | Individual Addressable UL Listed Dream Color High Density Tape Light For Decor (No Adapter or Controller)
