3D infrared thermal imaging

Product description:

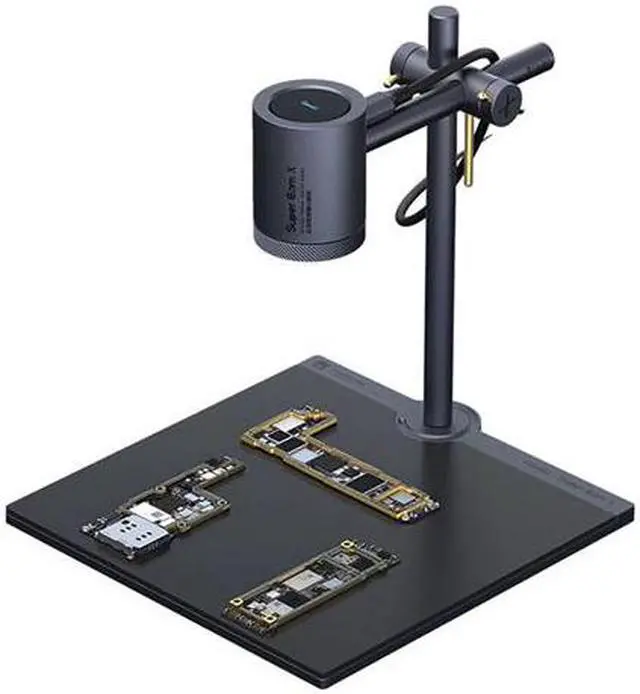

3D infrared thermal imaging is a professional motherboard testing instrument that allows you to repair it one step faster. The PCB quick check mode is suitable for maintenance personnel, and can find the fault location on the hash board and PCB board faster and more accurately. Infrared thermal imaging analysis is faster and more accurate. Accurate lens focusing, 3D thermal field distribution analysis, high-temperature alarm tracking, area temperature curve recording, Type-c direct connection to PC, 52, 000-point full-frame temperature measurement. The multiple modes of the software correspond to different usage scenarios and are widely used in maintenance, evaluation, R&D, etc.

Product advantages and characteristics:


1. One-key quick check electric leakage, quickly locate the fault point of the motherboard, quickly locate the abnormal temperature point according to the real-time temperature, and troubleshoot the fault carefully by adjusting the temperature range.


2. High-temperature alarm tracking Real-time detection of temperature changes; if the temperature exceeds the set temperature, the image flashes a red frame, and an alarm sounds. You can use the function to track the highest temperature point on the screen and mark the temperature.


3. Double-board comparison, regional temperature, curve comparison record, design optimization for heat distribution, fault differentiation comparison and verification, regional temperature curve comparison record, superposition comparison, etc.


4. Adjust the temperature width, and locate the weak leakage short circuit that is not easy to detect


5. In the case of weak leakage or interference sources, the leakage point cannot be directly located through the leakage quick check function. Still, it can be accurately located by adjusting the image contrast by pulling the temperature and width points.

Note: If you need to use it without a network, you can register and install it through a computer with a network, and then copy all the files in the installation directory to the computer without a network.

Product parameters

Brand: Potential Innovation

Resolution: 52000 effective temperature measurement points

Model: SuperCamX infrared thermal imaging analyzer

Temperature measurement range: -20°C~120°C

Input voltage: 5VDC

Interface type: Type-C, USB

Storage temperature: -15°C~+60°C

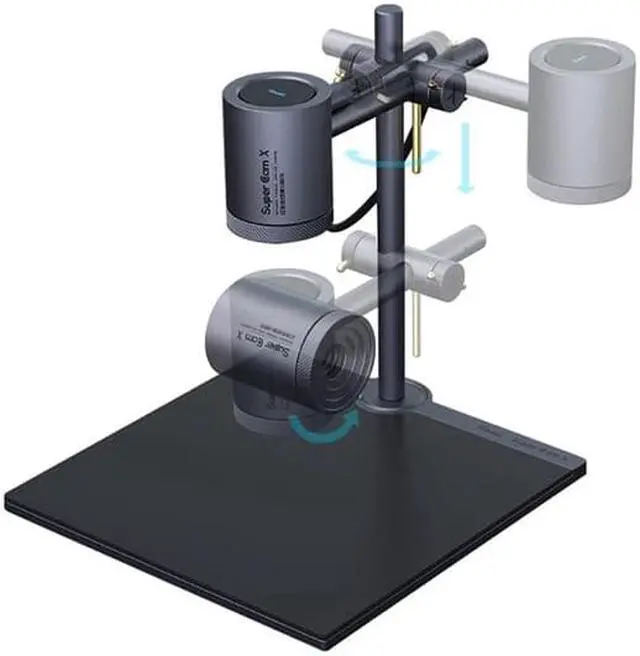

Bracket size: 150mm*160mm* 161.5 mm

Product weight: 435g

Packing size: 180mm*180mm*59mm
