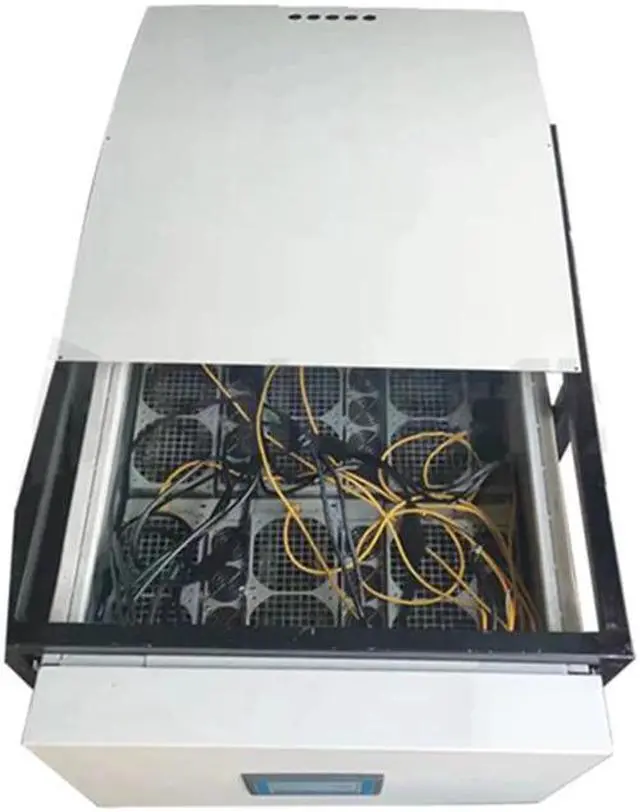

ASIC immersion cooling kit

Product description:
ASIC immersion cooling box oil-cooled box for Bitmain Antminer S9, S17, S19, etc
A single ASIC miner immersion oil-cooled chassis can accommodate 9 sets of Antminer S9, or 6 sets of Antminer S17 / S19 and other models, and can also accommodate 3 GPU miners. It is a liquid cooling cabinet for both ASIC and GPU.
Immersion cooling case work with the ASIC miner using a circulating pump and special liquid instead of air to manage the heating and cooling of the mining rig. The cooling liquid flows over the heat sinks on the chip, transferring large amounts of thermal energy into the liquid to maintain the temperature required for the chip to function properly.

The temperature of 3000W mining equipment is controlled at about 50 degrees, which reduces the miner failure rate and prolongs the life of the miner rig. 0 noise, to achieve stable overclocking of the device.

Realization principle: The ASIC miner is fully immersed in the transformer oil, and the flowing water and oil take away the heat on the cooling device. The temperature sensor monitors the oil temperature in real time, and the ultra-high power failure protection equipment. The equipment has reduced radiation to the human body, stable temperature control, extended life, reduced failure rate, and can be overclocked.

Single cabinet size: 90* 73.5 *55cm

Chassis size: 60*60*33cm

Notice: this product is a cabinet, in addition to the hardware that comes with it, customers need to purchase it by themselves:


1. Water tower or water tank (with refrigeration function)


2. Filter water valve


3. Water pump (20 liters per minute)


4. Fan speed simulator (except for T17 42T, which can be used normally by flashing the firmware, other models must be equipped with a fan speed simulator)
