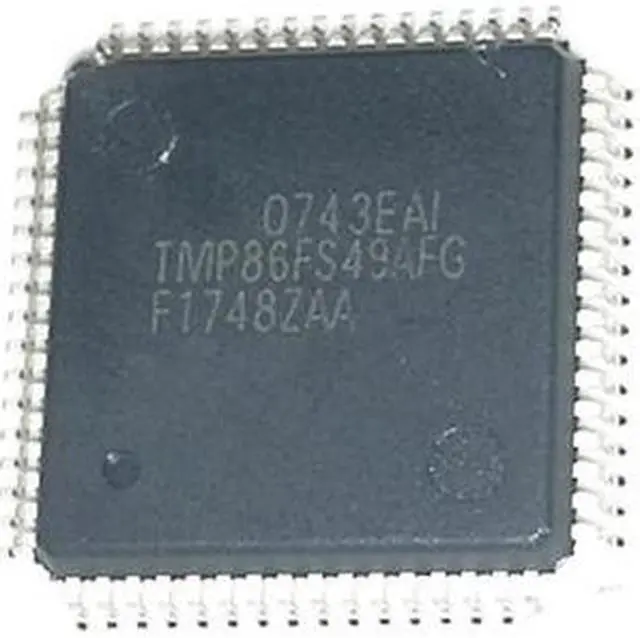

TMP86FS49AFG-10pcs
- Product description:
- TMP86FS49AFG 60K flash microcontroller for MFS-C2F08NB control module
- The TMP86FS49AFG is a single-chip 8-bit high-speed and high-functionality microcomputer incorporating 61440 bytes of Flash Memory. It is pin-compatible with the TMP86CH49/CM49/CS49FG (Mask ROM version). The TMP86FS49AFG can realize operations equivalent to those of the TMP86CH49/CM49/CS49FG by programming the on-chip Flash Memory.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description:
TMP86FS49AFG 60K flash microcontroller for MFS-C2F08NB control module
The TMP86FS49AFG is a single-chip 8-bit high-speed and high-functionality microcomputer incorporating 61440 bytes of Flash Memory. It is pin-compatible with the TMP86CH49/CM49/CS49FG (Mask ROM version). The TMP86FS49AFG can realize operations equivalent to those of the TMP86CH49/CM49/CS49FG by programming the on-chip Flash Memory.
Features:
8-bit single-chip microcomputer TLCS-870/C series
24interrupt sources (External: 5 Internal: 19)
Input / Output ports (56 pins)
Prescaler: Timebase timer and Divider output function
16-bit timer counter: 1 ch
8-bit timer counter: 4 ch
8-bit UART: 2 ch
High-Speed SIO: 2ch
Serial Bus Interface (I2C Bus): 1ch
10-bit successive approximation type AD converter: Analog input: 16 ch
Key-on wakeup: 4 ch
Clock operation: Single clock mode and Dual clock mode
Low power consumption operation: STOP mode, SLOW1 mode; SLOW2 mode; IDLE0 mode; IDLE1 mode; IDLE2 mode; SLEEP0 mode; SLEEP1 mode; SLEEP2 mode.
Wide operation voltage: 4.5 V to 5.5 V at 16MHz/ 32.768 kHz; 2.7 V to 5.5 V at 8 MHz/ 32.768 kHz
TMP86FS49AFG 60K flash microcontroller for MFS-C2F08NB control module
The TMP86FS49AFG is a single-chip 8-bit high-speed and high-functionality microcomputer incorporating 61440 bytes of Flash Memory. It is pin-compatible with the TMP86CH49/CM49/CS49FG (Mask ROM version). The TMP86FS49AFG can realize operations equivalent to those of the TMP86CH49/CM49/CS49FG by programming the on-chip Flash Memory.
Features:
8-bit single-chip microcomputer TLCS-870/C series
24interrupt sources (External: 5 Internal: 19)
Input / Output ports (56 pins)
Prescaler: Timebase timer and Divider output function
16-bit timer counter: 1 ch
8-bit timer counter: 4 ch
8-bit UART: 2 ch
High-Speed SIO: 2ch
Serial Bus Interface (I2C Bus): 1ch
10-bit successive approximation type AD converter: Analog input: 16 ch
Key-on wakeup: 4 ch
Clock operation: Single clock mode and Dual clock mode
Low power consumption operation: STOP mode, SLOW1 mode; SLOW2 mode; IDLE0 mode; IDLE1 mode; IDLE2 mode; SLEEP0 mode; SLEEP1 mode; SLEEP2 mode.
Wide operation voltage: 4.5 V to 5.5 V at 16MHz/ 32.768 kHz; 2.7 V to 5.5 V at 8 MHz/ 32.768 kHz
