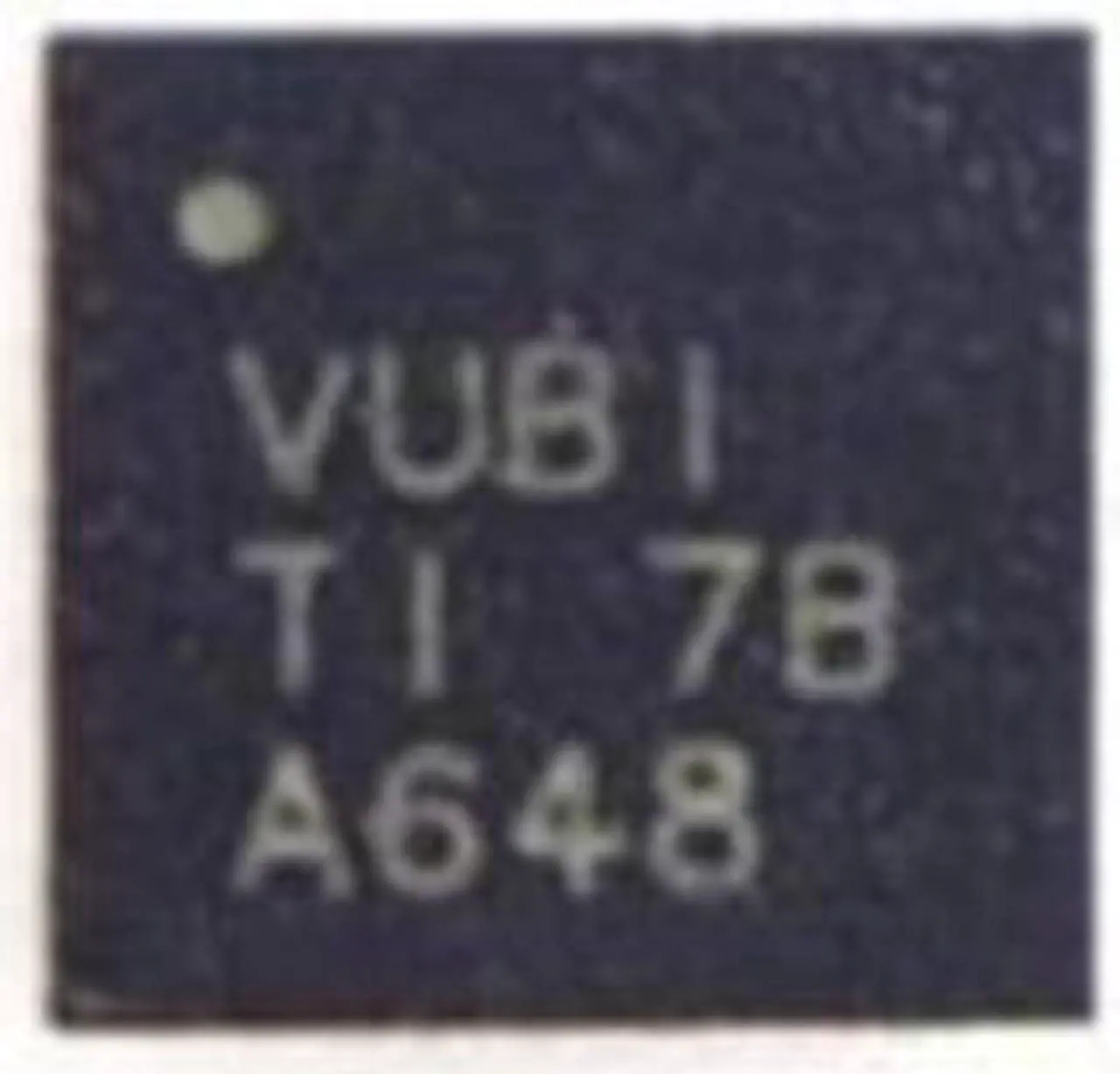

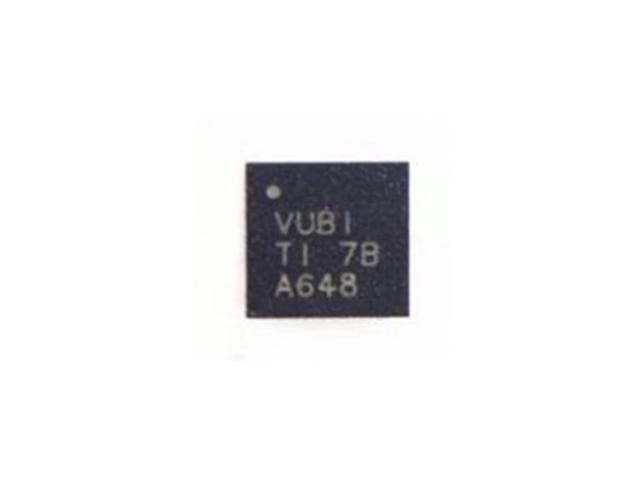

TLV62130RGTR-20pcs
- Product description:
- TLV62130RGTR step-down converter
- TLV62130RGTR is an easy-to-use synchronous step-down DC-DC converter. With a wide operating input voltage range of 3V to 17V, TLV62130RGTR is very suitable for systems powered by lithium-ion batteries or other batteries and a 12V intermediate power rail. It supports a continuous output current up to 3A, and the output voltage is 0.9V to 5.5V (100% duty cycle mode). In power saving mode, TLV62130RGTR draws approximately 19 µA of quiescent current from V IN. In shutdown mode, TLV62130RGTR is turned off and the shutdown current consumption is less than 2 µA. The TLV62130RGTR is available in a 16-pin VQFN package with a size of 3 mm * 3 mm (RGT).
+
+
Overview
Specs
Reviews
Product description:
TLV62130RGTR step-down converter
TLV62130RGTR is an easy-to-use synchronous step-down DC-DC converter. With a wide operating input voltage range of 3V to 17V, TLV62130RGTR is very suitable for systems powered by lithium-ion batteries or other batteries and a 12V intermediate power rail. It supports a continuous output current up to 3A, and the output voltage is 0.9V to 5.5V (100% duty cycle mode). In power saving mode, TLV62130RGTR draws approximately 19 µA of quiescent current from V IN. In shutdown mode, TLV62130RGTR is turned off and the shutdown current consumption is less than 2 µA. The TLV62130RGTR is available in a 16-pin VQFN package with a size of 3 mm * 3 mm (RGT).
Features:
1.
Input voltage range: 3V to 17V
2. Up to 3A output current
3. Adjustable output voltage from 0.9V to 5.5V
4. Programmable soft start and tracking
5. Seamless power saving mode conversion
6. Quiescent current is 19 µA
TLV62130RGTR step-down converter
TLV62130RGTR is an easy-to-use synchronous step-down DC-DC converter. With a wide operating input voltage range of 3V to 17V, TLV62130RGTR is very suitable for systems powered by lithium-ion batteries or other batteries and a 12V intermediate power rail. It supports a continuous output current up to 3A, and the output voltage is 0.9V to 5.5V (100% duty cycle mode). In power saving mode, TLV62130RGTR draws approximately 19 µA of quiescent current from V IN. In shutdown mode, TLV62130RGTR is turned off and the shutdown current consumption is less than 2 µA. The TLV62130RGTR is available in a 16-pin VQFN package with a size of 3 mm * 3 mm (RGT).
Features:
1.
Input voltage range: 3V to 17V
2. Up to 3A output current
3. Adjustable output voltage from 0.9V to 5.5V
4. Programmable soft start and tracking
5. Seamless power saving mode conversion
6. Quiescent current is 19 µA
