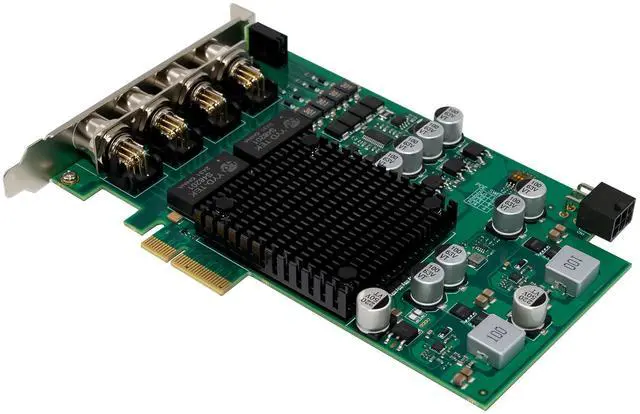

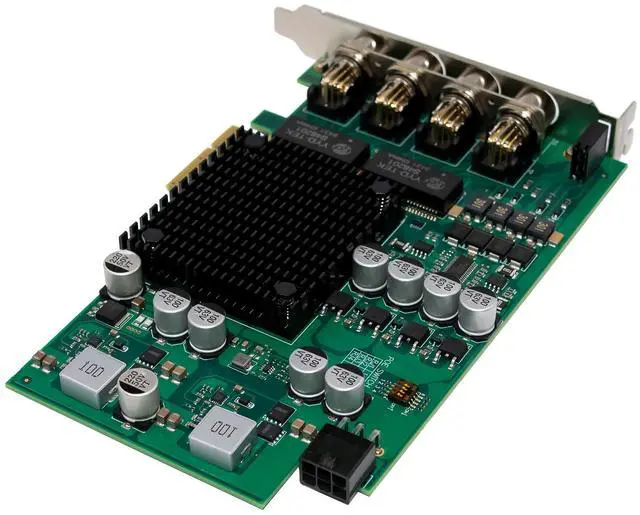

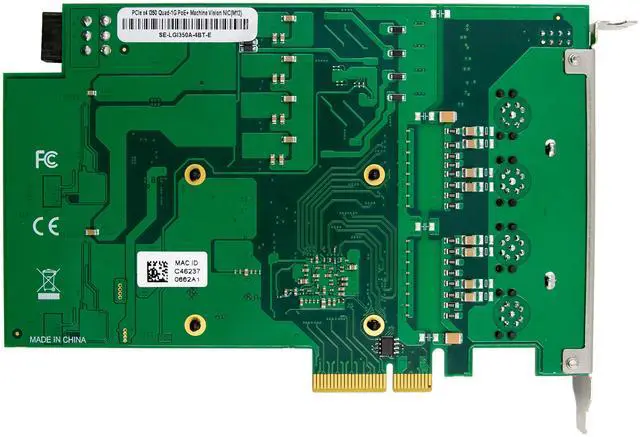

JVFYI PCIe x4 I350AM4 Quad-1G PoE+ (M12) Visual Frame Grabber Server Adapter

Support PCI-Express host interface specification v2.1 with 5GT/s BUS width

Complies with PCI Bus Power Management Interface Specification Rev1.2

PCI-Express lanes: x4

Supports Quadport M12 with maximum transmission speeds up to 1Gbps

Complies with the IEEE802.3ab, IEEE802.3u and IEEE802.3 specifications

Complies with IEEE802.3af, IEEE802.3at network standard

Each port support power voltage: 44-57VDC, maximum power supply of 30W

Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 9.5K

Supports UDP.TCP and IP Checksum offloading

Statistics for management and RMON

Support for virtual machines device queues

Next Generation VMDq Support (8VMs)

Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Chipset: NHI350AM4

Drivers support for FreeBSD, Linux, VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10/Win11

Future table

Product Name PCIe X4 Intel I350 Quad-Port POE+ Gigabit server card

Media Type Copper

PCIe Bus width PCIE2.1 X4(compatible x8, x16 slot)

Output Connector M12 8pin x-code

PoE+ output Voltage 44~57VDC

PoE+ output power 30W/port

Transmission speeds 10/100/1000Mbps

Power Supply PCIe & ATX 6Pin (12V)

Network protocol IEEE802.3at-2009 PoE standard, IEEE802.3af-2003 Poe standard, IEEE802.3ab 1000BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3az, IEEE802.3z, IEEE802.3Q VLANs, IEEE802.3x, IEEE1588

Jumbo frames 9.5Kbytes

DPDK support Yes

PXE support No

Output Total power PCIe supply max 60W

ATX 6pin supply max 120W

Power Consumption 5W

PoE Power LED support

PoE function switch Support (each port support power switch)

Operation Temperature 0~55(32~131)

Storge Temperature -40~70(-104~158)

System Requirements Win7/server2012/server2008/server2012/server2016/server2019/server2022

/win8/win8.1/win10/win11, Linux, VMWare ESXi. etc

Package content

1 x PCIe X4 Intel I350 Quad-Port POE+ Gigabit server card

1 x Users Manual

1 x CD Driver

System Requirements

FreeBSD, Linux, VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Available PCI Express x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
