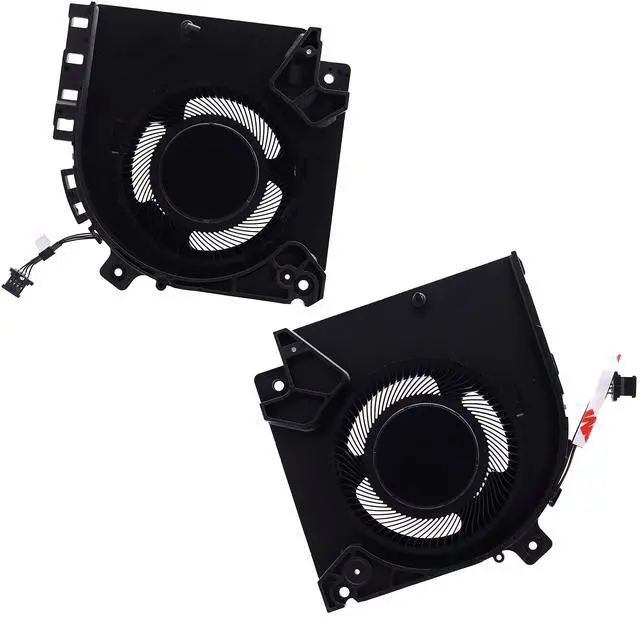

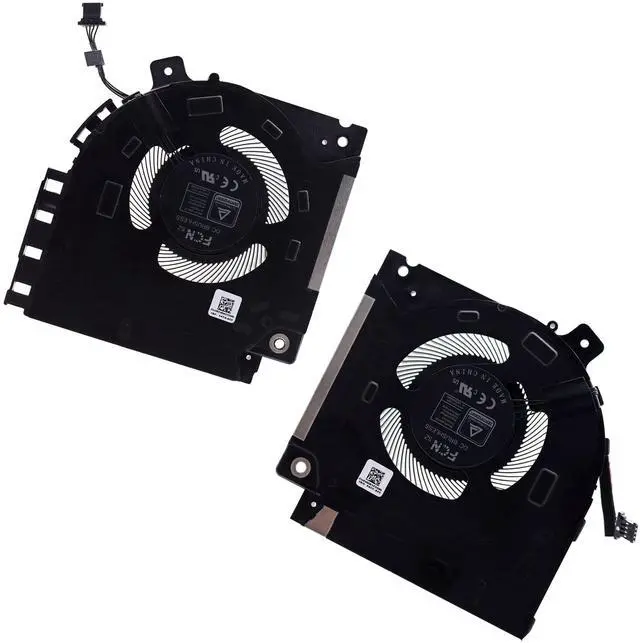

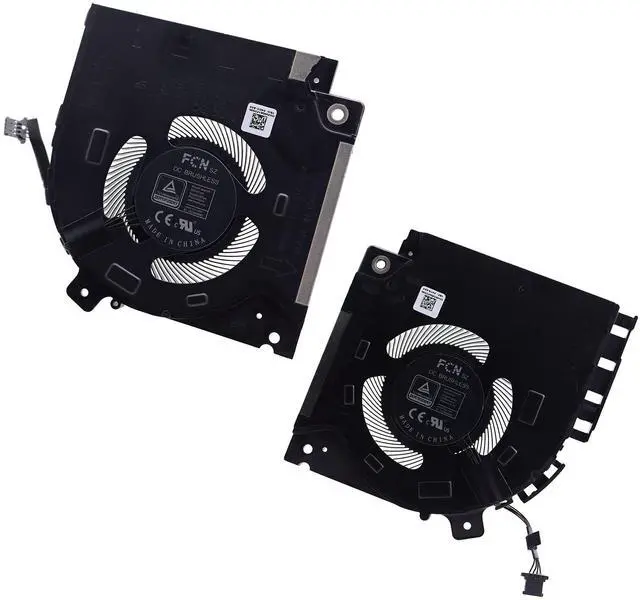

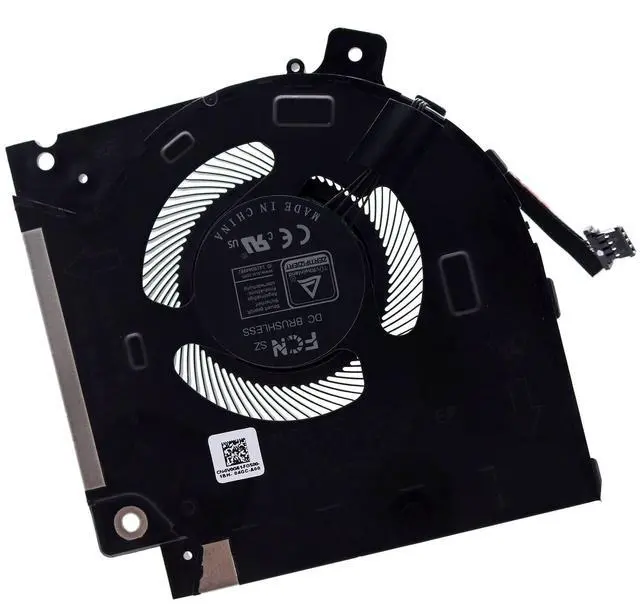

OEM Cooling Fan for the Dell A1ienware X15 R1 laptop series, this is the MAIN cooling fan for CPU processor and GPU Graphics card.
If your PC fan is running very loud or not functioning then a replacement may be needed.

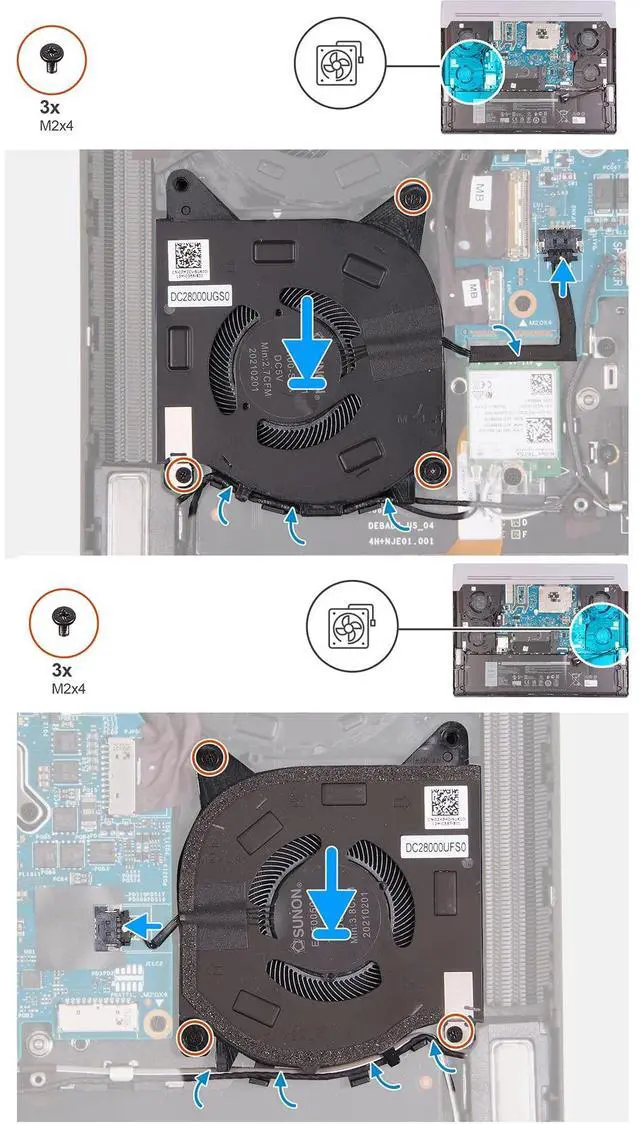

The fan uses an integrated flex cable to connect to the motherboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.
CPU Part Number (s): ND85C37, DFS5K22305283T FND3, DC28000VMF0;
D P/N: 82VD4, 082VD4, CN-082VD4;
Wire Length: 3.00 cm/ 1.10 -inches;
Direct Current: DC 5V / 0.5A, 5.78 CFM
GPU Part Number (s): ND85C42, DFS5K22115371S FND2, DC28000VLF0;
D P/N: V0G61, 0V0G61, CN-0V0G61;
Wire Length: 4.00 cm/ 1.50 -inches;
Direct Current: DC 5V / 0.42A, 5.58 CFM
Reference list of compatible with Laptop models:
- A1ienware X15 R1 (with RTX 3070 GPU)
What's in the box:
1x MAIN CPU Cooling Fan (Left side)
1x MAIN GPU Cooling Fan (Right side)
