The T9-450 is powered by an Intel Atom C3558R quad-core processor, with main frequency of up to 2.4GHz. It is also equipped with a 8GB DDR4 dual-channel memory (expandable up to 32GB); dual SFP+ 10Gb ethernet interfaces; and dual 2.5GbE interfaces, providing up to 20Gb transmission bandwidth through Link Aggregation. In addition, the transmission performance of the T9-450 has been doubled by the installation of dual M.2 NVMe SSD slots in combination with TerraMaster Hyper Cache SSD cache acceleration technology. The T9-450 has been specifically developed for users who require high-speed storage, which can meet the stringent demands of 4K image editing, virtualization, databases, and other applications with high storage performance requirements.
By building a 10-gigabit network, multiple Windows/Mac workstations can connect to T9-450 simultaneously for easier collaborative operations of online editing of multi-track 4K material, special effects, video composition, and shot clip import and output, which greatly improves the work efficiency and significantly reduces the production time.
T9-450 runs the new operating system TOS 5.1, which adds more than 50 new functions and 600 improvements compared with the previous generation. The new features meet more business requirements, as well as significantly improving response speed, security, and ease of use.
The T9-450 supports up to 20TB of hard drive, and the total capacity can reach 180TB. It can store 60 million HD photos, 36 million working documents, 80,000 HD movies, and 8 million downloadable music, enabling you to back up the data in Windows PC, MAC computer, mobile phone, HDD enclosure, and network disk to TNAS for centralized management. This adequately protects users from data loss resulting from hardware malfunction or ransomware.
Hyper Cache is an unique SSD cache acceleration technology developed by TerraMaster. Compared with the traditional SSD cache, the Hyper Cache offers the user a choice of three alternative cache modes designed to suit different usage requirements. It can also improve the cache speed and security through the creation of disk arrays for the SSDs. The TerraMaster Hyper Cache could improve storage performance by 100%, providing the user with more efficient and reliable hybrid storage.

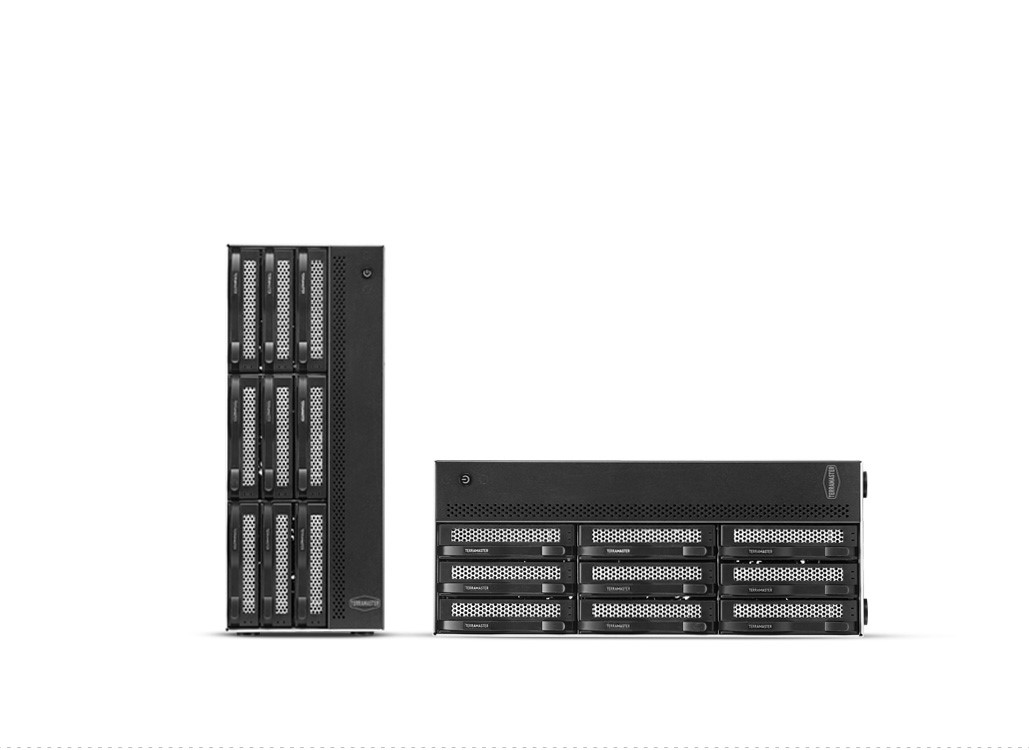

Structural optimization has remarkably reduced the space occupied by the T9-450, thus realizing product miniaturization. By adopting both vertical and horizontal designs, the T9-450 better satisfies the usage requirements of small-sized business users with limited space.

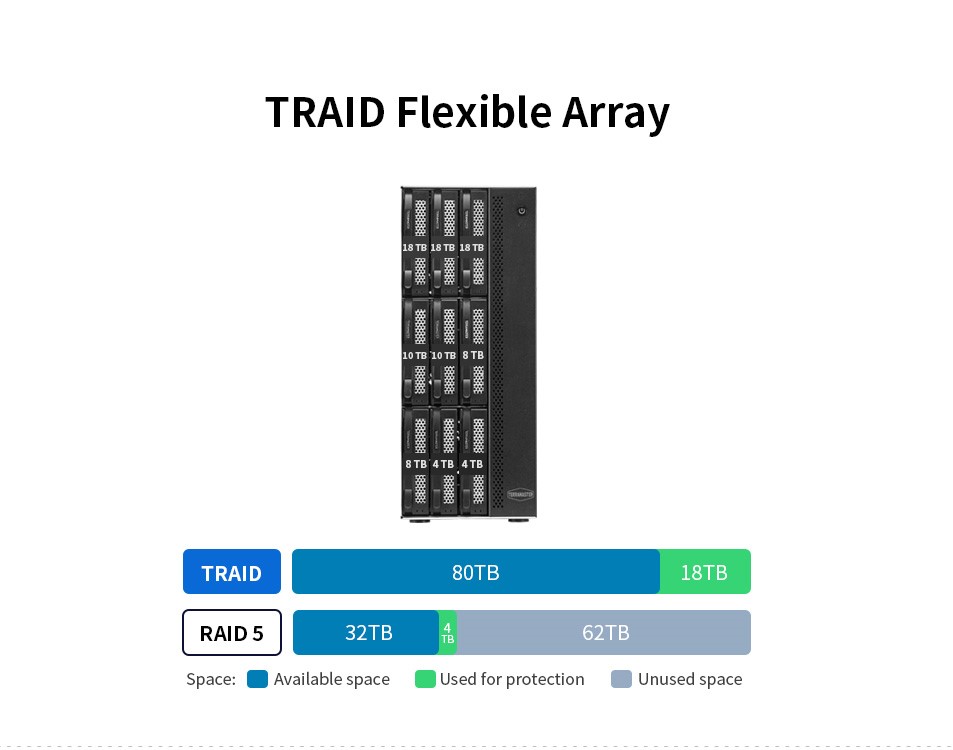

TRAID is the abbreviation of TerraMaster RAID. TRAID is a flexible disk array management tool developed by TerraMaster. It has features such as the automatic combination of disk space, hard disk failure redundancy protection, and automatic capacity expansion. All these functions do not require manual configuration by the user, and the system will automatically complete the configuration according to the properties of the hard disk. TRAID provides users with an optimized, flexible and elastic disk array management solution, especially suitable for new users who are not proficient in how to configure a disk array.

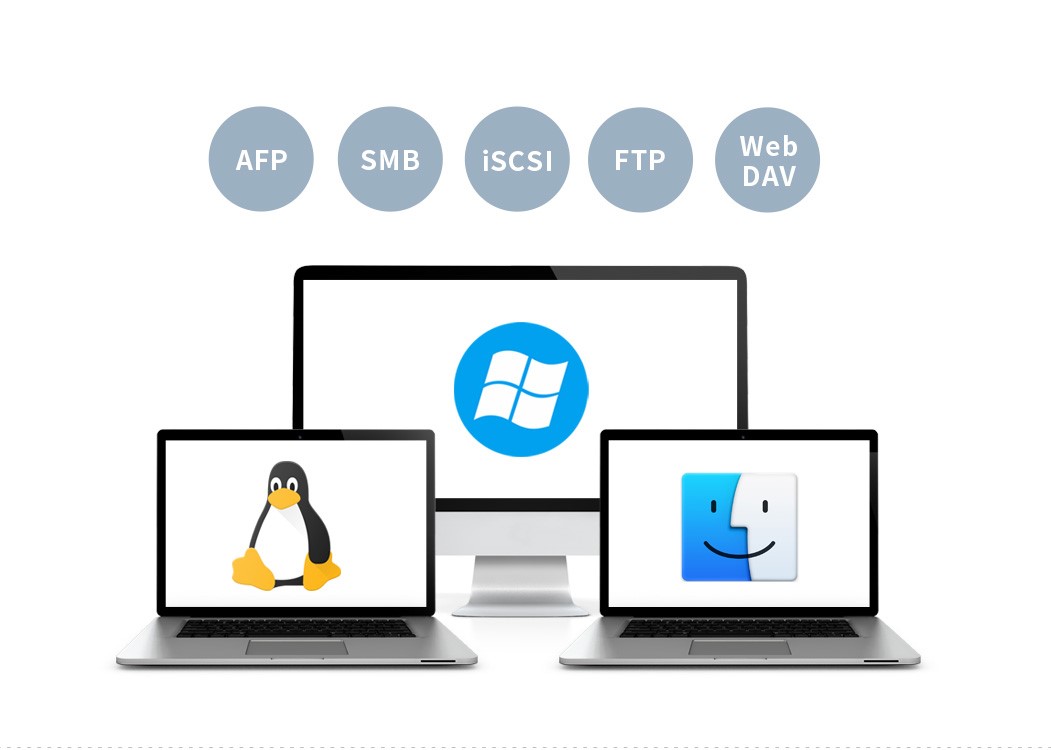

The T9-450supports all mainstream file services: SMB, NFS, SFTP/FTP, AFP, iSCSI, WebDAV; and is provided with multiple permission management of users, user groups, and folder, meeting across-platform file services in various network environments.
One can upgrade their network security protection level through private data access channel provided by VPN servers. The TerraMaster VPN Serveroffers three modes of VPN services, namely PPTP, OpenVPN, and L2TP/IPsec. It is applicable to VPN connections for most network devices.
The T9-450 connects to your domain server through the AD domain or LDAP domain and assigns storage space access rights to your domain users and user groups, in essence reducing IT management costs whilst also ameliorating the efficiency of staff.

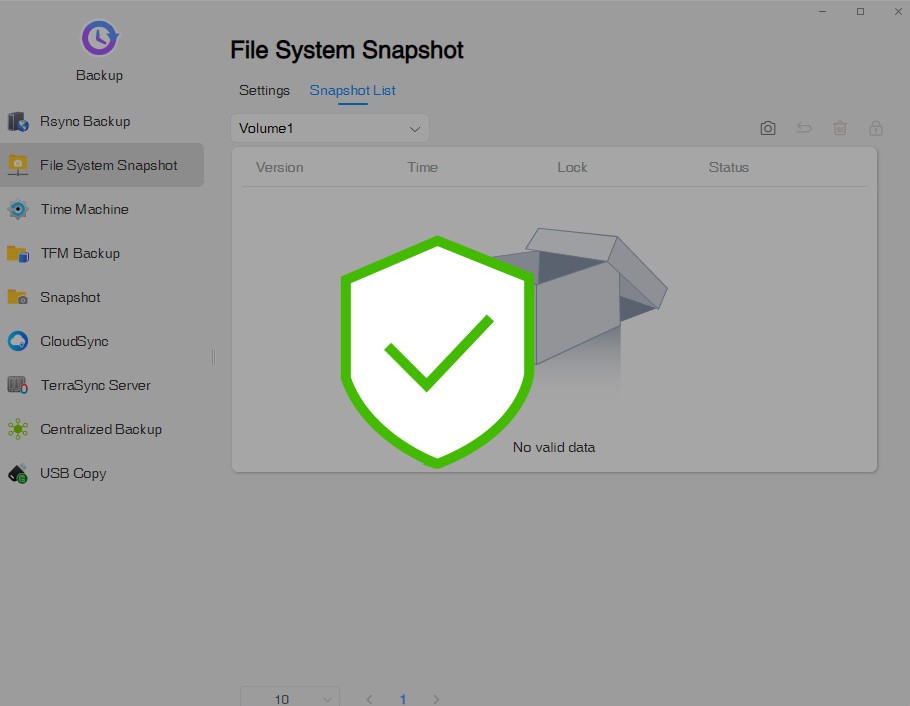

The TerraMaster File System Snapshot (TFSS) is a data protection tool founded upon on file system developed by TerraMaster. The TFSS takes snapshots of an entire file system by exploiting advantages of the features of the BTRFS file system, as such all the data on your TNAS device will be protected. In case of an accident, one just simply clicks the snapshot list to recover the data in an instant, without the risk of human error or ransomware attacks.
TerraMaster implements its unique after-sales service policy that "provides replacements within 2 years" and offers worry-free quality assurance through real-time online customer service, a professional technical forum, an online user guide, a technical service mailbox, and remote troubleshooting.
Built for High-speed Storage
The NAS server 9-Bay T9-450 is powered by an Atom C3558R quad-core processor, with main frequency of up to 2.4GHz. It also features 8GB DDR4 dual-channel memory (expandable up to 32GB); dual SFP+ 10GB fiber interfaces; and dual 2.5GbE ports, providing up to 20Gb transmission bandwidth through Link Aggregation. In addition, the T9-450 features dual M.2 NVMe SSD slots and TerraMaster's Hyper Cache SSD cache acceleration technology, which can improve the overall performance of the NAS.
Simultaneous Teamwork
By building a 10-gigabit network, multiple Windows/Mac workstations can connect to the T9-450 NAS storage simultaneously, making collaborative operations such as online editing of multi-track 4K material, special effects, video composition, and shot clip import and output faster and more efficient. This significantly improves work efficiency and reduces production time
An Abundance of Data Storage Space

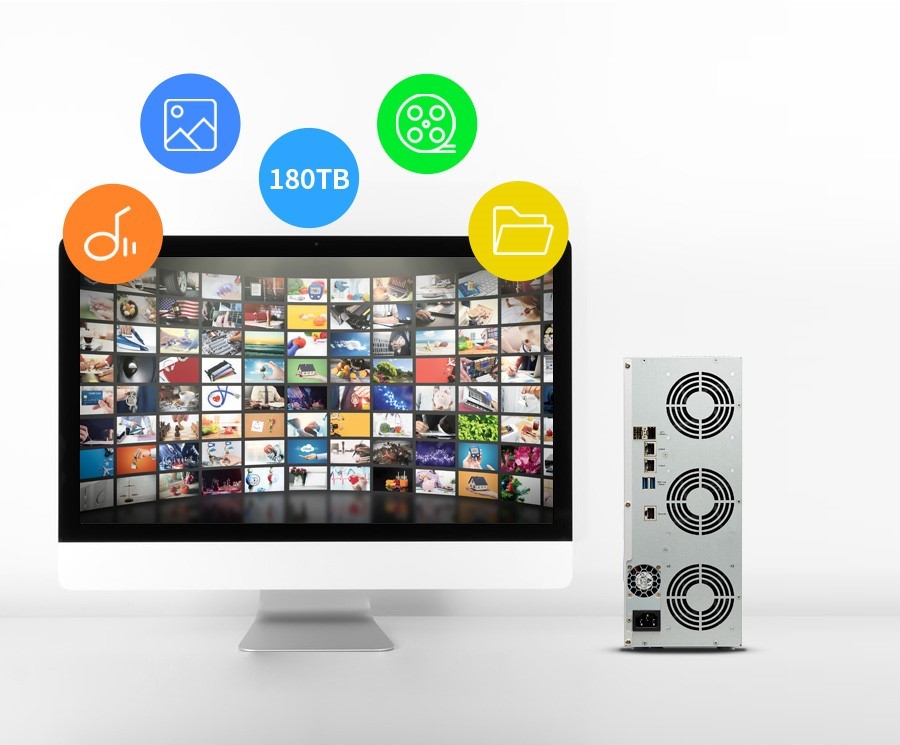

The T9-450 network attached storage supports up to 9*20TB hard drives for a maximum internal raw capacity of 180TB. It is compatible with both 3.5" and 2.5" SATA HDDs and 2.5" SATA SSDs, and supports RAID 0/1/5/6/10. With its large storage capacity, the T9-450 can store 60 million HD photos, 36 million working documents, 80,000 HD movies, and 8 million downloadable music files. This allows users to back up data from their Windows PCs, Macs, mobile phones, HDD enclosures, and network disks to the T9-450 for centralized management, providing an extra layer of protection against data loss.
Unique Hyper Cache SSD Cache Acceleration Technology
The T9-450 NAS enclosure features TerraMaster's unique Hyper Cache SSD cache acceleration technology, which offers users a choice of three different cache modes designed to suit different usage requirements. In addition, the T9-450 can create disk arrays for the SSDs, improving cache speed and security. The Hyper Cache technology can improve storage performance by up to 100%, providing users with more efficient and reliable hybrid storage.
Rich Backup Solutions
The T9-450 cloud storage supports multiple backup applications, including Centralized Backup, Duple Backup, Snapshot, CloudSync, TerraSync, Rsync Backup, and more, providing users with a range of options for data backup and protection. The T9-450 network attached storage uses visual user interfaces and reliable storage technologies to ensure the safety and security of users' data.
- Users can capitalise on Docker, a lightweight software containerisation solution, to operate numerous TOS-based containers.
- These containers have been developed by leading practitioners in the international community, all of whom have benefited from the advanced technology. With Docker Hub, a wide-ranging built-in image repository, users can access shared applications from other developers in the community.
- Supports Apple Time Machine, Rsync, and Remote Backup support.
- Supports third-party backup solutions, Cloud Sync synchronization.
- Superspeed USB3.2 interface supports external storage backup. All kinds of drive formats including but not limited to EXT4, EXT3, FAT, NTFS, HFS+ are supported.
- With the TNAS mobile app, quickly access your TNAS cloud storage and its multimedia data without restrictions, all simply through your iOS or Android system.
- TNAS.online spares you from setting up DDNS, complicated network settings, and further port forwarding rules when trying to access files on TNAS through the Internet.
- At no additional expense, the service provides a secure, modifiable URL that you can use to engage with audio and video content, along with other work files, on your Internet-enabled device.
- TerraMaster implements its unique after-sales service policy that "provides replacements within 2 years"
- Offers worry-free quality assurance through real-time online customer service, a professional technical forum, an online user guide, a technical service mailbox, and remote troubleshooting.
| Products | ||||
|---|---|---|---|---|
| Drive Bays | 9 | 9 | 12 | 12 |
| CPU | Quad-Core Atom C3558R | Quad-Core N5095 | Quad-Core Atom C3558R | Quad-Core N5095 |
| RAM | 8GB (Upgradable to 32GB) | 8GB (Upgradable to 32GB) | 8GB (Upgradable to 32GB) | 8GB (Upgradable to 32GB) |
| SFP+ 10GbE Port | 2 | None | 2 | None |
| RJ45 2.5GbE Port | 2 | 2 | 2 | 2 |
| USB Host | USB 3.1 (5Gpbs) x 2 | USB 3.2 (10Gpbs) x 2 | USB 3.1 (5Gpbs) x 2 | USB 3.2 (10Gpbs) x 2 |
| M.2 SSD Slot | 2 | 1 | 2 | 1 |
| Max Raw Storage Capacity | 180 TB (20TB x 9, RAID 0) | 180 TB (20TB x 9, RAID 0) | 240 TB (20TB x 12, RAID 0) | 240 TB (20TB x 12, RAID 0) |
| Supported RAID Type | RAID 0/1/5/6/10/Single; TRAID | RAID 0/1/5/6/10/Single; TRAID | RAID 0/1/5/6/10/Single; TRAID | RAID 0/1/5/6/10/Single; TRAID |
| 4K Hardware Transcoding |
