Aluminum Heat Sinks and Heatpipes
Delicate designed 4 copper heatipipes and aluminum heat sinks are combined for best cooling performance.
Patented "Dual Blade Fan" by ZALMAN
Dual airflow from impeller structure brings strong cooling performance while efficient airflow reduces noise.

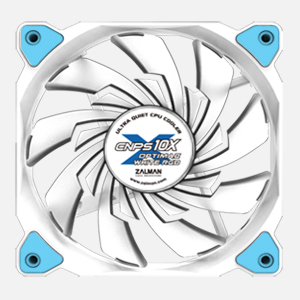

Dual Blade Fan
When the small inner flow tunnel and large outer flow are combined simultaneously, it creates greater airflow to improve cooling performance.

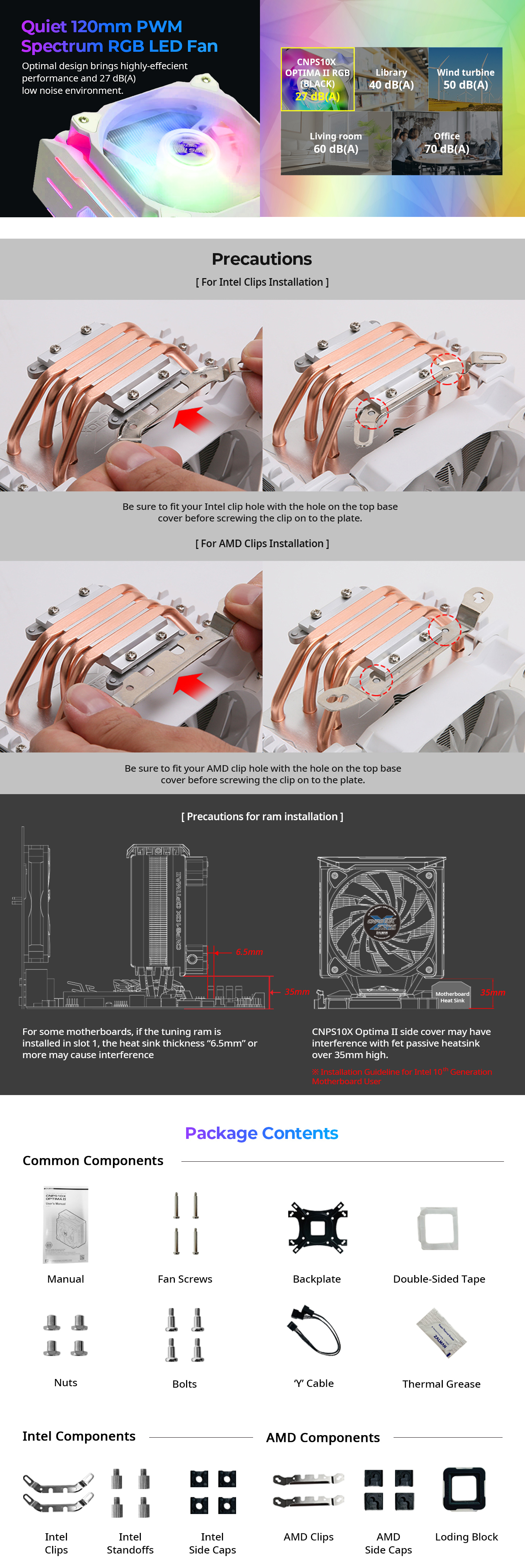

Pre-Installed Anti-Vibration Rubber Pads
Total of 8 anti-vibration rubber pads installed in front and back to minimize noise and vibration.
SPECIFICATIONS
| Dimensions | 132(L) x 85(W) x 158(H)mm |
|---|---|
| Materials | Pure Copper, Pure Aluminum, Plastic |
| Weight | 740g |
| Heat Dissipation Area | 6,803cm2 |
| Heat Pipe | 4 |
| TDP | 180W |
| Fan Dimensions | 120 x 120 x 25(H)mm |
| Fan Speed | 800 ~ 1,500RPM +-10% |
| Max. Fan Air Flow | 61.52CFM |
| Max. Fan Air Pressure | 1.06mm H2O |
| Fan Life Span | 50,000hours |
| Fan Connector Type | 4-pin |
| Rated Current | 0.35A |
| Rated Voltage | 12V DC |
| Power Consumption | 4.2W |
| Socket Compatibility | Intel: LGA2066, 2011-V3, 2011, 115X, 1366 CPUs/AMD: AM4, AM3+, AM3, FM2+, FM2 CPUs |
