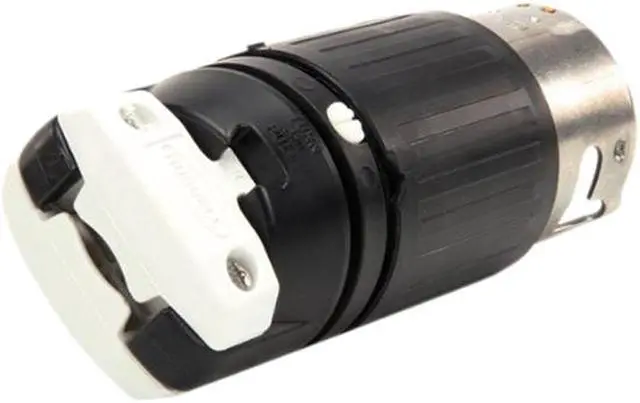

Learn more about the Hubbell Incorporated CS8365C
| Brand | Hubbell |
|---|---|
| Model | CS8365C |
| Voltage (Volts) | 3 Phase 250V AC |
|---|---|
| Maximum Amperage (Amps) | 50A |
| Color/Finish | Black/White |
| UL Safety Listing | Yes |
| CSA Safety Listing | Yes |
| Features | Wiring Scheme: 3-Pole, 4-Wire Grounding Cord Dia.: 0.750"-1.125" (19.1-29.2) lade Holder Material : Glass Reinforced PET Terminal Retainer Material : Glass Reinforced PET Housing Material : Black Supertough Nylon Cord Clamp Material : Glass Reinforced PET Blade Material : Brass Terminal Clamp Material : Bronze box terminal Terminal Screw Material : Stainless Steel Cord Clamp Screw Material : 302/304 Stainless Steel Body Holding Screw Material : 302/304 Stainless Steel Ratings: Molded In or Stamped On Catalog No: Permanently ink marked on product Dielectric Voltage Withstand: 2,000V minimum Current Interrupting: Certified for current interrupting at full rated current Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49. Terminal Accommodation: #10 AWG min #6 AWG max Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact) Moisture Resistance: IP20 Safety-Shroud Material: Stainless Steel Seal Material: Neoprene Seal Cup Material: Nylon Latches Material: Supertough nylon Box Terminal Material: Copper Front & Rear Housing Material: Supertough nylon |
|---|
| First Listed on Newegg | March 17, 2014 |
|---|
