Question 1

Will a ga-ep45-ud3p mobo fit this chassis?

Accepted Answer

YesLooks like you're just installing a standard ATX mb in am ATX case.
I have a GA-EP43-UD3L in mine which is exactly the same size.

Just beware that there is only about 1/2" space in the left panel for the hard power/data cables. I have 8 sata drives and a corsair modular power supply in mine. You have to get the cables very flat and not stack them on top of each other. I used 2  - 4 connector power cables and connected to every other drive with each cable. And be careful when removing and installing the panel.

Question 2

Will a COOLER MASTER Hyper 212 EVO fit in this case?

Accepted Answer

The Luxo M30 is a really wide case, so I think it should fit. However, I don't have a Hyper 212, so can't say for sure.

There looks to be plenty of room to stand a 120 mm fan on edge above my existing cpu cooler fan (standard mount for an AMD F2 cpu), so I think that the Hyper 212 would fit easily if replacing an existing cooler.

Note: The exact positioning of the Hyper 212 will depend on the cpu location on the mobo you are using.

Question 3

How's the cooling with this case? What temperature does it run around? And what cpu + gpu do you run it with?

Accepted Answer

This case has excellent cooling. The two top fans provide a good intake for any graphics card you want to put in it (It'd be pretty squished if you tried to crossfire though), and the front intake does a good job providing air for the CPU fan and also keeping the harddrives cool. I don't have any exact temperatures, but it has better cooling than most cases in this price range I have dealt with. I use an AMD-6300 and a Radeon 7870 XT.

Question 4

Can I add more led fans?

Accepted Answer

The case comes with 4 120mm fans (one with blue LED).  You could replace the other 3 or you could mount 2 more fans on the side of the case.  The case supports up to 6 120mm fans.

Question 5

I need this case... but, How do i obtain it ?

Accepted Answer

I ordered mine and it came to my door inside another case

Question 6

I wanted to know If this case could handle a R9 270x 2gb Toxic Edition (The Card with 3 fans)? From the measurement that it will fit but partpicker told me that they are unsure in their   compatibility section.

Accepted Answer

The card will fit fine. I just built a system with the same case and graphics recently.

Question 7

Will a GIGABYTE GV-R927XOC-4GD Radeon R9 270X 4GB 256-Bit GDDR5 PCI Express 3.0 HDCP Ready Video Card fit in this case?

Accepted Answer

Depends on the motherboard but if you have the correct motherboard than yes

Question 8

will a ZALMAN CNPS9900MAX-B (132mm) or a Enermax Ecomaster ETS-T40-TA(120mm) fit? since the case is 194mm(cutting it close?)

Accepted Answer

The zalman can fit, BUT it will be a tight fit.. I recommend buying a low profile style cooler/fan or a bigger case.

Question 9

Will the Corsair H100i fit in the top of this case? Center holes on the radiator are 15mm apart.

Accepted Answer

While it may fit i do not recommend putting it in there, you need an open top on the case to fit the cooling system into or you will just be circulating hot air around inside your rig, not a fun scenario. :/

Model no.	Luxo M30
Dimensions (W x H x D)	7.5in. x 17in. x 17.3in. (192mm x 430mm x 440mm)
Case Type	Mid Tower
Material	ABS and Mesh
Color	Black
Side Panel	120mm LED fan x 2 (Optional) Transparent side panel only available in the US market.
Drive Bays	5.25in. x 3 3.5in. x 1 3.5in. x 8 (internal)
Form Factor	ATX / Micro ATX

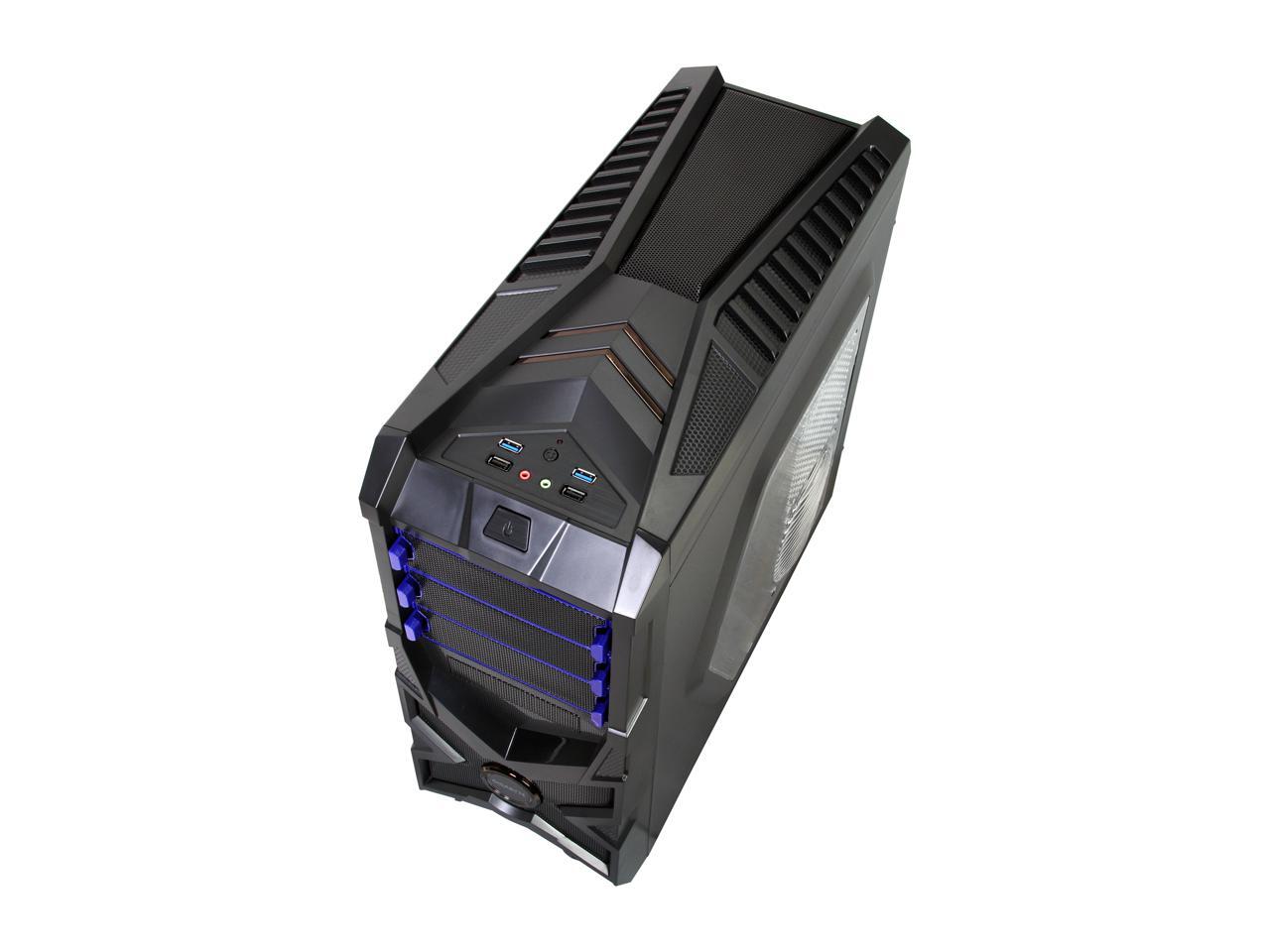

I/O Ports	USB 3.0 x 2 USB 2.0 x 2 HD Audio
Fans	Front: 120mm blue LED fan x 1 Rear: 120mm fan x 1 Top: 120mm fan x 2 (optional)
Weight	13.67lb (6.2kg)

Brand	GIGABYTE
Model	Luxo M30 Black GZ-ZLM3BO

Type	ATX Mid Tower
Color	Black
Case Material	ABS / Mesh
Motherboard Compatibility	Micro ATX / ATX

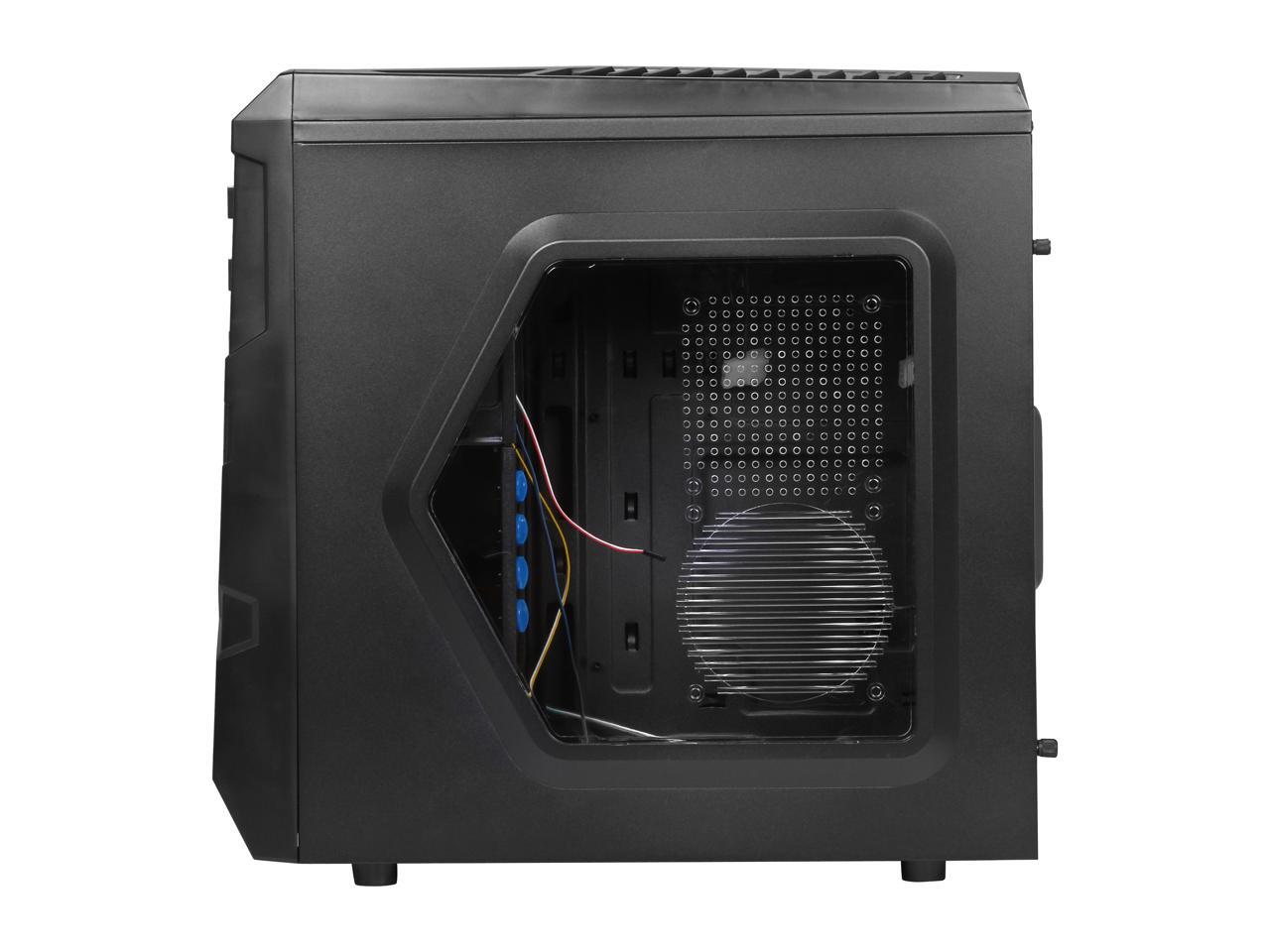

Side Panel	Transparent Window

Dimensions	19.4" x 19.0" x 10.6"
Weight	13.7 lbs.

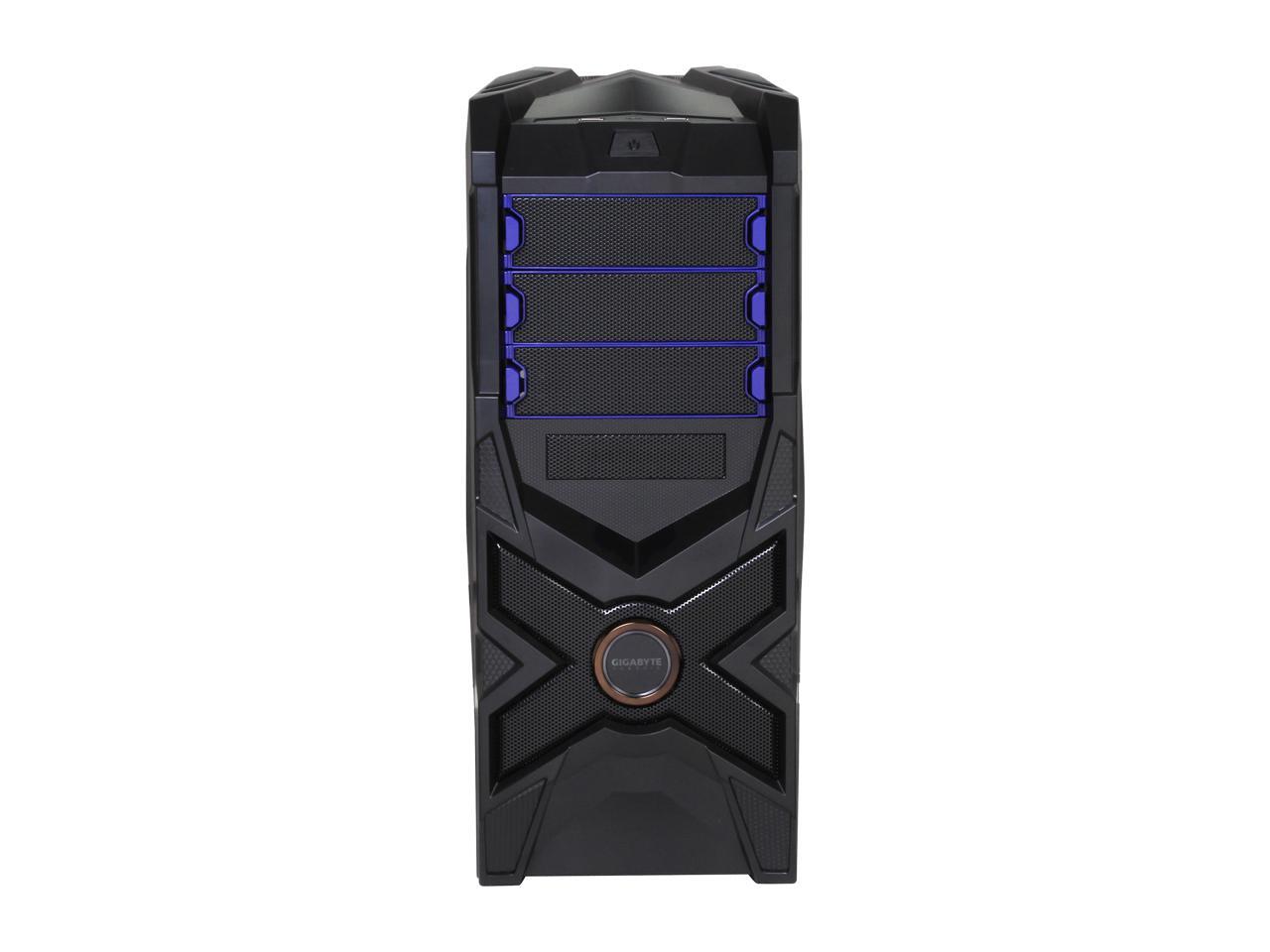

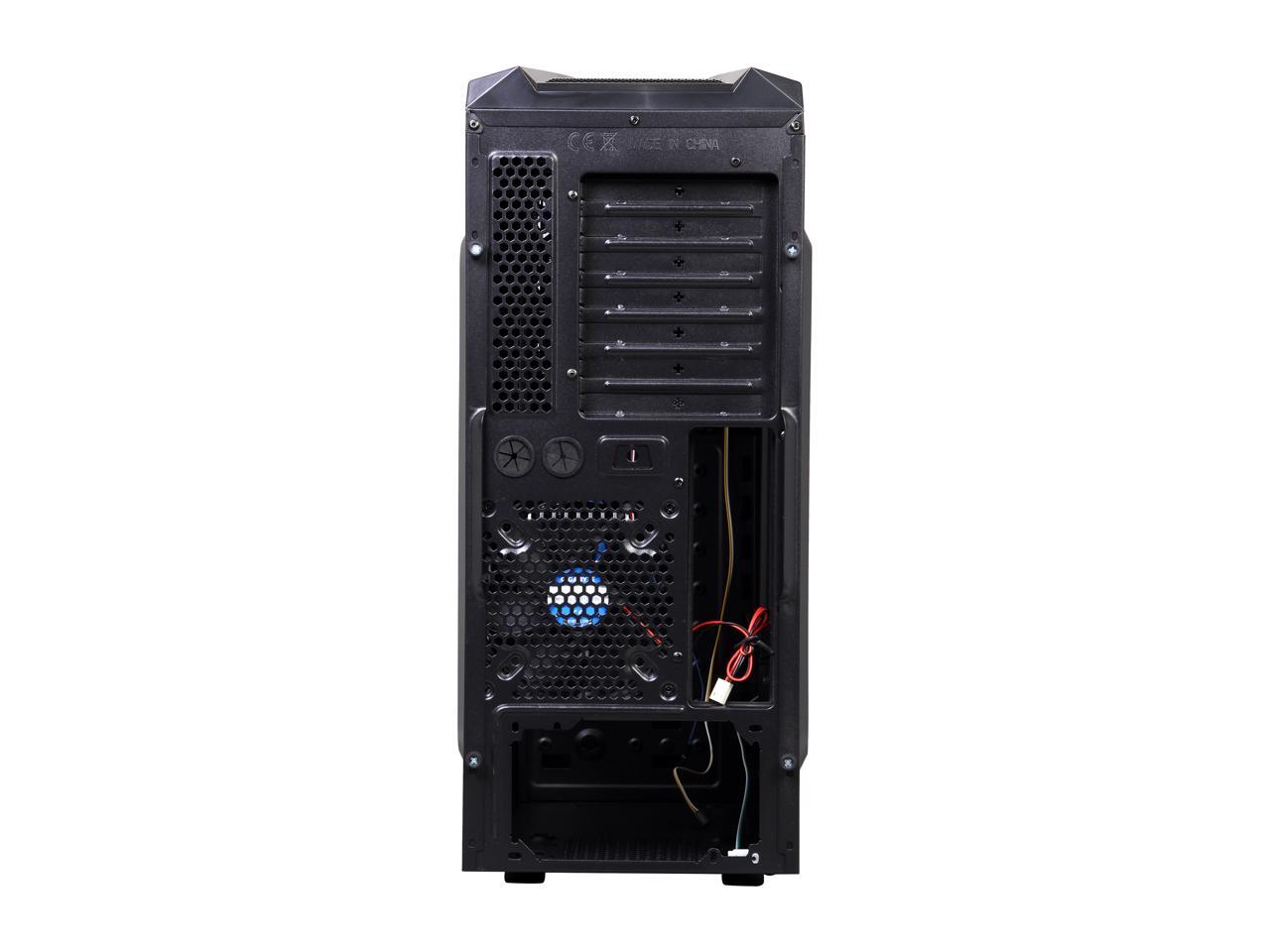

GIGABYTE Luxo M30 Black GZ-ZLM3BO Black ABS / Mesh ATX Mid Tower Computer Case

GIGABYTE Luxo M30 Computer Case

Features

Specifications

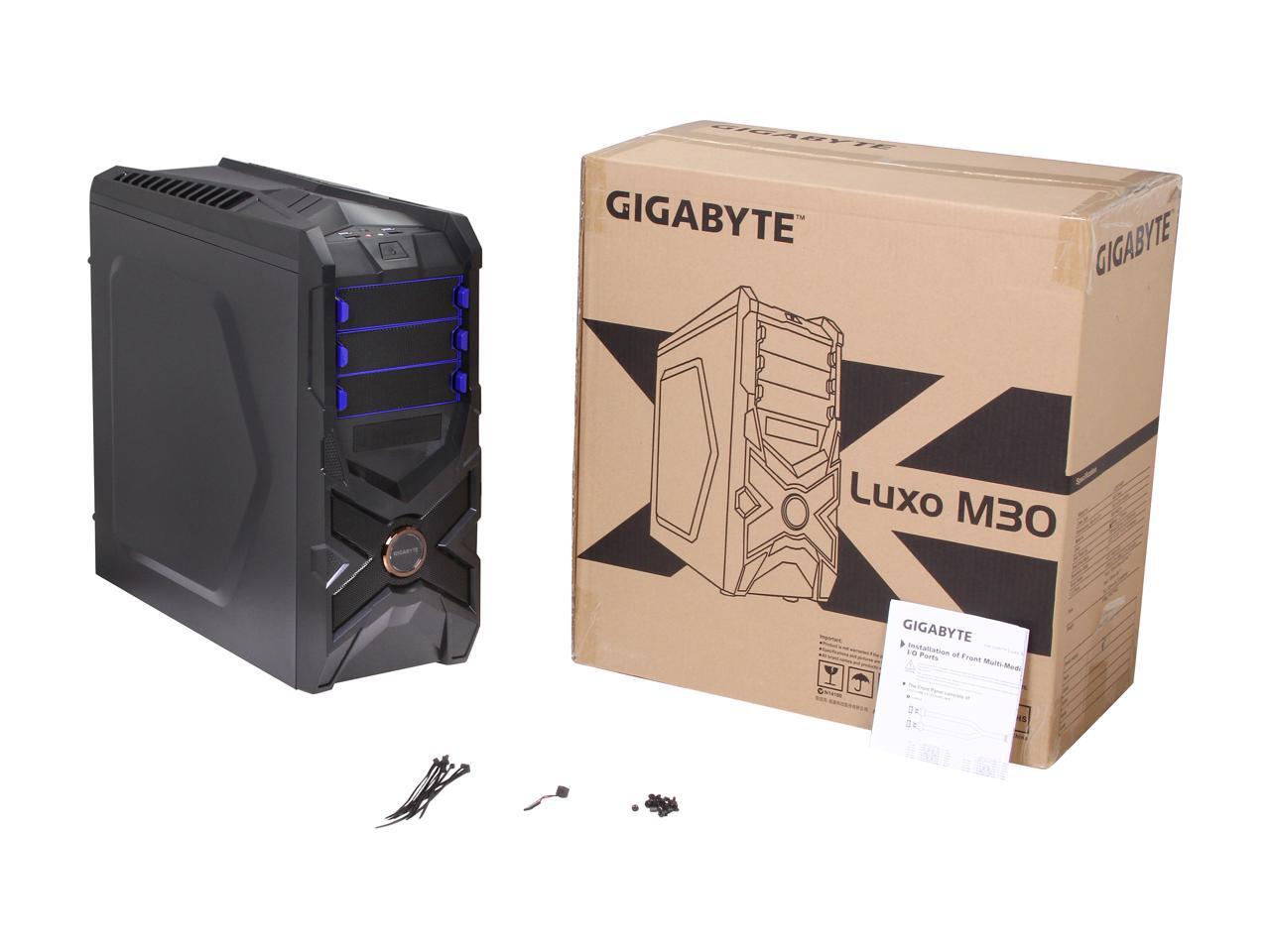

What's in the Box

Learn more about the GIGABYTE Luxo M30 Black GZ-ZLM3BO

Customer Reviews of the GIGABYTE Luxo M30 Black GZ-ZLM3BO

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Expansion
External 5.25" Drive Bays	3
Internal 3.5" Drive Bays	8

Item#: N82E16811233123
