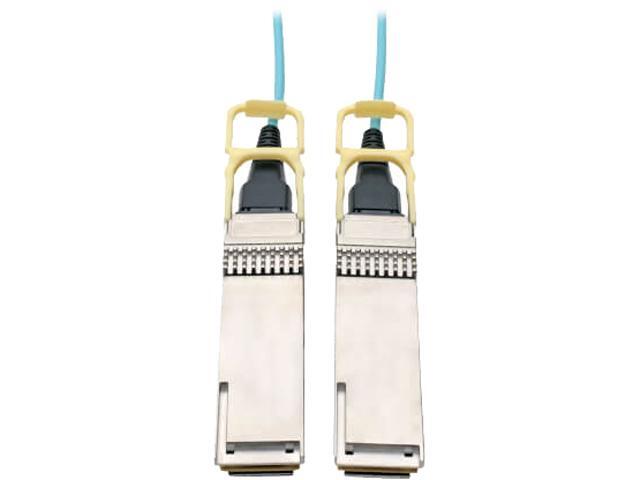

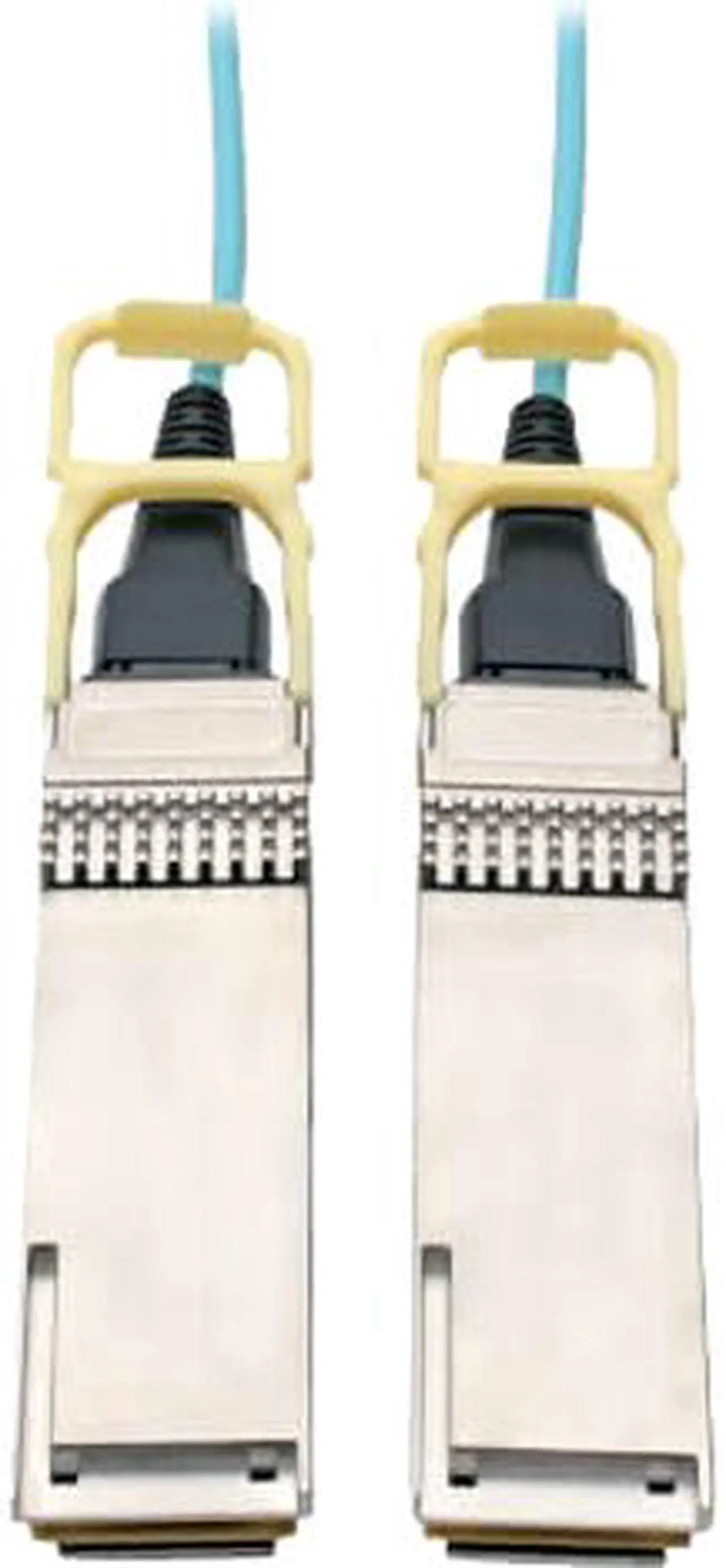

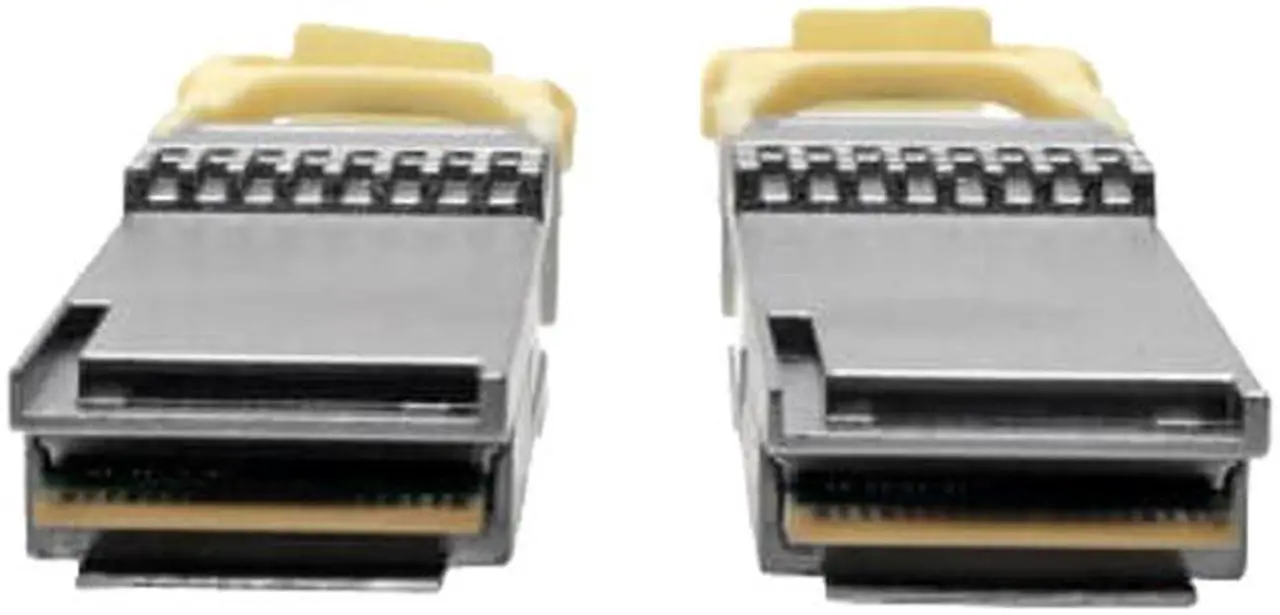

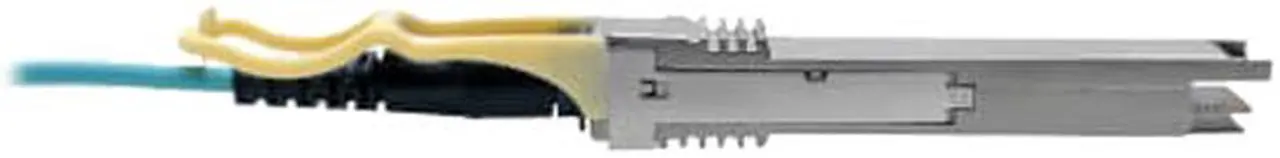

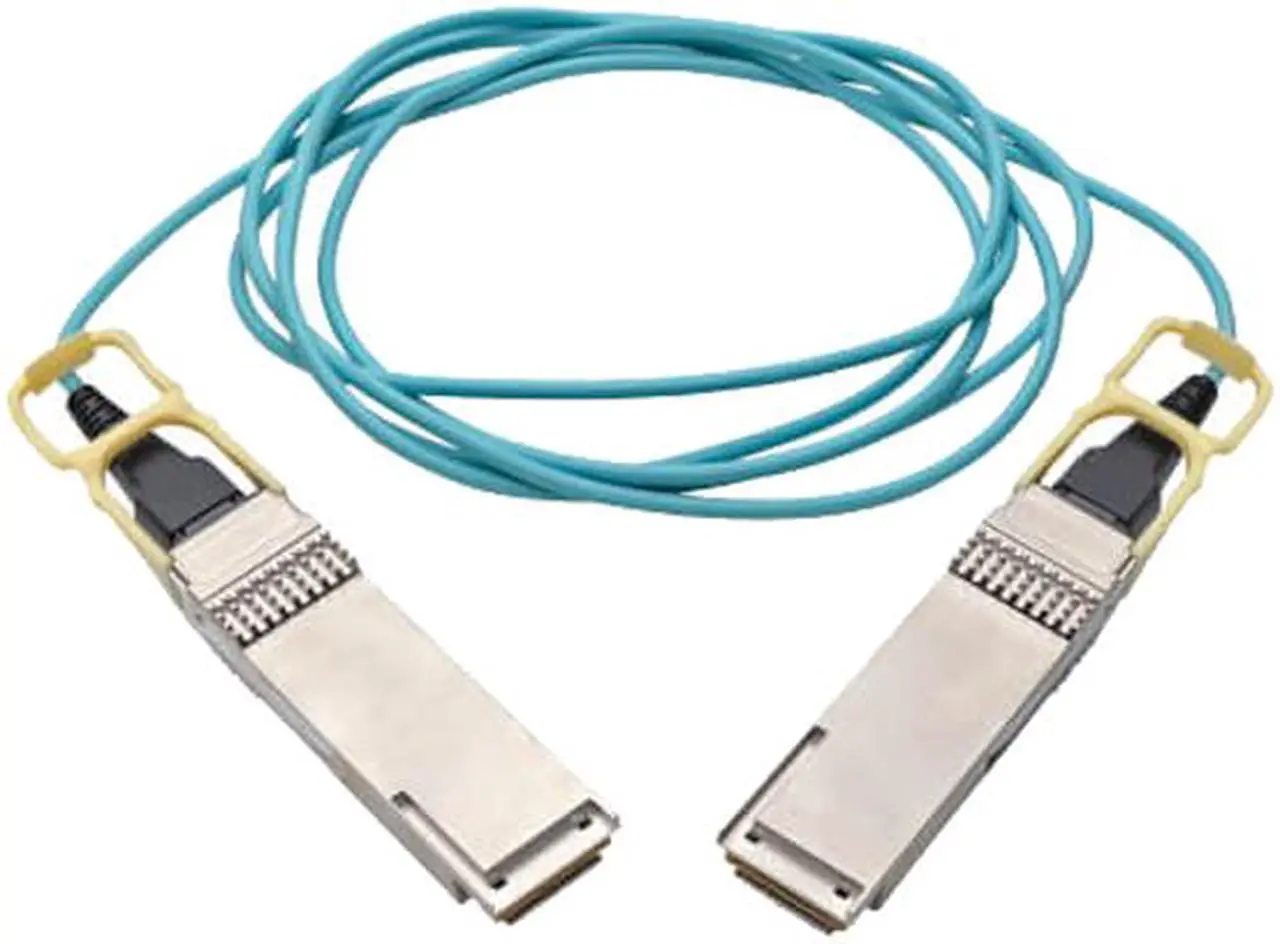

QSFP28 Cable Connects Network Equipment at Speeds up to 100 Gbps This one-meter (three-foot) QSFP28 Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 25 Gbps SFP channels into one affordable high-density package. Each male connector contains four independent 850 nm VCSEL-based transmitters and four independent receivers using PIN photo detectors inside. Each lane supports data transfer speeds up to 25 Gbps. Together, the N28H-01M-AQ provides an aggregated speed up to 100 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment. Push/Pull Tab Connectors Provide Quick, Easy Connections The hot-pluggable QSFP28 connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand...Cable Type: Fiber OpticFiber Optic Mode: Multi-modeCore/Cladding Diameter: 50/125 mCable Length: 3.28 ftConnector on First End: 1 x QSFP28 Male IEEE 802.3bm NetworkConnector on Second End: 1 x QSFP28 Male IEEE 802.3bm NetworkFeatures: ActiveFeatures: EMI ProtectionDevice Supported: SwitchDevice Supported: ServerDevice Supported: RouterDevice Supported: Network DeviceData Transfer Rate: 12.50 GB/sColor: AquaEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 1 Year
Learn more about the Tripp Lite N28H-01M-AQ
Model
Brand
TRIPP LITE
Model
N28H-01M-AQ
Details
Connector A
1 x QSFP28 (MALE)
Connector B
1 x QSFP28 (MALE)
Length
3.30 ft.
Color
Aqua
Features
Features
Clad Diameter: 50mµ
Core Diameter: 125mµ
Number of Fibers: 8
Optical Mode: OM3
Cable Outer Diameter (OD): 2.9 +/- 0.1mm
Cable Jacket Type: OFNP
Combines 4 full-duplex 25 Gbps SFP lanes for an aggregated 100 Gbps rate
Ideal for switches, servers, routers and other high-end networking equipment
Multi-platform support for 100 Gb Ethernet, InfiniBand, Fibre Channel and PCIe
