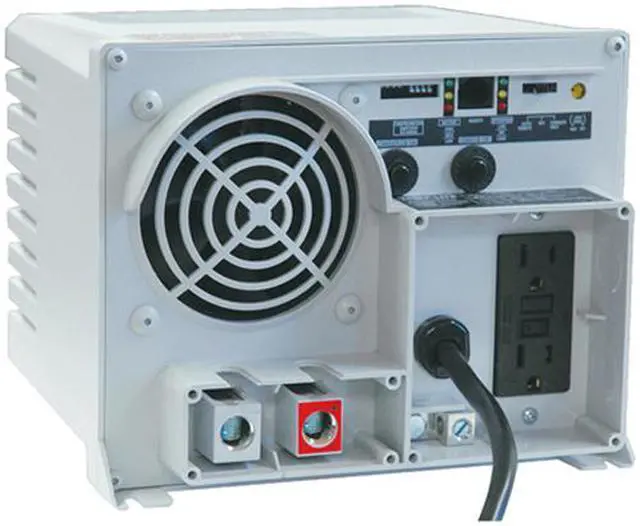

TRIPP LITE UT750UL 750-Watt Utility/Work Truck DC-to-AC Inverter

Be the first to review this product...

750W (continuous) 1500W (Peak)

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES:

Plug/Connector Type: NEMA 5-15R,Terminal Block
Receptacles: 2 x NEMA 5-15R
Input Voltage: 120 V AC,12 V DC
Output Voltage: 120 V AC
Maximum Frequency: 60 Hz
Peak Power Load: 1500 W
Continuous Power Load: 750 W
Waveform Type: Pulse-width Modulated Sine Wave
Height: 7"
Width: 8.8"
Depth: 9"
Weight (Approximate): 17.40 lb
Package Contents:
- PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets
- Remote Control
- Remote Battery Temperature Sensor Cable
- Instruction Manual with Warranty Information
Limited Warranty: 30 Month

Model
Brand	TRIPP LITE
Model	UT750UL

Details
Outlet	2 AC outlets
Output Watt Capacity	750W (continuous) 1500W (Peak)

Features
Features	Supports 120V AC output from a 120VAC line power source or 12VDC battery source. 16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time. 750 watts continuous AC output in inverter mode, 2500 watts continuous AC output in AC mode. Double Boost inverter output supports momentary startup loads of up to 200% of the continuous rating for up to 10 seconds. Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank. Two built in NEMA 5-15R GFCI protected output receptacles pass 120V line power or inverter output through to connected equipment. Reliability enhanced large transformer design tested to UL (USA) and (CSA) Canada standards with secure mounting Flanges and protected DC wiring terminals. Moisture resistant construction enables vehicular operation in high humidity environments. 3 position operating mode switch supports “AUTO” mode to enable automatic transfer between DC and AC modes, CHARGE ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings. Set of (6) six front panel LED’s display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status. Resettable 10A charger AC input breaker and settable 12A AC output breaker and automatic 2 speed cooling fan protect the inverter from load and temperature related failures. Grounding lug properly connects the inverter / charger system to earth ground or vehicle grounding system. Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop.
