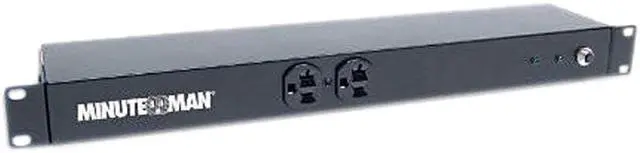

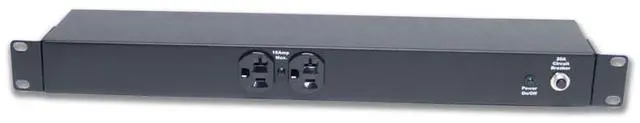

Minuteman OEPD1020HV 2-Oultets PDU - 2 x NEMA 5-15/20R - 1U - Horizontal/Vertical
- PDU is reliable for power protection and management solutions
- NEMA 5-15/20R receptacle type to ensure maximum productivity with added feasibility
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MINUTE MAN OEPD1020HV 20 AMP POWER DISTRIBUTION UNIT20 Amp, 10 Outlet Power Distribution UnitRackmount and 0U brackets includedUnit can be mounted vertically or horizontallyListed at UL 609501 standards(2) 515/20R front outlets(8) 515/20R rear outletsMaximum Input: 20 AmpsVoltage In/Out: 120V/120VMaximum Output: 16 Amps per outletInput Plug Type: 520PPower On/Off LEDFrequency 50/60Hz
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman OEPD1020HV is a 20A, 10-outlet rack PDU for data-center and network racks, with two front and eight rear NEMA 5-15/20R outlets, a 15-ft NEMA 5-20P input cord, and horizontal 1U or vertical 0U mounting.
Recommended For
- Small server-rack or network-closet operators who need to distribute power from one 120V, NEMA 5-20P connection to as many as 10 devices.
- Rack installers who need flexible placement: the PDU supports horizontal 1U mounting or vertical 0U mounting, and its 15-foot cord can reach a more distant outlet.
- IT teams connecting a mix of rack equipment that benefits from two front-access outlets and eight rear-access outlets.
- Facilities with a compatible 120V NEMA 5-20P supply that need basic rack power distribution and an input circuit breaker, rather than built-in surge protection.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack-mounted power distribution for data center or network equipment, with horizontal or vertical installation options |
| Power Input | 20A maximum input through a NEMA 5-20P connector |
| Power Outputs | NEMA 5-15/20R receptacles; the listed outlet counts conflict (2 and 8) |
| Rack Installation | 1U horizontal or 0U vertical installation |
| Cord Length | 15 ft |
| Dimensions And Weight | 17 W × 3.5 L × 1.74 H inches; item weight 5.46 lb |
| Model Identifiers | Minuteman OE Series, model OEPD1020HV |
