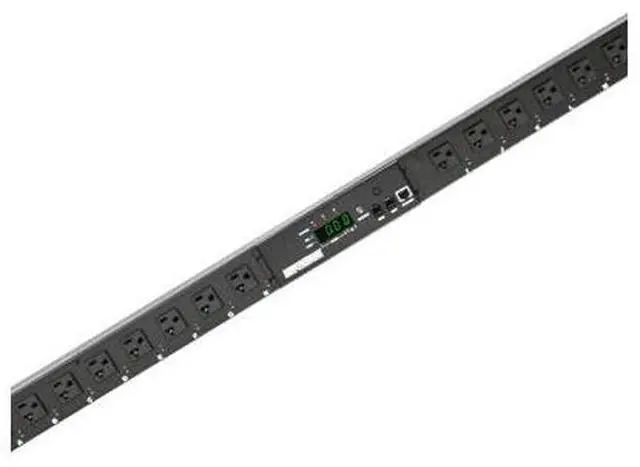

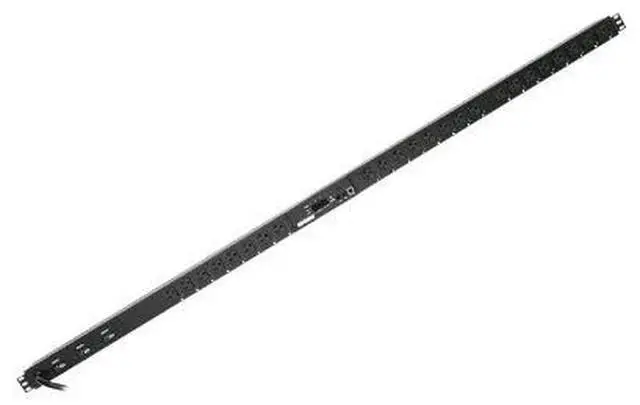

Minuteman RPM1516N1LCD 16-Outlets PDU - Switched - IEC 60320 C20 - 16 x NEMA 5-15R - Network (RJ-45) - 0U - Vertical - Rack-mountable

  • RPM1516N1LCD
  • RPM1516N1LCD-15P
  • RPM1516N1LCD-HW
  • RPM1516N1LCD-IEC
  • RPM1521E
  • RPM1524N1LCD
  • RPM1524N1LCD-15P
  • RPM1524N1LCD-HW
  • RPM1524N1LCD-IEC
  • RPM1581HVN
  • RPM158N1LCD
  • RPM158N1LCD-15P
  • RPM158N1LCD-HW
  • RPM158N1LCD-IEC
  • RPM2016I2LCD-HW
  • RPM2016I2LCD-L20P
  • RPM2016N1LCD-20P
  • RPM2016N1LCD-L20P
  • RPM2024I2LCD-HW
  • RPM2024I2LCD-L20P
  • RPM2024N1LCD-20P
  • RPM2024N1LCD-HW
  • RPM2024N1LCD-IEC
  • RPM204I2LCD-HW
  • RPM204I2LCD-L20P
  • RPM208I2LCD-HW
  • RPM208I2LCD-L20P
  • RPM208N1LCD-20P
  • RPM208N1LCD-HW
  • RPM208N1LCD-IEC
  • RPM208N1LCD-L20P
  • RPM3016I2LCD-HW
  • RPM3016I2LCD-L30P
  • RPM3016N1LCD-HW
  • RPM3016N1LCD-L30P
  • RPM3024I2LCD-HW
  • RPM3024I2LCD-L30P
  • RPM3024N1LCD-HW
  • RPM3024N1LCD-L30P
  • RPM308I2LCD-HW
  • RPM308I2LCD-L30P
  • RPM308N1LCD-HW
  • The Minuteman RPM EV6 and LCD (Remote Power Manager) Switched PDU series is the ultimate power nerve center for controlling multiple network devices and services. The RPM EV6 and LCD PDUs allow for remote management, monitoring of PDU vitals, and control of outlets and networked clients.
  • Power status can be monitored over the network, via a web browser and/or SNMP card, allowing for full control to remotely reboot connected equipment by switching the outlet on and off.
  • Features include mail notification, threshold sensing, overload alerts, power sequencing, and central management - via the free centralized monitoring software.
  • Network Connection: The RPM is a smart IP-based PDU that connects to your network via CAT5 cable
  • Control Individual Outlets: Power on/off, reboot, and monitor up to 24 individual devices from a single IP address
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

Learn more about the MINUTEMAN RPM1516N1LCD

Model
Brand MINUTEMAN
Model RPM1516N1LCD
Details
Type Power Distribution Units
Style 0U Vertical Installation
Certifications 62368-1 Certification
Input
Maximum Input Current 15A
Input Connector(s) IEC320 C20
Cord Length 10 ft
Output
Output Connector(s) Front Panel Receptacles: (16) 5-15 R
Maximum Output Current 15A
Overload Protection Input Circuit Breaker Protection
Feature
Features IP-addressable Remote Power Manager
Built-in Web Server to support Remote Power Management
Event Notifications via Email or SNMP Traps
Local LCD displays Amps, IP Address, Temperature and/or Humidity
Daily, Weekly, Monthly & Yearly Power Consumption Data
10/100 Base-T Ethernet Port
IPv4, IPv6 Support and SNMP Support (v1,v2c,v3)
Telnet, SSH Encryption Support
Radius Authentication
User Account for Three Different Permissions Management Systems
Alarm Notification via Email, SNMP, Syslog, LED or Audible Alarm
SSL Web Browser for Set Up and Operation
IP Address Filtering
Maximum 5,000 Entries for Each Power Consumption Data and Event log
Remote Firmware Upgrade Support
SNMP Heart Beat Trap Available
Reports in Fahrenheit or Celsius
Export and Import RPM Configuration
True RMS Current Measurement
Provides Voltage, Frequency, Power Factor, Active Power, Apparent Power and kWh information
Remote Outlet On/Off Power Switching
Remote Outlet Current Monitoring
User Defined Alarm Thresholds for Warning and Overload
User Defined Power On/Off Sequence Timing
Timed & Scheduled On/Off/Reboot Switching
Alternative Outlet Restart Mode: Memorize Previous Status, Always On or Always Off
Ping No-Answer Alarm
Outlet Action via Preset-Event: Including Power Event, Environment Event and Receiving Trap from Other Devices
Circuit Breaker Protection
Free Bundle Management Utility
Additional Information
First Listed on Newegg June 10, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

LOADING...

The Minuteman RPM1516N1LCD is a 0U, rack-mountable switched PDU with 16 individually controlled outlets, suited to IT teams managing and remotely rebooting network or server equipment.

Recommended For

  • IT administrators managing a rack at an unattended or remote site who need to check power status and remotely cycle an unresponsive server, switch, or other connected device.
  • Small network or server-rack operators who need individual outlet switching for controlled reboots, scheduled power changes, or startup sequencing across connected equipment.
  • Network or facilities teams that want rack-level power readings, usage history, threshold alarms, and email or SNMP event notifications for connected equipment.
  • Rack builders needing a vertical 0U PDU with 16 NEMA 5-15R outlets for compatible 120V equipment and an IEC C20 input connection.

Spec Summary

AttributeValue
Best ForNetwork-connected rack equipment that needs individually switched outlets, remote power monitoring, and centralized management
Power Input And Output15A maximum input through an IEC 320 C20 connector, with a 10 ft cord and 16 front-panel NEMA 5-15R receptacles rated for 15A maximum output
Installation And Compliance0U vertical installation with 62368-1 certification
Network And ManagementIP-addressable management through a built-in web server and 10/100 Base-T Ethernet; supports IPv4, IPv6, SNMP v1/v2c/v3, Telnet, SSH, SSL browser access, RADIUS authentication, IP filtering, role-based user permissions, remote firmware upgrades, configuration import/export, and a bundled management utility
Power Monitoring And AlertsLocal LCD displays amperage, IP address, temperature, and humidity; provides true RMS current and voltage, frequency, power factor, active and apparent power, and kWh data. Supports consumption and event logs of up to 5,000 entries each, user-defined warning and overload thresholds, and alerts by email, SNMP traps, Syslog, LED, or audible alarm
Outlet Control And SchedulingRemotely switch outlets on or off, monitor outlet current, schedule on/off or reboot actions, and configure power-on/off sequencing. Restart behavior can memorize the previous state or default to on or off; preset events and ping no-answer alarms can trigger outlet actions
Model IdentifiersMinuteman RPM1516N1LCD
