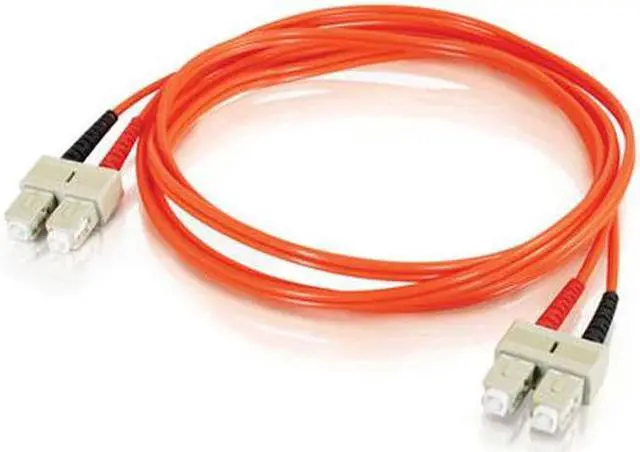

C2G 09116 OM1 Fiber Optic Cable - SC-SC 62.5/125 Duplex Multimode PVC Fiber Cable, Orange (16.4 Feet, 5 Meters)

Be the first to review this product...

1 Connector Number
Orange

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

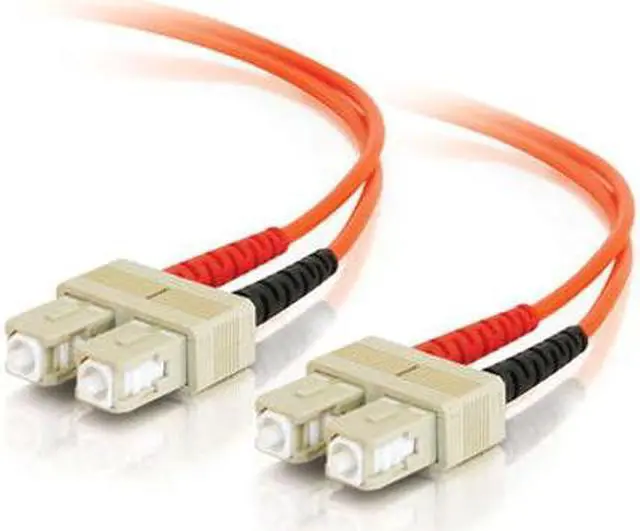

Cables To Go offers a high-quality fiber optic patch cable designed with SC to SC termination, and is perfect for Ethernet, multimedia, or communication applications. The SC connector features a push-pull locking system. The patented Injection Molding Process gives each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. The pull-proof jacket design surrounds the popular 62.5/125 multimode fiber.

MAIN OVERVIEW FEATURES: Cable Type: Fiber OpticCable Characteristic: Patch CableCable Length: 16.40 ftConnector on First End: 2 x SC MaleConnector on Second End: 2 x SC MaleColor: OrangeWeight (Approximate): 8 ozLimited Warranty: Lifetime

Model
Brand	Cables To Go
Model	09116
Type	Fiber
Color	Orange

Details
Length	16.4 ft.
Connector Number	1
Connector Detail	Connector A: 2 x SC Male Connector B: 2 x SC Male
Specifications	Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm. SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip) Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 um Jacket Material: PVC (OFNR riser-rated) Jacket OD: 2.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1,000 cycles Flex Resistance: 5,000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20ºC to +70ºC Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.

Features
Features	With SC to SC termination, this high-quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. The SC connector features a push-pull locking system. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

Additional Information
First Listed on Newegg	December 21, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
Read full details

Return Policies

Return for refund within: 45 days
Return for replacement within: 1 year
This item is covered by Newegg.com's 45/1 Return Policy.
Read full return policy for details.
