StarTech.com DSATPMOLP4 Dual SATA to LP4 Power Doubler Cable Adapter - 2 SATA to 4 Pin LP4 Internal PC Peripheral Power Supply Connector - SATA Y Cable - Male/Female - 18 AWG Wire - 9 Amps/108W (DSATPMOLP4)
6 inch dual SATA to LP4 power supply (ATX) adapter cable overcomes SATA Power output limits by combining 2 SATA connections into one 4-Pin LP4 connector
Dual SATA Power inputs for a total power output of 150W (9A)
The SATA to 4-Pin LP4 power supply doubler adapter cable provides extra power for 4-Pin LP4 powered mobile rack multi-drive (SSD/HDD) Backplanes (like StarTech.com SATSASBP425)
2x SATA male to LP4-Pin female
PVC Insulation
18 AWG UL1007
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the STARTECH DSATPMOLP4
Model
Brand
StarTech.com
Model
DSATPMOLP4
Type
Dual SATA to LP4 Power Doubler Cable Adapter
Color
Multi-Color
Details
Length
5.9 in.
Cable Length
5.9 in.
Connectors
Connector A
1x Molex LP4 male
Connector B
2 x SATA Power (15 pin)
Connector Number
3
Connector Detail
2 SATA to 4 Pin LP4
Terminal Gender
Male to Male
Details
Specifications

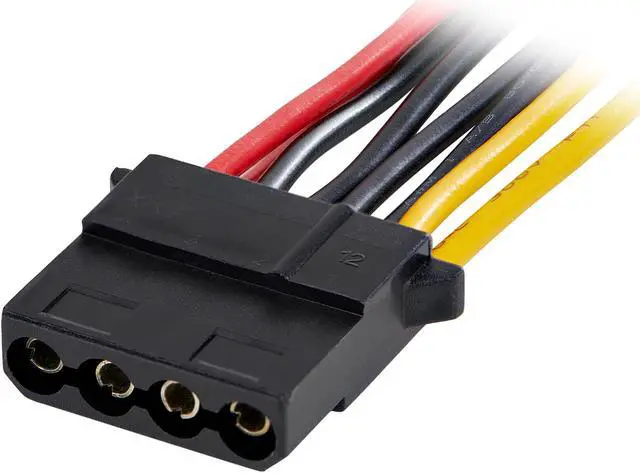

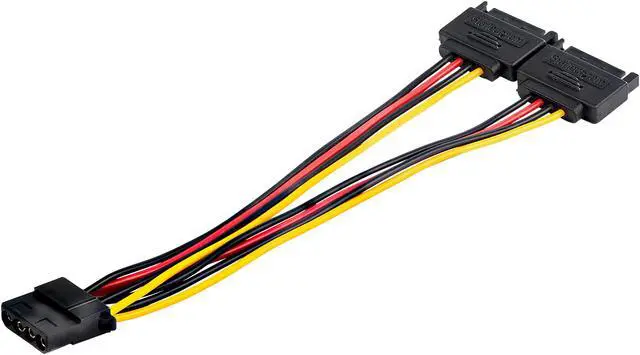

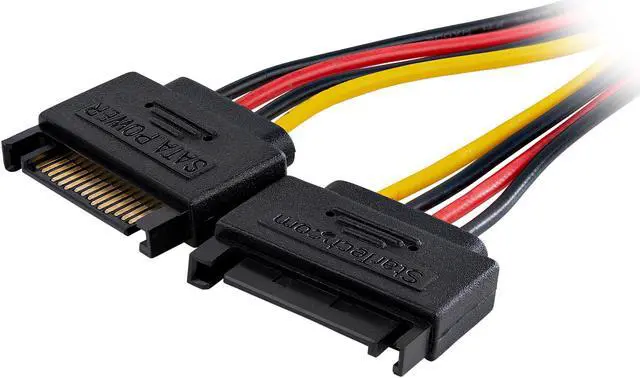

The SATA power to LP4 power cable adapter features two male SATA power connectors and one female LP4 power connector.
6 inch; 2x SATA Power male to LP4-Pin female; Insulation: PVC; Connector: LD-PE; 18 AWG, UL1007; Lifetime Warranty; Note: Connected LP4 device must not draw more than 153W (9A per line)
Features
Features
DUAL SATA TO LP4 POWER CABLE: This power supply doubler adapter cable overcomes SATA Power supply (ATX) output limits by combining 2 SATA power connections into one 4-Pin LP4 connector, providing extra power to drive backplanes & storage peripherals
DUAL SATA PROVIDES 150W TO LP4 DEVICE: Dual SATA Power inputs provide additional 5V and 12V power lines, providing extra 4.5A current per line, giving a total power output of 108W (9A at 12V) and 45W (9A at 5V)
EXTRA POWER FOR 4-Pin LP4 BACKPLANES: The double SATA power supply to LP4 adapter cable provides extra power to mobile rack multi-drive (SSD/HDD) Backplanes that utilize LP4 Power such as StarTech.com SATSASBP425
HIGH QUALITY CONSTRUCTION: 100% copper 18AWG UL1007 wires with PVC insulation, allowing max current of 4.5A per wire, Insulation tested upto 300V DC and connectors made from high strength LD-PE that can withstand high voltage and current ratings
