d: 1 x DisplayPort Male DisplayPort 1.1a Audio/Video| Connector on Second End: 1 x DVI Female Video| Device Supported: Video Device| Green Compliant: Yes| Green Compliance Certificate/Authority: RoHS. .

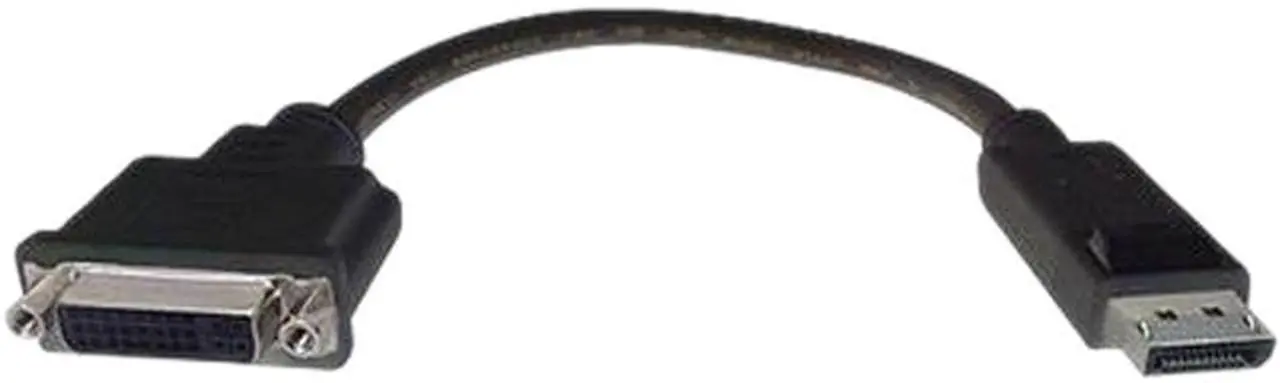

Keep your existing displays while using DisplayPort sources. With the DP2DVIFA (DisplayPort to DVI) active adapter you can connect a DisplayPort source to a DVI-D display. This adapter supports resolutions up to 1920x1200 allowing you to take full advantage of a single link DVI capability.
Learn more about the Detailed Specifications
Model
Brand
Comprehensive
Series
DP2DVIFA
Details
Type
DP to DVI
Changer Type
DisplayPort to DVI
Color
Black
Specifications
Performance Grade: Good Connector Type 1: DisplayPort Male Input Connector Type 2: DVI-D Female Output Resolution: Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p Versions Supported: Mini DisplayPort 1.1a input and DVI 1.1v output Bandwidth Supported: DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth. Deep Color Supported: DVI 12bit per channel (36bit all channel) deep color Power requirements: Powered from DisplayPort source Construction: The DP to DVI adapter uses an integrated chip to provide an active digital to analog conversion
Connectors
Connector A
1x DVI-D female
Connector B
1x DisplayPort male
Features
Features
Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz Supports DisplayPort 1.1a input and DVI output Supports DVI highest video resolution 1080p Supports DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth Supports DVI 12bit per channel (36bit all channel) deep color Power supply: +3.3V (From DisplayPort)
