How many output receptacles does the Eaton EVMAGU23X-E PDU have and what types are they?

The Eaton EVMAGU23X-E PDU has a total of 42 output receptacles, which include 24 C13 and 18 C39.

What is the maximum input current for the Eaton EVMAGU23X-E PDU?

The maximum input current for the Eaton EVMAGU23X-E PDU is 63 amps.

$2,499^.99

Limit 99999 per customer.

Price alert

Sold by Newegg

Shipped by Newegg

PDU Type Managed
Input Phase 3-Phase; Single-Phase
PDU Input Voltage 208-240V, 415/240V, 208/120V
Nominal Input Voltage Description 1P: 100-240V~, 16-63A 3P DELTA: 100-240V~, 16-55A 3P WYE: 100-240 / 173-415V~, 16-32A 50/60Hz
Maximum Input Amps 63
Input Connection Type Universal input
PDU Plug Type Hardwire
Voltage Compatibility (VAC) 1-Phase; 100; 110; 120; 200; 208; 230; 240; 3-Phase; 415
Input Plug Type Universal
Output Capacity (kVA) 17.3
Output Capacity (Watts) 17300
Output Capacity (kW) 23
Output Capacity Details Power rating is based on the input cordset used. Cord options available for 5kVA-17.3kVA, 1-phase or 3-phase.
Frequency Compatibility 50 / 60 Hz
Output Receptacle Details C39 Compatible with P-Lock Power Cords

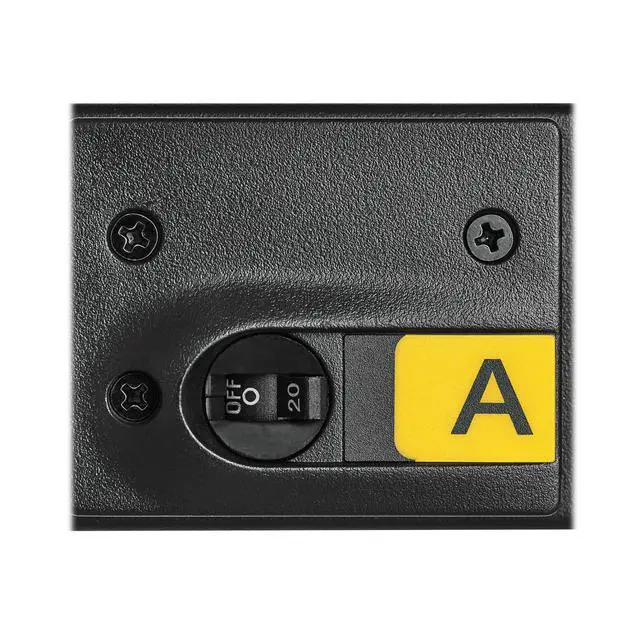

Output Circuit Breakers (6) low-profile circuit breakers. 16A (Europe)/20A (US). One circuit breaker per outlet bank.
Nominal Output Voltage(s) Supported 200V; 208V; 230V; 240V

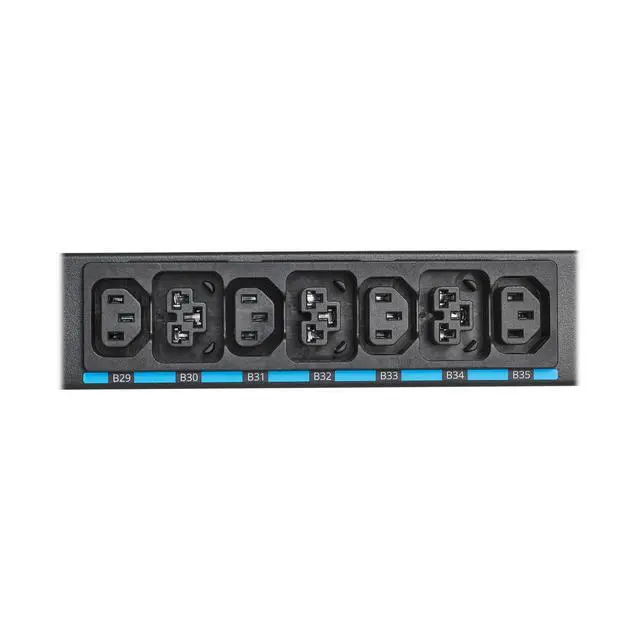

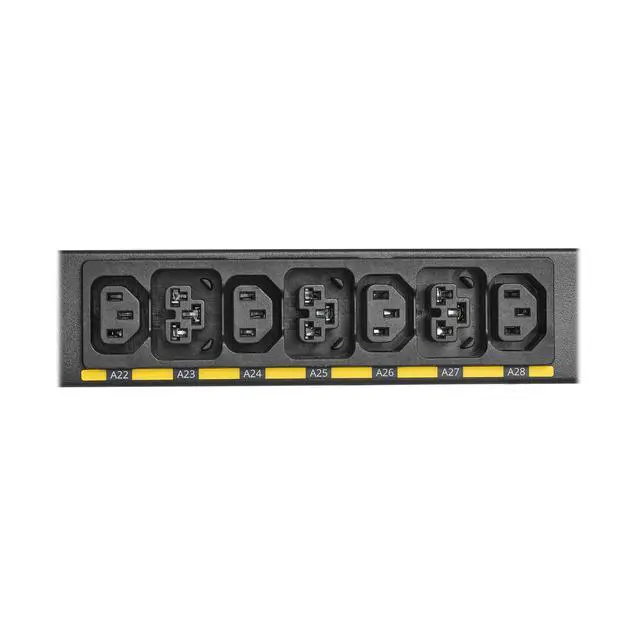

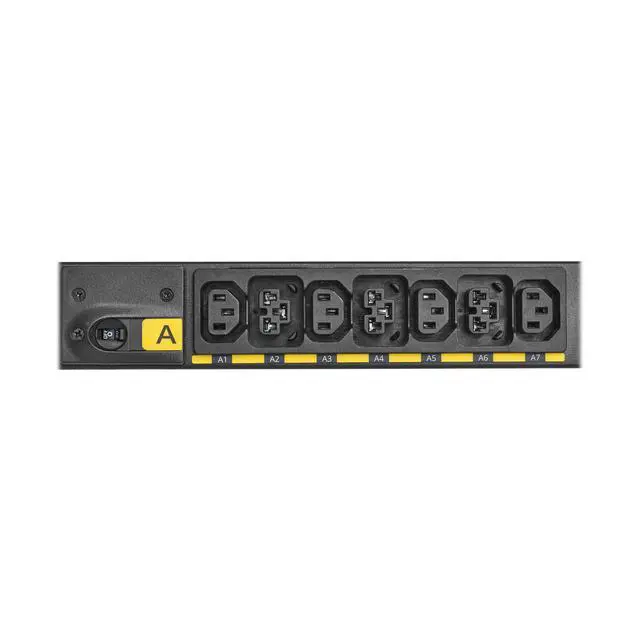

Output Receptacles (24) C13; (18) C39
Overload Protection (6) 2-pole 20A circuit breakers

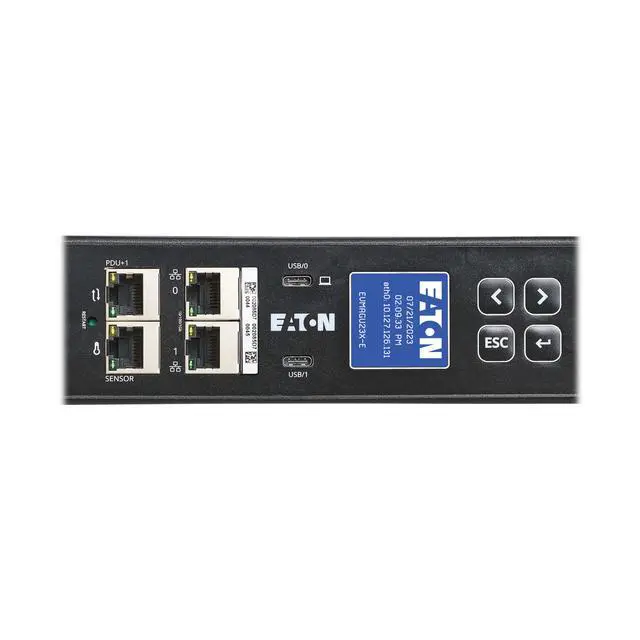

Ethernet Interface Yes
Serial Interface Yes
Daisy-chainable / Cascadable Yes
Daisy-chainable / Cascadable Details Cascade up to 40 PDUsMaterial of Construction Aluminum
Rack Height 0U
Form Factors Supported Vertical
Housing Color Black

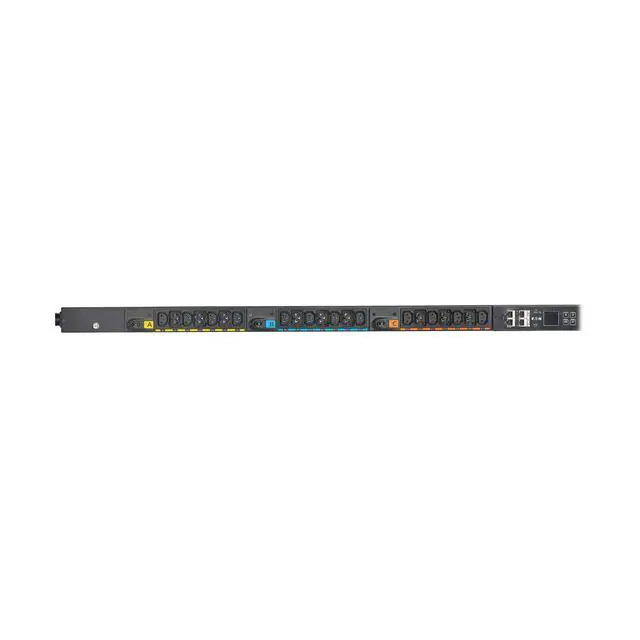

PDU Form Factor Vertical (0U)
