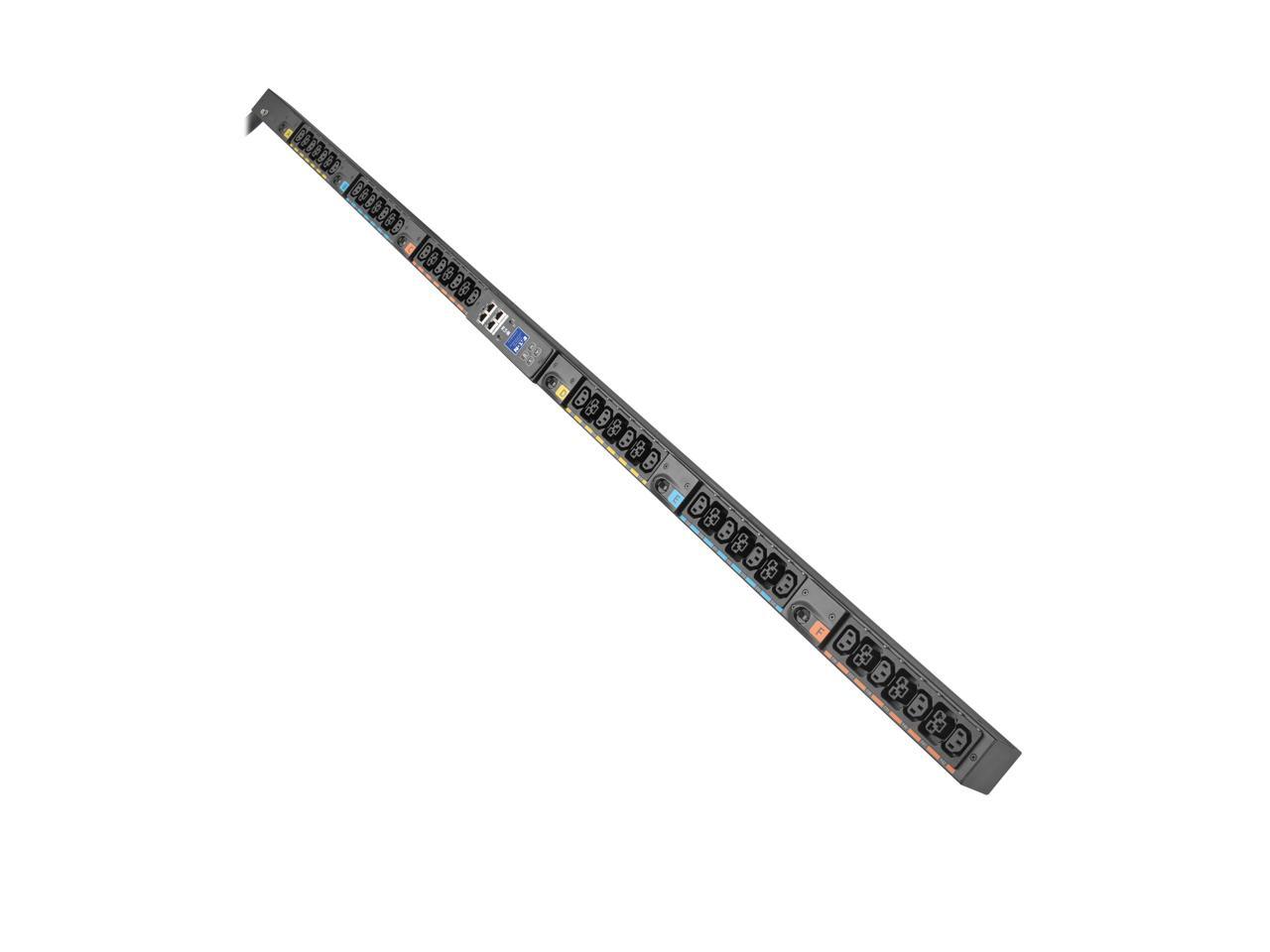

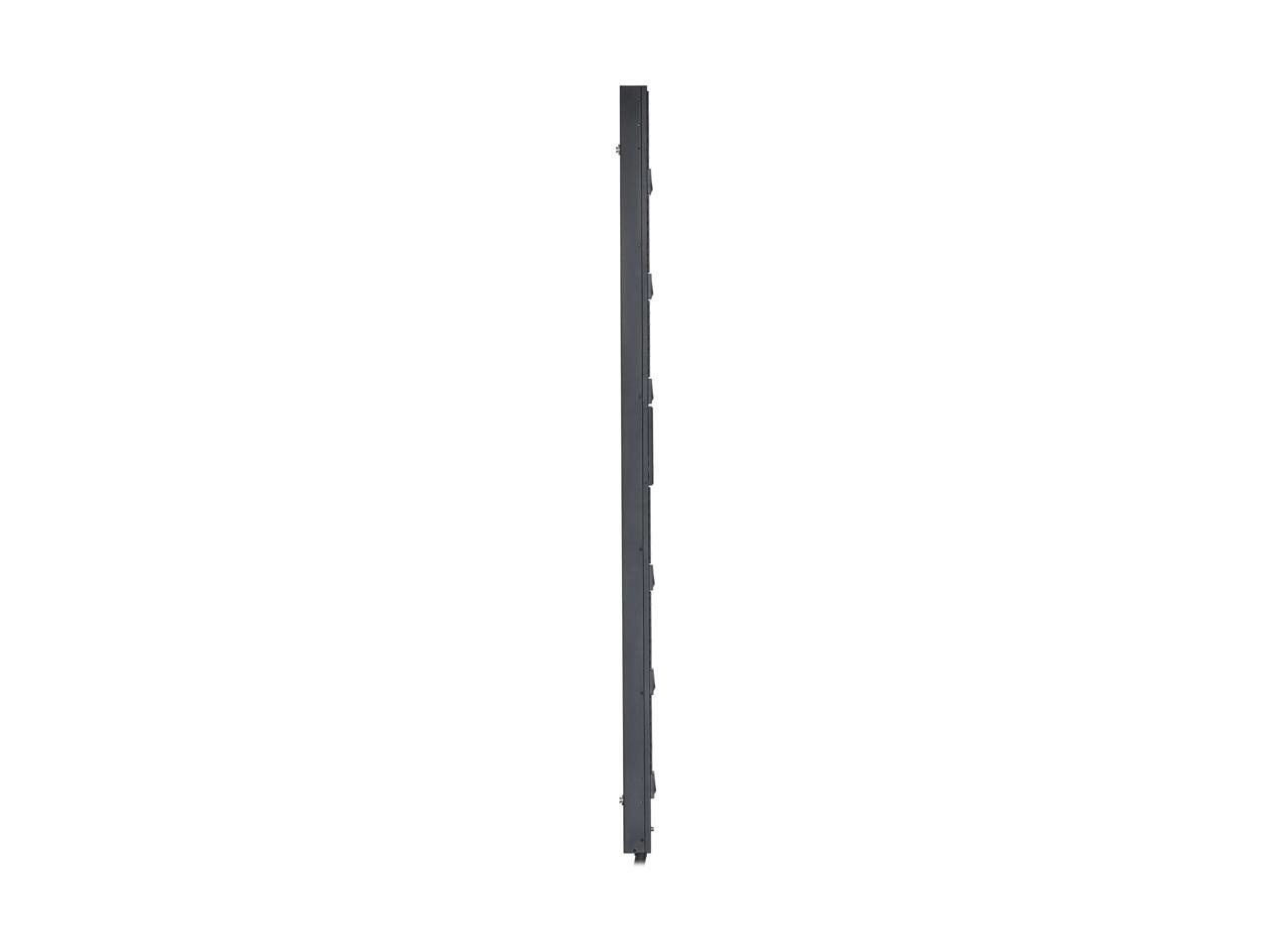

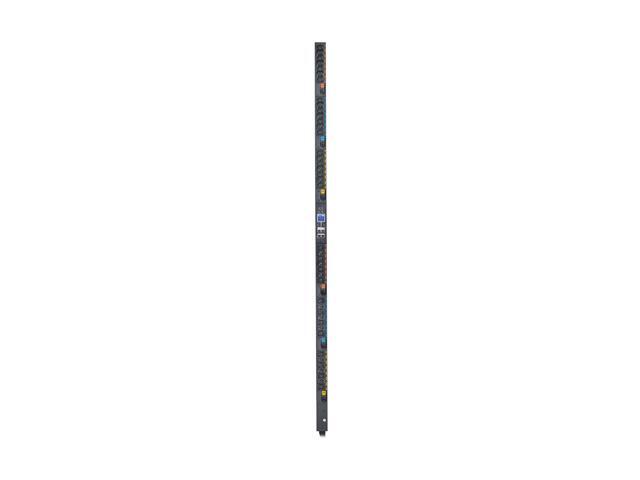

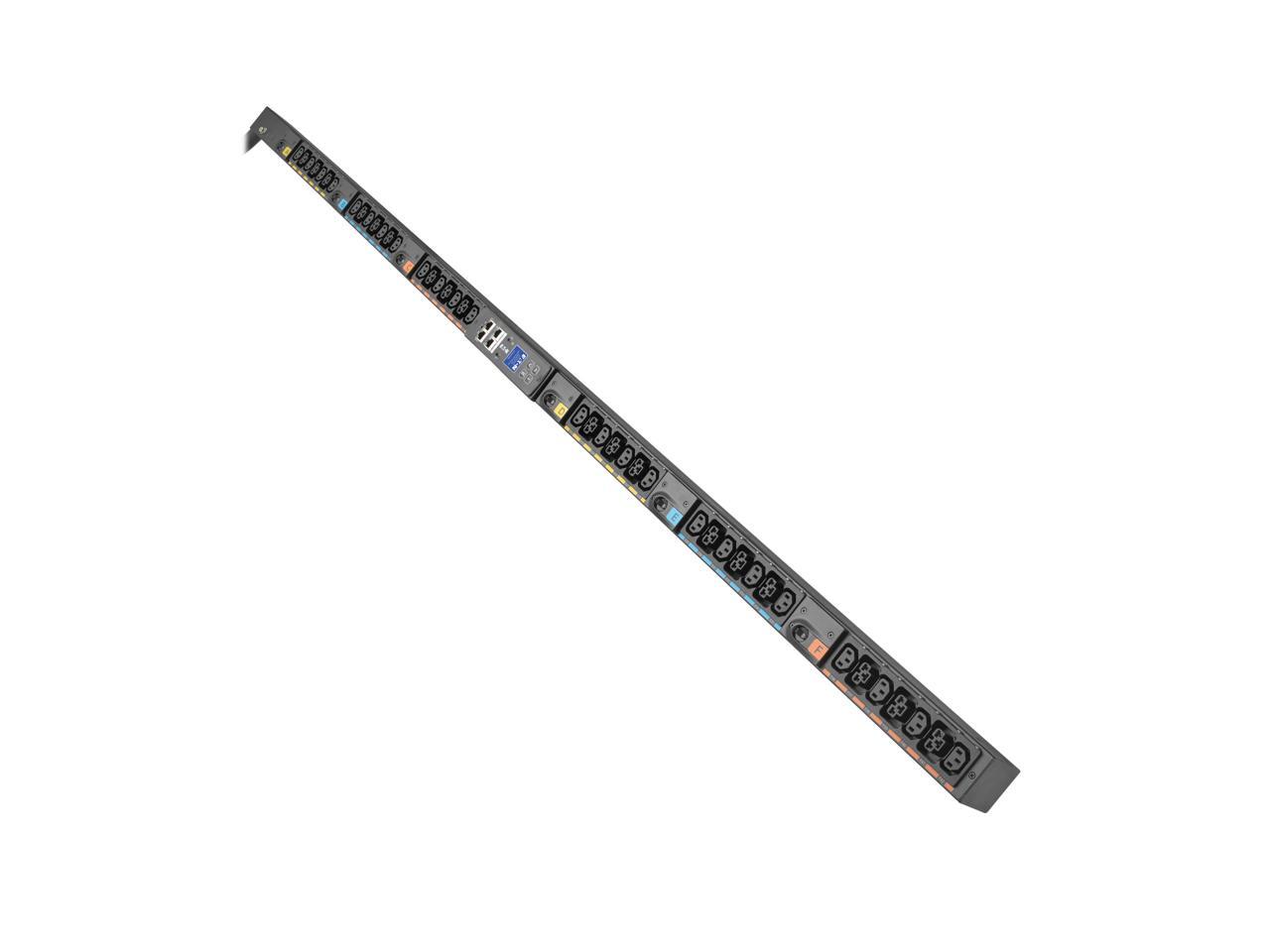

Eaton EVMA4609X 3-Phase Managed Rack PDU G4, 208V, 42 Outlets, 48A, 17.3kW, 460P9W Input, 10 ft. Cord, 0U Vertical

PDU Type Managed
Input Phase 3-Phase
PDU Input Voltage 208V
Nominal Input Voltage Description 3P: 208V
Recommended Electrical Service Three-phase 208V service
Maximum Input Amps 60

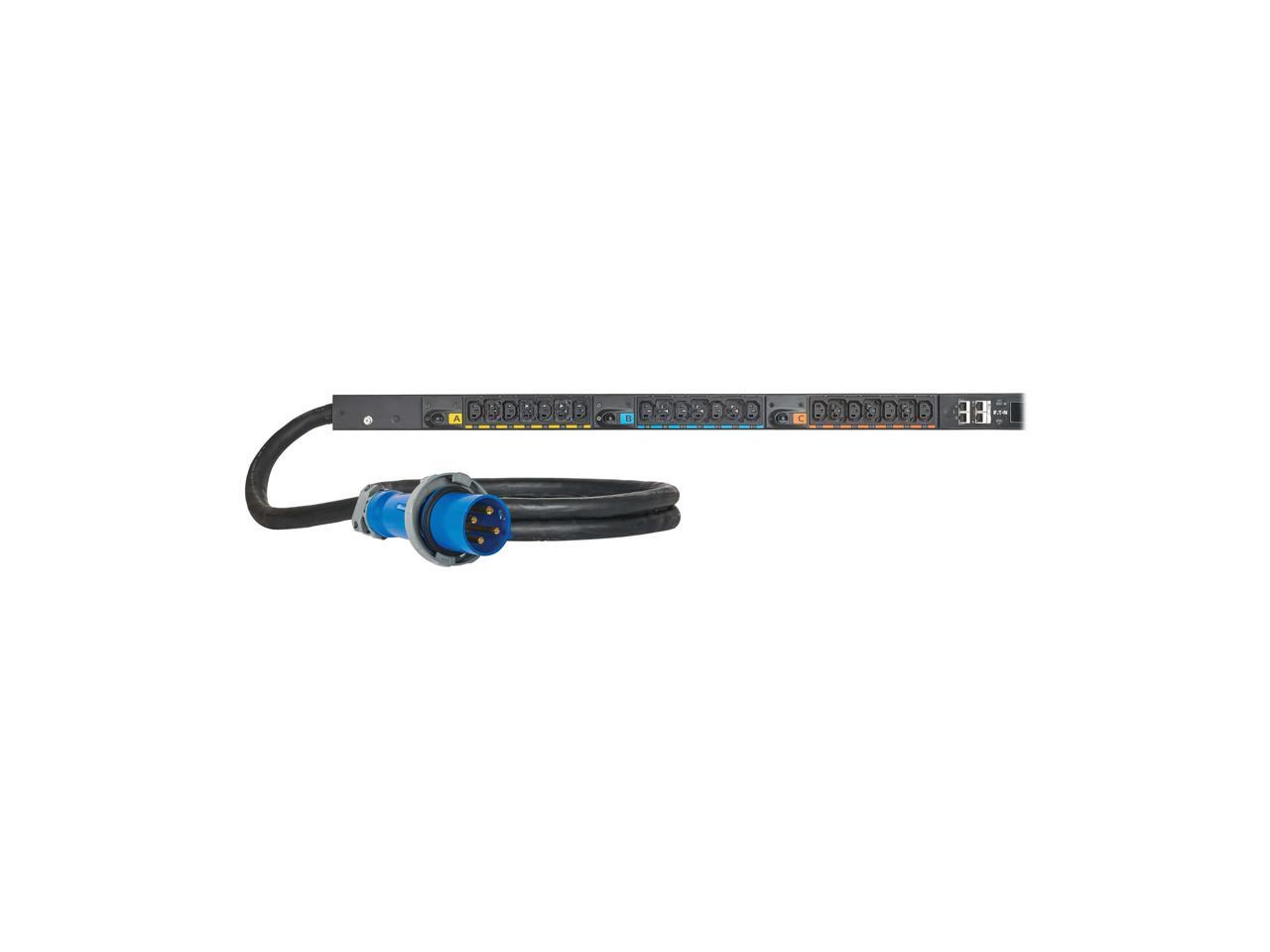

Input Connection Type 460P9W
PDU Plug Type 460P9W
Voltage Compatibility (VAC) 208; 3-Phase
Input Plug Type 460P9W
Input Cord Details 460P9W
Input Cord Length (ft.) 10
Output Capacity (kVA) 17.3
Output Capacity (Watts) 17300
Output Capacity (kW) 17.3
Output Capacity Details 17.3kW (208V) total capacity; 48A max per output phase
Frequency Compatibility 50 / 60 Hz

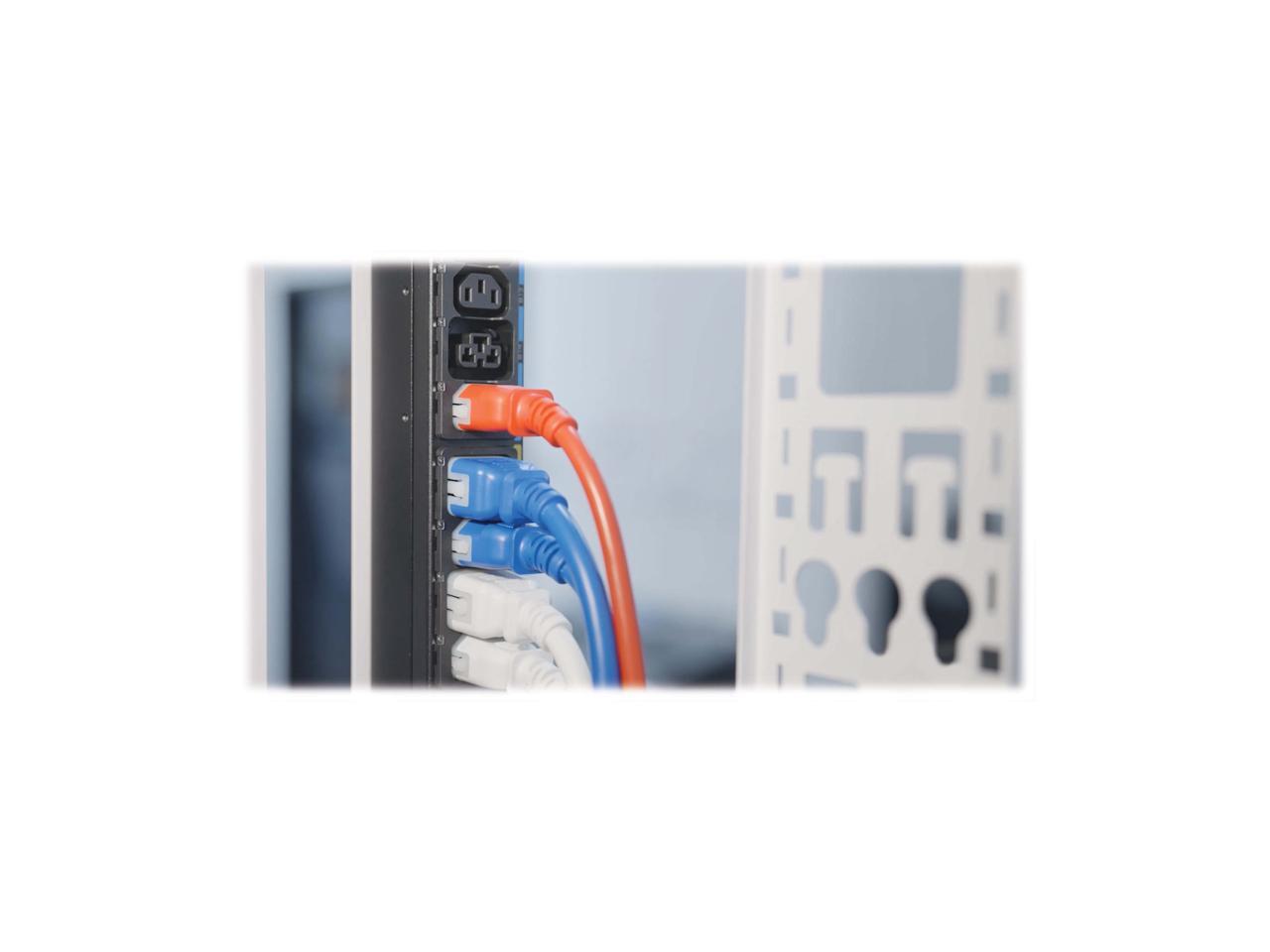

Output Receptacle Details C39 Compatible with P-Lock Power Cords

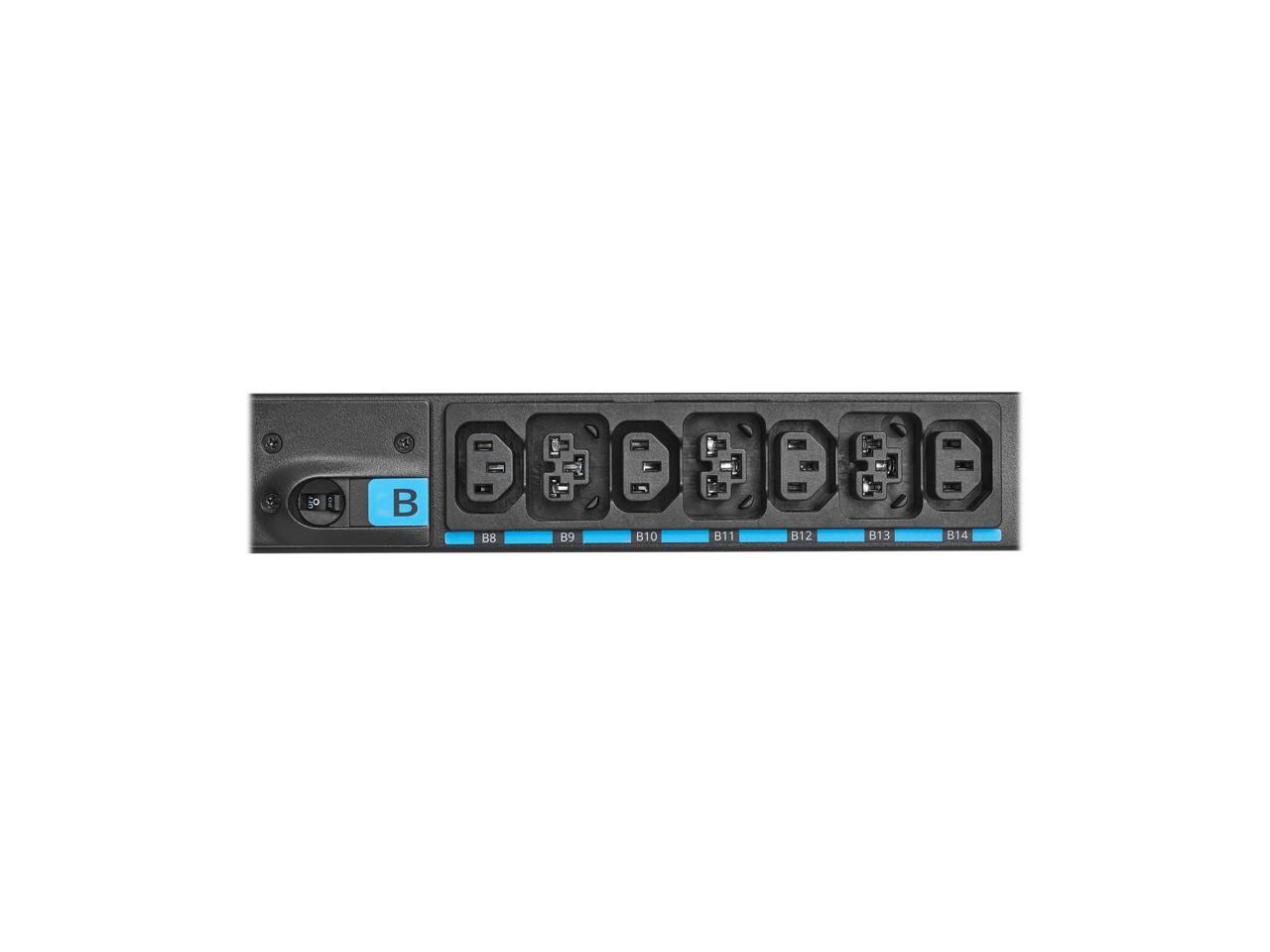

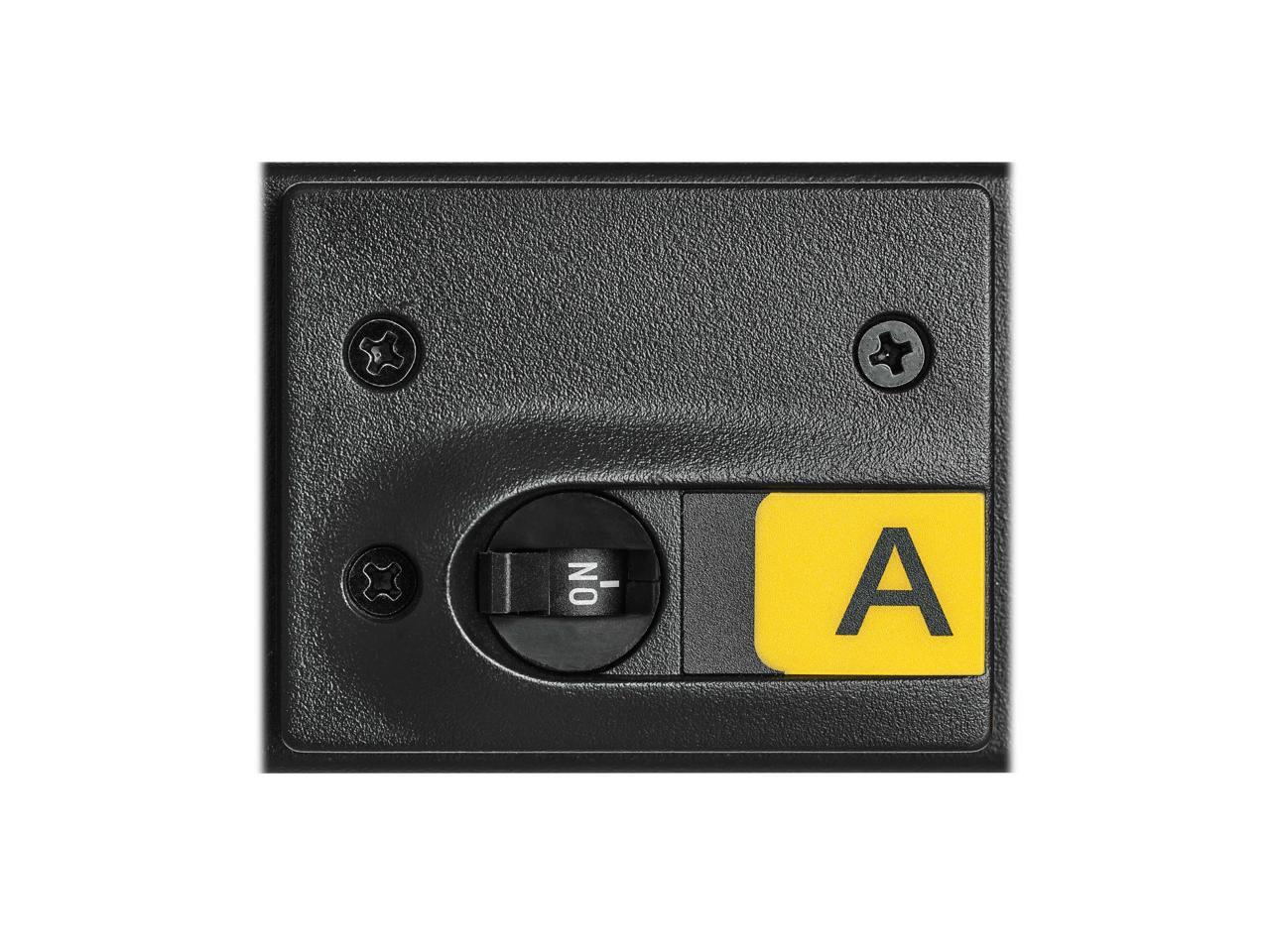

Output Circuit Breakers (6) low-profile circuit breakers. 20A (US). One circuit breaker per outlet bank.
Nominal Output Voltage(s) Supported 208V

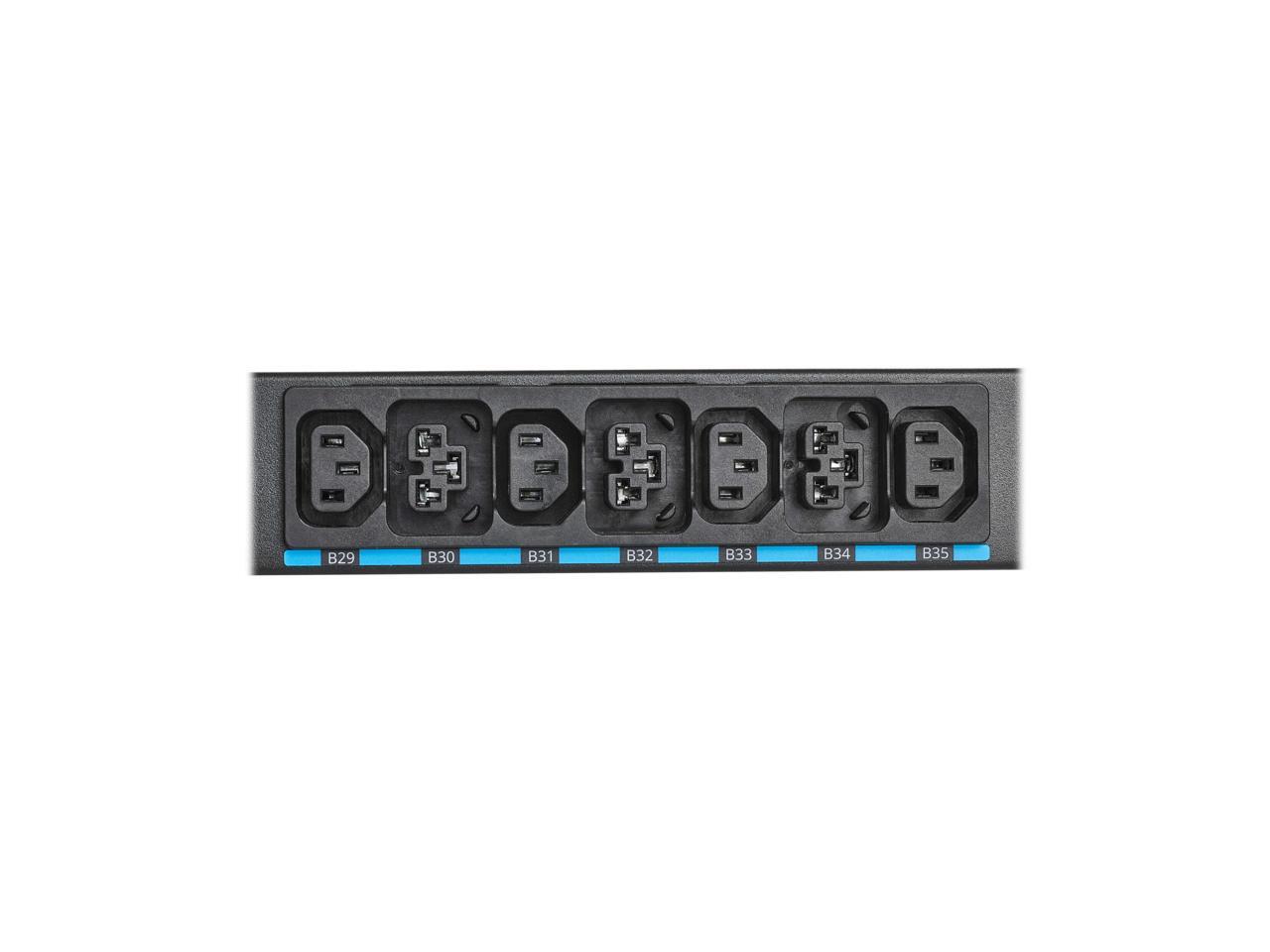

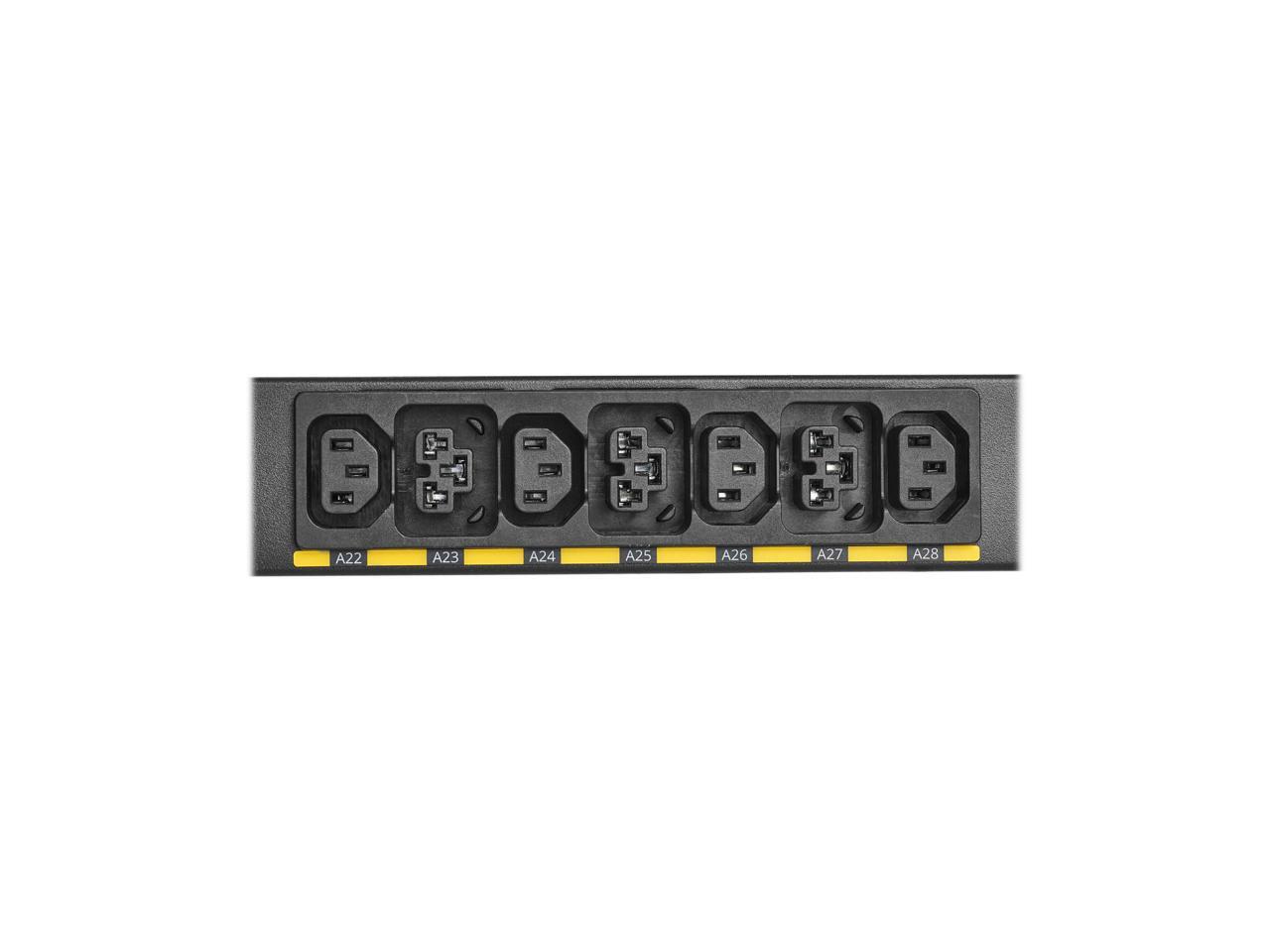

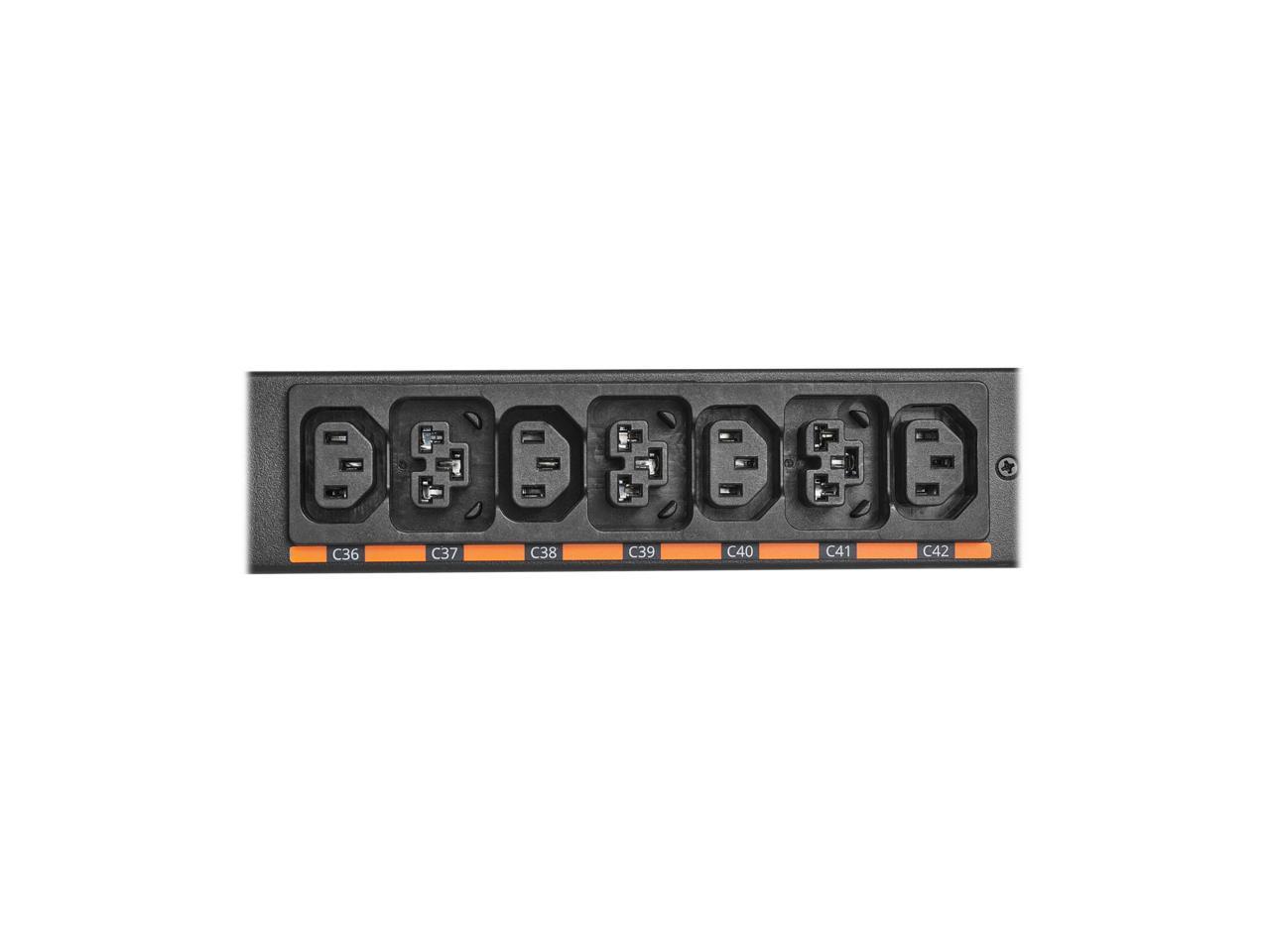

Output Receptacles (24) C13; (18) C39
Overload Protection (6) 2-pole 20A circuit breakers

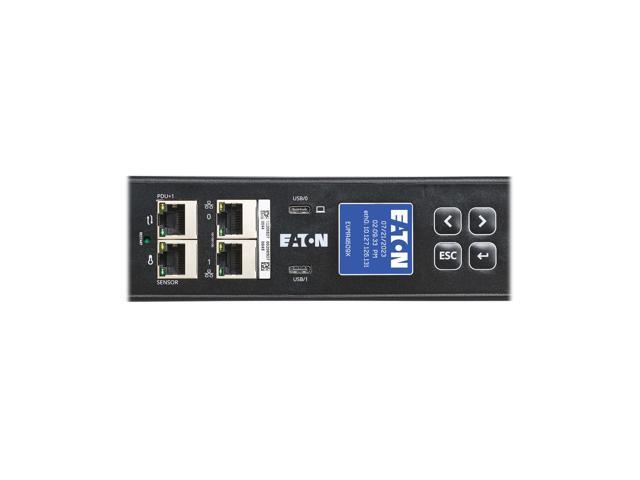

Ethernet Interface Yes
Serial Interface Yes
Daisy-chainable / Cascadable Yes
Daisy-chainable / Cascadable Details Cascade up to 40 PDUs
Material of Construction Aluminum
Rack Height 0U
Form Factors Supported Vertical
Housing Color Black

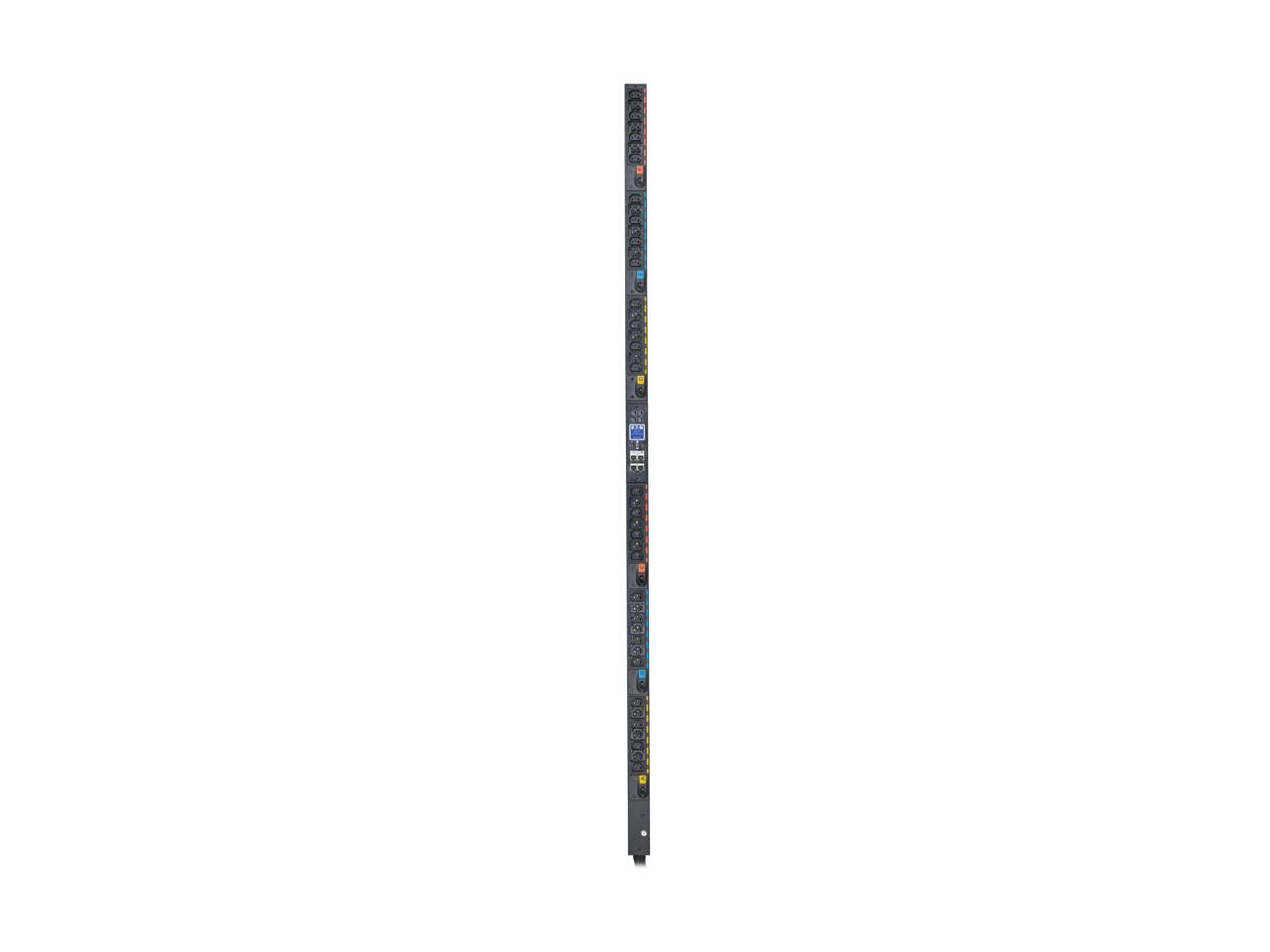

PDU Form Factor Vertical (0U)
Shipping Dimensions (hwd / in.) 79.00 x 9.29 x 5.40
