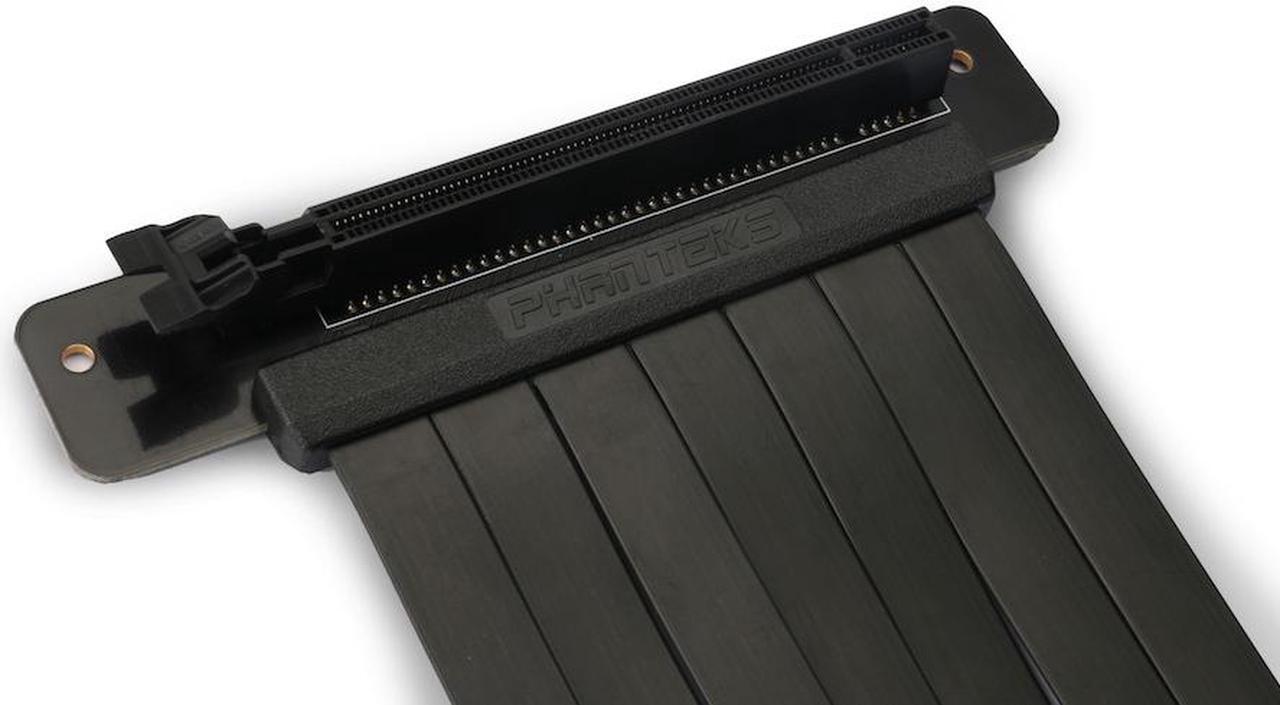

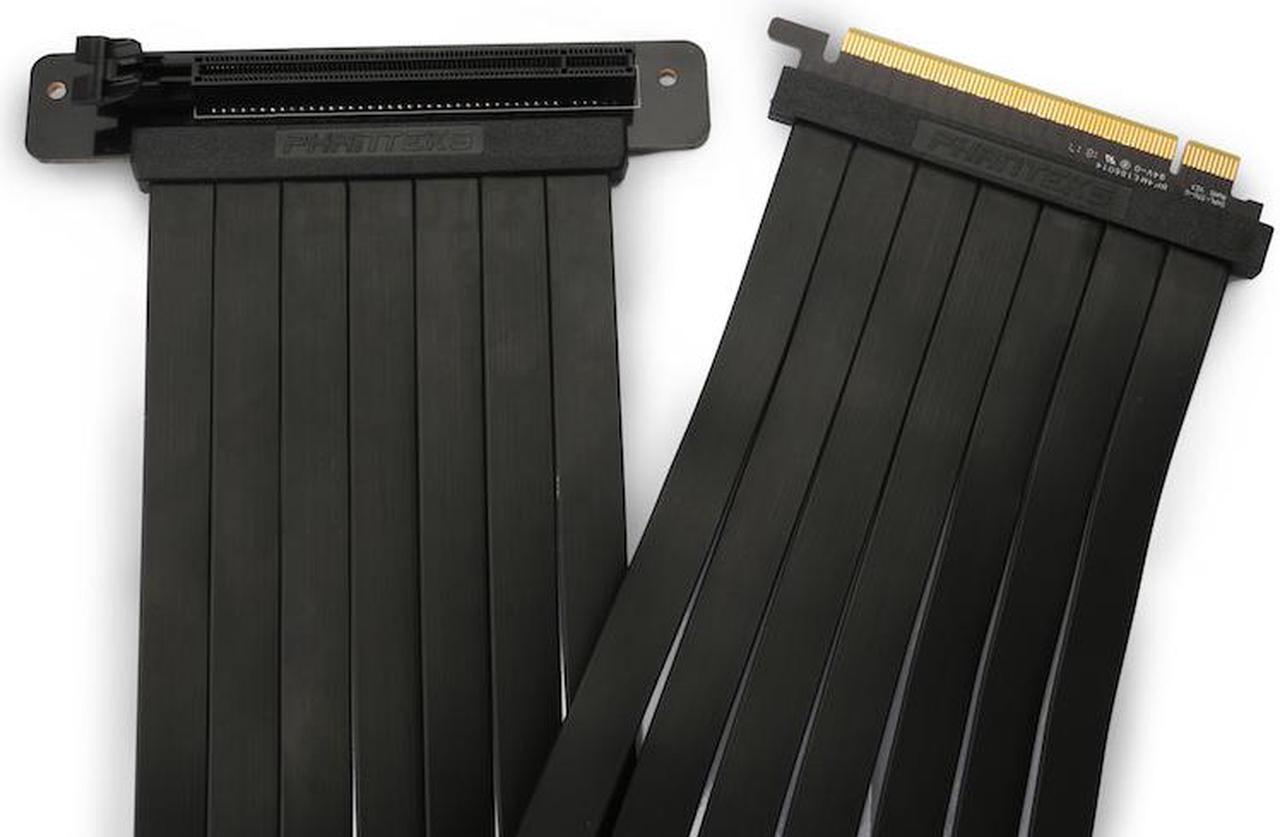

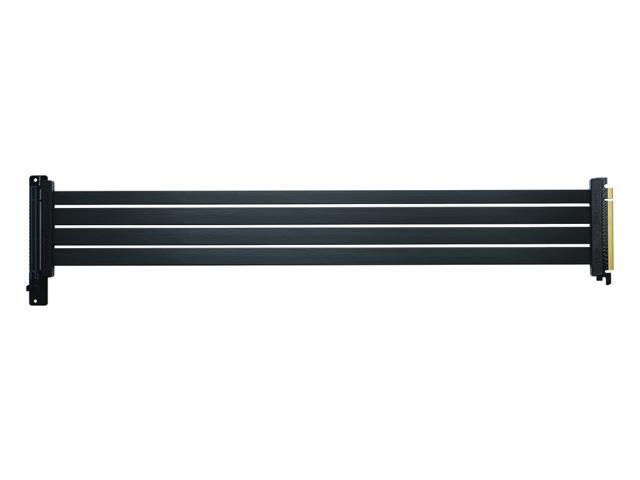

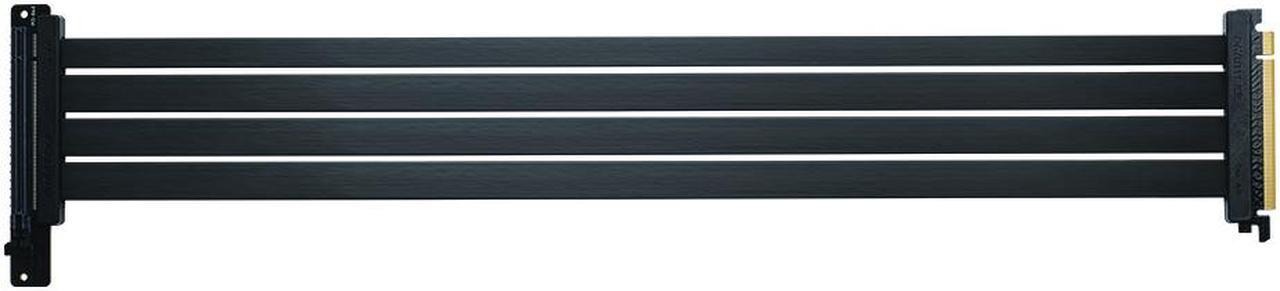

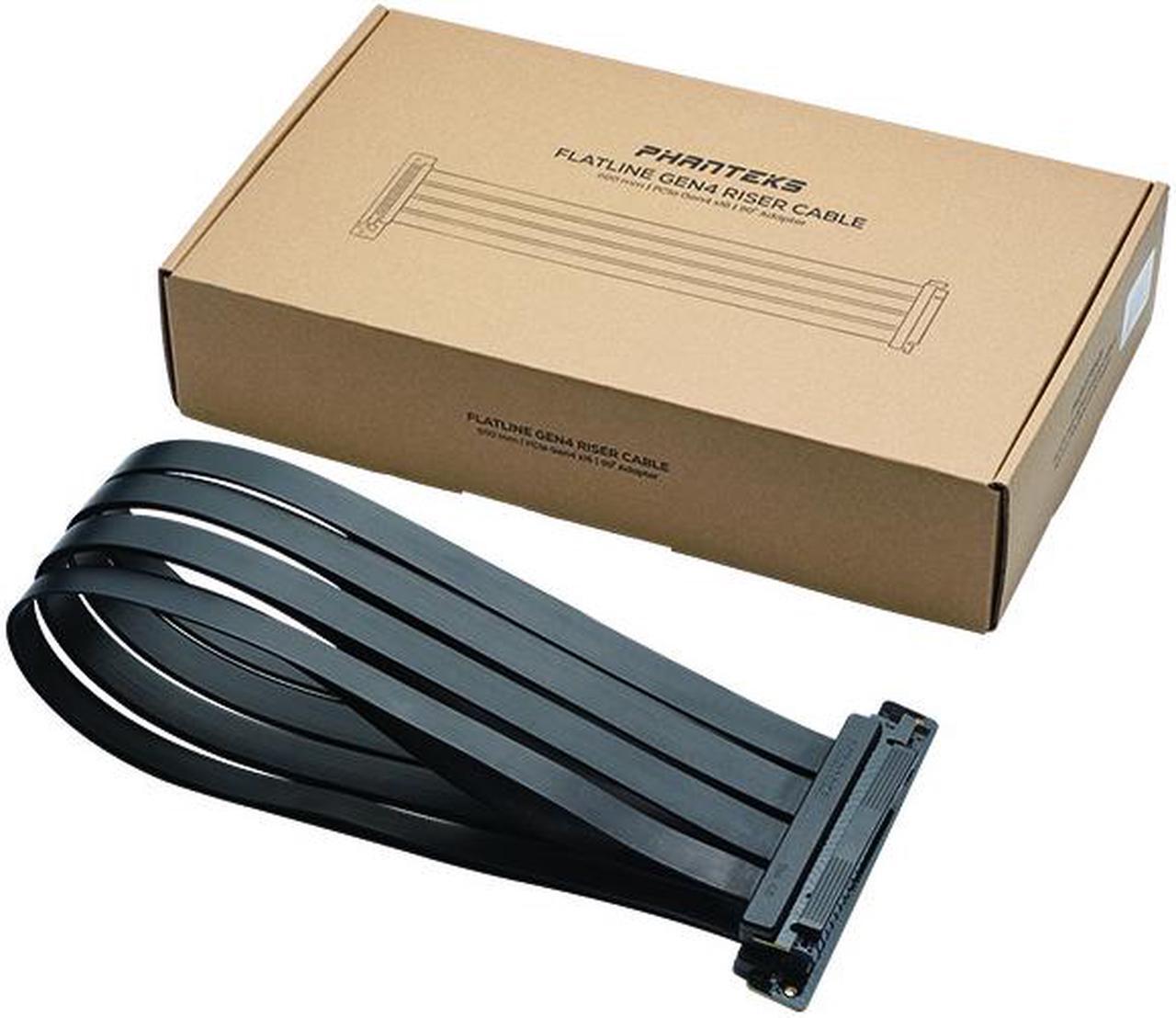

FLAT LINE PCIe GEN4 RISER CABLE
PCIe GEN4 RISER CABLES
The Phanteks Flat Line PCIe Gen4 x16 Riser Cable unlocks the full potential of any high-end Gen4 graphics card.
The dual layer design improves the performance and stability of the high bandwidth signals ensuring the system is running stable and reliable.
Each individual laneway is shielded from EMI/EFI interference to prevent interference between channels to further improve signal integrity.
Dual layer design for high stability and full PCIe Gen4 x16 speeds
Individual laneway shielding to prevent external EMI/EFI and interference between channels
Flexible form factor allows for easier installation and orientation
Gold-plated connectors for super conductive capacity and lossless signals
High-quality soldered contacts for better signal integrity
The MacBook Pro is powered by powerful Intel Core i5 dual-core processor that features a burst speed of up to 3.1 GHz.
Flat Line 150mm PCIe Gen4 Riser Cable 90 |
Flat Line 220mm PCIe Gen4 Riser Cable 90 |
Flat Line 300mm PCIe Gen4 Riser Cable 180 |
Flat Line 600mm PCIe Gen4 Riser Cable 90 |
|
|
Chassis Support |
Enthoo 719, Pro 2, P200 and future cases | Evolv X, P500, G500, P600, VGPU kit and future cases | Enthoo Elite | Evolv X (Dual-system GPU), other future cases |
|
Application |
Vertical GPU riser extender | Vertical GPU riser extender | Vertical GPU riser extender | Vertical GPU riser extender |
|
Length |
150 mm / 5.9 in | 220mm / 8.66 in | 300mm / 11.8 in | 600 mm / 23.62 in |
|
Weight |
76 gram | 92.2 gram | 109.6 gram | 206 gram |
|
PCI-E Generation |
PCIe Gen4 | PCIe Gen4 | PCIe Gen4 | PCIe Gen4 |
|
Adapter Type |
90 degrees | 90 degrees | 180 degrees | 90 degree |
|
Operation Voltage / Current |
12V / 5.5A | 12V / 5.5A | 12V / 5.5A | 12V / 5.5A |
|
Wattage throughput |
66W | 66W | 66W | 66W |
|
PCB / Wire UL Numbers |
E189572 / E252840 | E189572 / E252840 | E189572 / E252840 | E189572 / E252840 |
Graphics card is not included. It is only for demonstration.
