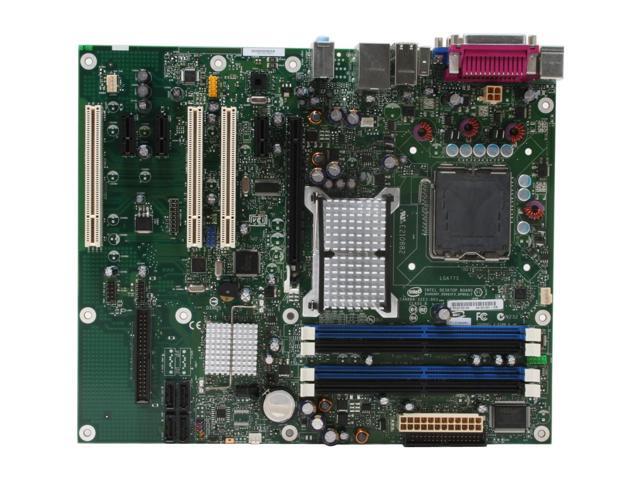

Intel BLKDG965RYCK LGA 775 Intel G965 Express ATX Intel Motherboard - OEM
- Intel G965 Express
- Core 2 Duo / Pentium D / Celeron D
- DDR2 800
Specs
Reviews (37)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BLKDG965RYCK
| Brand | Intel |
|---|---|
| Model | BLKDG965RYCK |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 1066/800 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel G965 Express |
|---|---|
| South Bridge | Intel ICH8 |
| Onboard Video Chipset | Intel GMA X3000 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|
| Audio Chipset | SigmaTel STAC9227 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82566DC |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.6 " x 9.6" |
| Power Pin | 24 Pin |
| Features | Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets. |
|---|
| Package Contents | BLKDG965RYCK Driver Disk Software Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | August 30, 2006 |
|---|
