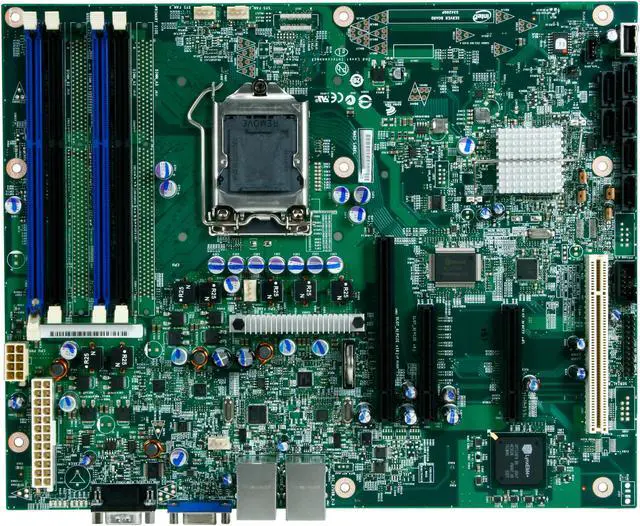

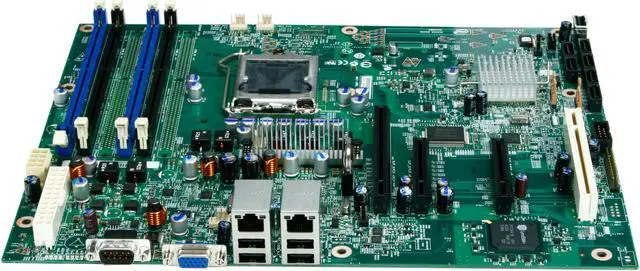

Intel S3420GPV ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333
- LGA 1156
- Intel 3420
- 4 x 240pin
Learn more about the Intel S3420GPV
| Brand | Intel |
|---|---|
| Model | S3420GPV |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Intel Xeon 3400/Core i3/Pentium G6950 |
| North Bridge | Intel 3420 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | 16GB |
| ECC Supported | Yes |
| PCI Express x8 | 1 x PCI Express 2.0 x8 slot (x16 mechanical) 1 x PCI Express 2.0 x8 slot (x8 mechanical) |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 slot (x8 mechanical) |
| PCI Slots | 1 x PCI Slot |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Integrated Graphics |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82578DM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| COM | 1 |
|---|---|
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | April 23, 2010 |
|---|
