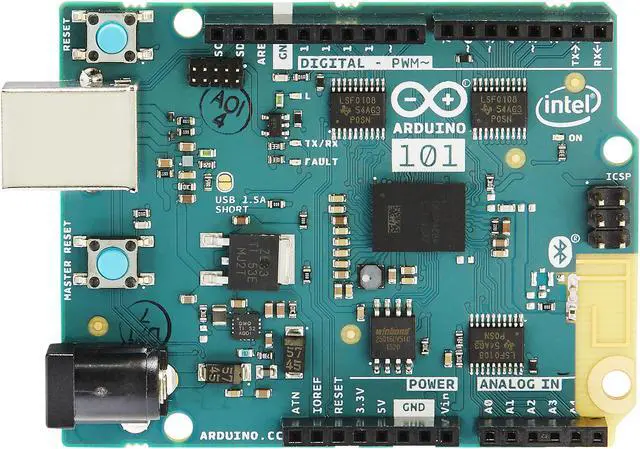

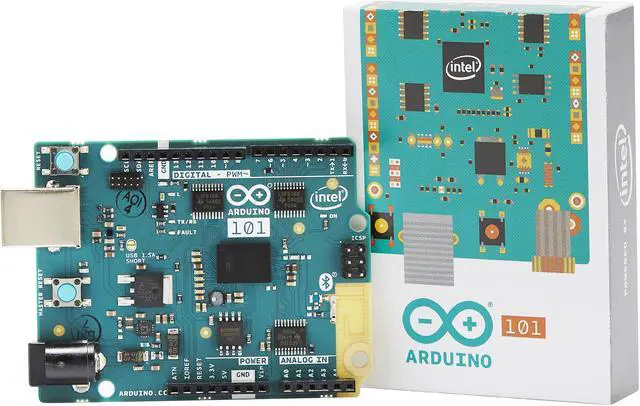

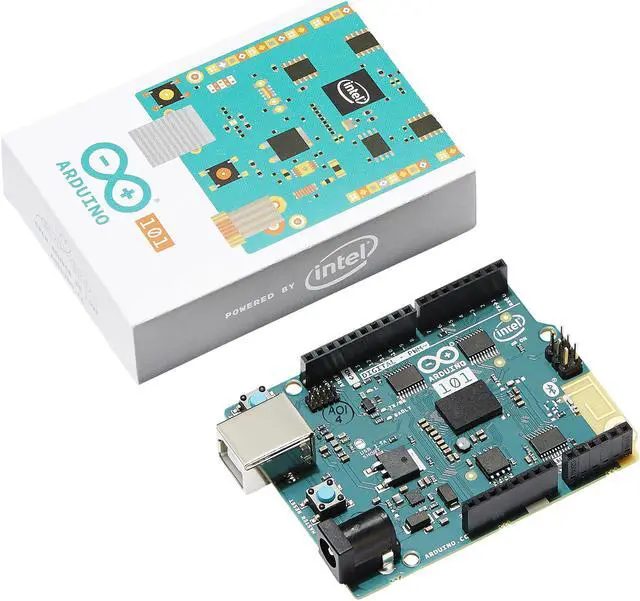

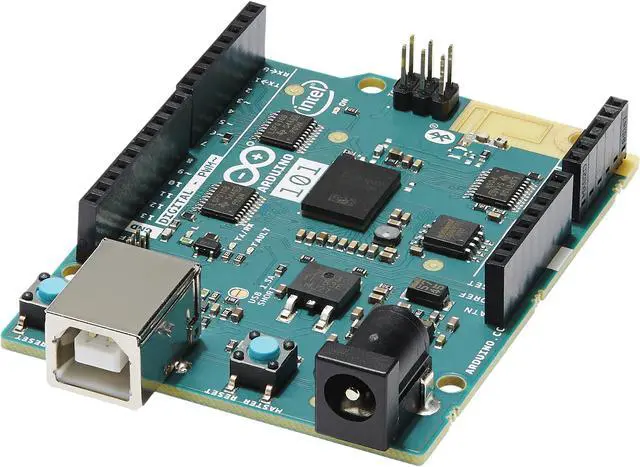

Arduino 101

(2) Write a Review
  • Microcontroller: Intel Curie
  • Operating Voltage: 3.3V (5V tolerant I/O)
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limit): 7-20V
  • Digital I/O Pins: 14 (4 provide PWM output)
  • PWM Digital I/O Pins: 4
  • Analog Input Pins: 6
  • DC Current per I/O Pin: 20 mA
  • Flash Memory: 196 kB
  • SRAM: 24 kB
  • Clock Speed: 32MHz
  • Bluetooth LE
  • 6-axis accelerometer/gyro
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel ATLASEDGE.1

Model
Brand Intel
Model ATLASEDGE.1
Combo Type Motherboard / CPU Combo
Bundle
Memory RAM: 80KB (internal to SoM)
FLASH: 384KB (internal to SoM)
Supported CPU
CPU Type Intel Curie
Onboard LAN
Bluetooth Nordic nRF51822
Features
Features A learning and development board that delivers the performance and low-power consumption of the Intel Curie Module with the simplicity of Arduino at an entry-level price.

It keeps the same robust form factor and peripheral list of the UNO with the addition of onboard Bluetooth LE capabilities and a 6-axis accelerometer/gyro to help you easily expand your creativity into the connected world.

The module contains two tiny cores, an x86 (Quark) and an ARC, both clocked at 32MHz. The Quark core runs ViperOS RTOS and helps the Arduino core to accomplish the most demanding tasks. It comes with 14 digital input/output pins (of which 4 can be used as PWM outputs), 6 analog inputs, a USB connector for serial communication and sketch upload, a power jack, an ICSP header with SPI signals and I2C dedicated pins.

The board operating voltage and I/O is 3.3V but all pins are protected against 5V overvoltage.

The Arduino 101 (USA only) and the Genuino 101 (outside USA) has been designed in collaboration with Intel.
Physical Spec
Dimensions (W x L) 2.70" x 2.10"
Additional Information
Date First Available January 06, 2016
