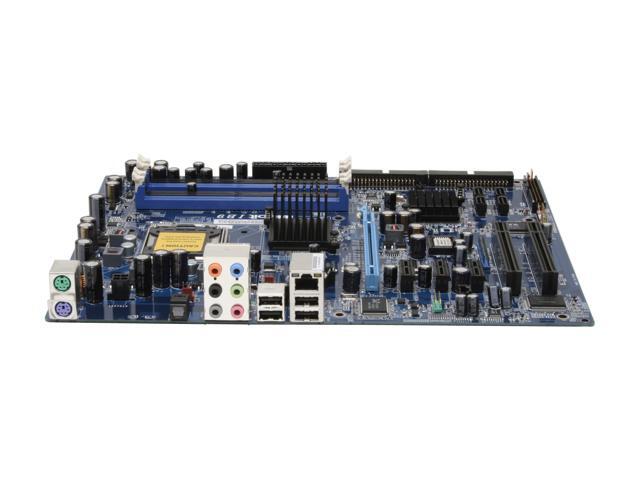

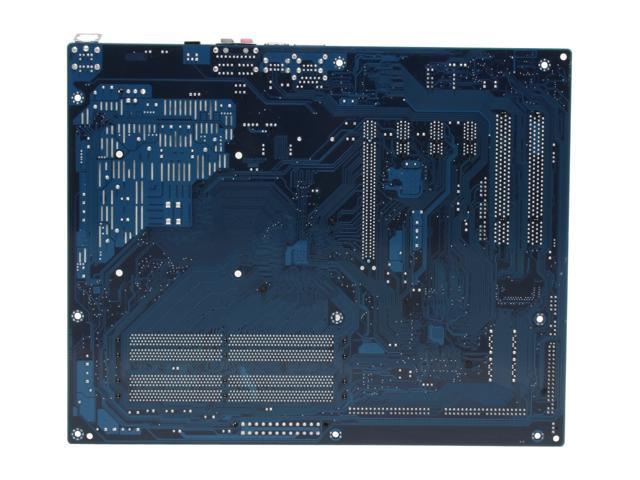

ABIT IB9 LGA 775 Intel P965 Express ATX Intel Motherboard
OPEN BOX Product Type
- Intel P965 Express
- Core 2 Extreme / Core 2 Duo / Pentium D / Celeron
- DDR2 800
Specs
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Universal abit USA IB9
| Brand | ABIT |
|---|---|
| Model | IB9 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Extreme / Core 2 Duo / Pentium D / Celeron |
| Chipset | Intel P965 Express |
|---|---|
| South Bridge | Intel ICH8 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Features | Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets. |
|---|
| First Listed on Newegg | June 11, 2007 |
|---|
