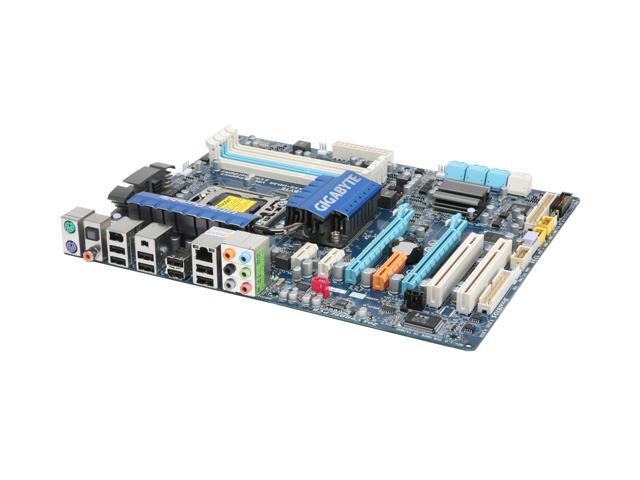

GIGABYTE GA-EX58-UD3R LGA 1366 Intel X58 ATX Intel Motherboard
Used - Very Good Product Type
See more "socket 1366 motherboard"
In stock.
Ships from China.
Most customers receive within 5-32 days.
- Intel X58
- Core i7 (LGA1366)
- DDR3 2000+ / 1333 / 1066
Specs
Learn more about the GIGABYTE GA-EX58-UD3R
| Brand | GIGABYTE |
|---|---|
| Model | GA-EX58-UD3R |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| FSB | QPI 6.4GT/S |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR3 2000+ / 1333 / 1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 8 x SATA 3Gb/s |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111D |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0/1.1 headers |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Package Contents | GA-EX58-UD3R Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| Date First Available | September 09, 2020 |
|---|
