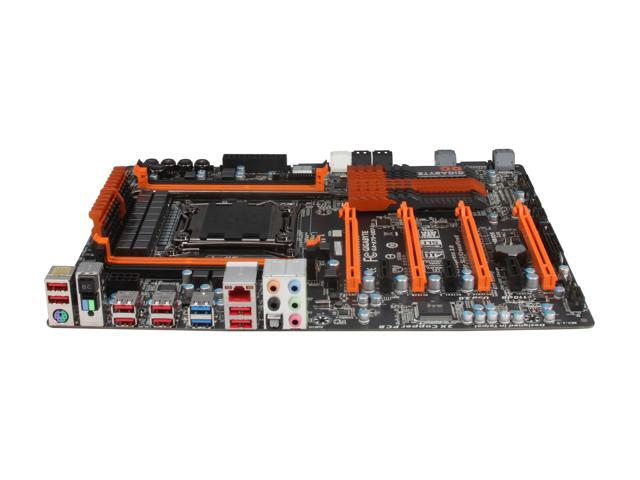

Main image of GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

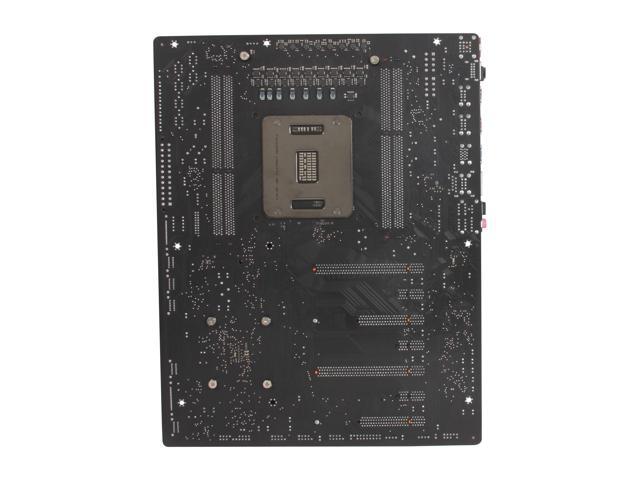

Alt view image 2 of 5 - GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

Alt view image 3 of 5 - GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

Alt view image 4 of 5 - GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

Alt view image 5 of 5 - GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

Shop All GIGABYTE Products

GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

Name: GIGABYTE GA-X79-UD7 LGA 2011 XL ATX Intel Motherboard
Brand: GIGABYTE
SKU: N82E16813128534
Rating: 3 (11 reviews)

(11) Write a Review

Intel X79
Core i7 (LGA2011) / Xeon (LGA2011)
DDR3 2133/1866/1600/1333/1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-626-854-9338
Support Website
View other products from GIGABYTE

Number of Memory Slots	4x240pin
Memory Standard	DDR3 2133/1866/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Quad Channel

PCI Express 3.0 x16	4 (x16, x8, x16, x8)
PCI Express x1	3 x PCI Express x1

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	X79 chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) and 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) support RAID 0, RAID 1, RAID 5, and RAID 10 * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected. 2 x Marvell 88SE9172 chips: 4 x SATA 6Gb/s connectors (GSATA3 6/7/8/9) support SATA RAID 0 and RAID 1

Audio Chipset	Realtek ALC898
Audio Channels	8 Channels

Back I/O Ports	1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 8 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
USB 3.0	2 x USB 3.0
USB 1.1/2.0	8 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

GIGABYTE GA-X79-UD7 LGA 2011 Intel X79 USB 3.0 XL ATX Intel Motherboard

Learn more about the GIGABYTE GA-X79-UD7

Customer Reviews of the GIGABYTE GA-X79-UD7

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

CPU Socket Type	LGA 2011
CPU Type	Core i7 (LGA2011) / Xeon (LGA2011)

Onboard USB	2 x USB 3.0 + 6 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x PCIe power connectors 1 x CPU fan header 6 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Clear CMOS jumper 1 x power button 1 x reset button 1 x onboard voltage measurement module 1 x Gear button 1 x CPU BCLK Down button 1 x CPU BCLK Up button 1 x CPU Ratio Down button 1 x CPU Ratio Up button 1 x Trusted Platform Module (TPM) header

Form Factor	XL ATX
Dimensions (W x L)	12.76" x 9.96"
Power Pin	24 Pin

Model
Brand	GIGABYTE
Model	GA-X79-UD7

Item#: N82E16813128534
