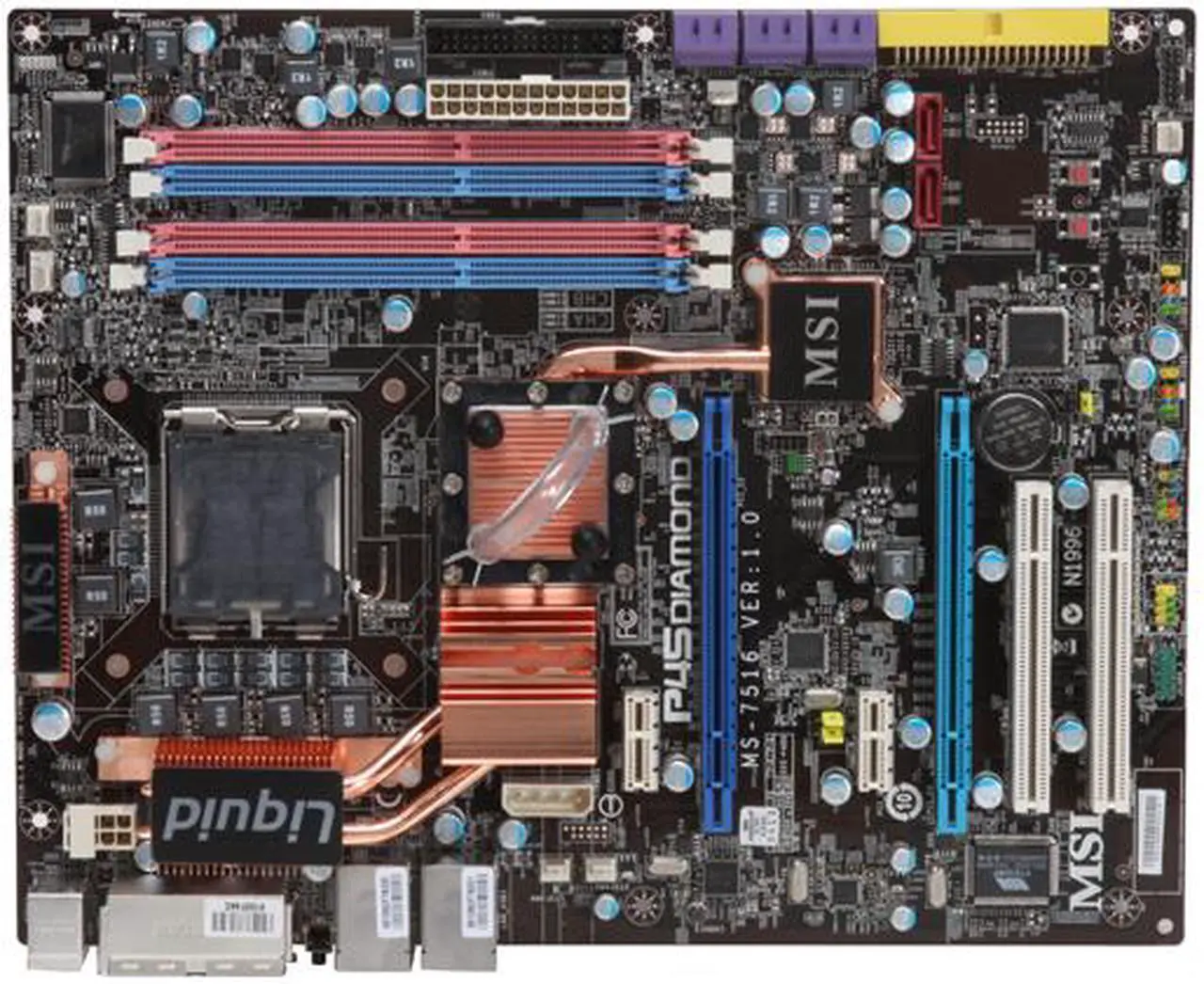

Main image of MSI P45 Diamond LGA 775 Intel P45 ATX Intel Motherboard

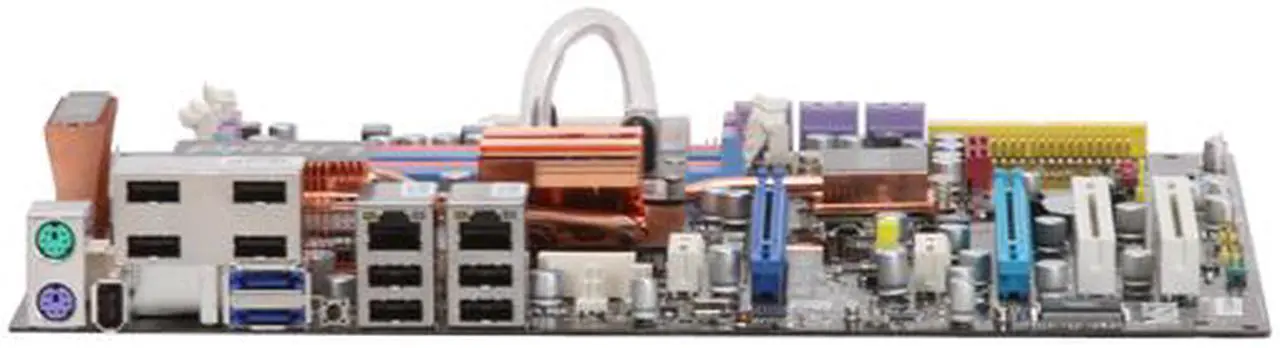

Alt view image 2 of 5 - MSI P45 Diamond LGA 775 Intel P45 ATX Intel Motherboard

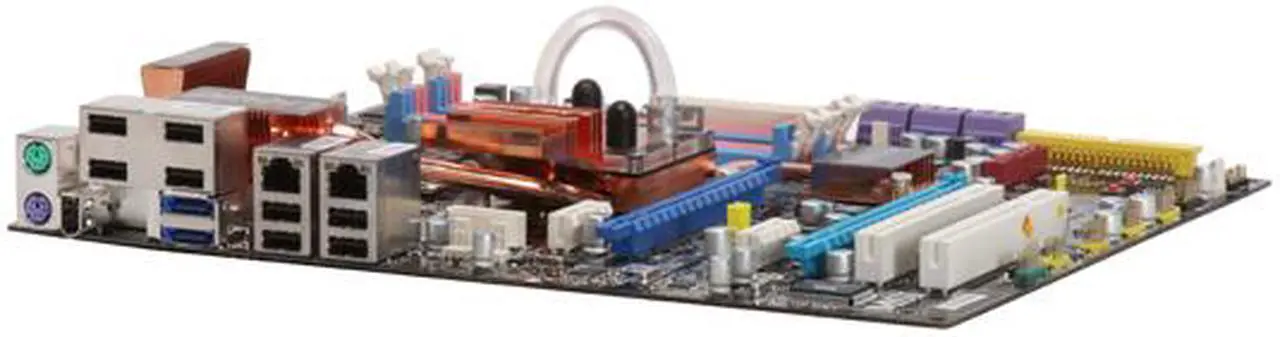

Alt view image 3 of 5 - MSI P45 Diamond LGA 775 Intel P45 ATX Intel Motherboard

Alt view image 4 of 5 - MSI P45 Diamond LGA 775 Intel P45 ATX Intel Motherboard

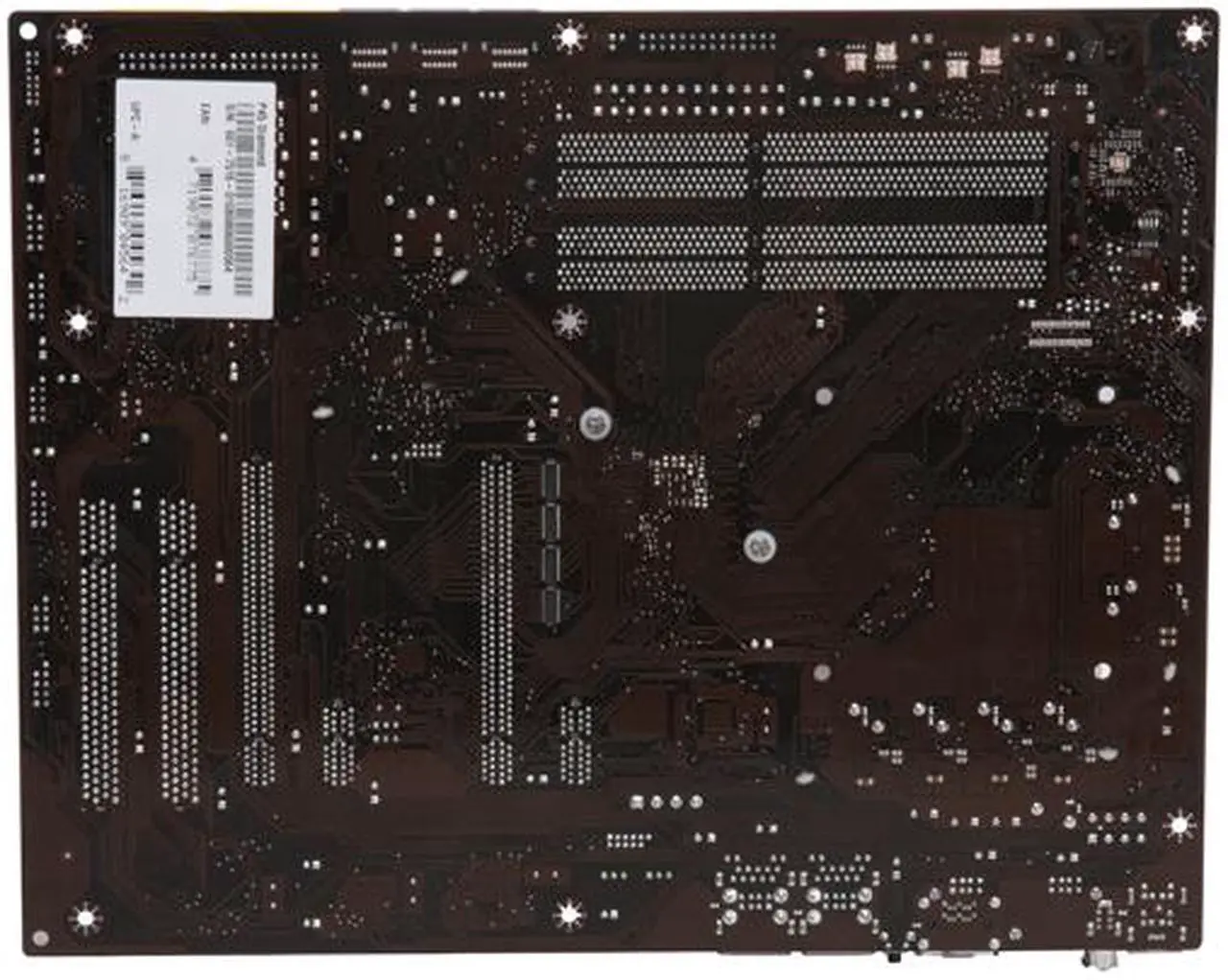

Alt view image 5 of 5 - MSI P45 Diamond LGA 775 Intel P45 ATX Intel Motherboard

Shop All MSI Products

MSI P45 Diamond LGA 775 Intel P45 ATX Intel Motherboard

(9) Write a Review

Intel P45
Core 2 Quad / Core 2 Extreme / Core 2 Duo
DDR3 2000(O.C) / 1600 (O.C.) / 1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (9)

Any questions? Our AI beta will help you find out quickly.

Try me now

The P45 Diamond Desktop Board is based on Intel P45 & ICH10R chipsets for optimal system efficiency. Designed to fit the advanced Intel Core 2 Extreme/Quad/Duo, Pentium Dual-Core and Celeron LGA775 processor, the P45 Diamond Desktop Board delivers a high performance and professional desktop platform solution.

Model
Brand	MSI
Model	P45 Diamond

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB	1600(O.C.)/1333MHz

Chipsets
Chipset	Intel P45
South Bridge	Intel ICH10R

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 2000(O.C) / 1600 (O.C.) / 1333
Maximum Memory Supported	8GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	2 x PCI Express 2.0 x16 slots When using two PCIE x16 slots, the PCIE x16 lanes wil auto arrange from x16/x0 to x8/x8
PCI Express x1	2 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Creative SB X-Fi Xtreme H/W Audio Card (MS-4132)
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111C
Second LAN Chipset	Realtek 8111C
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
USB 1.1/2.0	8 x USB 2.0
IEEE 1394	1 x IEEE 1394a
eSATA	2 x eSATA 3Gb/s
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.2" x 9.8"
Power Pin	24 Pin

Features
Features	DrMOS – innovative power efficiency design GreenPower – High Efficiency Xpress Cool - Circu-Pipe 2 Extreme Cooling RapidBoost – Ultimate OC on CPU/MEM/VGA CrossFireX Technology Water-cooling ready HDD Backup – Enhanced Data Backup /Restore Utility 100% Solid Capacitors & Chokes - Best Quality

Packaging

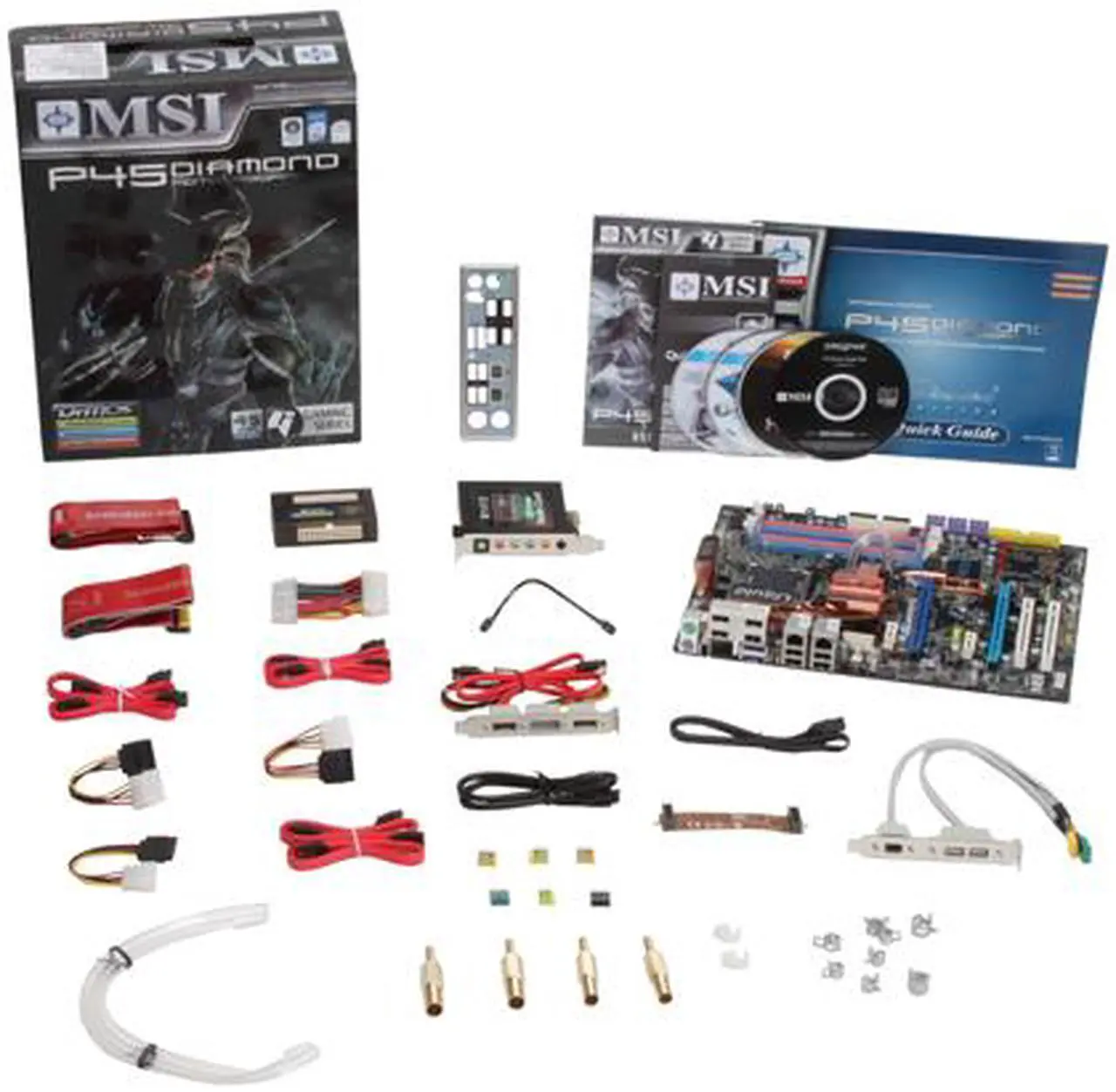

Package Contents	P45 Diamond Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable X-Fi Xtreme Audio Card IEEE 1394 & USB Bracket eSATA Bracket CrossFire Bridge Water Cooling Accessories

Additional Information
First Listed on Newegg	June 11, 2008
